2010 Lexus IS F clock

TABLE OF CONTENTSIndex
10_IS F_U
4
Setting a mobile phone ............... 291
Security and system setup ........ 296
Using the phone book............... 300
3-5. Using the interior lights Interior lights list........................... 306
• Interior lights .............................. 308
• Personal lights ........................... 308
3-6. Using the storage features List of storage features................ 310
• Glove box...................................... 310
• Console box ................................... 311
• Overhead console..................... 312
• Cup holders.................................. 313
• Bottle holders/door pockets ................................ 315
3-7. Other interior features Sun visors.......................................... 316
Vanity mirrors ................................. 317
Clock .................................................. 318
Satellite switches ........................... 319
Ashtrays ........................................... 322
Cigarette lighter ........................... 323
Power outlet ................................... 324
Seat heaters .................................... 325
Armrest ............................................ 327
Trunk storage extension........... 328
Coat hooks .................................... 330
Floor mat........................................... 331
Trunk features................................ 332
Garage door opener................. 335 Compass........................................... 341
Safety Connect ............................. 345
4-1. Maintenance and care Cleaning and protecting the vehicle exterior................... 354
Cleaning and protecting the vehicle interior .................... 357
4-2. Maintenance Maintenance requirements .... 360
General maintenance ................ 362
Emission inspection and maintenance (I/M)
programs ...................................... 365
4-3. Do-it-yourself maintenance Do-it-yourself service precautions .................................. 366
Hood.................................................. 369
Positioning a floor jack............... 370
Engine compartment.................. 372
Tires .................................................. 386
Tire inflation pressure................. 397
Wheels............................................... 401
Air conditioning filter................. 403
Electronic key battery ............... 406
Checking and replacing fuses ............................................... 408
Headlight aim................................. 422
4Maintenance and care

10_IS F_U
13
Without navigation system (type A)
Clock

P. 318
Audio
system

P. 207
Air conditioning
system
P. 198
Rear window and out-
side rear view mirror
defoggers
P. 206
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
A
Clock

P. 318
Audio
system

P. 207
Air conditioning
system
P. 198
Rear window and out-
side rear view mirror
defoggers
P. 206
Security indicator
P. 78, 80
Emergency
flasher switch
P. 430
Without navigation system (type B)

10_IS F_U
14
Pictorial indexInstrument panel
A
Navigation
system
*1
Clock P. 318
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
Air conditioning
system
*1
With navigation system (type A)Rear window and
outside rear view
mirror defoggers
*1
Audio system*1
Navigation
system
*1
Clock P. 318
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
Air conditioning
system
*1
With navigation system (type B)Rear window and
outside rear view
mirror defoggers
*1
Audio system*1

Interior features3
197
10_IS F_U
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system .... 257
Using the Bluetooth®
audio system ......................... 260
Operating a Bluetooth
®
enabled portable player .... 265
Setting up a Bluetooth
®
enabled portable player .... 268
Bluetooth
® audio system
setup ......................................... 274
3-4. Using the hands-free phone system
(for mobile phones)
Hands-free system for mobile phones ...................... 275
Using the hands-free system (for mobile phones)............. 279
Making a phone call .............. 287
Setting a mobile phone.......... 291
Security and system setup ........................................ 296
Using the phone book.......... 300
3-5. Using the interior lights Interior lights list ..................... 306
• Interior lights ....................... 308
• Personal lights ..................... 308 3-6. Using the storage features
List of storage features.......... 310
• Glove box ............................... 310
• Console box ........................... 311
• Overhead console............... 312
• Cup holders ........................... 313
• Bottle holders/door pockets ......................... 315
3-7. Other interior features Sun visors .................................. 316
Vanity mirrors .......................... 317
Clock .......................................... 318
Satellite switches .................... 319
Ashtrays.................................... 322
Cigarette lighter .................... 323
Power outlet ............................ 324
Seat heaters ............................ 325
Armrest .................................... 327
Trunk storage extension ...... 328
Coat hooks .............................. 330
Floor mat ................................... 331
Trunk features ......................... 332
Garage door opener ............ 335
Compass ................................... 341
Safety Connect ...................... 345

318
3-7. Other interior features
10_IS F_U
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
Adjusts the hour.
Adjusts the minutes.
Rounds to the nearest hour.
*
*: e.g. 1:00 to 1:29 → 1:00
1:30 to 1:59 → 2:00

375
4-3. Do-it-yourself maintenance
4
Maintenance and care
10_IS F_U■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→ P. 4 9 2
Oil quantity
(Low → Full)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
10_IS F_U■
Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO. 310 AAudio system
7GAUGE7. 5 AMeters and gauges
8IGN10 A
SRS airbag system, stop lights, steer-
ing lock system, fuel system, front pas-
senger occupant classification system,
safety connect
9ACC7. 5 A
Clock, air conditioning system, audio
system, navigation system, display,
outside rear view mirrors, smart
access system with push-button start,
glove box light, console box light,
safety connect
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t

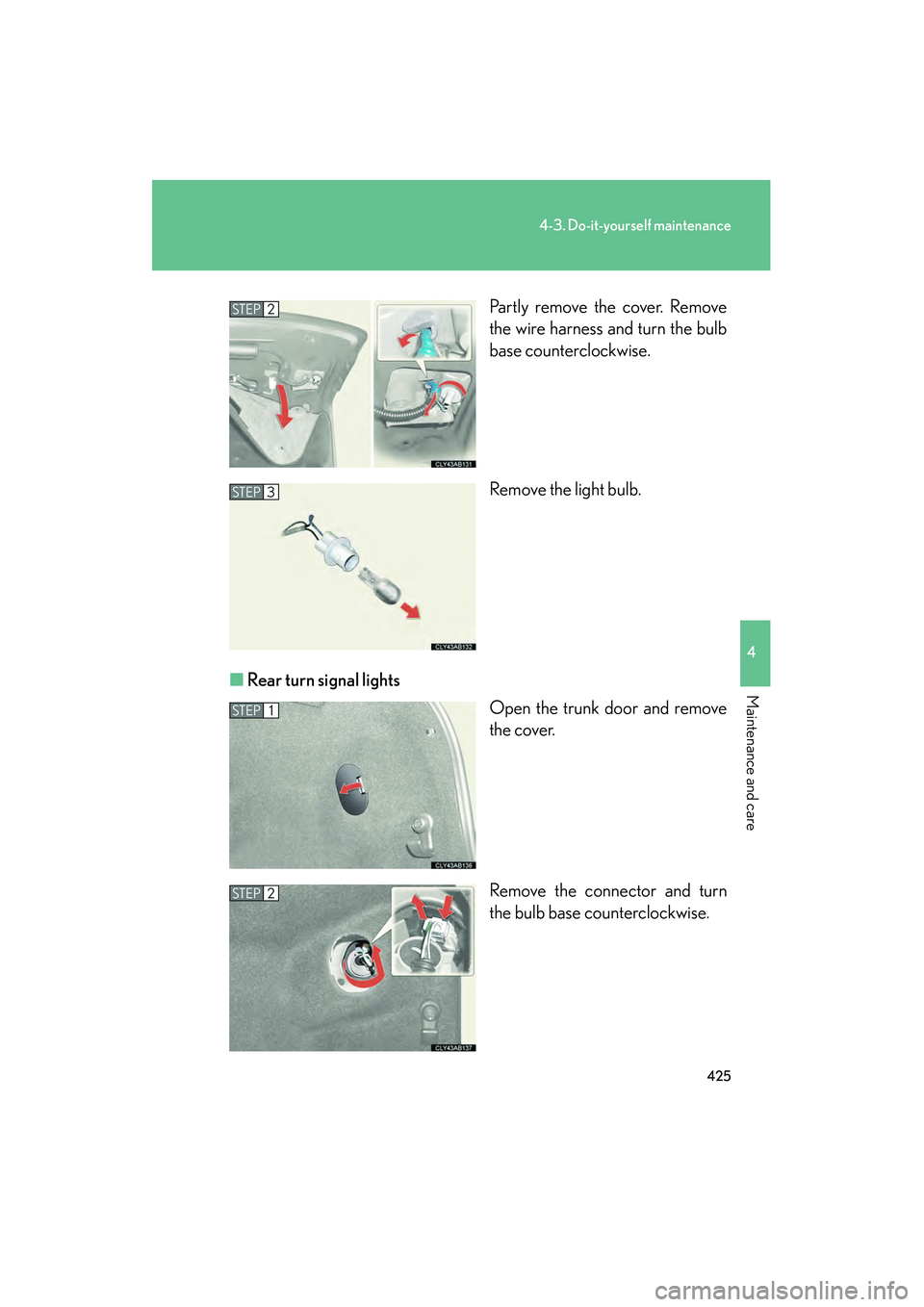

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
10_IS F_UPartly remove the cover. Remove
the wire harness and turn the bulb
base counterclockwise.
Remove the light bulb.
■ Rear turn si gnal lights
Open the trunk door and remove
the cover.
Remove the connector and turn
the bulb base counterclockwise.
STEP2
STEP3
STEP1
STEP2
