2010 Lexus IS F steering

5
When trouble arises
463
5-2. Steps to take in an emergency
10_IS F_U
Once
(Comes on for 10 seconds.)
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. (→P. 4 0 6 )

Indicates that the
“ENGINE START
STOP” switch has
been turned
twice to ACCES-
SORY mode
without starting
the engine when
a closed door is
opened.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Flashing)
Indicates that the
steering lock has
not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

474
5-2. Steps to take in an emergency
10_IS F_U
If the engine will not start
If the engine will not start even though correct starting procedures are
being followed (
→P. 124), consider each of the following points.
■The engine will not start even when the starter motor operates
normally.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. ( →P. 1 2 4 )
■ The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low vol-
ume.
One of the following may be the cause of the problem.
● The battery may be discharged. ( →P. 4 8 0 )
● The battery terminal connections may be loose or corroded.
■ The starter motor does not turn ov er, the interior lights and head-
lights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem.
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( →P. 4 8 0 )
● There may be a malfunction in the engine immobilizer system.
(→ P. 7 8 )
● There may be a malfunction in the steering lock system.
Contact your Lexus dealer if the problem cannot be repaired, or if
repair procedures are unknown.

497
6-1. Specifications
6
Vehicle specifications
10_IS F_U
Steering
Tires and wheels
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e
Front: 225/40R19 93Y
Rear: 255/ 35R19 96Y
Spare: T135/70R18 103M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Front:
36 psi (250 kPa, 2.5 kgf/cm2 or bar)*
Rear:
36 psi (250 kPa, 2.5 kgf/cm
2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
*: When driving at high speeds above 100 mph
(160 km/h), in countries where such speeds
are permitted by law, add 9.0 psi (60 kPa, 0.6
kgf/cm
2 or bar) to the front tires and rear tires.
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size
Front wheels: 19 × 8J
Rear wheels: 19 × 9J
Spare wheel: 18 × 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

507
6-1. Specifications
6
Vehicle specifications
10_IS F_U■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer.
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)

515

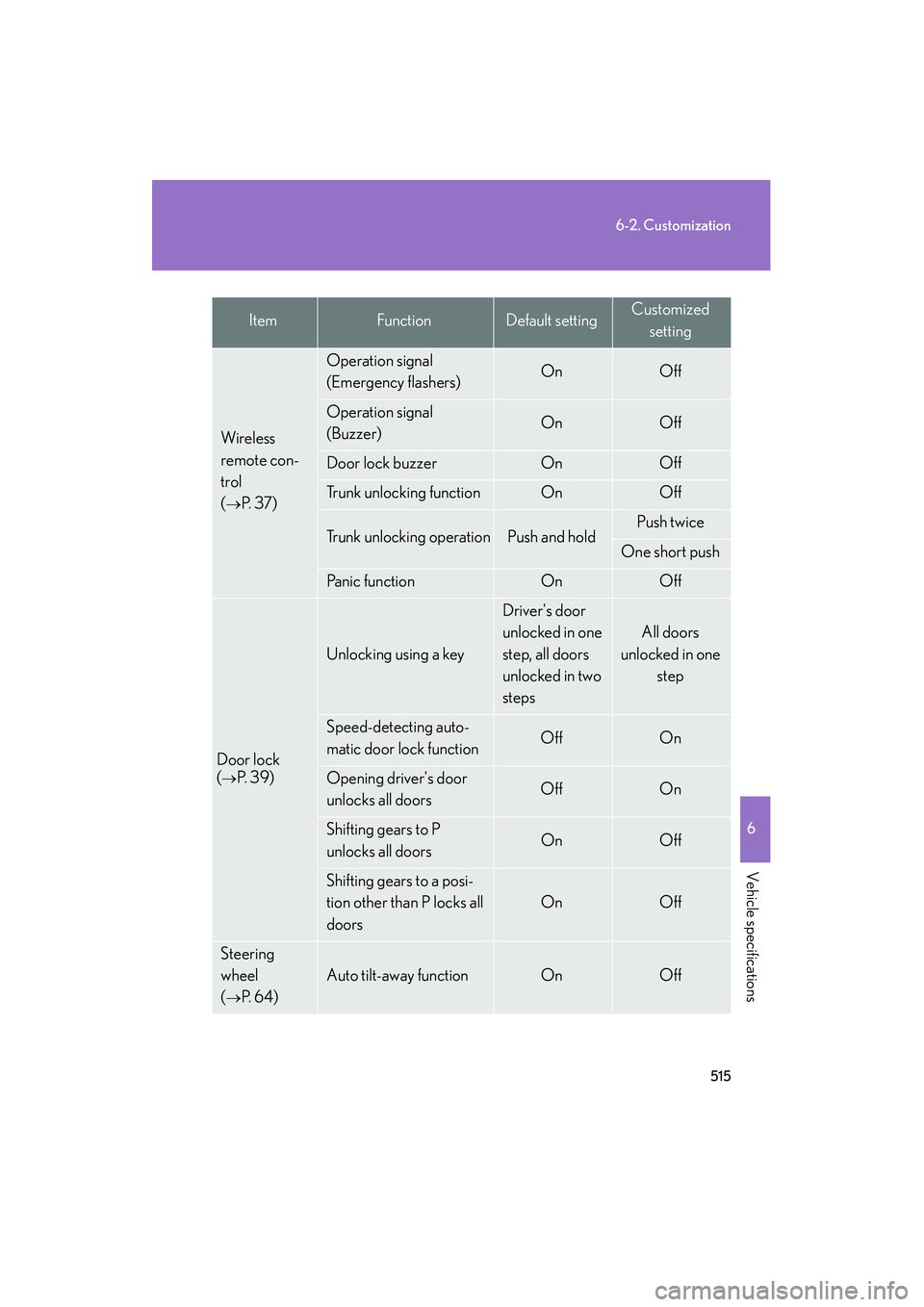

6-2. Customization
6
Vehicle specifications
10_IS F_U
Wireless
remote con-
trol
(
→P. 3 7 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer) OnOff
Door lock buzzerOnOff
Trunk unlocking functionOnOff
Trunk unlocking operationPush and holdPush twice
One short push
Pa n i c f u n c t i o nOnOff
Door lock
(
→P. 3 9 )
Unlocking using a key
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one step
Speed-detecting auto-
matic door lock functionOffOn
Opening driver's door
unlocks all doorsOffOn
Shifting gears to P
unlocks all doorsOnOff
Shifting gears to a posi-
tion other than P locks all
doors
OnOff
Steering
wheel
(
→P. 6 4 )
Auto tilt-away functionOnOff
ItemFunctionDefault settingCustomized
setting

526
10_IS F_U
Abbreviation list
Abbreviation/Acronym list
ABBREVIATIONSMEANING
ABSAnti-lock Brake System
AFSAdaptive Front-lighting System
AI-SHIFTArtificial Intelligence Shift
ALRAutomatic Locking Retractor
CRSChild Restraint System
DISPDisplay
ECUElectronic Control Unit
EDREvent Data Recorder
ELREmergency Locking Retractor
EPSElectric Power Steering
GAWRGross Axle Weight Rating
I/MEmission inspection and maintenance
LATCHLower Anchors and Tethers for Children
LEDLight Emitting Diode
LSDLimited Slip Differential
MMTMethylcyclopentadienyl Manganese Tricarbonyl
M + SMud and Snow
MTBEMethyl Tertiary Butyl Ether
OBDOn Board Diagnostics
PCSPre-Collision System
SRSSupplemental Restraint System
TINTire Identification Number
TPMSTire Pressure Warning System
TRACTr a c t i o n C o n t r o l
VDIMVehicle Dynamics Integrated Management

528
10_IS F_U
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS............................................................... 177
ACCESSORY mode .......................... 124
AFS ................................................................151
Adaptive front lighting system ...........151
Air conditioning filter ..........................403
Air conditioning systemAir conditioning filter .......................403
Automatic air conditioning system ................................................... 198
Airbags Airbag operating conditions...........88
Airbag precautions for your child.......................................................... 92
Airbag warning light ........................ 442
Curtain shield airbag operating conditions..............................................88
Curtain shield airbag
precautions .......................................... 92
Front passenger occupant
classification system......................... 97
General airbag precautions ........... 92
Locations of airbags............................ 85
Modification and disposal of airbags .................................................... 96
Proper driving posture ............. 83, 92
Side airbag operating conditions..............................................88
Side airbag precautions .................... 92
SRS airbags ............................................. 85 Alarm............................................................80
Antenna ......................................................215
Anti-lock brake system ........................ 177
Armrest .................................................... 327
Ashtrays.................................................... 322
Audio input.............................................. 252
Audio system
Antenna.................................................... 215
Audio input............................................252
AUX adapter .......................................252
Bluetooth
® audio ..............................257
CD player/changer ........................... 218
iPod
®.......................................................233
MP3/WMA disc................................225
Optimal use ......................................... 250
Portable music player ......................252
Radio ......................................................... 210
Steering wheel audio switch........ 254
USB memory ........................................ 241
Automatic air conditioning
system ..................................................... 198
Automatic headlight leveling
system ......................................................152
Automatic light control system........ 150
Automatic transmission Automatic transmission ................... 128
If the shift lever cannot be shifted from P....................................475
M mode ................................................... 132
AUX adapter ......................................... 252
A

530
Alphabetical index
10_IS F_U
Child-protectors ......................................40
Cigarette lighter....................................323
CleaningExterior ................................................... 354
Interior ..................................................... 357
Seat belts................................................358
Clock .......................................................... 318
Coat hooks ............................................. 330
Compass ................................................... 341
Condenser ............................................. 380
Console box ..............................................311
Cooling system Engine overheating ..........................483
Cornering assist sensors ...................... 171
Cruise control Cruise control ...................................... 158
Dynamic radar crui se control ........ 161
Cup holders ............................................. 313
Curtain shield airbags............................85
Customizable features ........................ 514
Daytime running light system .............151
Defogger Rear window........................................206
Side mirrors ..........................................206
Dimension ............................................... 488
Dinghy towing ......................................... 195
Display
Dynamic radar crui se control ........ 161
Satellite switch mode .........................319
Trip information .................................... 147
Warning message...............................451 Do-it-yourself maintenance ............. 366
Door courtesy lights
Door courtesy lights ........................ 306
Wattage ................................................. 498
Door pockets .......................................... 315
Doors Door lock ................................ 26, 37, 39
Door windows........................................69
Side mirrors.............................................. 67
Driver's seat belt reminder light ..... 444
Driving Correct posture.................................... 83
Procedures............................................... 116
Driving position memory...................... 48
Electric power steering........................ 177
Electronic key If the electronic key does not
operate properly............................. 477
Emergency flashers
Switch...................................................... 430
D
E
