2010 Lexus IS F headlight bulb

TABLE OF CONTENTSIndex
4
Security and system setup ........ 296
Using the phone book............... 300
3-5. Using the interior lights
Interior lights list........................... 306
• Interior lights .............................. 308
• Personal lights ........................... 308
3-6. Using the storage features
List of storage features................ 310
• Glove box...................................... 310
• Console box ................................... 311
• Overhead console..................... 312
• Cup holders.................................. 313
• Bottle holders/
door pockets ................................ 315
3-7. Other interior features
Sun visors.......................................... 316
Vanity mirrors ................................. 317
Clock .................................................. 318
Satellite switches ........................... 319
Ashtrays ........................................... 322
Cigarette lighter ........................... 323
Power outlet ................................... 324
Seat heaters .................................... 325
Armrest ............................................ 327
Trunk storage extension........... 328
Coat hooks .................................... 330
Floor mat........................................... 331
Trunk features................................ 332
Garage door opener ................. 335
Compass........................................... 341Safety Connect............................. 345
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................... 354
Cleaning and protecting
the vehicle interior .................... 357
4-2. Maintenance
Maintenance requirements .... 360
General maintenance ................ 362
Emission inspection and
maintenance (I/M)
programs ...................................... 365
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................................. 366
Hood.................................................. 369
Positioning a floor jack............... 370
Engine compartment.................. 372
Tires .................................................. 386
Tire inflation pressure................. 397
Wheels............................................... 401
Air conditioning filter................. 403
Electronic key battery ............... 406
Checking and replacing
fuses ............................................... 408
Headlight aim................................. 422
Light bulbs ....................................... 424
4Maintenance and care

Maintenance and care4
353
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior............. 354
Cleaning and protecting
the vehicle interior .............. 357
4-2. Maintenance
Maintenance
requirements ........................ 360
General maintenance .......... 362
Emission inspection and
maintenance (I/M)
programs................................ 3654-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ........................... 366
Hood .......................................... 369
Positioning a floor jack ......... 370
Engine compartment ........... 372
Tires............................................ 386
Tire inflation pressure........... 397
Wheels ....................................... 401
Air conditioning filter ........... 403
Electronic key battery.......... 406
Checking and replacing
fuses ........................................ 408
Headlight aim ......................... 422
Light bulbs ................................ 424

420
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 ASeat belts, intuitive parking assist,
automatic transmission, seat heaters
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system, headlights,
front fog lights, parking lights, license
plate lights, windshield washer
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 4 2 4 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

426
4-3. Do-it-yourself maintenance
Remove the light bulb.
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low and high beams (discharge bulbs)
●Headlight high beams
●Front fog lights
●Parking lights
●Front turn signal lights
●Front side marker lights
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lightsSTEP3

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■Discharge headlights
If voltage to the discharge bulbs is insufficient, the bulbs may not come on, or may
go out temporarily. The discharge bulbs will come on when normal power is
restored.
■LED tail lights, stop/tail lights and high mounted stoplight
The tail lights, stop/tail lights and high mounted stoplight consist of a number of
LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to have the
light replaced.

428
4-3. Do-it-yourself maintenance
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam headlight bulbs, connectors,
power supply circuits, or related components.
Doing so could result in electric shock and serious injury or death.
■Discharge headlights
●Contact your Lexus dealer before replacing discharge headlights (including light
bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
serious injury or death by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

499
6-1. Specifications
6
Vehicle specifications

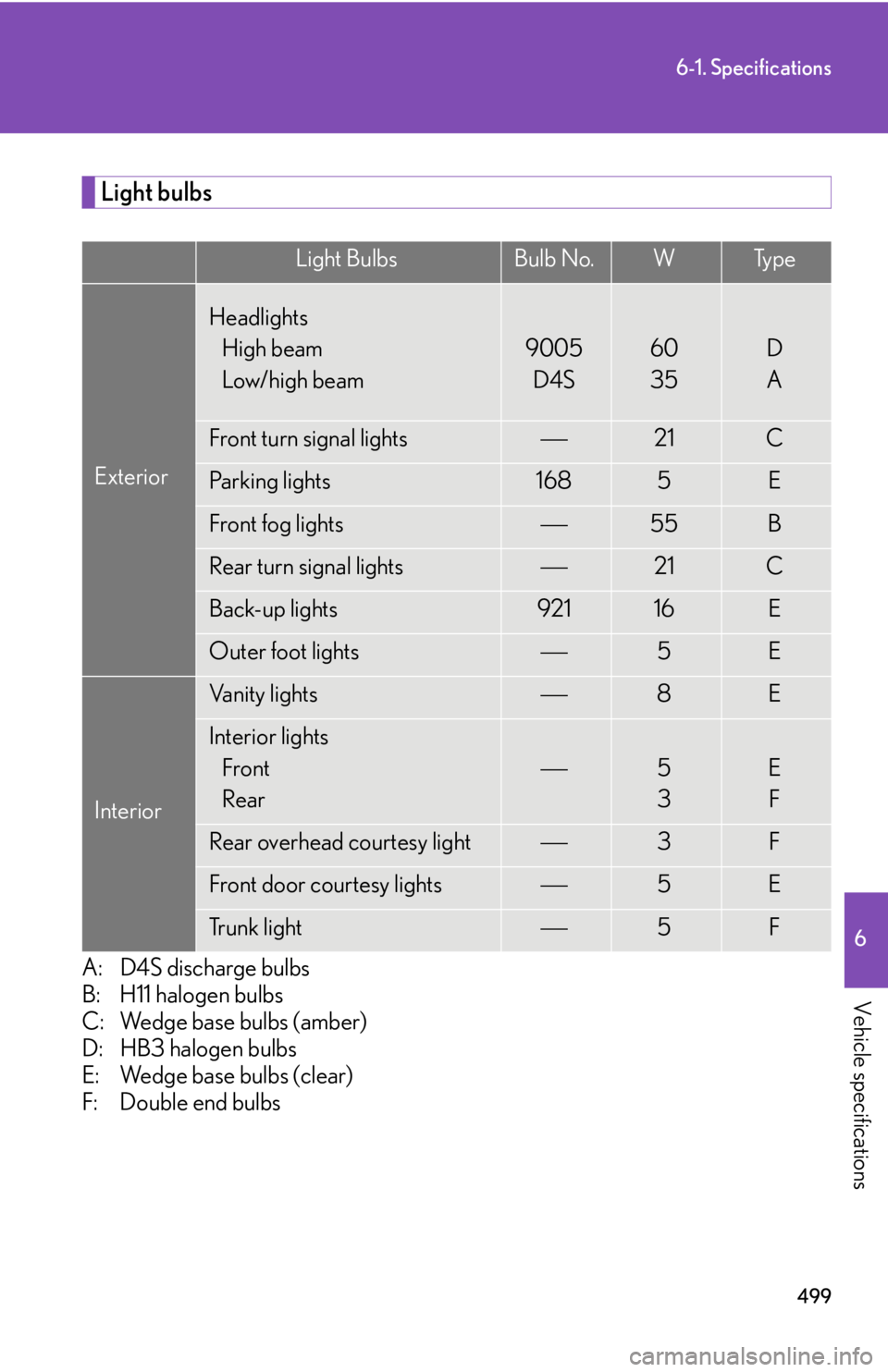

Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam
9005
D4S60
35D
A
Front turn signal lights21C
Parking lights1685E
Front fog lights55B
Rear turn signal lights21C
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Interior lights
Front
Rear
5
3E
F
Rear overhead courtesy light3F
Front door courtesy lights5E
Trunk light5F

532
Alphabetical index
Front passenger's seat belt
reminder light...................................... 444
Front seats
Adjustment................................................47
Driving position memory.................. 48
Seat position memory ........................ 52
Front turn signal lights
Switch ........................................................136
Wattage.................................................. 499
Fuel
Capacity ................................................. 492
Fuel gauge ..............................................139
Fuel pump shut off system ............438
Gas station information..................540
Information........................................... 500
Refueling ................................................... 75
Fuel door ..................................................... 75
Fuel filler door ........................................... 75
Fuel pump shut off system .................438
Fuses ......................................................... 408
Garage door opener ..........................335
Gas station information..................... 540
Gauges ...................................................... 139
Glove box ................................................. 310
Glove box light .........................................311
Hands-free system for mobile
phone...................................................... 275
Hazard lights
Switch ......................................................430
Head restraints
Adjusting .................................................. 54
Headlight aim ......................................... 422Headlight cleaner................................... 157
Headlights
Discharge headlight
precautions ....................................... 428
Replacing light bulbs ........................424
Switch ........................................................150
Wattage ................................................. 499
Heaters
Seat heaters ......................................... 325
Side mirrors.......................................... 206
Hill-start assist control .......................... 177
Hood .......................................................... 369
Hooks
Cargo.......................................................332
Coat ......................................................... 330
Shopping bag ......................................332
Horn ............................................................ 138
I/M test ..................................................... 365
Identification
Engine ......................................................492
Vehicle...................................................... 491
Ignition switch ..........................................124
Illuminated entry system .................... 306
Indicator lights .........................................143
Initialization
Items to initialize................................. 520
Inside rear view mirror .......................... 66
Interior lights
Interior lights ........................................ 306
Switch ......................................................308
Wattage ................................................. 499
G
H
I
