TABLE OF CONTENTSIndex
4
3-3. Using the Bluetooth® audio 
system
Bluetooth
® audio system ............ 311
Using the Bluetooth
® audio 
system ............................................. 314
Operating a Bluetooth
® 
enabled portable player .......... 319
Setting up a Bluetooth
® 
enabled portable player ......... 322
Bluetooth
® audio system 
setup ............................................... 327
3-4. Using the hands-free phone 
system (for cellular phones)
Hands-free system for 
cellular phones .......................... 328
Using the hands-free system 
(for cellular phones) ................. 332
Making a phone call ................... 340
Setting a cellular phone ............. 345
Security and system setup ....... 350
Using the phone book................ 354
3-5. Using the interior lights Interior lights list........................... 360
•Interior lights ................................ 361
• Personal lights ............................. 361 3-6. Using the storage features
List of s
torage features............... 363
• Glove box .................................... 364
• Console box ................................ 365
• Cup holders................................. 367
• Bottle holders ............................. 369
• Auxiliary boxes........................... 370
3-7. Other interior features
Sun visors.......................................... 371
Vanity mirrors ................................ 372
Clock ................................................. 373
Power outlets ................................. 374
Seat heaters and 
ventilators ..................................... 375
Armrest ............................................ 377
Rear sunshade ............................... 378
Floor mat......................................... 380
Trunk compartment 
features........................................... 381
Garage door opener................. 383
Compass........................................... 391
Safety Connect ............................ 395
4-1. Maintenance and care Cleaning and protecting 
the vehicle exterior................... 402
Cleaning and protecting 
the vehicle interior ................... 406

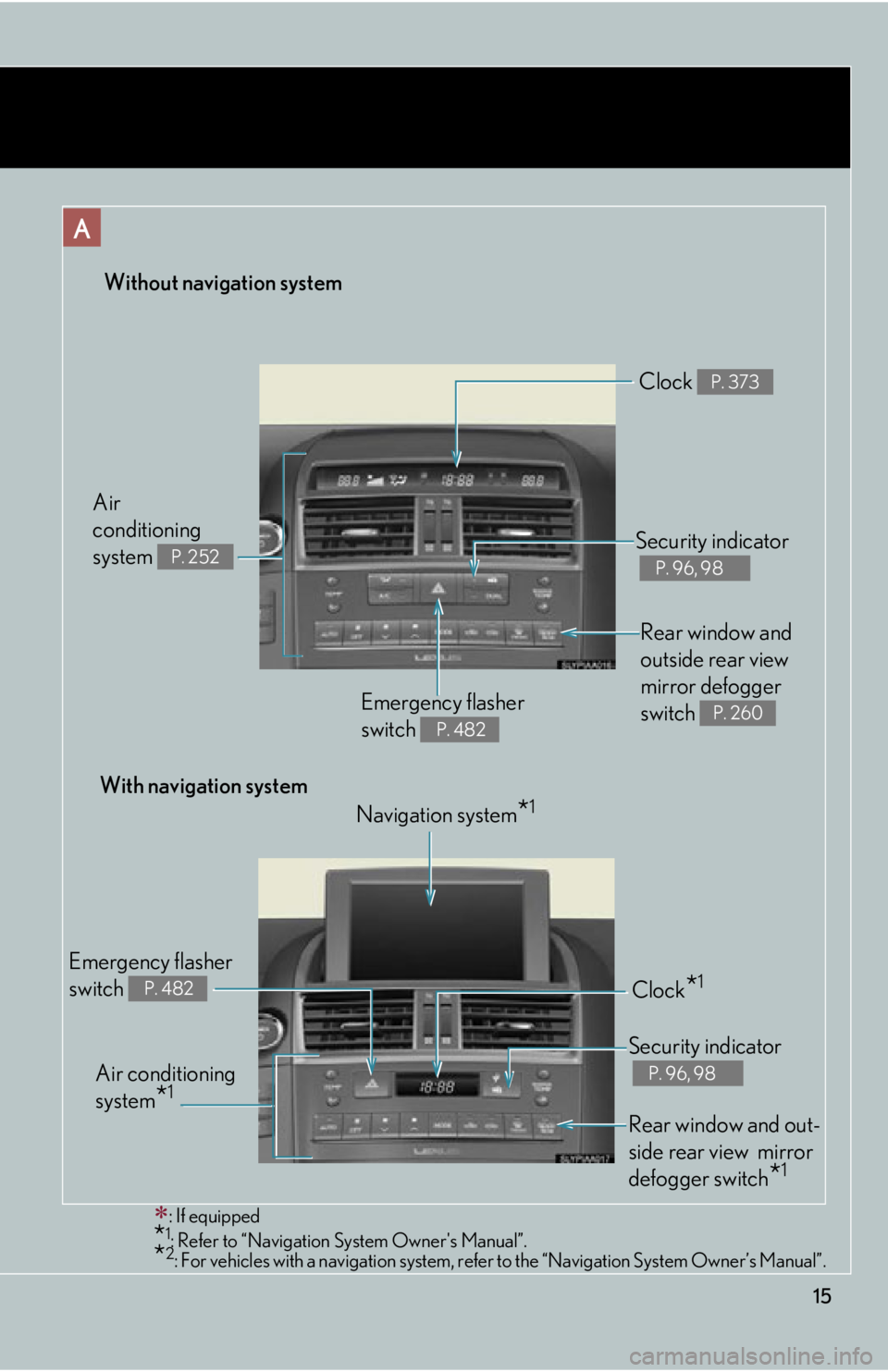

4Maintenance and care

15
Without navigation system
: If equipped
*1: Refer to “Navigation System Owner's Manual”.*2: For vehicles with a navigation system, refe r to the “Navigation System Owner’s Manual”.
Rear window and
outside rear view
mirror defogger
switch
P. 260Emergency flasher
switch
P. 482
Security indicator

P. 96, 98
Clock P. 373
Air 
conditioning 
system
P. 252
With navigation system
Navigation system
*1
Air conditioning 
system
*1
Emergency flasher
switch
P. 482Clock*1
Security indicator 

P. 96, 98
Rear window and out-
side rear view mirror
defogger switch
*1

41
1-2. Key information
1
Before driving
●The card key is not waterproof.
■When required to leave the vehicle’s key with a parking attendant
Turn the luggage security system on as circumstances demand. (P. 3 6 4 ) 
Remove the mechanical key for your own use and provide the attendant with the
electronic key only.
■Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the event that
a mechanical key is lost, a new key can be made at your Lexus dealer using the key
number plate. ( P. 5 3 2 )
■When riding in an aircraft
When bringing an electronic key onto an aircraft, make sure you do not press any
buttons on the electronic key while inside the aircraft cabin. If you are carrying an
electronic key in your bag etc., ensure that the buttons are not likely to be pressed
accidentally. Pressing a button may cause the electronic key to emit radio waves
that could interfere with the operation of the aircraft.
●If the battery cover is not installed and
the battery falls out or if the battery was
removed because the key got wet, rein-
stall the battery with the positive termi-
nal facing the Lexus emblem.

48
1-3. Opening, closing and locking the doors
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warning messages shown
on the multi-information display is used to prevent theft of the vehicle and accidents
resulting from erroneous operation. Take appropriate measures in response to any
warning message on the multi-information display. ( P. 5 0 1 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
■Security feature
If a door is not opened within approx imately 60 seconds after the vehicle is
unlocked, the security feature automatically locks the vehicle again.
■Battery-saving function
The battery-saving function will be activa ted in order to prevent the electronic key
battery and the 12-volt battery from being discharged while the vehicle is not in
operation for a long time.
●In the following situations, the smart access system with pu sh-button start may
take some time to unlock the doors.
• The electronic key has been left in an area of approximately 6 ft. (2 m) of the
outside of the vehicle for 10 minutes or longer.
• The smart access system with push-button start has not been used for 5 days or longer.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 10
seconds.An attempt was made to lock
the vehicle while a door was
open.Close all of the doors
and lock the doors
again.
Interior alarm pings
repeatedly
The “POWER” switch was
turned to ACCESSORY
mode while the driver’s door
is open (The driver’s door
was opened when the
“POWER” switch is in
ACCESSORY mode.)
Turn the “POWER”
switch off and close the
driver’s door.

50
1-3. Opening, closing and locking the doors
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases:
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in the door pockets or glove box when the hybrid system is started or
“POWER” switch modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside th e vehicle, it may be possible to start the
hybrid system if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash when the electronic key is within the effective
range. (The door will automatically be locked after approximately 60 seconds if
the doors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless re mote control to unlock the doors.)
●A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
■Notes for locking the doors
●Touching the door lock sensor while we aring gloves may delay or prevent lock
operation. Remove the gloves and touch the lock sensor again.
●When the lock operation is performed using the lock sensor, recognition signals
will be shown up to two consecutive times. After this, no recognition signals will
be given.
●If the door handle becomes wet while the electronic key is within the effective
range, the door may lock and unlock repeatedly. Place the key in a position 6 ft.
(2 m) or more separate from the vehicle while the vehicle is being washed. (Take
care to ensure that the key is not stolen.)

55
1-3. Opening, closing and locking the doors
1
Before driving
■Pa n i c m o d e
■Security feature
P. 4 8
■Alarm
Using the wireless remote control to lock the doors will set the alarm system. 
(  P. 9 8 )
■Conditions affecting operation
 P. 4 9
■If the wireless remote control does not operate properly
Locking and unlocking the doors, unlocking the trunk: Use the mechanical key.
( P. 5 3 3 )
■Electric key battery depletion
 P. 5 2
■When the electric key battery is fully depleted
P. 4 5 3
■Customization
Settings (e.g. door unlocking function) can be changed. 
(Customizable features  P. 5 7 2 )
When is pressed for longer than about
one second, an alarm will sound intermit-
tently and the vehicle lights will flash to deter
any person from trying to break into or dam-
age your vehicle.
To stop the alarm, press any button on the
electronic key.

60
1-3. Opening, closing and locking the doors
Tr u n k
Luggage security system
To protect luggage stored in the trunk against theft, do the following:
On
Off
Turn the main switch in the glove
bo
x off to disable the trunk
opener.
The trunk lid cannot be opened
even with the wireless remote con -
trol or the entry function.
The trunk can be opened using the trun k opener, entry function or wireless
remote control.
■ Opening the trunk from inside the vehicle
Press the opener switch to
r
elease the trunk lid.
■ Opening the trunk fr
om outside the vehicle
Entry function
P. 4 4
Wireless remote control
P. 54

63
1-3. Opening, closing and locking the doors
1
Before driving
CAUTION
■Using the trunk
Observe the following precautions. 
Failure to do so may cause parts of the body to be caught, resulting in serious injury.
●Remove any heavy loads, such as snow an d ice, from the trunk lid before opening
it. Failure to do so may cause the trunk lid to fall closed again after it is opened.
●When opening or closing the trunk lid, thoroughly check to make sure the sur-
rounding area is safe.
●If anyone is in the vicinity, make sure they are safe and let them know that the
trunk is about to open or close.
●Use caution when opening or closing the trunk lid in windy weather as it may
move abruptly in strong wind.
●Do not attach any accessories other than genuine Lexus parts to the trunk lid.
Such additional weight on the trunk lid may cause the lid to fall closed again after
it is opened.
●The trunk lid may fall if it is not opened
fully. It is more difficult to open or close
the trunk lid on an incline than on a level
surface, so beware of the trunk lid unex-
pectedly opening or closing by itself.
Make sure that the trunk lid is fully open
and secure before using the trunk.
●When closing the trunk lid, take extra
care to prevent your fingers etc. from
being caught.
●When closing the trunk lid, make sure to
press it lightly on its outer surface. If the
trunk handle is used to fully close the
trunk lid, it may result in hands or arms
being caught.
