2010 Lexus HS250h turn signal

When driving2
135
2-1. Driving proceduresDriving the vehicle.................. 136
Power (ignition) switch .......... 145
EV drive mode.......................... 150
Hybrid transmission ............... 153
Turn signal lever ....................... 159
Parking brake ........................... 160
Horn ............................................. 161
2-2. Instrument cluster Gauges and meters ................ 162
Indicators and warning 
lights ......................................... 165
Multi-information display ..... 169
Head-up display ...................... 175
2-3. Operating the lights and windshield wipers
Headlight switch...................... 183
Automatic High Beam .......... 188
Fog light switch ........................ 194
Windshield wipers and 
washer ..................................... 195
Headlight cleaner switch.... 200 2-4. Using other driving systems
Cruise control.......................... 201
Dynamic radar cruise 
control .................................... 205
LKA 
(Lane-Keeping Assist) ........ 217
Driving assist systems ........... 225
Hill-start assist control ......... 230
Pre-Collision System ............ 232
2-5. Driving information Cargo and luggage ............... 240
Vehicle load limits .................. 243
Winter driving tips ................. 244
Trailer towing ........................... 247
Dinghy towing ......................... 248

159
2-1. Driving procedures
2
When driving

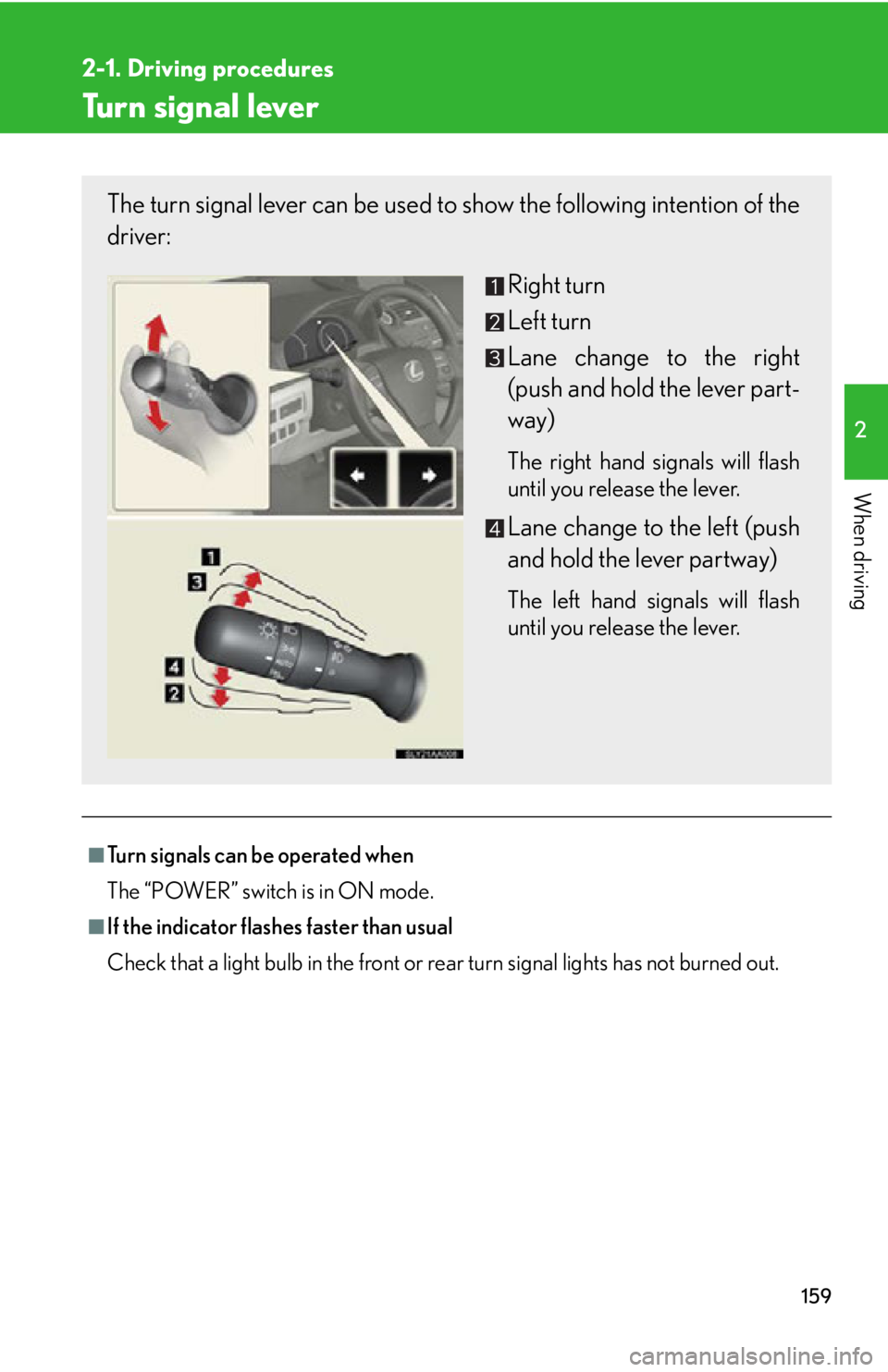

Turn signal lever
■Turn signals can be operated when
The “POWER” switch is in ON mode.
■If the indicator flashes faster than usual
Check that a light bulb in the front or rear
turn signal lights has not burned out.
The turn signal lever can be used to show the following intention of the
driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever part-
way)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash
until you release the lever.

166
2-2. Instrument cluster
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator 
( P. 1 6 2 )“ECO MODE” indicator
(P. 1 5 8 )
(U.S.A.)
Headlight indicator 
( P. 1 8 3 )“PWR MODE” indicator 
( P. 1 5 8 )
(Canada)
Tail light indicator 
(  P. 1 8 3 )Cruise control indicator 
( P. 201, 205)
Headlight high beam 
indicator ( P. 1 8 5 )
(if equipped)
Radar cruise control 
indicator ( P. 2 0 5 )
(if equipped)
Automatic High Beam 
indicator 
( P. 188)
(if equipped)
“LKA” indicator 
( P. 2 1 8 )
Front fog light indicator 
( P. 1 9 4 )“SET” indicator 
(P. 201, 205)
“READY” indicator 
( P. 1 4 7 )
(if equipped)
Intuitive parking assist
indicator (Refer to “Navi-
gation System Owner’s
Manual”.)
EV drive mode indicator
(P. 1 5 2 )
(if equipped)
“AFS OFF” indicator 
( P. 1 8 5 )
Eco Driving Indicator
Light ( P. 1 3 8 )Slip indicator 
( P. 2 2 6 , 2 3 0 )
*1
*1*1, 2

220
2-4. Using other driving systems
Indication on the multi-information display
While the LKA system is on, the lane line display and steering wheel dis-
play (in case of lane k eeping as
sist function) are shown on the multi-infor -
mation display to inform that the LKA system is on.
Steering wheel display
The lane keeping assist function is
active.
Dynamic radar cruise control
display
Lane line display
When thin lines are shown:
A lane marker is not recognized by
the s
ystem, or the LKA system
functions are temporarily can -
celed. (When the lane keeping
as
sist function is canceled, buzzer
will beep twice.)
When solid lane lines are shown: 
The lane departure warning func -
tion is active.
■Temporary cancellation of the LKA system functions
If any of the following occurs, the LKA sy stem
functions will be temporarily can-
celed. The functions will resume after the necessary operating conditions have
re
turned.
●The turn signal le ver is operated.
●The steering wheel is turned as far as necessary to cause the vehicle to change
lanes.
●The brake pedal is depressed. 
However, the lane keeping assist function will not resume even after the brake
pe
dal is released because depressing the brake pedal also cancels the dynamic
radar cruise control. (only lane departure warning function will resume)

271
3-2. Using the audio system
3
Interior features
■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the display. Refer
to the table below to identify the problem, and take the suggested corrective action.
ANTENNA
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surround-
ing antenna cable. See a Lexus certified dealer.
UNAUTH
You have not subscribed to the XM® Satellite Radio.
The radio is being updated with the latest encryption
code. Contact the XM
® Satellite Radio for subscrip-
tion information. When a co ntract is canceled, you can
choose the “CH000” and all the free-to-air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to lis-
ten to the premium channel, contact the XM
® Satellite
Radio.
NO SIGNAL
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stron-
ger signal.
LOADIN GThe unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any pro-
gramming. Select another channel.

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
10AM27. 5 A
Smart access system with push-button
start, hybrid system, multiport fuel
injection system/sequential multiport
fuel injection system, P position con-
trol system, cruise control system,
dynamic radar cruise control system
11ECU-B27. 5 A
Smart access system with push-button
start, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, trunk opener switch
12MAYDAY10 ALexus link system
13ECU-B310 AAir conditioning system, rear window
defogger, mirror heater
14TURN & HAZ10 ATurn signal lights, emergency flashers
15ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16ABS MAIN NO.120 AElectronically controlled brake system
17P/I 240 A
P position control system, hybrid sys-
tem, transmission, smart access sys-
tem with push-button start, horn,
headlights (low beam), back-up lights
18ABS MTR 130 AElectronically controlled brake system
19ABS MTR 230 AElectronically controlled brake system
20H-LP HI MAIN20 AHeadlights (high beam)
21AMP NO.230 AAudio system, navigation system
22DOOR NO.225 ANo circuit
FuseAmpereCircuit

463
4-3. Do-it-yourself maintenance
4
Maintenance and care
3IGN10 A
Electronically controlled brake sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, Lexus link system, smart access
system with push-button start, stop
lights
4MET7. 5 AMeters
5WIP30 AWindshield wipers
6WA S H E R15 AWindshield washer
7A/C10 AAir conditioning system
8GAUGE10 AAFS, turn signal lights, emergency
flasher lights
9AFS10 AAdaptive front-lighting system
10ECU-IG NO.210 A
Pre-collision system, LKA, dynamic
radar cruise control, air conditioning
system, outside rear view mirror,
HUD, navigation system, tire inflation
pressure warning system
FuseAmpereCircuit

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.

For more information about replacing other light bulbs, contact your Lexus
dealer
.
■Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( P.
5 5 6 )
■ R
emove the engine compartment covers
 P.
4 2 3
■ F
ront bulb locations
Halogen headlights
Front side marker lightHeadlight low beam
Parking light
Front turn signal light
Front fog light
Headlight high beam
