ItemsParts and tools
Engine oil level (→P. 4 2 4 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (→ P. 4 5 5 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 4 6 7 )• Phillips-head screwdriver
Light bulbs (→ P. 4 6 9 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser (→P. 4 3 0 )
Tire inflation pressure ( →P. 4 4 5 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 4 3 2 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water
or washer fluid)

469
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb replacement
seems difficult to perform, contact your Lexus dealer.
For more information about replacing other light bulbs, contact your Lexus
dealer.
■ Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. ( →P. 5 5 8 )
■ Remove the engine compartment covers
→ P. 4 2 3
■ Front bulb locations
Halogen headlights
Front side marker light Headlight low beam
Parking light
Front turn signal light
Front fog lightHeadlight high beam
and daytime running light
(if equipped)

470
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
LED headlights
■Rear bulb locations
Front fog light
Front turn signal light
Parking lightFront side marker light
Headlight high beam and
daytime running light
(if equipped)
Rear turn signal light
Back-up light
License plate light

471
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)

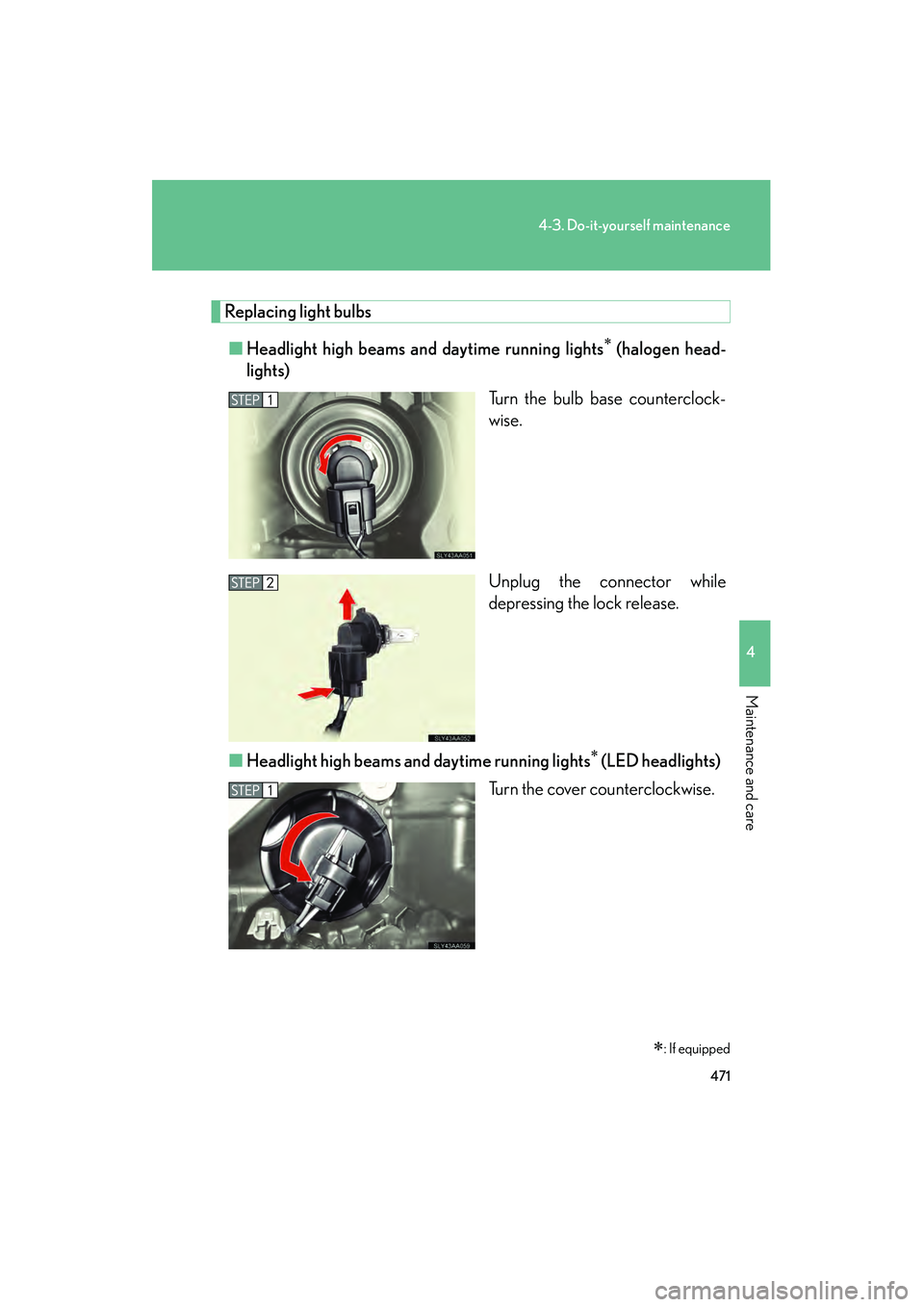

Replacing light bulbs■ Headlight high beams and daytime running lights
∗ (halogen head-
lights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight high beams and daytime running lights
∗ (LED headlights)
Turn the cover counterclockwise.
∗: If equipped

472
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.
■ Headlight low beams (halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
depressing the lock release.

473
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Front turn signal lights (halogen headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
■ Front turn signal lights (LED headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.
