2010 Lexus HS250h bluetooth

TABLE OF CONTENTSIndex
HS250h_U_75033U(Canada)
4
3-2. Using the audio systemAudio system ................................. 262
Using the radio .............................. 265
Using the CD player ................... 273
Playing MP3 and WMA discs ................................................. 281
Operating an iPod ...................... 288
Operating a USB memory....... 296
Optimal use of the audio system ........................................... 304
Using the AUX adapter ............ 307
Using the steering wheel audio switches ........................... 308
3-3. Using the Bluetooth
® audio
system
Bluetooth
® audio system ............ 311
Using the Bluetooth
® audio
system ............................................. 314
Operating a Bluetooth
®
enabled portable player .......... 319
Setting up a Bluetooth
®
enabled portable player ......... 322
Bluetooth
® audio system
setup ............................................... 327
3-4. Using the hands-free phone system (for cellular phones)
Hands-free system for cellular phones .......................... 328
Using the hands-free system (for cellular phones) ................. 332
Making a phone call................... 340
Setting a cellular phone ............. 345 Security and system setup ....... 350
Using the phone book................ 354
3-5. Using the interior lights Interior lights list........................... 360
• Interior lights ................................ 361
• Personal lights ............................. 361
3-6. Using the storage features List of storage features............... 363
• Glove box .................................... 364
• Console box................................ 365
• Cup holders................................. 367
• Bottle holders ............................. 369
• Auxiliary boxes........................... 370
3-7. Other interior features Sun visors.......................................... 371
Vanity mirrors................................ 372
Clock ................................................. 373
Power outlets ................................. 374
Seat heaters and ventilators ..................................... 375
Armrest ............................................ 377
Rear sunshade ............................... 378
Floor mat......................................... 380
Trunk compartment features........................................... 381
Garage door opener................. 383
Compass........................................... 391
Safety Connect ............................ 395

Interior features3
251
HS250h_U_75033U(Canada)
3-3. Using the Bluetooth® audio
system
Bluetooth
® audio system ...... 311
Using the Bluetooth®
audio system .......................... 314
Operating a Bluetooth
®
enabled portable player..... 319
Setting up a Bluetooth
®
enabled portable player... 322
Bluetooth
® audio system
setup ........................................ 327
3-4. Using the hands-free phone system (for cellular phones)
Hands-free system for cellular phones.................... 328
Using the hands-free system (for cellular
phones) .................................. 332
Making a phone call ............. 340
Setting a cellular phone ....... 345
Security and system setup ....................................... 350
Using the phone book........... 354 3-5. Using the interior lights
Interior lights list .................... 360
• Interior lights ......................... 361
• Personal lights ...................... 361
3-6. Using the storage features List of storage features......... 363
• Glove box .............................. 364
• Console box ......................... 365
• Cup holders .......................... 367
• Bottle holders....................... 369
• Auxiliary boxes .................... 370
3-7. Other interior features Sun visors .................................. 371
Vanity mirrors ......................... 372
Clock ......................................... 373
Power outlets ........................... 374
Seat heaters and ventilators ............................. 375
Armrest ..................................... 377
Rear sunshade ........................ 378
Floor mat .................................. 380
Trunk compartment features ................................... 381
Garage door opener ............ 383
Compass ................................... 391
Safety Connect ...................... 395

308
3-2. Using the audio system
HS250h_U_75033U(Canada)
Using the steering wheel audio switches
Turning the power onPress when the audio system is turned off.
The audio system can be turned off by holding the switch down for 1 second
or more.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, selects
an audio source
Increases/decreases volume
Radio mode: Selects a radio station
CD mode: Selects a track, file (MP3 and
WMA) and disc
Bluetooth
® audio mode:
Selects a track and
album
iPod mode: Selects a song
USB memory mode: Selects a file and folder

309
3-2. Using the audio system
3
Interior features
HS250h_U_75033U(Canada)
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time the button is pressed. If no discs are
inserted in the player, that mode will be skipped. FM1 →FM2 →SAT1 →SAT2 →SAT3 →CD player →
Bluetooth
® audio →AUX →iPod or USB memory→
AM→ FM1
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down the button to continue increasing or decreasing the volume.
Selecting a radio station Press to select radio mode.
Press “∧” or “ ∨” on to select a radio station.
To scan for receivable stations, press and hold “ ∧” or “ ∨” on the button
until you hear a beep.
Selecting a track/file or song
Press to select CD, Bluetooth
® audio, iPod or USB mem-
ory mode.
Press “ ∧” or “ ∨” on to select the desired track/file or song.

310
3-2. Using the audio system
HS250h_U_75033U(Canada)

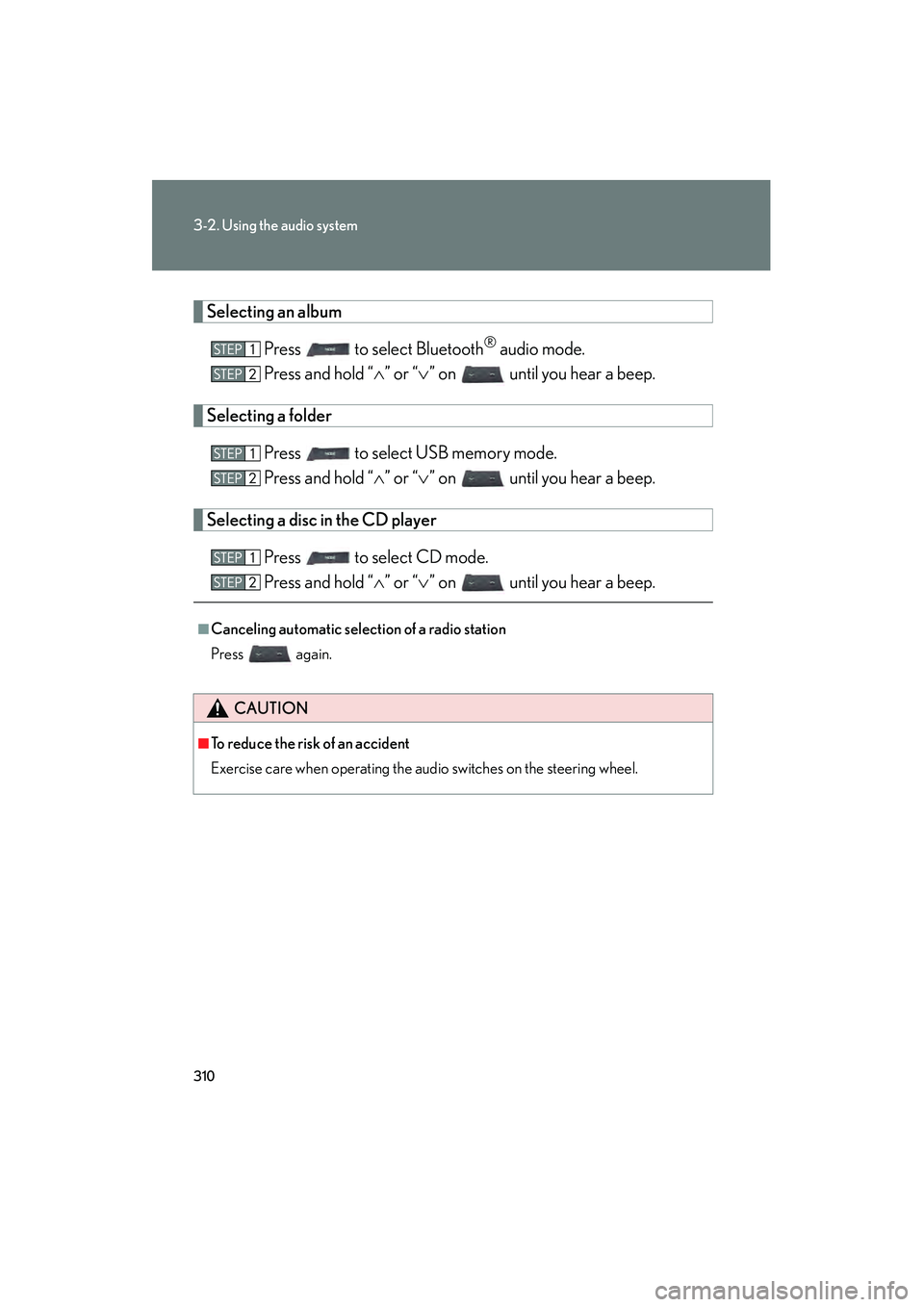

Selecting an albumPress to select Bluetooth
® audio mode.
Press and hold “ ∧” or “ ∨” on until you hear a beep.
Selecting a folder
Press to select USB memory mode.
Press and hold “ ∧” or “ ∨” on until you hear a beep.
Selecting a disc in the CD player
Press to select CD mode.
Press and hold “ ∧” or “ ∨” on until you hear a beep.
■Canceling automatic selection of a radio station
Press again.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

311
3
Interior features
HS250h_U_75033U(Canada)

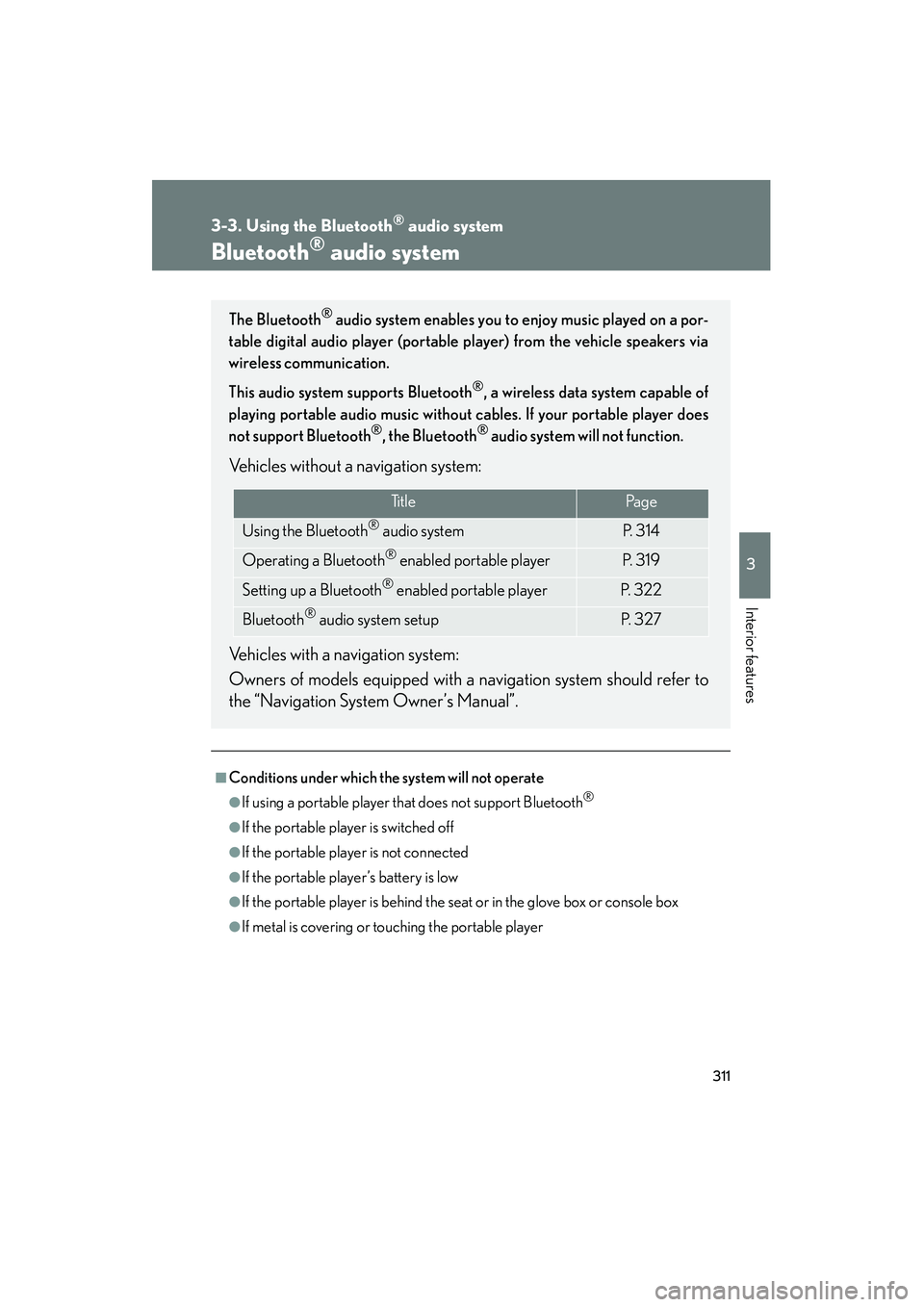

3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles without a navigation system:
Vehicles with a navigation system:
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 1 4
Operating a Bluetooth® enabled portable playerP. 3 1 9
Setting up a Bluetooth® enabled portable playerP. 3 2 2
Bluetooth® audio system setupP. 3 2 7

312
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. (→P. 3 5 3 )
■About Bluetooth®
■Compatible models
●Bluetooth® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Pr ofile) Ver. 1.0 or higher (Ver. 1.3 or
higher recommended)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.
■Certification for the Bluetooth® audio system
FCC ID: AJDK018
IC ID: 775E-K018
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules and RSS-210 Rules. Operation
is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

313
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
CAUTION
■FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC radiation
exposure limits set forth for uncontrolled equipment and meets the FCC radio fre-
quency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has
very low levels of RF energy that it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 7.9 in. (20 cm) and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
■Caution while driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the player.
