2010 Lexus GX460 headlights

8
GX460_U.S.A. (OM60E69U)
Headlights (high beam)
P. 220
Pictorial indexExterior
Fog lights P. 233
Parking/front side marker lights P. 220
Headlights (low beam) P. 220
Hood P. 607
Windshield wipers P. 235
Moon roof P. 104
Outside rear view mirrors P. 97
Front turn signal lights P. 192
Side turn signal lights
P. 192

96
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
GX460_U.S.A. (OM60E69U)
Inside rear view mirror
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving. 
Doing so may lead to mishandling of the vehicle and may cause an accident, result-
ing in death or serious injury.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror is will revert to auto-
matic mode each time the
“ENGINE START STOP” switch
is turned to IGNITION ON
mode.
Indicator
To ensure that the sensors operate properly,
do not touch or cover them.

220
GX460_U.S.A. (OM60E69U)
2-3. Operating the lights and windshield wipers
Headlight switch
The headlights can be operated manually or automatically.
U.S.A.
Turning the end of the lever turns on the lights as follows:
Turn off the daytime
running light system.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
the lights listed above
turn on.

221
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)

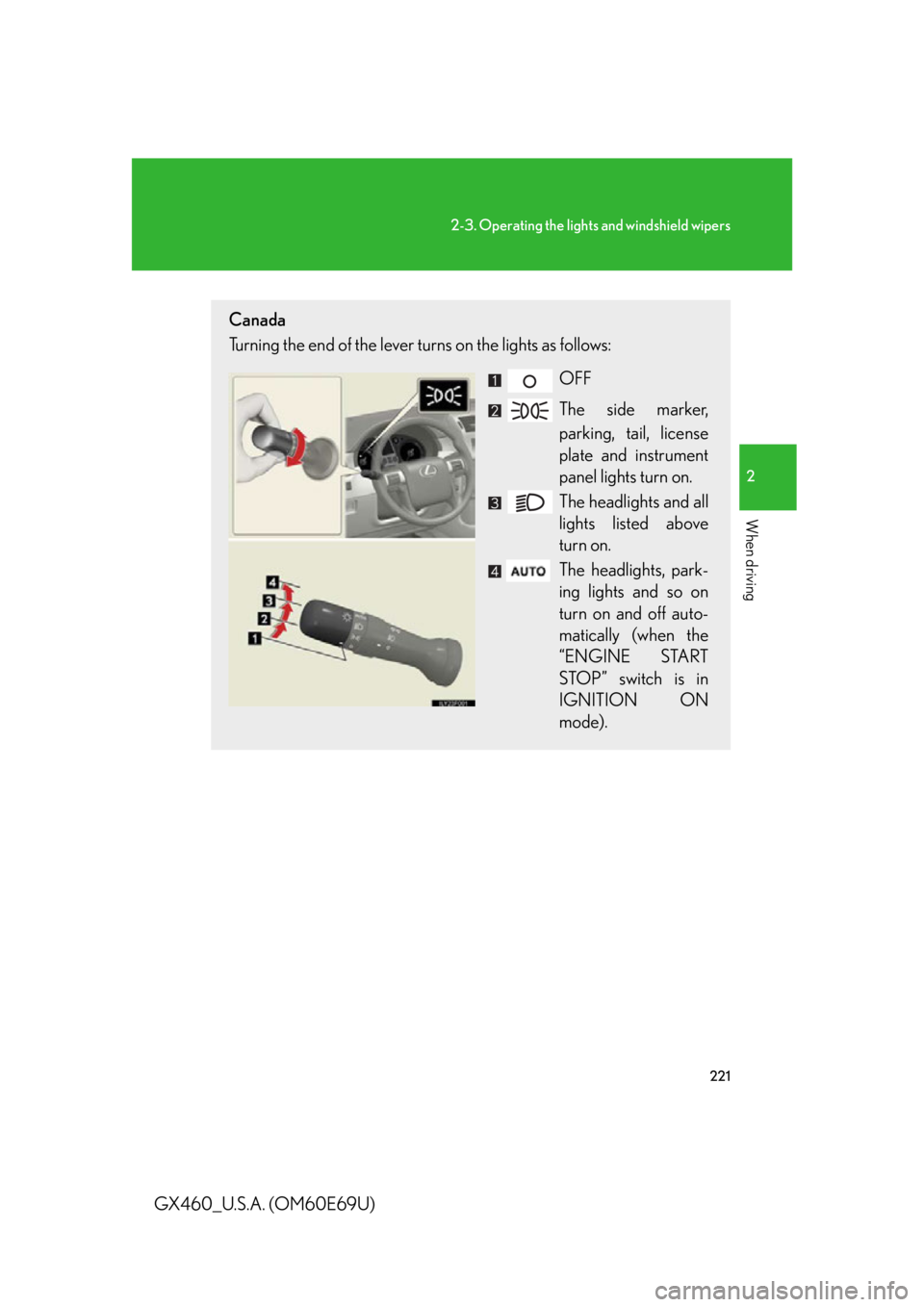

Canada
Turning the end of the lever turns on the lights as follows:
OFF
The side marker,
parking, tail, license
plate and instrument
panel lights turn on.
The headlights and all
lights listed above
turn on.
The headlights, park-
ing lights and so on
turn on and off auto-
matically (when the
“ENGINE START
STOP” switch is in
IGNITION ON
mode).

222
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
Turning on the high beam headlightsWith the headlights on, push the
lever away from you to turn on
the high beams.
When the light switch is in “AUTO”
position, the Automatic High Beam
system will be activated. 
(P. 2 2 6 )
Pull the lever toward you to the
center position to turn the high
beams off.
Pull the lever toward you and
release it to flash the high beams
once.
You can flash the high beams with
the headlights on or off.

223
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
AFS (Adaptive Front-lighting System) (if equipped)
AFS (Adaptive Front-lighting System) secures excellent visibility at inter-
sections and on curves by automatically adjusting the direction of the
light axis of the headlights according to vehicle speed and the degree of
the tire’s angle as controlled by steering input.
AFS operates at speeds of 6 mph (10 km/h) or higher.
■ Deactivating AFS
Press the menu switch.
The multi-information display will
change modes to electronic fea-
tures control mode.
Press the “ENTER” switch
upwards or downwards until
“AFS” appears.
Press the “ENTER” switch to
change to “OFF”. 
The “AFS OFF” indicator will be
displayed.
Each pressing of the switch turns
“A F S ” o n a n d o f f .
Press the menu switch to change
to the normal display.
STEP1
STEP2

224
2-3. Operating the lights and windshield wipers
GX460_U.S.A. (OM60E69U)
■Daytime running light system
To make your vehicle more visible to other drivers, the headlights turn on automati-
cally (at a reduced intensity) whenever the engine is started and the parking brake
is released. Daytime running lights are not designed for use at night.
For the U.S.A.: Daytime running lights can be turned off by operating the switch.
■Headlight control sensor
■Automatic light off system
●When only the tail lights come on: The parking/front side marker, tail, license
plate and fog lights turn off if the “ENGINE START STOP” switch is turned to
ACCESSORY mode or turned off an d the driver’s door is opened.
●When the headlights come on: The headli ghts, parking/front side marker, tail,
license plate and fog lights turn off 30 seconds after a door or the glass hatch is
opened and closed. (The lights turn off immediately if on the key is
pressed after all the doors are locked.)
To turn the lights on again, turn the “ENGINE START STOP” switch to IGNITION
ON mode, or turn the light switch off once and then back to
or .
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield. 
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

225
2-3. Operating the lights and windshield wipers
2
When driving
GX460_U.S.A. (OM60E69U)
■Automatic headlight leveling system (if equipped)
The level of the headlights is automatically adjusted according to the number of
passengers and the loading condition of the vehicle to ensure that the headlights do
not interfere with other road users.
■If the “AFS OFF” indicator flashes (if equipped)
It may indicate a malfunction in th e system. Contact your Lexus dealer.
■Customization
Settings (e.g. light sensor sensitivity) can be changed. 
(Customizable features:  P. 7 8 1 )
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
