752
GX460_CANADA (OM60F29U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*1:Unladen vehicle
*2: Vehicles without rear height control air suspension
*3: Vehicles with rear height control air suspension
*4: Vehicles without an antenna and roof rails
*5: Vehicles without an antenna and with roof rails
*6: Vehicles with an antenna
Overall length189.2 in. (4805 mm)
Overall width74.2 in. (1885 mm)
Overall height*1
72.0 in. (1830 mm)*2,4
71.7 in. (1820 mm)*3,4
72.6 in. (1845 mm)*2,5
72.2 in. (1835 mm)*3,5
74.2 in. (1885 mm)*2,6
73.8 in. (1875 mm)*3,6
Wheelbase109.8 in. (2790 mm)
Tr e a dFront62.4 in. (1585 mm)
Rear62.4 in. (1585 mm)
Vehicle capacity weight
(Occupants + luggage)
With third seat
Without third seat1315 lb. (595 kg)*2
1280 lb. (580 kg)*3
1525 lb. (690 kg)
Towing capacity6500 lb. (2948 kg)
GX460_CANADA.book Page 752 Thursday, February 4, 2010 11:54 AM
771
6-1. Specifications
6
Vehicle specifications
GX460_CANADA (OM60F29U)■

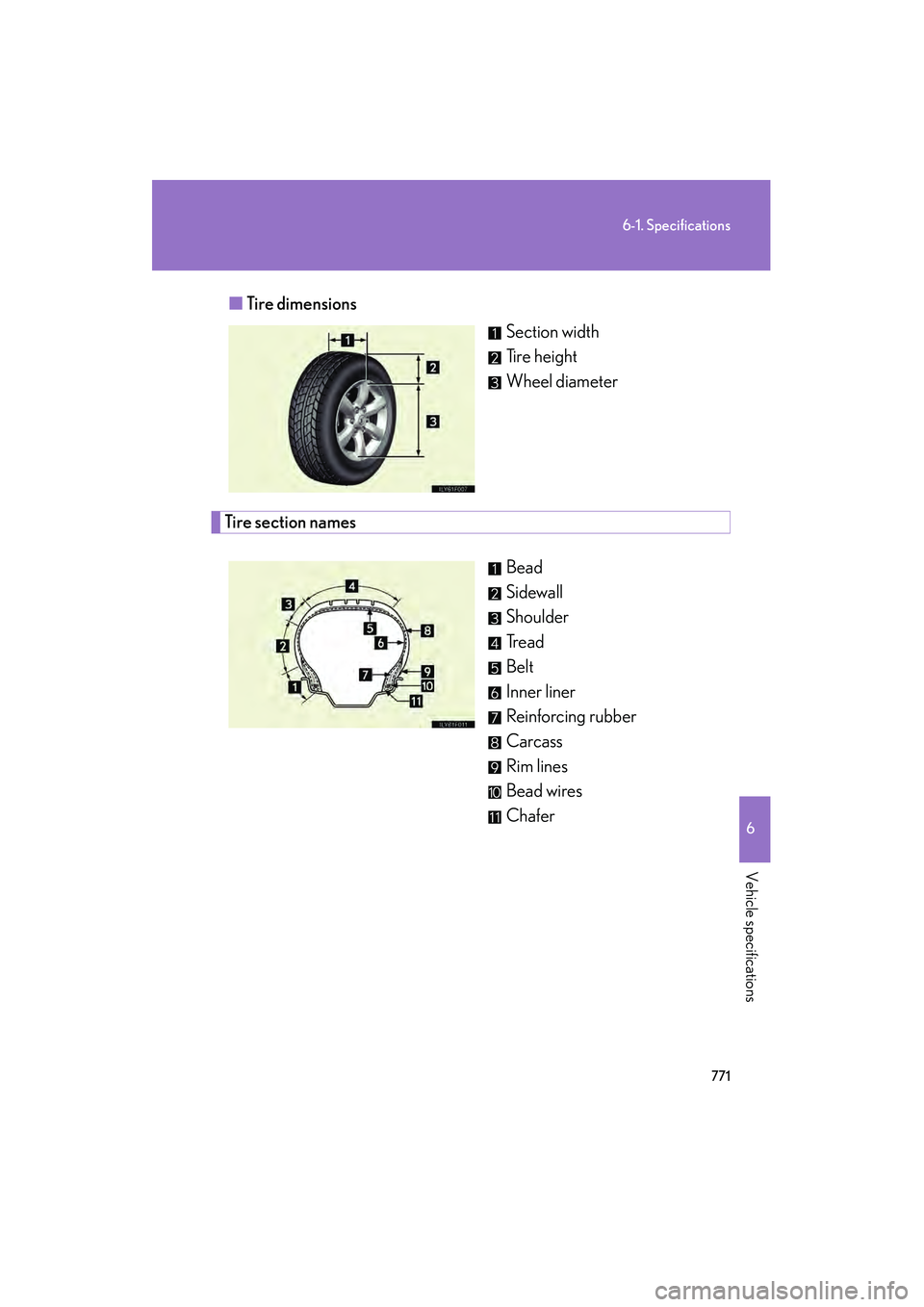

Tire dimensions
Section width
Tire height
Wheel diameter
Tire section names
Bead
Sidewall
Shoulder
Tr e a d
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
GX460_CANADA.book Page 771 Thursday, February 4, 2010 11:54 AM
