2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)
■When there is a malfunction
In the following cases, have the vehicle inspected by your Lexus dealer
●If the bumper is damaged.
●If the distance display remains on without a buzzer sound.
■If a message is displayed
→P. 6 9 8
■Certification (Canada only)
This ISM device complies with Canadian ICES-001.
■Customization that can be configured at Lexus dealer
Settings (e.g. buzzer volume) can be changed. (Customizable features →P. 7 8 3 )
CAUTION
■Caution when using the Intuitive parking assist
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possi-
bly cause an accident.
●Do not use the sensor at speeds in excess of 8 mph (13 km/h).
●Do not attach any accessories within the sensor range.
NOTICE
■Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.
GX460_CANADA.book Page 267 Thursday, February 4, 2010 11:54 AM

268
2-4. Using other driving systems
GX460_CANADA (OM60F29U)
LDA (Lane Departure Alert)∗
∗: If equipped
While driving on a freeway or motor highway that has lane markings, this
system recognizes the lanes using a camera as a sensor to alert the driver
when the vehicle deviates from its lane.
If the system judges that the vehicle may deviate from its lane, it alerts
the driver using rapid beeping and indications on the multi-information
display.
■Turning the LDA system on
The system will be activated depending on the recognizability of
lane markings and on the vehicle speed.
Press the “LDA” switch to acti-
vate the system.
The “LDA” indicator will come
on.
Press the switch again to turn
the LDA system off.
GX460_CANADA.book Page 268 Thursday, February 4, 2010 11:54 AM

270
2-4. Using other driving systems
GX460_CANADA (OM60F29U)
■When the vehicle has been parked in the sun
The LDA system may not be available for a while after driving has started. In such
cases, turn the LDA system off and turn it on again after normal temperature
returns. When the temperature in the cabin decreases and the temperature around
the camera sensor becomes suitable for its operation, the functions will begin to
operate.
■Warning lights and messages for LDA
Warning lights and messages are used to indicate a system malfunction or to inform
the driver of the need for caution while driving. (→P. 6 9 8 )
CAUTION
■Before using the LDA system
This system provides information to the dr iver in accordance with the road geome-
try and the driving conditions. Be aware of your surroundings at all times, correct
the driving path while driving appropriately and be responsible for your own safety.
This system operates by using the camera to identify lane markers when the LDA
switch is on and the vehicle is being driven at the system operating speed.
Operation may be temporarily suspended if the camera cannot recognize the lane
markers or if the system cannot operate due to the road environment or driving
conditions. Also, since an alarm may sound unnecessarily if the lane markers cannot
be correctly identified, make sure to drive responsibly even while the system is
operating.
If a malfunction occurs in the system, the driver will be alerted by a buzzer and a dis-
play, and LDA operation will be temporarily suspended. However, this does not
present a problem to normal driving.
If the alert is displayed even after restarting the engine, have your vehicle inspected
by your Lexus dealer.
GX460_CANADA.book Page 270 Thursday, February 4, 2010 11:54 AM

273
2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)
NOTICE
■Camera sensor
●Keep the windshield clean at all times.
LDA performance may deteriorate due to the presence of raindrops, condensa-
tion, ice or snow on the windshield.
●Do not subject the camera sensor to strong impact or force, and do not disas-
semble the camera sensor.
●Do not change the installation position of the camera sensor or remove it. The
direction of the camera sensor is precisely adjusted.
●When it is cold, using the heater with air blowing to the feet may cause the upper
part of the windshield to fog up. This will have a negative effect on the images. In
such a case, use the windshield defogger to provide warm, dry air to the wind-
shield.
●Do not place anything on the dashboard.
The camera sensor may recognize the image reflected on the windshield as lane
markings by mistake.
●Do not scratch the camera lens, or let it get dirty.
●Do not attach stickers or other items to the windshield near the camera sensor.
●Adjust the inside rear view mirror correctly so that it does not interfere with the
camera sensor.
Observe the following to ensure that the
LDA system functions correctly.
GX460_CANADA.book Page 273 Thursday, February 4, 2010 11:54 AM

340
2-4. Using other driving systems
GX460_CANADA (OM60F29U)
Radar sensorThe radar sensor detects vehicles
or other obstacles on or near the
road ahead and determines
whether a collision is imminent
based on the position, speed, and
heading of the obstacles.
Driver monitor sensor (if equipped)
The driver monitor sensor detects
the direction the driver is facing.
The system determines whether
the driver is facing forward.
GX460_CANADA.book Page 340 Thursday, February 4, 2010 11:54 AM

341
2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)
■The pre-collision system is operational when
●Pre-collision warning
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or oncomingvehicle is greater than about 9 mph (15 km/h).
●Pre-collision seat belts (linked to the radar sensor):
• Vehicle speed is greater than about 3 mph (5 km/h).
• The speed at which your vehicle is approaching the obstacle or oncoming
vehicle is greater than about 18 mph (30 km/h).
• The front occupants are wearing a seat belt.
●Pre-collision seat belts (linked to brake operation):
• Vehicle speed greater than about 18 mph (30 km/h).
• The system detects sudden braking or skidding.
• The front occupants are wearing a seat belt.
●Pre-collision brake assist:
• Vehicle speed is greater than about 18 mph (30 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle running ahead of you is greater than about 18 mph (30 km/h).
• The brake pedal is depressed.
●Pre-collision braking:
• The pre-collision braking off switch is not pressed.
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehicle
running ahead of you is greater than about 9 mph (15 km/h).
●AVS (Adaptive Variable Suspension System) control (if equipped):
• Vehicle speed is greater than about 3 mph (5 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehiclerunning ahead of you is greater than about 18 mph (30 km/h).
GX460_CANADA.book Page 341 Thursday, February 4, 2010 11:54 AM

342
2-4. Using other driving systems
GX460_CANADA (OM60F29U)
●Pre-collision alert braking (vehicle with driver monitor system):
• The pre-collision braking off switch is not pressed.
• The system determines that the driver is not facing forward.
• Vehicle speed is greater than about 9 mph (15 km/h).
• The speed at which your vehicle is approaching the obstacle or the vehiclerunning ahead of you is greater than about 24 mph (40 km/h).
■Conditions that may trigger the system even if there is no possibility of a collision
●When there is an object by the roadside at the entrance to a curve
●When passing an oncoming vehicle on a curve
●When driving over a narrow iron bridge
●When there is a metal object on the road surface
●When driving on an uneven road surface
●When passing an oncoming vehicle on a left-turn
●When your vehicle rapidly closes on the vehicle in front
●When there is an overhead bridge, sign or billboard ahead
●When there are excessive changes in the vehicle height (when it tilts forwards
or backwards)
●When there is an abnormality in the radar sensor
●When an overhead metal object can be seen at the top of an uphill road
●When passing through an electronic toll collection gate (only in countries with
electronic toll collection)
When the system is activated in the situations described above, there is also a possi-
bility that the seat belts will retract quickly and the brakes will be applied with a force
greater than normal. When the seat belt is locked in the restricted position, stop the
vehicle in a safe place, release the seat belt and refasten it.
GX460_CANADA.book Page 342 Thursday, February 4, 2010 11:54 AM

345
2-4. Using other driving systems
2
When driving
GX460_CANADA (OM60F29U)

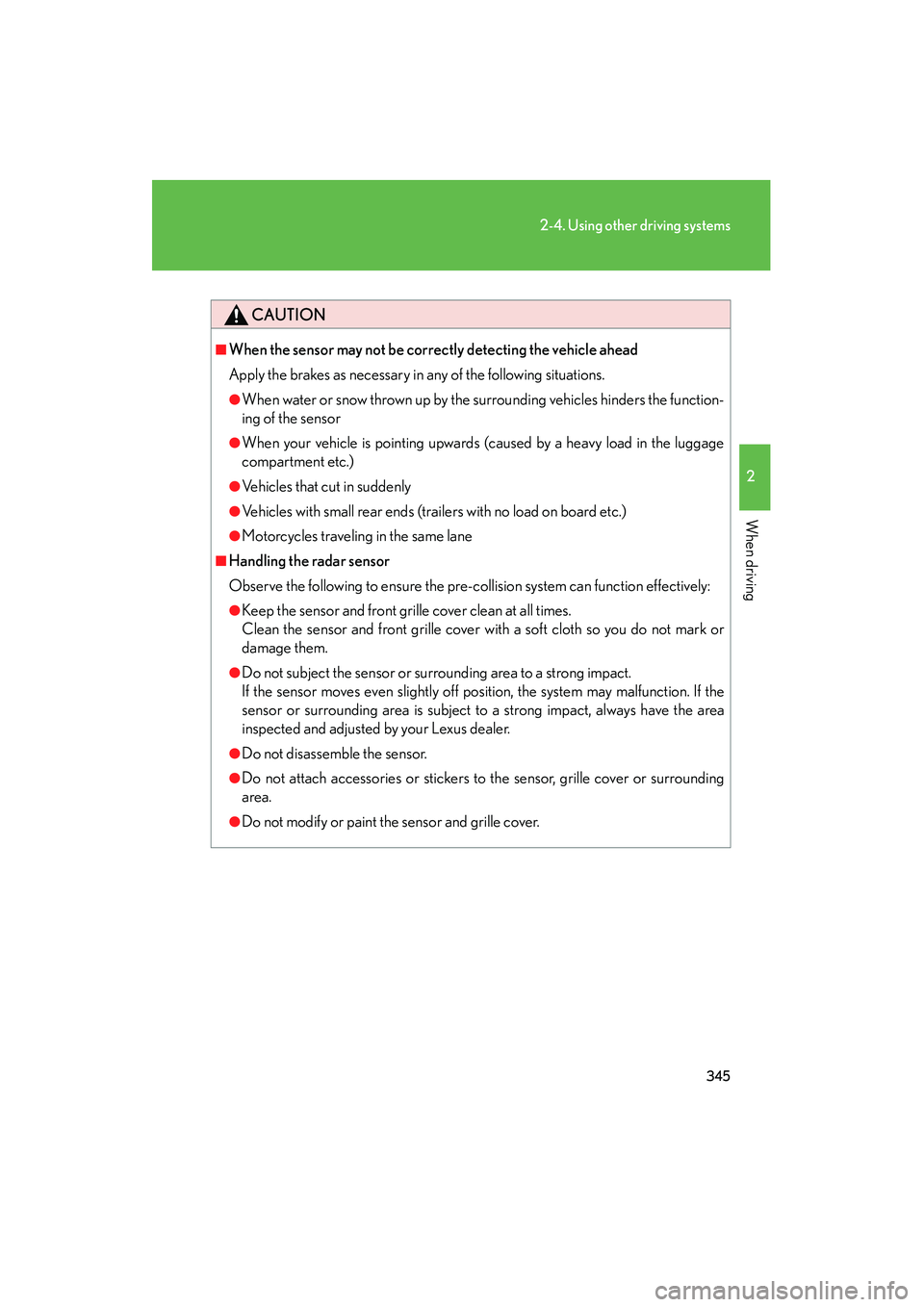

CAUTION
■When the sensor may not be correctly detecting the vehicle ahead
Apply the brakes as necessary in any of the following situations.
●When water or snow thrown up by the surrounding vehicles hinders the function-
ing of the sensor
●When your vehicle is pointing upwards (caused by a heavy load in the luggage
compartment etc.)
●Vehicles that cut in suddenly
●Vehicles with small rear ends (trailers with no load on board etc.)
●Motorcycles traveling in the same lane
■Handling the radar sensor
Observe the following to ensure the pre-collision system can function effectively:
●Keep the sensor and front grille cover clean at all times.
Clean the sensor and front grille cover with a soft cloth so you do not mark or
damage them.
●Do not subject the sensor or surrounding area to a strong impact.
If the sensor moves even slightly off position, the system may malfunction. If the
sensor or surrounding area is subject to a strong impact, always have the area
inspected and adjusted by your Lexus dealer.
●Do not disassemble the sensor.
●Do not attach accessories or stickers to the sensor, grille cover or surrounding
area.
●Do not modify or paint the sensor and grille cover.
GX460_CANADA.book Page 345 Thursday, February 4, 2010 11:54 AM
