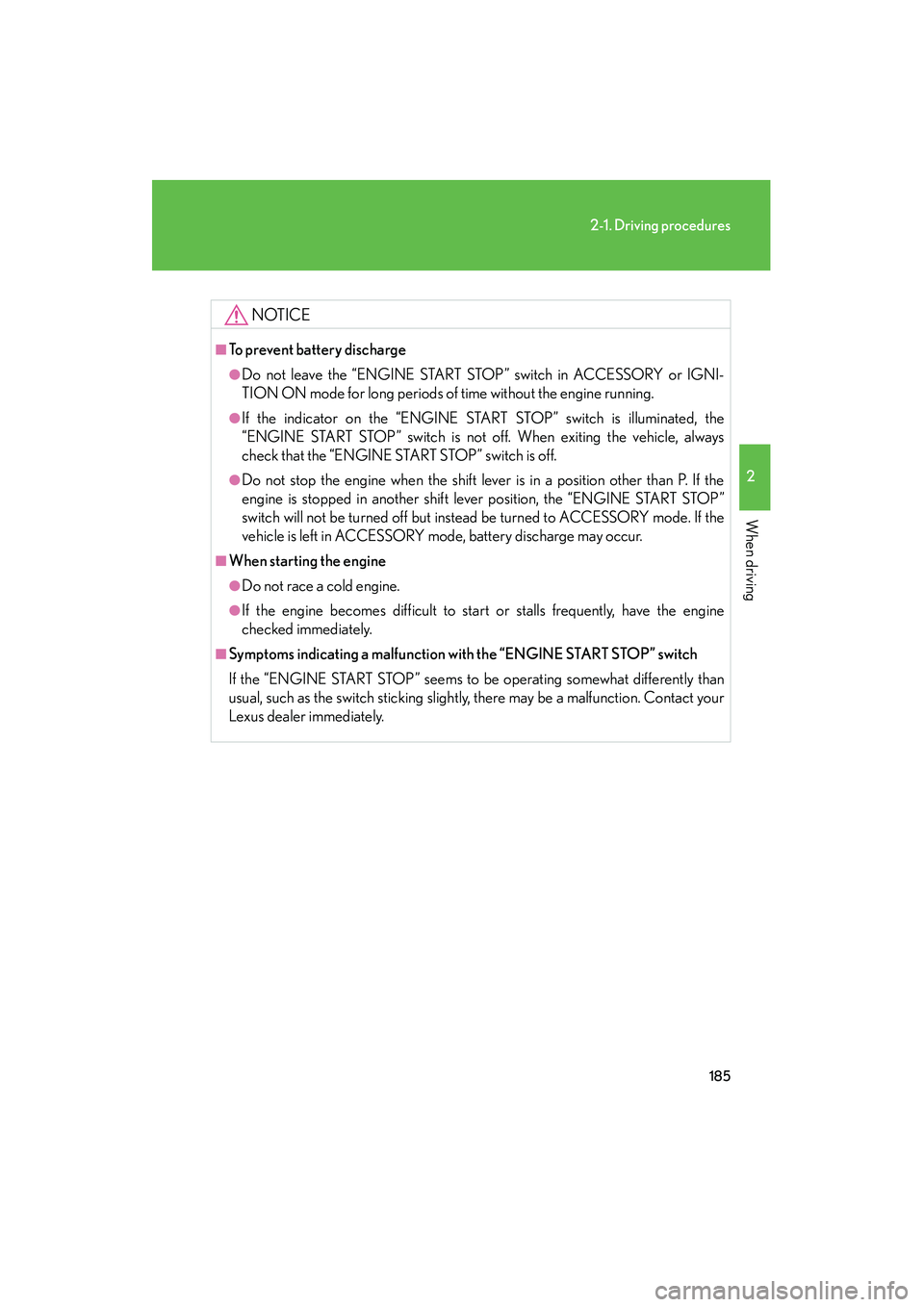

2-1. Driving procedures
2
When driving
GX460_CANADA (OM60F29U)
NOTICE
■To prevent battery discharge
●Do not leave the “ENGINE START STOP” switch in ACCESSORY or IGNI-
TION ON mode for long periods of time without the engine running.
●If the indicator on the “ENGINE START STOP” switch is illuminated, the
“ENGINE START STOP” switch is not off. When exiting the vehicle, always
check that the “ENGINE START STOP” switch is off.
●Do not stop the engine when the shift lever is in a position other than P. If the
engine is stopped in another shift lever position, the “ENGINE START STOP”
switch will not be turned off but instead be turned to ACCESSORY mode. If the
vehicle is left in ACCESSORY mode, battery discharge may occur.
■When starting the engine
●Do not race a cold engine.
●If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.
■Symptoms indicating a malfunction with the “ENGINE START STOP” switch
If the “ENGINE START STOP” seems to be operating somewhat differently than
usual, such as the switch sticking slightly, there may be a malfunction. Contact your
Lexus dealer immediately.
GX460_CANADA.book Page 185 Thursday, February 4, 2010 11:54 AM

188
2-1. Driving procedures
GX460_CANADA (OM60F29U)
■Selecting second start mode
Use second start mode for accelerating and driving on slippery
road surfaces such as snow.
Press the menu switch.
The multi-information display
will change modes to electronic
features control mode.
Press the “ENTER” switch
upwards or downwards until
“2ND START” appears.
Press the “ENTER” switch to
change to “ON”.
The “2nd STRT” indicator will be
displayed.
Each pressing of the switch
turns second start mode on and
off.
Press the menu switch to
change to the normal display.
STEP1
STEP2
GX460_CANADA.book Page 188 Thursday, February 4, 2010 11:54 AM

190
2-1. Driving procedures
GX460_CANADA (OM60F29U)
■S mode
When the shift range is 5 or lower, holding the shift lever toward “+” sets the shift
range to 6.
■AI-SHIFT
AI-SHIFT automatically selects the optimal gear according to driver performance
and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position. (Shifting
the shift lever to the S position cancels the function.)
■When driving with the cruise control or dynamic radar cruise control
Engine braking will not occur in S mode, even when downshifting to 5 or 4.
( → P. 242, 246)
■If the shift lever cannot be shifted from P
→ P. 7 3 6
■If the “S” indicator does not come on even after shifting the shift lever to S
This may indicate a malfunction in the automatic transmission system. Have the
vehicle inspected by Lexus dealer immediately.
(In this situation, the transmission will operate in the same manner as when the shift
lever is in D.)
■Downshift restriction warning buzzer (S mode)
To help ensure safety and driving performance, downshifting operation may some-
times be restricted. In some circumstances, downshifting may not be possible even
when the shift lever is operated. (A buzzer will sound twice.)
GX460_CANADA.book Page 190 Thursday, February 4, 2010 11:54 AM

192
2-1. Driving procedures
GX460_CANADA (OM60F29U)
Turn signal lever
■Turn signals can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
The turn signal lever can be used to show the following intentions of the
driver:Right turn
Left turn
Lane change to the right
(push and hold the lever part-
way)
The right hand signals will flash
until you release the lever.
Lane change to the left (push
and hold the lever partway)
The left hand signals will flash
until you release the lever.
GX460_CANADA.book Page 192 Thursday, February 4, 2010 11:54 AM

197
2-2. Instrument cluster
2
When driving
GX460_CANADA (OM60F29U)
■The meters and display illuminate when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■Instrument cluster brightness adjustment
The instrument cluster brightness levels when the tail lights are on and off can be
adjusted.
■The brightness of the instrument cluster lights
When the tail lights are on, the brightness will change. However, when the sur-
roundings are bright (daytime, etc.) turning on the tail lights will not change the
instrument cluster brightness.
In addition, the brightness of the instrument cluster lights is automatically adjusted
based on the light sensor detecting how bright the surroundings are.
■When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
If the trip meter was displayed last, the ODO screen will be displayed after reset-
ting.
■Customization
Setting of sensitivity of the ambient light sensor used for dimming the meter lights
can be changed. (Customizable features →P. 7 8 3 )
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The engine may be overheating if the engine coolant temperature gauge is in the
red zone (H). In this case, immediately stop the vehicle in a safe place, and check
the engine after it has cooled completely. ( →P. 74 4 )
GX460_CANADA.book Page 197 Thursday, February 4, 2010 11:54 AM

198
2-2. Instrument cluster
GX460_CANADA (OM60F29U)
Indicators and warning lights
The indicators and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
Center panel (vehicles without a navigation system)
GX460_CANADA.book Page 198 Thursday, February 4, 2010 11:54 AM

200
2-2. Instrument cluster
GX460_CANADA (OM60F29U)
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 9 2 )Cruise control indicator
(→ P. 242, 246)
Headlight high beam
indicator ( →P. 220)“SET” indicator
(→ P. 242, 246)
(U.S.A.)
Headlight indicator
(→ P. 220)
(if equipped)
Dynamic radar cruise
control indicator
(→ P. 2 4 6 )
(Canada)
Tail light indicator
(→ P. 220)
(if equipped)
“LDA” indicator
(→ P. 2 6 8 )
(if equipped)
Automatic High Beam
indicator ( →P. 2 2 6 )Slip indicator ( →P. 3 3 2 )
Fog light indicator
(→ P. 2 3 3 )VSC OFF indicator
(→ P. 333)
Eco Driving Indicator
Light ( →P. 2 1 0 )
(if equipped)
Multi-terrain Select
indicator ( →P. 2 9 0 )
*1*1, 2
*1
*1
GX460_CANADA.book Page 200 Thursday, February 4, 2010 11:54 AM

201
2-2. Instrument cluster
2
When driving
GX460_CANADA (OM60F29U)
*1: These lights turn on when the “ENGINE START STOP” switch is turnedto IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is on, or after a few seconds.
There may be a malfunction in a system if the lights do not come on, or
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The indicator flashes to indicate that the system is operating.
*3: The indicator flashes faster than usual to indicate that the system is oper-
ating.
(if equipped)
Crawl Control indicator
( → P. 323)AIR BAG ON/OFF
indicator ( →P. 1 4 0 )
(if equipped)
Downhill assist control
system indicator
(→ P. 3 2 7 )
(if equipped)
Intuitive parking assist
indicator ( →P. 2 5 9 )
“2nd STRT” indicator
(→ P. 1 8 8 )
(if equipped)
“AFS OFF” indicator
(→ P. 223)
Low speed four-wheel
drive indicator light
(→ P. 3 1 7 )“RSCA OFF” indicator
(→ P. 1 3 8 )
Center differential lock
indicator ( →P. 3 1 8 )
(if equipped)
“PCS” indicator
(→ P. 3 3 8 )
*1
*1
*1
*1
*1, 3
