2010 Lexus GX460 indicator

569
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)Test the HomeLink
® operation by
pressing the newly programmed
button.
If a HomeLink® button has been
programmed for a garage door,
check to see if the garage door
opens and closes. If the garage
door does not operate, see if your
garage transmitter is of the rolling
code type. Press and hold the pro-
grammed HomeLink
® button. The
remote control transmitter is of the
rolling code type if the HomeLink
®
indicator light flashes rapidly for 2
seconds and then remains lit. If
your transmitter is the rolling code
type, proceed to the heading “Pro-
gramming a rolling code system”.
Repeat the steps above to program another device for any of the
remaining HomeLink® buttons.
STEP3
STEP4
GX460_CANADA.book Page 569 Thursday, February 4, 2010 11:54 AM

571
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)■
Programming an entry gate (for U.S. owners)/Programming a
device in the Canadian market
Place the remote control transmit ter 1 in. (25 mm) away from the
HomeLink
® buttons.
Keep the HomeLink® indicator light in view while programming.
Press and hold the selected HomeLink® button.
Repeatedly press and release (cycle) the remote control trans-
mitter for 2 seconds each until step 4 is completed.
When the HomeLink
® indicator light starts to flash rapidly,
release the buttons.
Test the HomeLink
® operation by pressing the newly pro-
grammed button. Check to see if the gate/device operates cor-
rectly.
Repeat the steps above to program another device for each of
the remaining HomeLink
® buttons.
■ Programming other devices
To program other devices such as home security systems, home door
locks or lighting, contact your Lexus dealer for assistance.
■ Reprogramming a button
The individual HomeLink
® buttons cannot be erased but can be
reprogrammed. To reprogram a button, follow the “Reprogramming a
HomeLink
® button” instructions.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
GX460_CANADA.book Page 571 Thursday, February 4, 2010 11:54 AM

572
3-7. Other interior features
GX460_CANADA (OM60F29U)
Operating HomeLink®
Press the appropriate HomeLink® button. The HomeLink® indicator
light should come on.
The HomeLink® compatible transceiver in your vehicle continues to send a
signal for up to 20 seconds as long as the button is pressed.
Reprogramming a HomeLink® button
Press and hold the desired HomeLink
® button. After 20 seconds, the
HomeLink® indicator light will start flashing slowly. Keep pressing the
HomeLink® button and then follow the “Programming HomeLink® (for
U.S. owners)” instructions. ( →P. 567)
Erasing the entire HomeLink® memory (all three programs)
Press and hold the 2 outside but-
tons for 10 seconds until the indi-
cator light flashes.
If you sell your vehicle, be sure to
erase the programs stored in the
HomeLink
® memory.
GX460_CANADA.book Page 572 Thursday, February 4, 2010 11:54 AM

580
3-7. Other interior features
GX460_CANADA (OM60F29U)

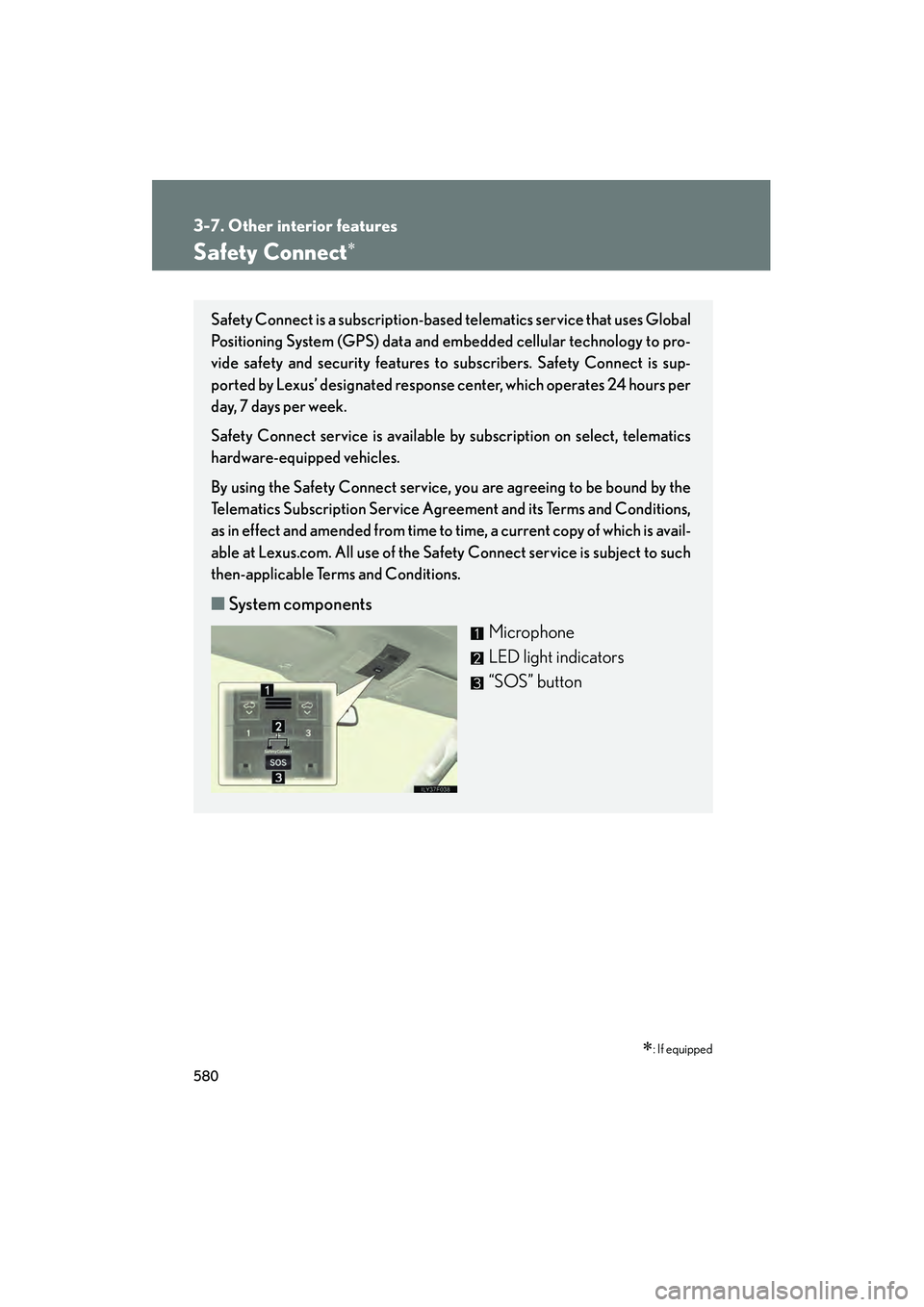

Safety Connect∗
∗: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embedded cellular technology to pro-
vide safety and security features to subscribers. Safety Connect is sup-
ported by Lexus’ designated response center, which operates 24 hours per
day, 7 days per week.
Safety Connect service is available by subscription on select, telematics
hardware-equipped vehicles.
By using the Safety Connect service, you are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions,
as in effect and amended from time to time, a current copy of which is avail-
able at Lexus.com. All use of the Safety Connect service is subject to such
then-applicable Terms and Conditions.
■ System components
Microphone
LED light indicators
“SOS” button
GX460_CANADA.book Page 580 Thursday, February 4, 2010 11:54 AM

583
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Safety Connect LED light IndicatorsWhen the “ENGINE START STOP” switch is turned to IGNITION ON
mode, the red indicator light comes on for 2 seconds then turns off.
Afterward, the green indicator light comes on, indicating that the service
is active.
The following indicator light patterns indicate specific system usage con-
ditions:
● Green indicator light on = Active service
● Green indicator light flashing = Safety Connect call in process
● Red indicator light (except at vehicle start-up) = System malfunction
(contact your Lexus dealer)
● No indicator light (off) = Safety Connect service not active
Safety Connect services
■ Automatic Collis ion Notification
In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding agent receives the vehicle’s location and attempts to speak
with the vehicle occupants to assess the level of emergency. If the
occupants are unable to communicate, the agent automatically treats
the call as an emergency, contacts the nearest emergency services
provider to describe the situation, an d requests that assistance be sent
to the location.
GX460_CANADA.book Page 583 Thursday, February 4, 2010 11:54 AM

597
4-2. Maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)
General maintenance
Engine compartment
ItemsCheck points
BatteryCheck the indicator and
connections. (→P. 622)
Brake fluidIs the brake fluid at the correct level?
(→ P. 6 1 8 )
Engine coolantIs the engine coolant at the correct
level? (→ P. 6 1 5 )
Engine oilIs the engine oil at the correct level?
(→ P. 6 1 0 )
Exhaust systemThere should not be any fumes or
strange sounds.
Power steering fluidIs the power steering fluid at the
correct level? ( →P. 6 2 0 )
Radiator/condenser
The radiator and condenser should
be free from foreign objects.
( →P. 6 1 7 )
Wa s h e r f l u i dIs there sufficient washer fluid?
(→ P. 6 2 6 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Service Guide” or “Owner’s
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.
GX460_CANADA.book Page 597 Thursday, February 4, 2010 11:54 AM

599
4-2. Maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)
ItemsCheck points
Head restraints• Do the head restraints move smoothly and lock securely?
Indicators/buzzers• Do the indicators and buzzers
function properly?
Lights• Do all the lights come on?
Pa r k i n g b r a ke
• Does the parking brake lever or pedal move smoothly?
• When parked on a slope and the parking brake is on , is the vehicle
securely stopped?
Seat belts
• Do the seat belts operate smoothly?
• The seat belts should not be dam- aged.
Seats• Do the seat controls operate prop-erly?
Steering wheel
• Does the steering wheel rotate smoothly?
• Does the steering wheel have the correct amount of free play?
• There should not be any strange
sounds coming from the steering
wheel.
GX460_CANADA.book Page 599 Thursday, February 4, 2010 11:54 AM

601
4-2. Maintenance
4
Maintenance and care
GX460_CANADA (OM60F29U)
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■If the malfunction indicator lamp comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Cont act your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test in the following situations:
● When the battery is disconnected or discharged
Readiness codes that are set du ring ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The malfunction indicator lamp comes on a temporary malfunc-
tion and your vehicle may not pass the I/M test.
■ When the malfunction indicator lamp still remains on after several
driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prepare the vehicle for re-testing.
GX460_CANADA.book Page 601 Thursday, February 4, 2010 11:54 AM
