2010 Lexus GX460 stop start

405
3-1. Using the air conditioning system and defogger
3
Interior features
GX460_CANADA (OM60F29U)
Windshield wiper de-icer
■The windshield wiper de-icer can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
CAUTION
■When the windshield wiper de-icer is on
Do not touch the lower part of the windshield or the side of the front pillars, as the
surfaces can become very hot and burn you.
This feature is used to prevent ice from building up on the windshield and
wiper blades.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemTurns the windshield wiper de-
icer on/off
The windshield wiper de-icer
will automatically turn off after
approximately 15 minutes.
GX460_CANADA.book Page 405 Thursday, February 4, 2010 11:54 AM

472
3-3. Using the Bluetooth® audio system
GX460_CANADA (OM60F29U)Pattern A
Press the talk switch and say “From Car” or “From Audio player”,
and select “Confirm” by using a voice command or the “TUNE/
SEL” knob.
Pattern B
Select “From Car” or “From Audio”, using the “TUNE/SEL” knob.
If “From Car” is selected, the portable player will be automatically con-
nected whenever the “ENGINE START STOP” switch is in either
ACCESSORY or IGNITION ON mode.
Changing the registered name of a portable player
Select “Change Name” using a voice command or the “TUNE/
SEL” knob.
Pattern A
Select the name of the portable player to be changed by either of
the following methods, and select “Confirm” using a voice com-
mand or the “TUNE/SEL” knob:
a. Press the talk switch and say the name of desired portableplayer.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
STEP3
STEP3
STEP1
STEP2
GX460_CANADA.book Page 472 Thursday, February 4, 2010 11:54 AM

511
3
Interior features
GX460_CANADA (OM60F29U)
3-5. Using the interior lights
Interior lights list
Personal/interior lights (→P. 513)
Inside door handle lights
Shift lever light (when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
“ENGINE START STOP” switch light
Scuff lights (if equipped)
Footwell lights
Door courtesy lights
Running board lights
GX460_CANADA.book Page 511 Thursday, February 4, 2010 11:54 AM

514
3-5. Using the interior lights
GX460_CANADA (OM60F29U)
■Illuminated entry system
The lights automatically turn on/off according to “ENGINE START STOP” switch
mode, the presence of the electronic key, whether the doors are locked/unlocked,
and whether the doors are open/closed.
■To prevent battery discharge
If the following lights remain on when the door is not fully closed and the personal/
interior light main switch is in the door position, the lights will go off automatically
after 20 minutes:
●Personal/interior light
●Inside door handle lights
●Footwell lights
●Running board lights
■Customization
Settings (e.g. adjust the time elapsed before the interior lights automatically turn
off) can be changed. (Customizable features →P. 7 8 3 )
GX460_CANADA.book Page 514 Thursday, February 4, 2010 11:54 AM

528
GX460_CANADA (OM60F29U)
3-7. Other interior features
Cool box∗
∗: If equipped
■The cool box can be operated when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When the cool box is turned on
Turning cool box on also turns on front air conditioning system.
Lift the lid while pulling up the
lower lever to release the lock.
Turns the cool box on/off
When on, the indicator light
comes on.
STEP1
STEP2
GX460_CANADA.book Page 528 Thursday, February 4, 2010 11:54 AM

533
3-7. Other interior features
3
Interior features
GX460_CANADA (OM60F29U)
Clock
■The clock is displayed when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When disconnecting and reconnecting battery terminals
The clock data will be reset.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without a navigation systemAdjusts the hours
Adjusts the minutes
GX460_CANADA.book Page 533 Thursday, February 4, 2010 11:54 AM

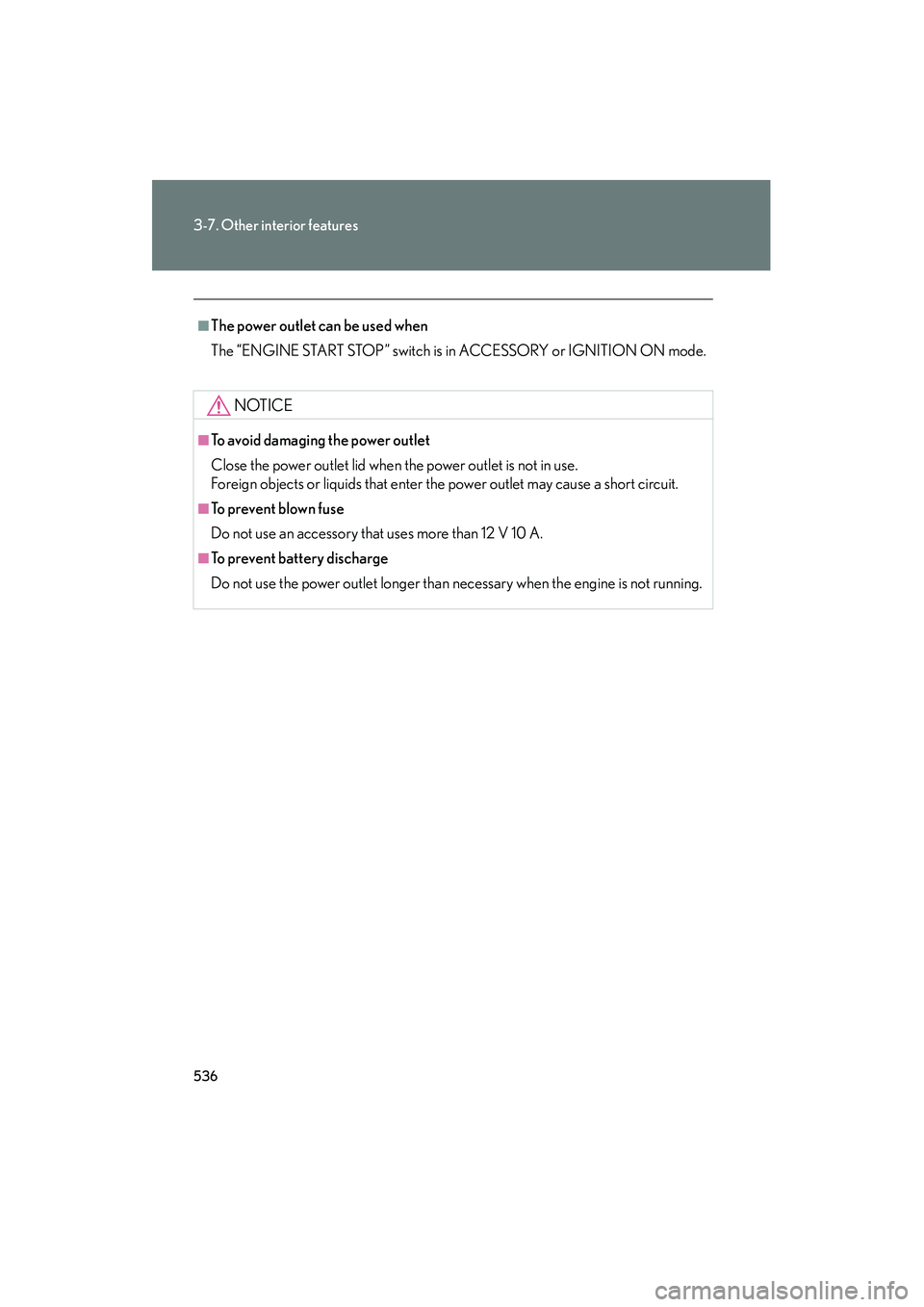

536
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent blown fuse
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
GX460_CANADA.book Page 536 Thursday, February 4, 2010 11:54 AM

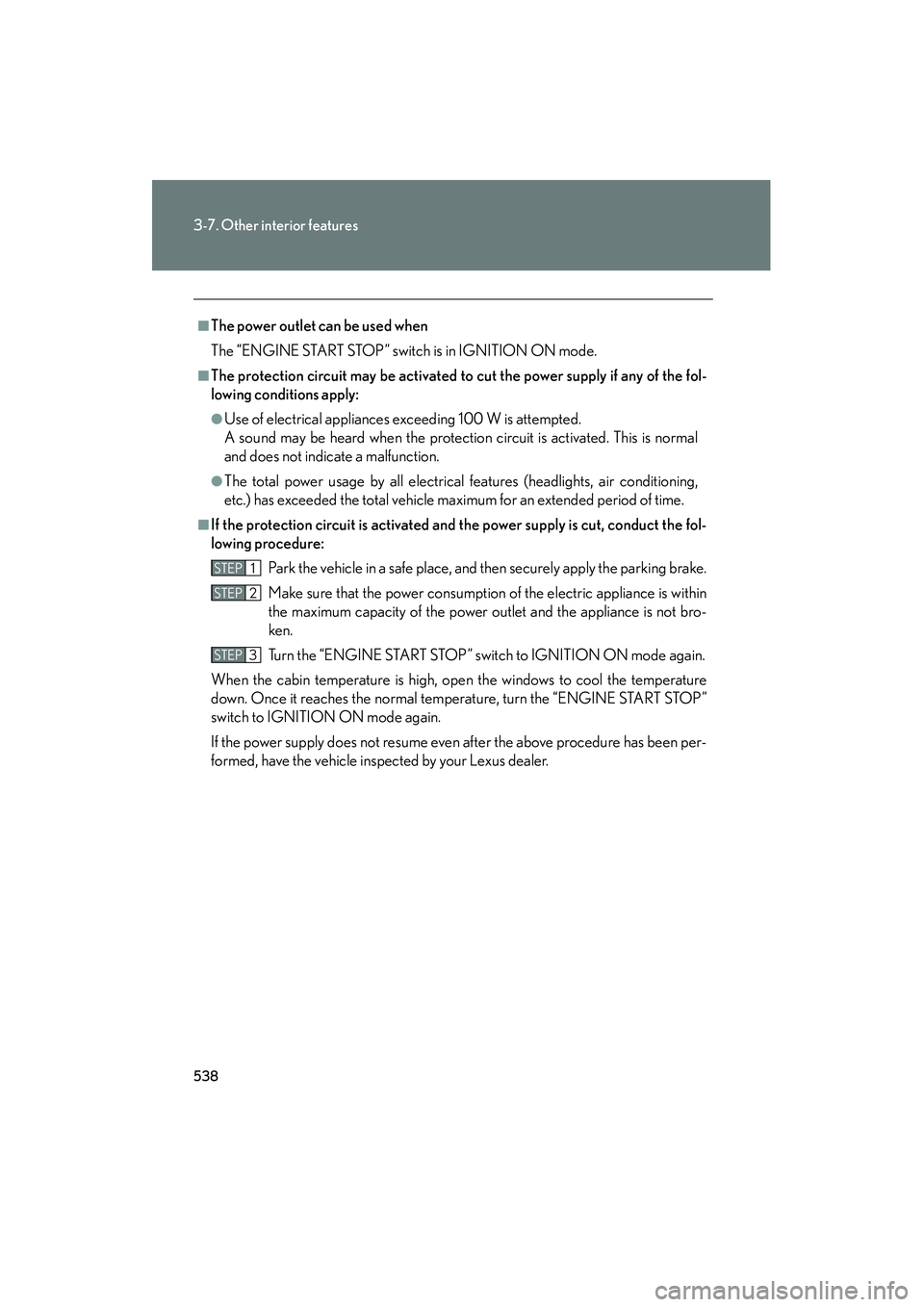

538
3-7. Other interior features
GX460_CANADA (OM60F29U)
■The power outlet can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■The protection circuit may be activated to cut the power supply if any of the fol-
lowing conditions apply:
●Use of electrical appliances exceeding 100 W is attempted.
A sound may be heard when the protection circuit is activated. This is normal
and does not indicate a malfunction.
●The total power usage by all electrical features (headlights, air conditioning,
etc.) has exceeded the total vehicle maximum for an extended period of time.
■If the protection circuit is activated and the power supply is cut, conduct the fol-
lowing procedure:Park the vehicle in a safe place, and then securely apply the parking brake.
Make sure that the power consumption of the electric appliance is within
the maximum capacity of the power outlet and the appliance is not bro-
ken.
Turn the “ENGINE START STOP” switch to IGNITION ON mode again.
When the cabin temperature is high, open the windows to cool the temperature
down. Once it reaches the normal temperature, turn the “ENGINE START STOP”
switch to IGNITION ON mode again.
If the power supply does not resume even after the above procedure has been per-
formed, have the vehicle inspected by your Lexus dealer.
STEP1STEP1
STEP2STEP2
STEP1STEP3STEP3
GX460_CANADA.book Page 538 Thursday, February 4, 2010 11:54 AM
