2010 Lexus GS450h fuse box

460
4-3. Do-it-yourself maintenance
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm

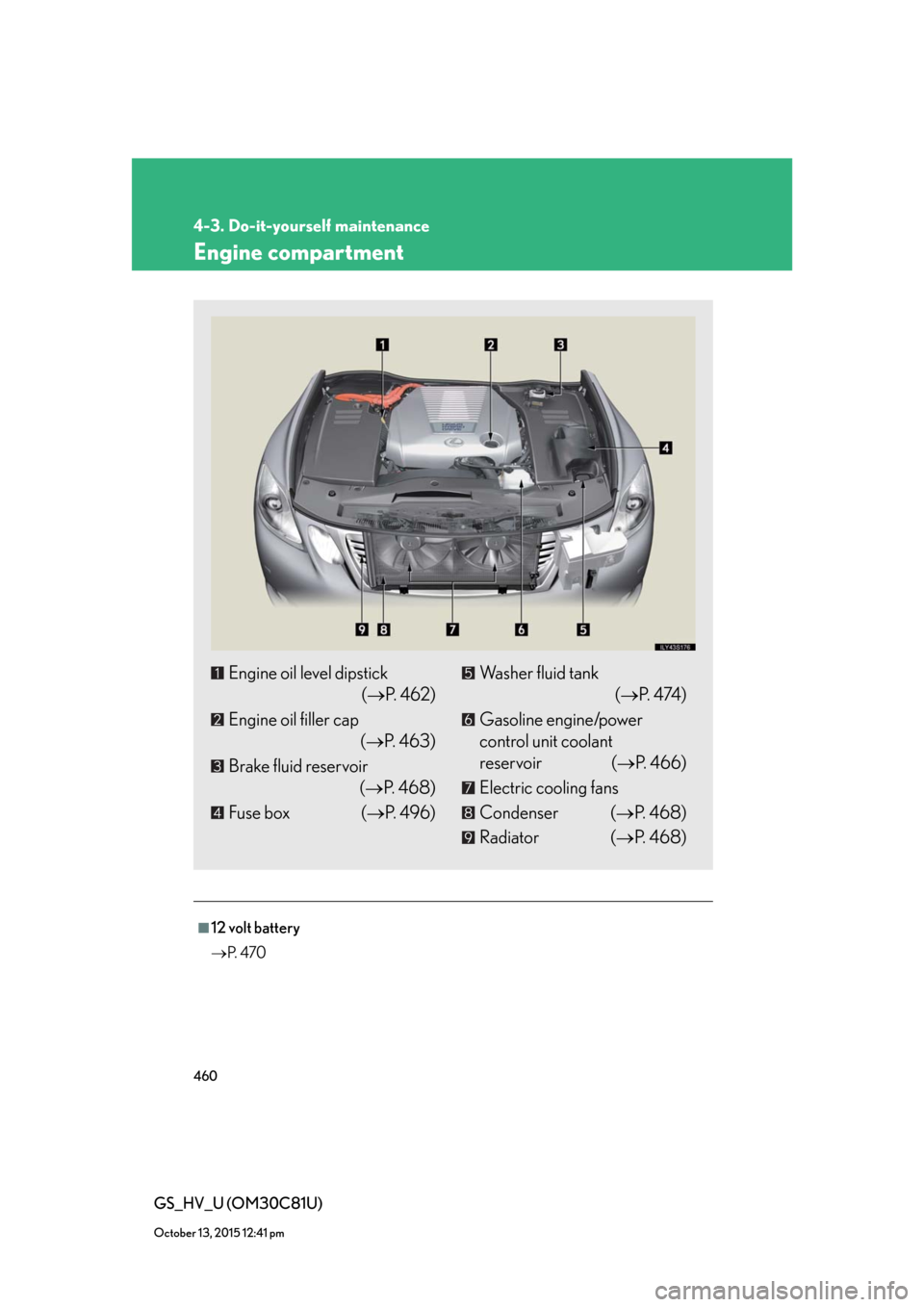

Engine compartment
■12 volt battery
P. 4 7 0
Engine oil level dipstick
(P. 4 6 2 )
Engine oil filler cap
(P. 463)
Brake fluid reservoir
(P. 468)
Fuse box (P. 4 9 6 )Washer fluid tank
(P. 4 74 )
Gasoline engine/power 
control unit coolant 
reservoir (P. 466)
Electric cooling fans
Condenser (P. 468)
Radiator (P. 468)

496
4-3. Do-it-yourself maintenance
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “POWER” switch to OFF.
Remove the engine compartment cover if necessary.
P. 4 6 1
Open the fuse box cover.
■Engine compartment
Remove the clips.
■Front controller in the engine compartment fuse box
Lift the lid off while pushing the
tabs on either side.STEP1
STEP2
STEP3

498
4-3. Do-it-yourself maintenance
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
■Luggage compartment (vehicles with active stabilizer suspension
system)
Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
(P. 500) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
STEP4
STEP5
STEP6

499
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
Type B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type C
Normal fuse
Blown fuse
Contact your Lexus dealer.
Type D
Normal fuse
Blown fuse
Contact your Lexus dealer.

505
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
FuseAmpereCircuit
10ECU-IG LH10
VGRS, EPS, electronically con-
trolled brake system, yaw rate & G
sensor, dynamic radar cruise control
system, rear view monitor system,
moon roof
11PA N E L7. 5
Steering switches, distance control
switch, audio system, glove box light,
switch illumination, cigarette lighter,
shift lever light, touch screen, rear
personal lights
12S/ROOF25Moon roof
13FUEL OPN10Fuel lid opener
14LH-B10
Multiport fuel injection system/
sequential multiport fuel injection
system
15TRK OPN10Trunk opener
16TV7. 5Touch screen, rear view monitor sys-
tem
17A/C7. 5Air conditioning system
18FR P/SEAT LH30Po w e r s e a t

510
4-3. Do-it-yourself maintenance
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
CAUTION
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
■Fuse box near the power control unit
Never check or replace the fuses as there are high voltage parts and wiring near
the fuse box.
Doing so may cause electric shock, resulting death or serious injury.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.

515
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_HV_U (OM30C81U)
October 13, 2015 12:41 pm
Replacing light bulbs
■Headlight high beam and daytime running light
Left-hand side: Remove the fuse
box cover.
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2
STEP3

633
Alphabetical index
GS_HV_U (OM30C81U)
February 1, 2010 11:29 am
Engine compartment cover............... 461
Engine coolant temperature 
gauge ........................................................ 161
Engine/power control unit coolant
Capacity................................................. 593
Checking ............................................... 466
Preparing and checking 
before winter .................................... 233
Engine oil
Capacity...................................................591
Checking ............................................... 462
Preparing and checking 
before winter .................................... 233
Engine oil maintenance data ............464
Enhanced vehicle stability 
control .................................................... 214
Event data recorder............................ 532
First-aid kit storage belt....................... 421
Floor mats.................................................. 419
Fluid
Brake ....................................................... 468
Washer ....................................................474
Fog lights
Switch ........................................................ 174
Wattage ................................................. 597
Foot light .................................................. 395
Front passenger occupant 
classification system ........................... 119
Front passenger’s seat belt 
reminder light ......................................537
Front seats
Adjustment .............................................. 65
Driver’s seat position memory .......67
Front turn signal lights
Wattage ................................................. 597Fuel
Capacity ................................................ 590
Fuel gauge................................................ 161
Gas station information ..................644
Information ........................................... 598
Refueling.................................................... 94
Messages .............................................. 554
Fuel door ..................................................... 94
Fuel filler door ........................................... 94
Fuses .......................................................... 496
Garage door opener .......................... 423
Gas station information...................... 644
Gauges ........................................................ 161
Glove box ............................................... 400
Hands-free system
(for cellular phone) ..........................345
Head restraints ......................................... 72
Headlight aim ............................................511
Headlight cleaner .................................. 180
Headlights
Adaptive front lighting system....... 172
Discharge headlights 
precautions....................................... 520
Replacing light bulbs ......................... 514
Switch.......................................................... 171
Wattage ..................................................597
Heaters
Seat heaters ........................................... 413
Side mirror............................................ 268
Hill-start assist control ......................... 214
Hood .......................................................... 457
Hooks
Cargo ........................................................421
Shopping bag ........................................421
F
G
H
