2010 Lexus GS350 headlight bulb

1
2
3
4
5
6
7
5
GS_G_U (OM30C80U)
January 27, 2010 4:48 pm
4-1. Maintenance and careCleaning and protecting the vehicle exterior.................. 430
Cleaning and protecting the vehicle interior .................... 433
4-2. Maintenance Maintenance requirements............................... 436
General maintenance ............... 438
Emission inspection and maintenance (I/M)
programs ....................................... 441 4-3. Do-it-yourself maintenance
Do-it-yourself service precautions .................................. 442
Hood ................................................. 445
Positioning a floor jack............... 446
Engine compartment.................. 448
Tires ................................................... 463
Tire inflation pressure................. 473
Wheels ............................................. 477
Air conditioning filter.................. 479
Electronic key battery ................ 482
Checking and replacing fuses ................................................ 484
Headlight aim ............................... 509
Light bulbs ........................................ 512
5-1. Essential information Emergency flashers ................... 520
If your vehicle needs to be towed ................................... 521
If you think something is wrong ............................................ 530
Fuel pump shut off system ......... 531
Event data recorder.................... 532
4Maintenance and care
5When trouble arises
GS_U_G.book Page 5 Wednesday, January 27, 2010 4:48 PM

Maintenance and care4
429
GS_G_U (OM30C80U)
January 27, 2010 5:14 pm
4-1. Maintenance and careCleaning and protecting the vehicle exterior............ 430
Cleaning and protecting the vehicle interior .............. 433 4-2. Maintenance
Maintenance requirements........................ 436
General maintenance .......... 438
Emission inspection and maintenance (I/M)
programs ................................ 441
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ........................... 442
Hood .......................................... 445
Positioning a floor jack ......... 446
Engine compartment ........... 448
Tires............................................ 463
Tire inflation pressure........... 473
Wheels ....................................... 477
Air conditioning filter ............ 479
Electronic key battery.......... 482
Checking and replacing fuses ........................................ 484
Headlight aim ......................... 509
Light bulbs................................. 512
Sec_04TOC.fm Page 429 Wednesday, January 27, 2010 5:14 PM

512
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 6 0 0 )
■ Remove the engine compartment cover if necessary
→ P. 4 5 0
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight high beam and
daytime running light
Rear turn signal light Back-up light
GS_U_G.book Page 512 Wednesday, January 27, 2010 4:48 PM

513
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Replacing light bulbs■ Headlight high beam and daytime running light
Unplug the connector while
depressing the lock release.
Turn the bulb base counterclock-
wise to remove it.
STEP1
STEP2
GS_U_G.book Page 513 Wednesday, January 27, 2010 4:48 PM

517
4-3. Do-it-yourself maintenance
4
Maintenance and care
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

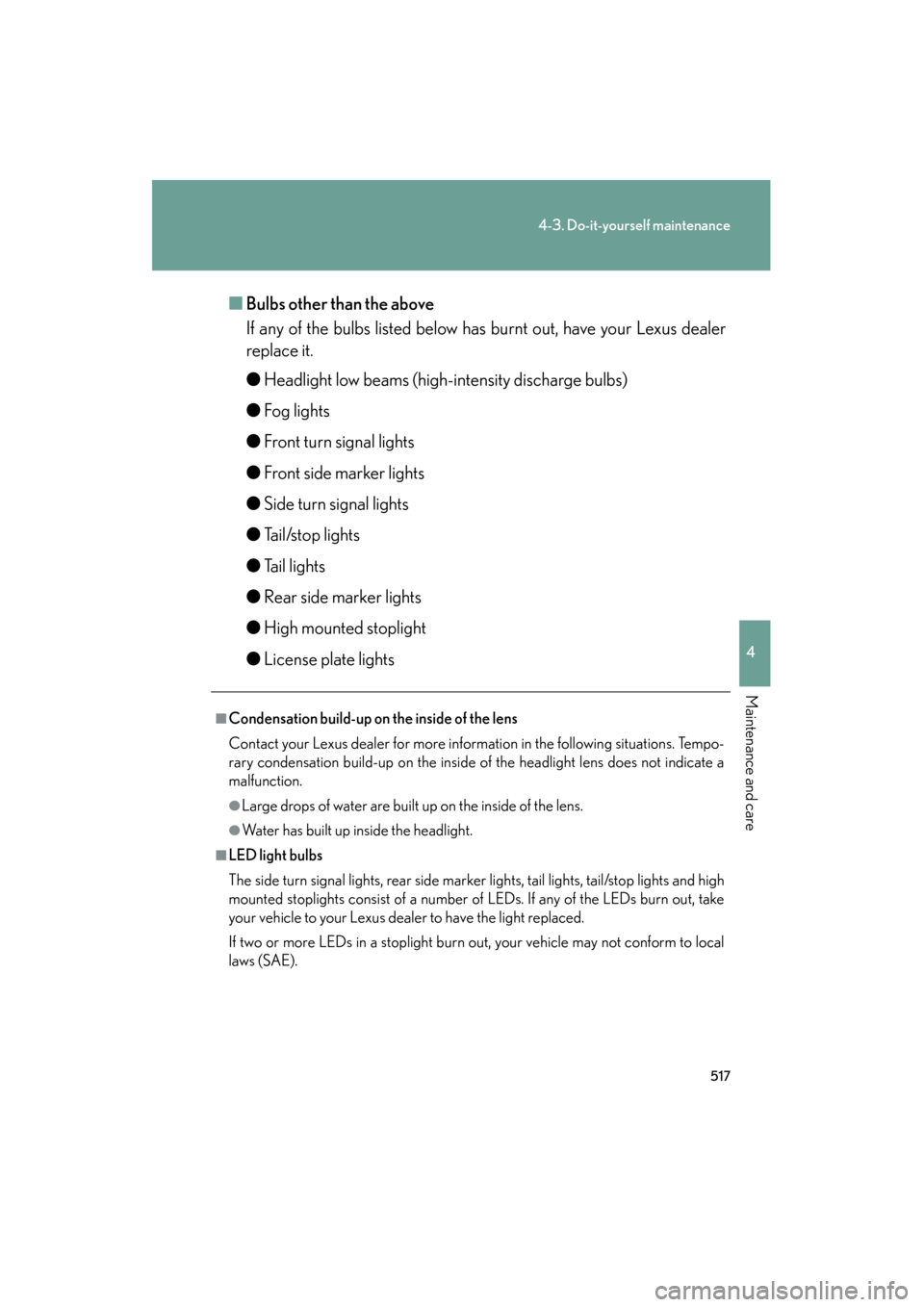

■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
● Headlight low beams (high- intensity discharge bulbs)
● Fog lights
● Front turn signal lights
● Front side marker lights
● Side turn signal lights
● Tail/stop lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● License plate lights
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water are built up on the inside of the lens.
●Water has built up inside the headlight.
■LED light bulbs
The side turn signal lights, rear side marker lights, tail lights, tail/stop lights and high
mounted stoplights consist of a number of LEDs. If any of the LEDs burn out, take
your vehicle to your Lexus dealer to have the light replaced.
If two or more LEDs in a stoplight burn out, your vehicle may not conform to local
laws (SAE).
GS_U_G.book Page 517 Wednesday, January 27, 2010 4:48 PM

518
4-3. Do-it-yourself maintenance
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
■High-intensity discharge (HID) headlights
If voltage to the high-intensity discharge bulbs is insufficient, the light may not come
on, or may go out temporarily. The high-intensity discharge bulbs will come on
when normal power is restored.
CAUTION
■Replacing light bulbs
●Turn off the headlights. Do not attempt to replace the bulb immediately after turn-
ing off the headlights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failing to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
●Do not attempt to take apart or repair the low beam discharge headlight bulbs,
connectors, power supply circuits, or related components.
Doing so could result in electric shock and death or serious injury.
■High-intensity discharge (HID) headlights
●Contact your Lexus dealer before replacing high-intensity discharge headlights
(including light bulbs).
●Do not touch the high-intensity discharge headlight’s high voltage socket when
the headlights are turned on.
An extremely high voltage of 20000 V will be discharged and could result in
death or serious injury by electric shock.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.
GS_U_G.book Page 518 Wednesday, January 27, 2010 4:48 PM

600
6-1. Specifications
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Light bulbs
A: D4S high-intensity discharge bulbs
B: HB3 halogen bulbs
C: Wedge base bulbs (amber)
D: Wedge base bulbs (clear)
E: HB4 halogen bulbs
F: Double end bulbs
Light bulbsBulb No.WTy p e
Exterior
Headlights (low beam)D4S35A
Headlights (high beam)HB360B
Front turn signal lights21C
Parking lights5D
Fog lightsHB451E
Front side marker light1945D
Rear turn signal lights21C
Back-up lights92116D
Tr u n k l i g h t5F
InteriorVanity lights8D
GS_U_G.book Page 600 Wednesday, January 27, 2010 4:48 PM

635
Alphabetical index
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Engine coolantCapacity................................................. 594
Checking ............................................... 455
Preparing and checking
before winter...................................... 219
Engine oil
Capacity.................................................590
Checking ................................................. 451
Preparing and checking before winter...................................... 219
Engine oil maintenance data ........... 453
Engine (ignition) switch ....................... 135
Enhanced vehicle stability control ................................................... 200
Event data recorder ............................ 532
First-aid kit storage belt..................... 408
Floor mats................................................ 406
Fluid Brake ....................................................... 457
Washer ................................................... 462
Fog lights
Switch ........................................................160
Wattage ................................................ 600
Foot light .................................................. 382
Front passenger occupant classification system ..........................105
Front passenger’s seat belt
reminder light ......................................537
Front seats
Adjustment .............................................. 53
Driver’s seat position memory ...... 55
Front turn signal lights Wattage ................................................ 600 Fuel
Capacity ................................................ 589
Fuel gauge...............................................147
Gas station information ................. 648
Information ............................................. 601
Refueling.................................................... 82
Fuel door ..................................................... 82
Fuel filler door ........................................... 82
Fuses ..........................................................484
Garage door opener ............................. 411
Gas station information......................648
Gauges .......................................................147
Glove box ................................................ 387
Hands-free system (for cellular phone) .......................... 332
Head restraints .........................................60
Headlight aim ........................................ 509
Headlight cleaner .................................. 166
Headlights Adaptive front lighting system...... 158
Discharge headlights precautions......................................... 518
Replacing light bulbs ......................... 512
Switch.........................................................157
Wattage................................................. 600
Heaters
Seat heaters ......................................... 400
Side mirror.............................................255
Hill-start assist control ....................... 200
Hood .......................................................... 445
Hooks Cargo ..................................................... 408
Shopping bag ..................................... 408
Horn ............................................................ 146
F
G
H
GS_U_G.book Page 635 Wednesday, January 27, 2010 4:48 PM
