2010 Lexus GS350 stop start

5
When trouble arises
569
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If the shift lever cannot be shifted from “P”
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to the ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 569 Wednesday, January 27, 2010 4:48 PM

572
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
Tr u n kTurn the mechanical key clock-
wise to open.
Changing “ENGINE START STOP” sw itch modes and starting the
engine
Put the shift lever in “P” and apply the brakes. Touch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
To change the “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch. Modes can be
changed each time the switch is pressed. (
→P. 1 3 6 )
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal depressed.
If the “ENGINE START STOP” switch still cannot be operated, contact
your Lexus dealer.
STEP1
STEP2
STEP3
GS_U_G.book Page 572 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
573
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm

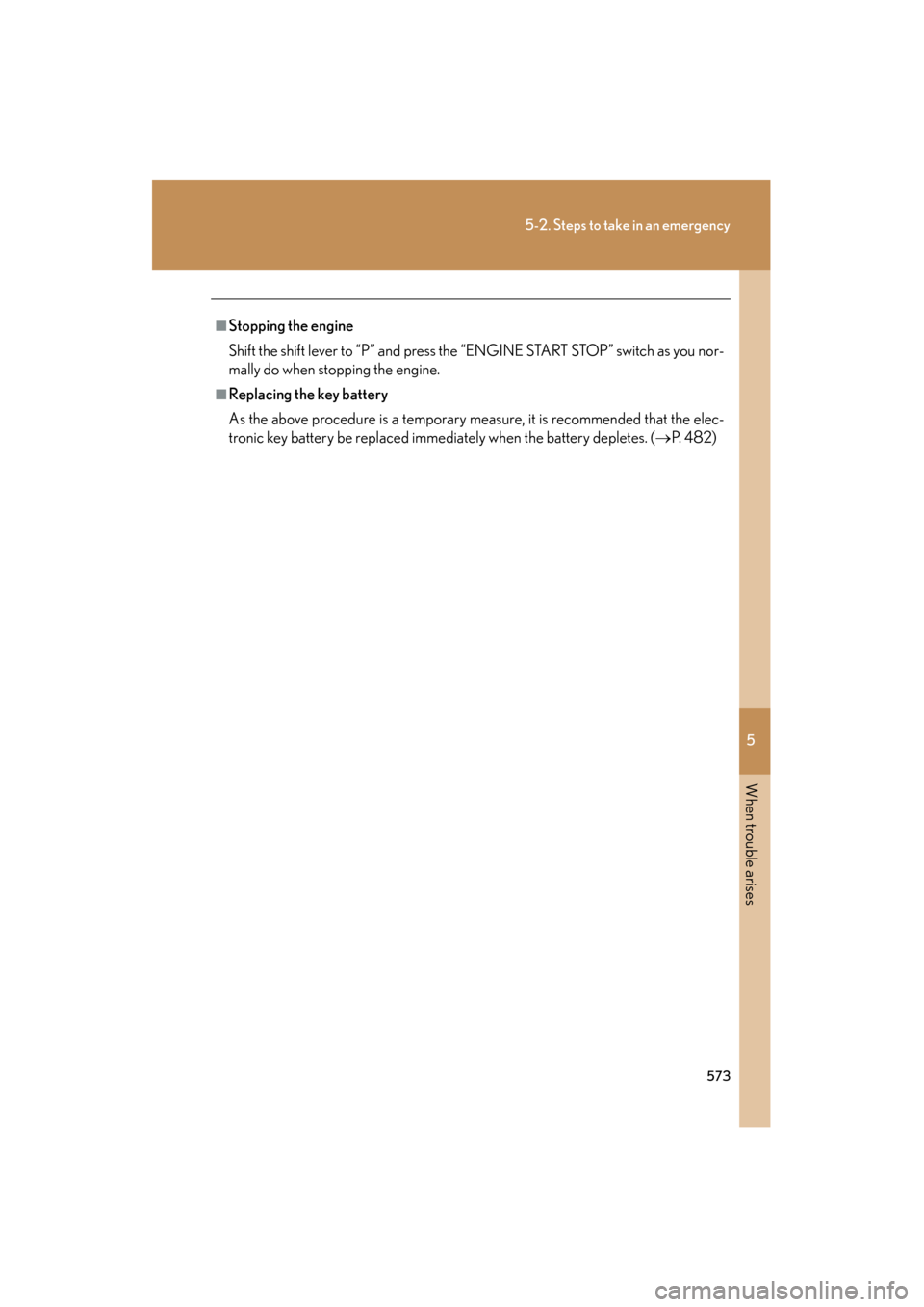

■Stopping the engine
Shift the shift lever to “P” and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery depletes. (→P. 4 8 2 )
GS_U_G.book Page 573 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
575
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
GS350
Positive (+) battery terminal on your vehicle.
Positive (+) battery terminal on the second vehicle.
Negative (-) battery terminal on the second vehicle.
Connect the jumper cable to ground on your vehicle as shown.Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the 12 volt battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch is OFF.
Maintain the engine speed on the second vehicle and turn the
“ENGINE START STOP” switch to the IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.
STEP3
STEP4
STEP5
STEP6
GS_U_G.book Page 575 Wednesday, January 27, 2010 4:48 PM

578
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover. ( →P. 4 5 0 )
Check to see if the cooling fan is operating.
If the fan is operating: Wait until the engine coolant temperature gauge begins to
fall and then stop the engine.
If the fan is not operating: Stop the engine immediately and call your Lexus dealer.
After the engine has cooled
down sufficiently, check the
coolant level and inspect the
radiator core (radiator) for any
leaks.STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 578 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
581
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If the vehicle becomes stuck
CAUTION
■When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the surround-
ing area is clear, to avoid striking other vehicles, objects or persons. The vehicle
may also lunge forward or lunge back suddenly as it becomes free. Use extreme
caution.
■When shifting the shift lever
Be careful not to shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
Carry out the following procedures if the tires spin or the vehicle becomes
stuck in mud, dirt, or snow.
Stop the engine. Set the parking brake and shift the shift lever
in “P”.
Remove the mud, snow, or sand from around the stuck tire.
Place wood, stones or some other material to help provide
traction under the tires.
Restart the engine.
Shift the shift lever to the “D” or “R” position and carefully apply
the accelerator to free the vehicle.
Turn off TRAC/Enhanced VSC if these functions are hampering
your attempts to free the vehicle. (→P. 202)
STEP1
STEP2
STEP3
STEP4
STEP5
GS_U_G.book Page 581 Wednesday, January 27, 2010 4:48 PM

5
When trouble arises
583
5-2. Steps to take in an emergency
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
If your vehicle has to be stopped in an emergency
CAUTION
■If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the brake pedal
harder to depress and the steering wheel heavier to turn. Decelerate as much as
possible before turning off the engine.
Only in an emergency, such as if it becomes impossible to stop the vehicle
in the normal way, stop the vehicle using the following procedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to “N”.
If the shift lever is shifted to “N” After slowing down, stop the vehicle in a safe place by the road.
Stop the engine.
If the shift lever cannot be shifted to “N” Keep depressing the brake pedal with both feet to reduce vehi-
cle speed as much as possible.
Stop the engine by pressing and
holding the “ENGINE START
STOP” switch for 3 consecutive
seconds or more.
Stop the vehicle in a safe place by the road.
STEP1
STEP2
STEP3
STEP4
STEP3
Press and hold for 3 seconds or more
STEP4
STEP5
GS_U_G.book Page 583 Wednesday, January 27, 2010 4:48 PM

622
6-2. Customization
GS_G_U (OM30C80U)
January 27, 2010 4:47 pm
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
→P. 161)
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Ti m e e l a p s e d b e f o r e t h e
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Illumination
(
→P. 3 8 2 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
“ENGINE START STOP”
switch turned OFF
ONOFF
Front/rear personal lights
turned on when a door is
openedCorresponding light onlyAll lights
OFF
Foot lights ONOFF
Shift lever lightONOFF
Outer foot lightONOFF
Front/rear personal lights
turned on when the inte-
rior lights are switched
“ON”
ONOFF
Rear sunshade
(
→P. 4 0 3 )
Ti m e e l a p s e d b e f o r e t h e
reverse operation feature
activates
0.7 seconds
0 seconds
0.9 seconds
1.2 seconds
GS_U_G.book Page 622 Wednesday, January 27, 2010 4:48 PM
