GETTING TO KNOW YOUR CAR41
1
fig. 13L0E0106m
Replacing the remote control cover fig. 13
To replace the remote control cover, follow the procedure
shown in the diagram.ALARM
(for versions/markets, where provided)
The alarm, which is provided in addition to the remote
control functions described previously, is controlled by a
receiver located under the dashboard, near the fuse box.
ALARM TRIPPING
The alarm trips in the following cases:
❍when a door, the bonnet or the tailgate is opened ille-
gally (perimeter protection);
❍when the ignition system is operated (ignition key ro-
tated to MAR);
❍when the battery cables are cut;
❍when someone is moving inside the passenger com-
partment (volume-sensing protection);
❍when the vehicle is lifted or tilted.
According to the market, when the alarm is tripped this
operates the alarm siren and direction indicators (for ap-
proximately 26 seconds). Alarm tripping and the number
of cycles depend on the sales market.
There are a maximum number of acoustic/visual cycles.
When this is reached the system returns to normal oper-
ation.
The volume sensing and anti-tilt protection can be ex-
cluded by adjusting the dedicated control on the front
courtesy light (see “volume sensing/anti-tilt protection”).
001-142 Delta 3ed gb 30-11-2009 11:21 Pagina 41

76GETTING TO KNOW YOUR CAR
REAR ARMREST
(for versions/markets, where provided)
To use armrest A-fig. 42, lower it as shown in the diagram
(for this procedure the central head restraint needs to be
lifted to the highest position).
Two compartments B are provided in the armrest.
These can be used to hold cups and/or cans.
To use these, pull tab C in the direction shown by the ar-
row.
These is also an oddment compartment provided in the
armrest; this can be accessed by raising the flap.
fig. 42L0E0035m
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 76

GETTING TO KNOW YOUR CAR97
1
fig. 65L0E0053m
BONNET
OPENING fig. 65
Proceed as follows:
❍pull lever A in the direction indicated by the arrow;
❍operate lever B as shown in the diagram;
❍lift the bonnet and at the same time release support
rod C from its catch, then insert the end of the rod in-
to seat D in the bonnet (larger hole) and push to safe-
ty position (smaller hole), as shown in the diagram.
Incorrect positioning of the support rod may
cause the bonnet to drop suddenly. Perform these
operations when the car is stationary only .
Before lifting the bonnet, ensure that the
wiper arm is not lifted from the windscreen.
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 97

140GETTING TO KNOW YOUR CAR
FUEL FILLER CAP fig. 83
To refuel, press flap A to release it and access the fuel tank
cap. The flap is locked with the central locking on.
Undo cap B which has a device C retaining it to the flap so
it cannot be lost. The hermetic seal may cause a slight in-
crease in pressure in the tank. A suction noise when you
release the cap is therefore entirely normal.
When refuelling, fasten the cap to the device inside the flap
as shown in the diagram.
fig. 83L0E0060m
Do not place naked flames or lit cigarettes
near to the fuel filler: fire risk. Keep your face
away from the fuel filler to avoid breathing
in harmful vapours.
EMERGENCY OPENING OF THE FLAP
In an emergency it is possible to open the flap by pulling
the cord A-fig. 84.
To get to the cord, remove the cover.
fig. 84L0E0184m
A
001-142 Delta 3ed gb 30-11-2009 11:22 Pagina 140

SAFETY145
2
The rear seat belts must be used as shown in the diagram
in fig. 2.
IMPORTANT After putting the seats back in their travel
position, restore the seat belt position to make them ready
for use.
IMPORTANT If the rear seat is being moved and this caus-
es the middle seat belt to lock temporarily, normal con-
ditions can be restored by simply moving the seat towards
the back of the car.
fig. 2L0E0062m
S.B.R. SYSTEM
The car is provided with the S.B.R. (Seat Belt Reminder)
system, which warns the driver and the front passenger
if the seat belt is not buckled, as follows:
❍warning light
tinuously for the first 6 seconds;
❍warning light
mittently for the next 96 seconds.
To deactivate the system permanently, contact a Lancia
Dealership.
The S.B.R. system be reactivated using the set-up menu.
143-164 Delta 4ed gb 12-02-2010 10:20 Pagina 145

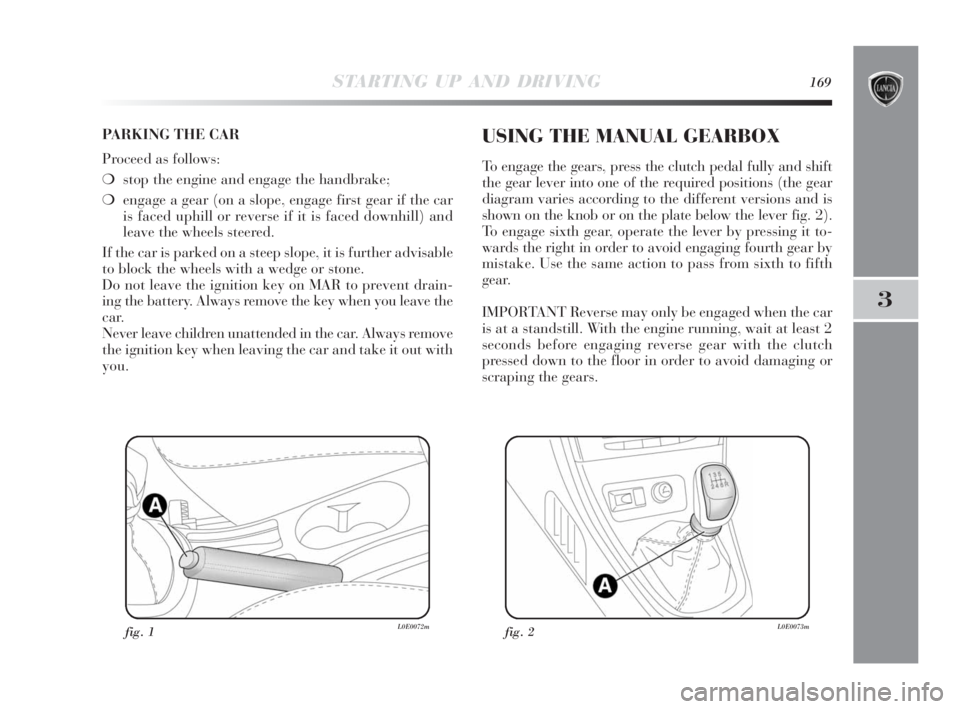

STARTING UP AND DRIVING169
3
PARKING THE CAR
Proceed as follows:
❍stop the engine and engage the handbrake;
❍engage a gear (on a slope, engage first gear if the car
is faced uphill or reverse if it is faced downhill) and
leave the wheels steered.
If the car is parked on a steep slope, it is further advisable
to block the wheels with a wedge or stone.
Do not leave the ignition key on MAR to prevent drain-
ing the battery. Always remove the key when you leave the
car.
Never leave children unattended in the car. Always remove
the ignition key when leaving the car and take it out with
you.
fig. 1L0E0072m
USING THE MANUAL GEARBOX
To engage the gears, press the clutch pedal fully and shift
the gear lever into one of the required positions (the gear
diagram varies according to the different versions and is
shown on the knob or on the plate below the lever fig. 2).
To engage sixth gear, operate the lever by pressing it to-
wards the right in order to avoid engaging fourth gear by
mistake. Use the same action to pass from sixth to fifth
gear.
IMPORTANT Reverse may only be engaged when the car
is at a standstill. With the engine running, wait at least 2
seconds before engaging reverse gear with the clutch
pressed down to the floor in order to avoid damaging or
scraping the gears.
fig. 2L0E0073m
165-174 Delta 3ed gb 11-11-2009 12:10 Pagina 169

IN AN EMERGENCY191
4
REFITTING THE STANDARD WHEEL
Following the procedure described previously, raise the
car and remove the small spare wheel.
Versions with steel rims
Proceed as follows:
❍make sure the contact surfaces between standard wheel
and hub are clean so that the retaining bolts will not
come loose;
❍fit the standard wheel inserting the 4 bolts into the
holes;
❍using the wrench provided, tighten the retaining bolts;
❍press-fit the hub cap, aligning the special groove (on
the cap) with the inflation valve;
❍lower the car and remove the jack;
❍using the wrench provided, fully tighten the bolts in
the sequence shown previously in the diagram.Versions with alloy wheels
❍insert the wheel on the hub and tighten the bolts us-
ing the wrench provided;
❍lower the car and remove the jack;
❍using the wrench provided, fully tighten the bolts in
the sequence shown in fig. 8;
❍reinstall the press-fitted hub cap, making sure that the
reference hole on the wheel is aligned with the refer-
ence pin on the cap.
IMPORTANT If it is not fitted properly, the hub cap may
detach itself when the vehicle is running.
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 191

IN AN EMERGENCY209
4
FUSE SUMMARY TABLE - Dashboard control unit
F12
F12
F13
F13
F31
F32
F33
F34
F35
F36
F37
F38
F39
F40
F417.5
15
7.5
15
5
–
20
20
5
20
7.5
10
10
30
7.538
38
38
38
38
–
38
38
38
38
38
38
38
38
38
CONSUMERS FUSE AMPERE DIAGRAM
Right dipped beam headlight
Right dipped beam headlight (Xenon gas discharge bulb)
Left dipped beam headlight, headlight alignment corrector
Left dipped beam headlight (Xenon gas discharge bulb)
Climate control system fan relay coil, body computer
Spare
Left rear electric window
Right rear electric window
Reversing lights, engine compartment control unit relay coils,
brake light pedal control (normally closed contact),
water in the diesel fuel sensor, air flow meter
Central locking system control unit, fuel
butterfly, dead lock, tailgate release
Third brake light, instrument panel, Adaptive Headlights Node,
control unit on left-hand gas discharge headlight
Front courtesy and central rear light (for versions/markets having this
option, with electric sun roof), courtesy light on diver's side and
passenger's side, luggage compartment light and glove compartment light
Radio, radio-navigator, Blue&Me Node, alarm siren,
alarm system on courtesy light, climate control unit, tyre
pressure detection control unit, diagnostic connector,
rear courtesy light
Heated rear window
Electric door mirror demisters, demisters
on windscreen jets
175-214 Delta 4ed gb 24-02-2010 14:36 Pagina 209
