2010 KIA Rondo headrest

Safety features of your vehicle
16
3

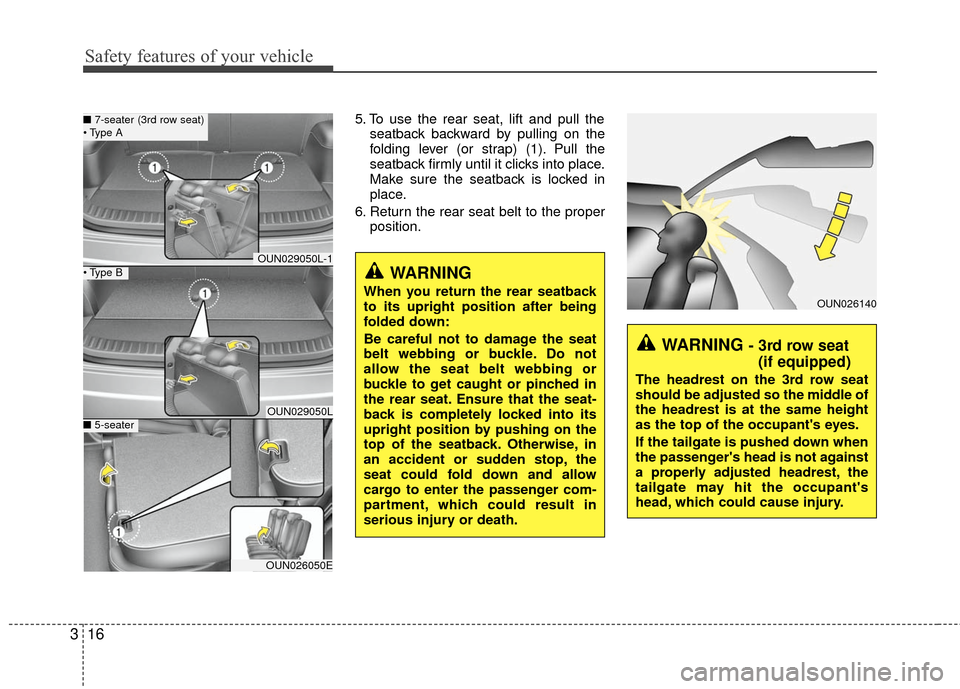

5. To use the rear seat, lift and pull the
seatback backward by pulling on the
folding lever (or strap) (1). Pull the
seatback firmly until it clicks into place.
Make sure the seatback is locked in
place.
6. Return the rear seat belt to the proper position.
WARNING
When you return the rear seatback
to its upright position after being
folded down:
Be careful not to damage the seat
belt webbing or buckle. Do not
allow the seat belt webbing or
buckle to get caught or pinched in
the rear seat. Ensure that the seat-
back is completely locked into its
upright position by pushing on the
top of the seatback. Otherwise, in
an accident or sudden stop, the
seat could fold down and allow
cargo to enter the passenger com-
partment, which could result in
serious injury or death.
WARNING - 3rd row seat (if equipped)
The headrest on the 3rd row seat
should be adjusted so the middle of
the headrest is at the same height
as the top of the occupant's eyes.
If the tailgate is pushed down when
the passenger's head is not against
a properly adjusted headrest, the
tailgate may hit the occupant's
head, which could cause injury.
OUN026140
OUN029050L-1
OUN029050L
OUN026050E

■ 7-seater (3rd row seat)

■ 5-seater

317
Safety features of your vehicle
C010313AUN-EU
Full flat seat
When the vehicle is parked, you can place
the front seat in a reclined position, nearly
flat.
1. Move the rear seat to the farthest rear-ward position. (if equipped)
2. Move the front seat to the farthest for- ward position.
3. Remove the headrest.
4. Recline the seatback as far as it can go to allow the rear seat passenger to sup-
port their legs in the reclined position.
1VQA2329
WARNING - Full flat seat
Do not allow a passenger to use the
full flat seat feature while the vehi-
cle is in motion. Severe injury or
death could occur in an accident.
WARNING - Uprighting
seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly. If the seatback
is returned without holding it, the
back of the seat could spring for-
ward resulting in accidental injury
from being struck by the seatback.
CAUTION- Rear seat belts
When returning the rear (2nd and /or3rd row) seatbacks to the uprightposition, remember to return the rear shoulder belts to their proper posi-tion. Routing the seat belt webbingthrough the rear seat belt guides will help keep the belts from beingtrapped behind or under the seats.
CAUTION - Damaging rear
seat belt buckles
When you fold the rear (2nd and/or
3rd row) seatback or put luggage onthe rear (2nd and 3rd row) seatcushion, insert the buckle in the pocket between the rear seatbackand cushion. Doing so can preventthe buckle from being damaged bythe rear seatback or luggage.
WARNING - Cargo loading
Make sure the engine is off, the auto-
matic transaxle is in P (Park) and the
parking brake is applied whenever
loading or unloading cargo. Failure
to take these steps may allow the
vehicle to move if shift lever is inad-
vertently moved to another position.
WARNING- Cargo
Cargo should always be secured to
prevent it from being thrown about
the vehicle in a collision and caus-
ing injury to the vehicle occupants.
Special care of objects should be
taken when placing them in the rear
(2nd and/or 3rd row) seats, since
those may hit the front seat occu-
pants in a frontal collision.

337
Safety features of your vehicle
C030103AUN
Securing a child restraint seat withtether anchor system
Child restraint hook holders are located
on the floor behind the rear seats (or on
the back of the rear seatbacks). 1. Route the child restraint seat strap
over the seatback.
For vehicles with adjustable headrest,
route the tether strap under the head-
rest and between the headrest posts,
otherwise route the tether strap over
the top of the seatback.
2. Connect the tether strap hook to the appropriate child restraint hook holder
and tighten to secure the seat.
WARNING- Tether strap
Never mount more than one child
restraint to a single tether or to a
single lower anchorage point. The
increased load caused by multiple
seats may cause the tethers or
anchorage points to break, causing
serious injury or death.
WARNING
A child can be seriously injured or
killed in a collision if the child
restraint is not properly anchored
to the car and the child is not prop-
erly restrained in the child restraint.
Always follow the child seat manu-
facturer’s instructions for installa-
tion and use.
OUN030100N
OUN039138L
7-seater
5-seater2GHA3300L

489
Features of your vehicle
If necessary, contact your authorized KIA
dealer to obtain a luggage net.
D281100AUN
Cargo security screen
(if equipped)
Use the cargo security screen to hide
items stored in the cargo area. To use the front shade of the cargo
security screen, pull the hook forward
and hang the hook on the headrest
pole.
To use the rear shade of the cargo security screen, pull the handle back-
ward and insert the edges into the
slots.
CAUTION
To prevent damage to the goods orthe vehicle, care should be takenwhen carrying fragile or bulkyobjects in the luggage compart-ment.
WARNING
Avoid eye injury. DO NOT over-
stretch the luggage net, ALWAYS
keep your face and body out of the
luggage net’s recoil path. DO NOT
use when the strap has visible
signs of wear or damage.
CAUTION
When folding the rear seatback for-ward, remove the hook from theheadrest pole. Otherwise, the front shade of the cargo security screenmay be damaged or malformed.
OUN049180LOUN049181L
