What to do in an emergency
F120400ASA

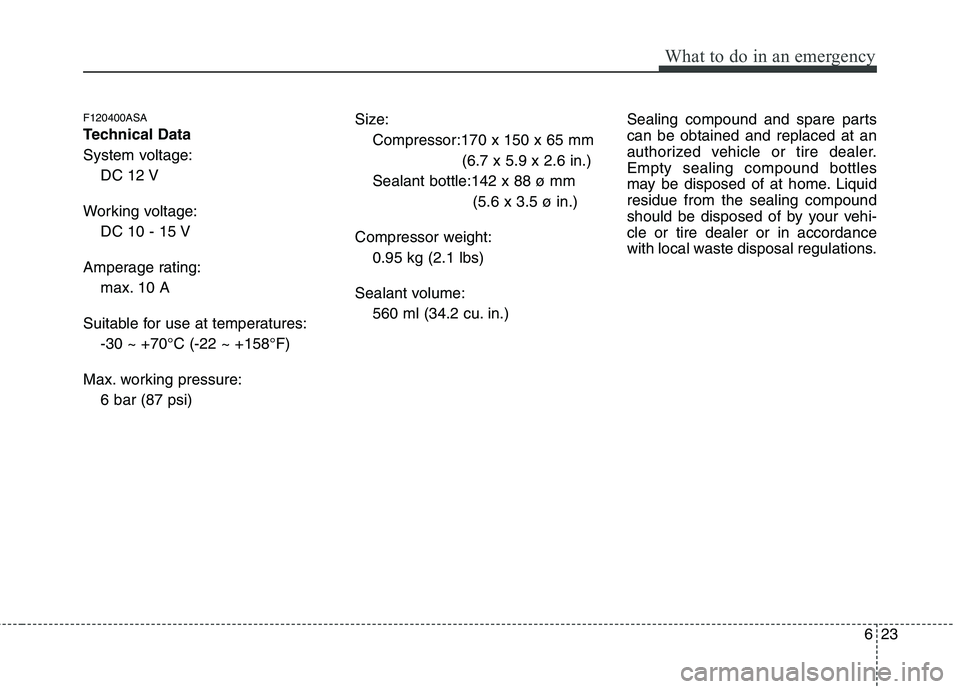

Technical Data
System voltage:DC 12 V
Working voltage: DC 10 - 15 V
Amperage rating: max. 10 A
Suitable for use at temperatures: -30 ~ +70°C (-22 ~ +158°F)
Max. working pressure: 6 bar (87 psi) Size:
Compressor:170 x 150 x 65 mm (6.7 x 5.9 x 2.6 in.)
Sealant bottle:142 x 88 ø mm (5.6 x 3.5 ø in.)
Compressor weight: 0.95 kg (2.1 lbs)
Sealant volume: 560 ml (34.2 cu. in.) Sealing compound and spare parts can be obtained and replaced at an
authorized vehicle or tire dealer.Empty sealing compound bottles
may be disposed of at home. Liquidresidue from the sealing compound
should be disposed of by your vehi-cle or tire dealer or in accordance
with local waste disposal regulations.
