The ECO display will toggle between ECO and ECO-ON
depending on driving habits and vehicle usage. Press the
Odometer / Trip Odometer / ECO (Fuel Saver Indicator)
button to change the display from odometer to either of
the two trip odometer settings or the “ECO” display.
LoW tirE
When the appropriate condition exists, the odometer
display will toggle between LoW and tirE for three
cycles.
“HOTOIL” Transmission Temperature Warning
Message
The “HOTOIL” cluster message will appear in the odom-
eter accompanied with a chime to indicate that there is
excessive transmission fluid temperature that might oc-
cur with severe usage such as trailer towing. It may also
occur when operating the vehicle in a high torque
converter slip condition, such as 4-wheel drive operation(e.g., snow plowing, off- road operation). If this “HOT-
OIL” message turns on, stop the vehicle and run the
engine at idle or faster, with the transmission in NEU-
TRAL until the message turns off.
CAUTION!
Continuous driving with the Transmission Tempera-
ture “HOTOIL” Warning message illuminated will
eventually cause severe transmission damage or
transmission failure.
WARNING!
Continued operation with the Transmission Tem-
perature “HOTOIL” Warning message illuminated
could cause the fluid to boil over, come in contact
with hot engine or exhaust components causing a fire
that may result in personal injury.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 255

▫Automatic Transmission With Overdrive .... 341
 Four–Wheel Drive Operation (Command-
Trac I Or Rock-Trac) — If Equipped ....... 345
▫ Operating Instructions/Precautions ....... 345
▫ Shift Positions ...................... 347
▫ Shifting Procedure ................... 348
 Trac-Lok Rear Axle — If Equipped ........ 349
 Axle Lock (Tru–Lok) — Rubicon Models .... 350
 Rear Axle Lock (Four-Wheel Drive
Non-Rubicon Models) — If Equipped ........ 351
 Electronic Sway Bar Disconnect
— If Equipped ........................ 352
 On-Road Driving Tips .................. 354
 Off-Road Driving Tips .................. 354 ▫
Side Step Removal – If Equipped ......... 354
▫ The Basics Of Off-Road Driving .......... 356
▫ When To Use 4L (Low) Range ........... 356
▫ Simultaneous Brake And Throttle Operation . 357
▫ Driving In Snow, Mud And Sand ......... 357
▫ Crossing Obstacles (Rocks And Other High
Points) ............................ 358
▫ Hill Climbing ....................... 361
▫ Driving Through Water ................ 363
▫ After Driving Off-Road ................ 366
 Power Steering ....................... 367
▫ Power Steering Fluid Check ............. 368
 Parking Brake ........................ 369
328 STARTING AND OPERATING

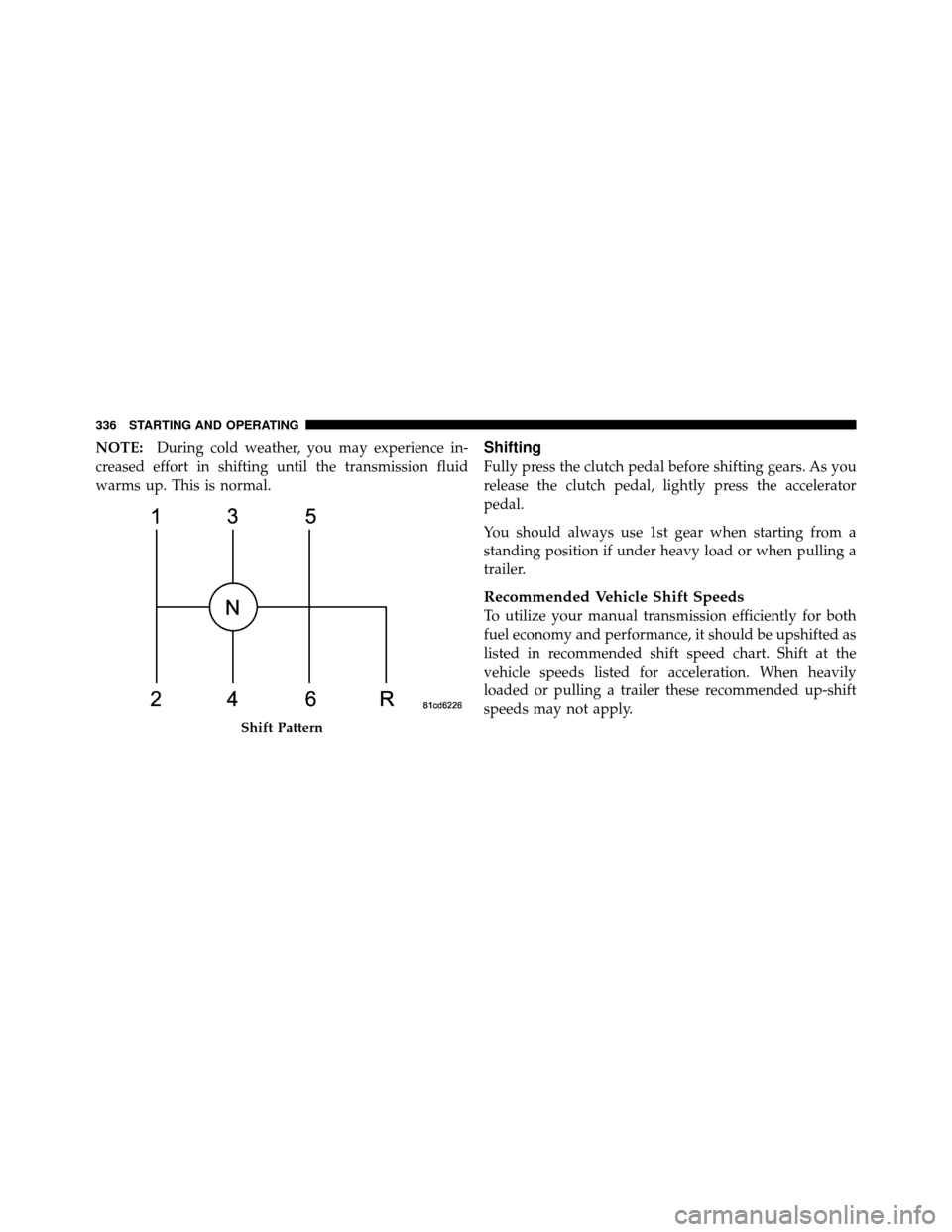

NOTE:During cold weather, you may experience in-
creased effort in shifting until the transmission fluid
warms up. This is normal.Shifting
Fully press the clutch pedal before shifting gears. As you
release the clutch pedal, lightly press the accelerator
pedal.
You should always use 1st gear when starting from a
standing position if under heavy load or when pulling a
trailer.
Recommended Vehicle Shift Speeds
To utilize your manual transmission efficiently for both
fuel economy and performance, it should be upshifted as
listed in recommended shift speed chart. Shift at the
vehicle speeds listed for acceleration. When heavily
loaded or pulling a trailer these recommended up-shift
speeds may not apply.
Shift Pattern
336 STARTING AND OPERATING

your vehicle’s abilities and be able to recover it if
something goes wrong. You should never stop or shut a
vehicle off when crossing deep water unless you ingested
water into the engine air intake. If the engine stalls, do
not attempt to restart it. Determine if it has ingested
water first. The key to any crossing is low and slow. Shift
into first gear (manual transmission), or DRIVE (auto-
matic transmission), with the transfer case in the 4L
(Low) position and proceed very slowly with a constant
slow speed {3 to 5 mph (5 to 8 km/h) maximum} and
light throttle. Keep the vehicle moving; do not try to
accelerate through the crossing. After crossing any water
higher than the bottom of the axle differentials, you
should inspect all of the vehicle fluids for signs of water
ingestion.CAUTION!
•Water ingestion into the axles, transmission, trans-
fer case, engine or vehicle interior can occur if you
drive too fast or through too deep of water. Water
can cause permanent damage to engine, driveline
or other vehicle components, and your brakes will
be less effective once wet and/or muddy.
•This vehicle is capable of crossing through water
at a depth of 30 inches (76 cm) at speeds no greater
than 5 mph (8 km/h). Water ingestion can occur
causing damage to your vehicle.
Before You Cross Any Type of Water
As you approach any type of water, you need to deter-
mine if you can cross it safely and responsibly. If neces-
sary, get out and walk through the water or probe it with
a stick. You need to be sure of its depth, approach angle,
current and bottom condition. Be careful of murky or
364 STARTING AND OPERATING

If necessary, add fluid to restore to the proper indicated
level. With a clean cloth, wipe any spilled fluid from all
surfaces. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for further
information.
PARKING BRAKE
Before leaving the vehicle, make sure that the parking
brake is fully applied. Also, be certain to leave an
automatic transmission in PARK, or manual transmission
in REVERSE or first gear.
The parking brake lever is located in the center console.
To apply the parking brake, pull the lever up as firmly as
possible. To release the parking brake, pull the lever up
slightly, press the center button, then lower the lever
completely.When the parking brake is applied with the ignition
switch ON, the “Brake Warning Light” in the instrument
cluster will illuminate.
Parking Brake
5
STARTING AND OPERATING 369

The automatic transmission fluid and filter should be
changed if you REGULARLY tow a trailer for more than
45 minutes of continuous operation. Refer to “Mainte-
nance Schedule” for the proper maintenance intervals.
NOTE:Check the automatic transmission fluid level
before towing.
O/D Off
To reduce the potential for automatic transmission over-
heating, select the “O/D OFF” feature when driving in
hilly areas or shift the transmission to DRIVE position 2
on more severe grades. Refer to “Automatic Transmis-
sion” in “Starting and Operating” for further
information.
Electronic Speed Control – If Equipped

Do not use in hilly terrain or with heavy loads.
When using the speed control, if you experience speed
drops greater than 10 mph (16 km/h), disengage until
you can get back to cruising speed.
Use speed control in flat terrain and with light loads to
maximize fuel efficiency.
Cooling System
To reduce potential for engine and transmission over-
heating, take the following actions:
Highway Driving
Reduce speed.
Air Conditioning
Turn off temporarily.
434 STARTING AND OPERATING

▫Brake System ....................... 476
▫ Automatic Transmission – If Equipped ..... 478
▫ Hydraulic Clutch Fluid – Manual
Transmission ....................... 480
▫ Manual Transmission – If Equipped ....... 480
▫ Transfer Case – If Equipped ............. 481
▫ Front/Rear Axle Fluid ................. 482
▫ Appearance Care And Protection From
Corrosion .......................... 482
 Fuses .............................. 490
▫ Totally Integrated Power Module ......... 490
 Vehicle Storage ....................... 496
 Replacement Bulbs .................... 497
Bulb Replacement ..................... 498
▫ Headlamp ......................... 498
▫ Front Park/Turn Signal ................ 499
▫ Front Side Marker .................... 499
▫ Front Fog Lamp ..................... 499
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamp ............................. 500
▫ Center High-Mounted Stop Lamp (CHMSL) . 500
 Fluid Capacities ...................... 501
 Fluids, Lubricants And Genuine Parts ....... 502
▫ Engine ............................ 502
▫ Chassis ........................... 503
454 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 3.8L
1 — Integrated Power Module7 — Washer Fluid Reservoir
2 — Battery 8 — Engine Coolant Reservoir
3 — Automatic Transmission Dipstick 9 — Air Cleaner Filter
4 — Engine Oil Fill 10 — Coolant Pressure Cap
5 — Engine Oil Dipstick 11 — Power Steering Fluid Reservoir
6 — Brake Fluid Reservoir
