2010 JEEP WRANGLER window

Voice Command
•
For best performance, adjust the rearview mirror to
provide at least12in (1 cm) gap between the overhead
console (if equipped) and the mirror.
•Always wait for the beep before speaking.
•Speak normally, without pausing, just as you would
speak to a person sitting a few feet/meters away from
you.
•Make sure that no one other than you is speaking
during a Voice Command period.
•Performance is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather condition.
•Even though the system is designed for users speaking
in North American English, French, and Spanish ac-
cents, the system may not always work for some.
•When navigating through an automated system such
as voice mail, or when sending a page, at the end of
speaking the digit string, make sure to say Send.
•Storing names in the phonebook when the vehicle is
not in motion is recommended.
•It is not recommended to store similar sounding
names in the Uconnect™ Phonebook.
•Phonebook (Downloaded and Uconnect™ Phone Lo-
cal) name recognition rate is optimized when the
entries are not similar.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109

•Numbers must be spoken in single digits. “800” must
be spoken “eight-zero-zero” not “eight hundred”.
•You can sayO(letter O) for 0(zero).
•Even though international dialing for most number
combinations is supported, some shortcut dialing
number combinations may not be supported.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Far End Audio Performance
•
Audio quality is maximized under:
•low-to-medium blower setting,
•low-to-medium vehicle speed,
•low road noise,
•smooth road surface,
•fully closed windows,
•dry weather conditions, and
•operation from the driver’s seat.
•Performance, such as audio clarity, echo, and loudness
to a large degree rely on the phone and network, and
not the Uconnect™ Phone.
•Echo at the phone far end can sometimes be reduced
by lowering the in-vehicle audio volume.
•In a convertible vehicle, system performance may be
compromised with the convertible top down.
Recent Calls
If your phone supports “Automatic Phonebook Down-
load”, Uconnect™ Phone can list your Outgoing, Incom-
ing and Missed Calls.
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:Keep in mind that you have to press the Voice
Command
button first and wait for the beep
before speaking the “Barge In” commands.
Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers the Uconnect™
Voice “Voice Training” feature may be used.
1. Press the Voice Command
button, say “System
Setup” and once you are in that menu then say “Voice
Training.” This will train your own voice to the system
and will improve recognition.
2. Repeat the words and phrases when prompted by
Uconnect™ Voice. For best results, the “Voice Training”
session should be completed when the vehicle is parked,
engine running, all windows closed, and the blower fan
switched off. This procedure may be repeated with a new
user. The system will adapt to the last trained voice only.
SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. They need to be used properly for safe
operation of the vehicle.
WARNING!
•DO NOT allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

When a door is open and the interior lights are on,
rotating the dimmer control to the extreme bottom posi-
tion will cause all the interior lights to turn off. This is
also known as thePartymode because it allows the
doors to stay open for extended periods of time without
discharging the vehicle’s battery.
WINDSHIELD WIPERS AND WASHERS
The windshield wiper/washer control lever is located on
the right side of the steering column. The front wipers are
operated by rotating a switch, located at the end of the
lever. For information on using the rear window wiper/
washer, refer to “Rear Window Features” in “Under-
standing the Features of Your Vehicle”.
Windshield Wiper/Washer Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141

hard top are to be used independently.Removal is
mandatory to prevent any possible wear and tear on the
soft top. Your vehicle warranty will not cover damage
resulting from both tops remaining on the vehicle at the
same time for extended periods of time.
Removing the Soft Top
1. Locate and remove the two boxes that contain the
following items:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window
•Two rear window roll up straps
•Two Sunrider secure straps (if equipped)
•Two rear swing gate brackets
2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Remove the soft top bow assembly pivot bracket
screws (two per side) using a #T30 Torx head driver.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 155

Installing the Soft Top
NOTE:The following procedures are for first time set
up only. For future soft top procedures, refer to “Soft
Top” in this section.
1. Locate and remove the following items prior to hard
top removal:
•Right and left door frames
•Door frame attachment knobs (four for two-door
models, six for four-door models)
•Right and left quarter windows
•Rear window 2. Remove the hard top. Refer to “Freedom Top Three-
Piece Modular Hard Top — Front/Rear Panel Removal”
in this section.
3. Install the door frames. Refer to “Door Frame” in this
section.
4. If the soft top has been removed, follow these steps to
reinstall the soft top. If the soft top is on the vehicle,
proceed to step #5.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157

d. Screw the pivot screws back into place using a #T30
Torxhead driver. Secure them until they are snug,
being careful not to cross-thread the screws or over-
tighten.CAUTION!
Do not overtighten the screws. You can strip the
screws if they are overtightened.
5. Remove the swing gate bar (black metal bar for
bottom of rear window) and set aside.
NOTE: Be sure the wire harness in the left rear corner is
not tangled in the soft top bows before you lift the top.
6. Unsnap and remove the black boot cover. This cover
should be discarded. It was intended as a protective
cover for shipping only.
NOTE: A visual instruction sheet is enclosed in the dual
top wrap.
7. Put up the soft top. Refer to “Soft Top — Putting Up
the Soft Top” in this section.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 159

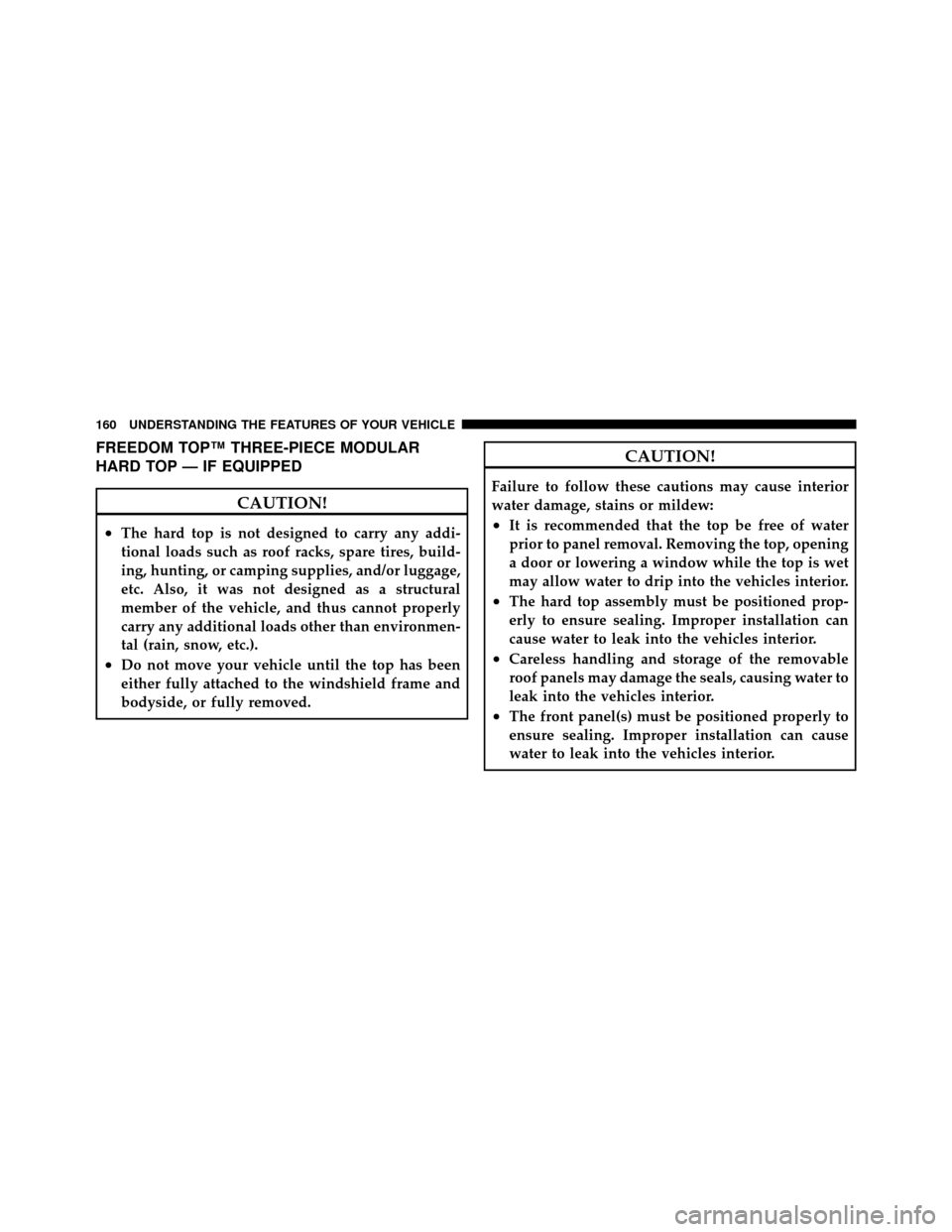

FREEDOM TOP™ THREE-PIECE MODULAR
HARD TOP — IF EQUIPPED
CAUTION!
•The hard top is not designed to carry any addi-
tional loads such as roof racks, spare tires, build-
ing, hunting, or camping supplies, and/or luggage,
etc. Also, it was not designed as a structural
member of the vehicle, and thus cannot properly
carry any additional loads other than environmen-
tal (rain, snow, etc.).
•Do not move your vehicle until the top has been
either fully attached to the windshield frame and
bodyside, or fully removed.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew:
•It is recommended that the top be free of water
prior to panel removal. Removing the top, opening
a door or lowering a window while the top is wet
may allow water to drip into the vehicles interior.
•The hard top assembly must be positioned prop-
erly to ensure sealing. Improper installation can
cause water to leak into the vehicles interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicles interior.
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicles interior.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
