Daytime Running Lights — If Equipped
The high beam lights will come on as Daytime Running
Lights (DRL) at DRL intensity (lower), whenever the
ignition is ON, the engine is running, the headlight
switch is off, the parking brake is off, the turn signal is
off, and the shift lever is in any position except PARK.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Turn Signals
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145

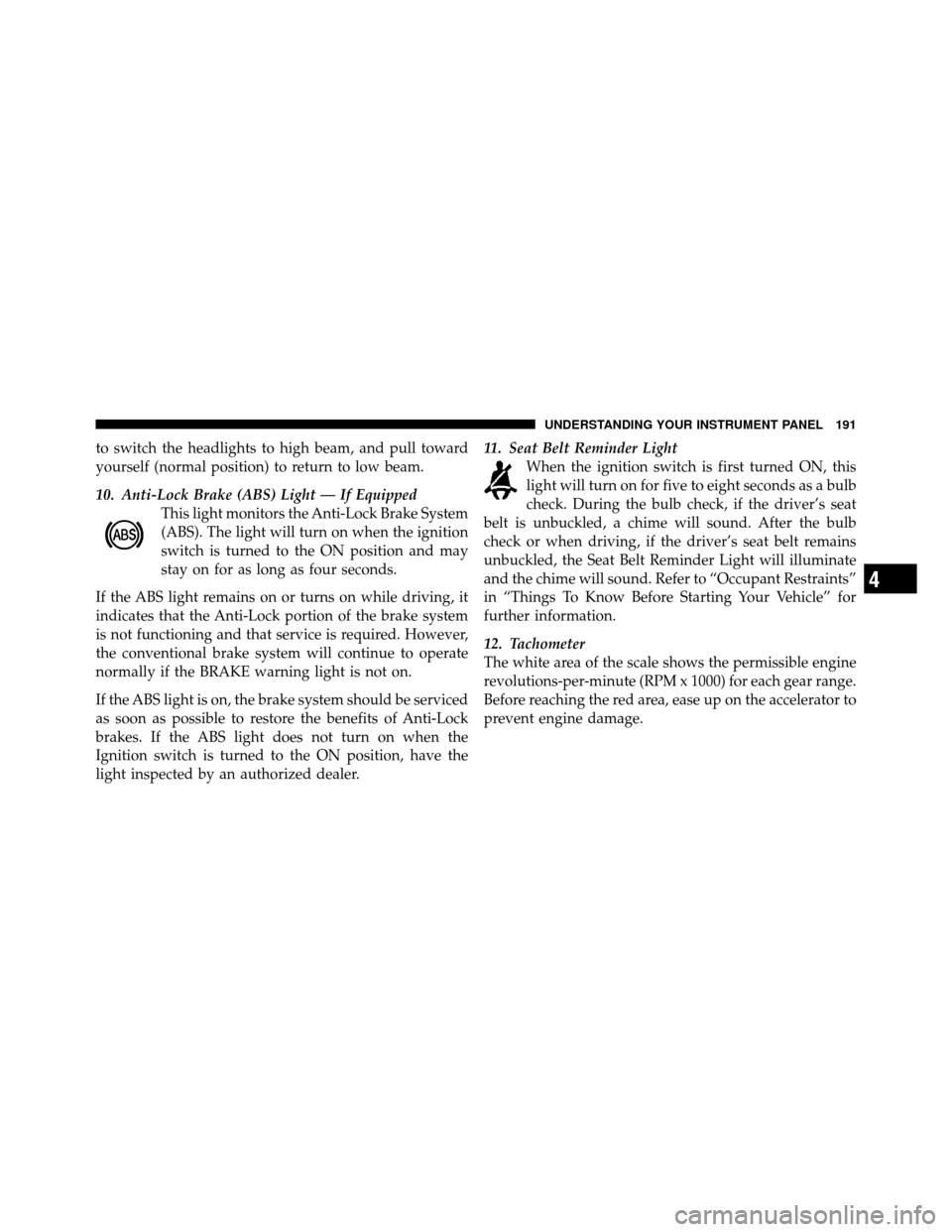

to switch the headlights to high beam, and pull toward
yourself (normal position) to return to low beam.
10. Anti-Lock Brake (ABS) Light — If EquippedThis light monitors the Anti-Lock Brake System
(ABS). The light will turn on when the ignition
switch is turned to the ON position and may
stay on for as long as four seconds.
If the ABS light remains on or turns on while driving, it
indicates that the Anti-Lock portion of the brake system
is not functioning and that service is required. However,
the conventional brake system will continue to operate
normally if the BRAKE warning light is not on.
If the ABS light is on, the brake system should be serviced
as soon as possible to restore the benefits of Anti-Lock
brakes. If the ABS light does not turn on when the
Ignition switch is turned to the ON position, have the
light inspected by an authorized dealer. 11. Seat Belt Reminder Light
When the ignition switch is first turned ON, this
light will turn on for five to eight seconds as a bulb
check. During the bulb check, if the driver’s seat
belt is unbuckled, a chime will sound. After the bulb
check or when driving, if the driver’s seat belt remains
unbuckled, the Seat Belt Reminder Light will illuminate
and the chime will sound. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
12. Tachometer
The white area of the scale shows the permissible engine
revolutions-per-minute (RPM x 1000) for each gear range.
Before reaching the red area, ease up on the accelerator to
prevent engine damage.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 191

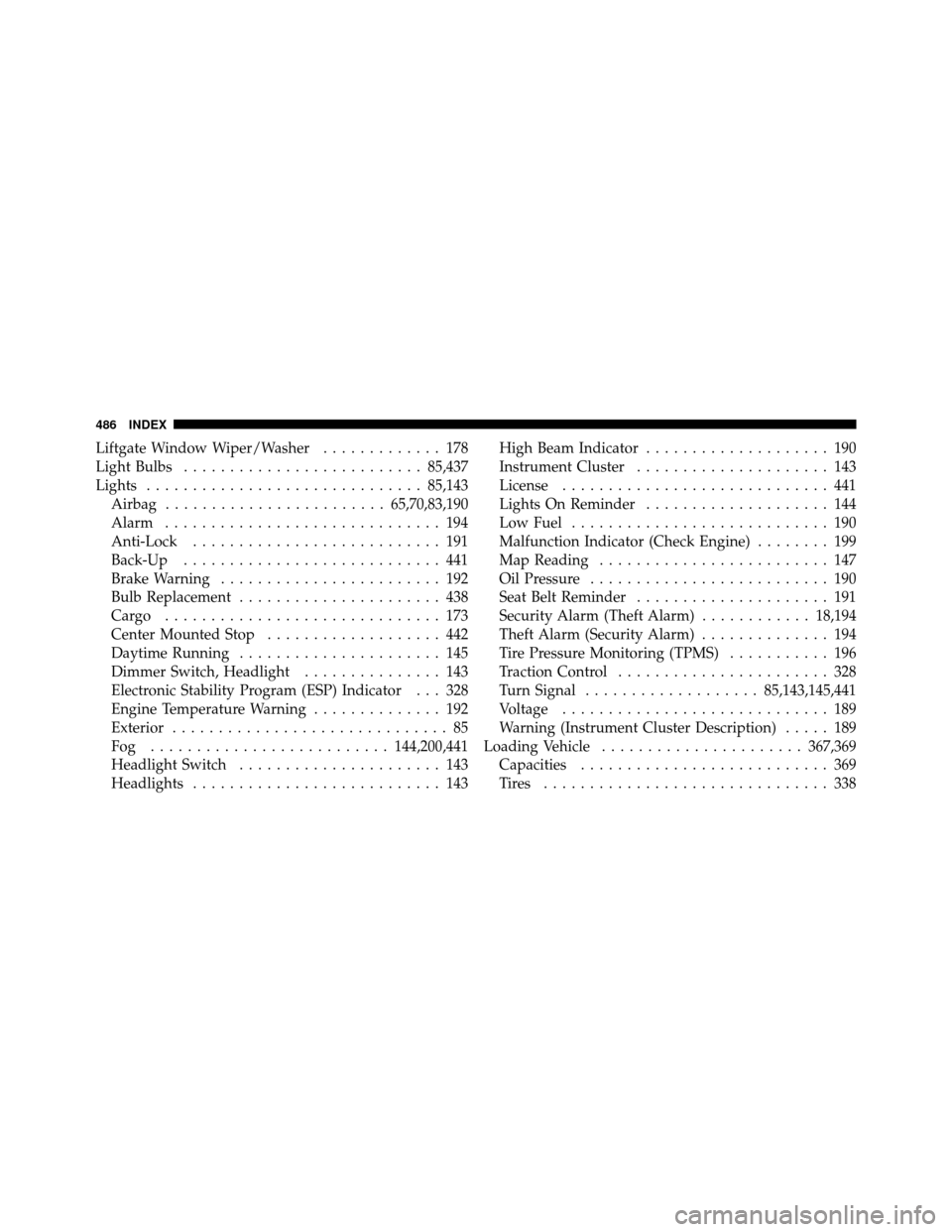

Liftgate Window Wiper/Washer............. 178
Light Bulbs .......................... 85,437
Lights .............................. 85,143
Airbag ........................ 65,70,83,190
Alarm .............................. 194
Anti-Lock ........................... 191
Back-Up ............................ 441
Brake Warning ........................ 192
Bulb Replacement ...................... 438
Cargo .............................. 173
Center Mounted Stop ................... 442
Daytime Running ...................... 145
Dimmer Switch, Headlight ............... 143
Electronic Stability Program (ESP) Indicator . . . 328
Engine Temperature Warning .............. 192
Exterior .............................. 85
Fog .......................... 144,200,441
Headlight Switch ...................... 143
Headlights ........................... 143 High Beam Indicator
.................... 190
Instrument Cluster ..................... 143
License ............................. 441
Lights On Reminder .................... 144
Low Fuel ............................ 190
Malfunction Indicator (Check Engine) ........ 199
Map Reading ......................... 147
Oil Pressure .......................... 190
Seat Belt Reminder ..................... 191
Security Alarm (Theft Alarm) ............18,194
Theft Alarm (Security Alarm) .............. 194
Tire Pressure Monitoring (TPMS) ........... 196
Traction Control ....................... 328
Turn Signal ................... 85,143,145,441
Voltage ............................. 189
Warning (Instrument Cluster Description) ..... 189
Loading Vehicle ...................... 367,369
Capacities ........................... 369
Tires ............................... 338
486 INDEX
