2010 JEEP PATRIOT turn signal

HAZARD WARNING FLASHER
The Hazard Warning flasher switch is located on the
instrument panel, below the radio.Press the switch to turn on the Hazard Warning
flasher. When the switch is activated, all directional
turn signals will flash on and off to warn oncoming
traffic of an emergency. Press the switch a second time to
turn off the Hazard Warning flasher.
Do not use this emergency warning system when the
vehicle is in motion. Use it when your vehicle is disabled
and is creating a safety hazard for other motorists.
If it is necessary to leave the vehicle to go for service, the
Hazard Warning flasher will continue to operate with the
ignition key removed and the vehicle locked.
NOTE: With extended use, the Hazard Warning flasher
may wear down your battery.
IF YOUR ENGINE OVERHEATS
In any of the following situations, you can reduce the
potential for overheating by taking the appropriate ac-
tion.
•On the highways — slow down.
•In city traffic — while stopped, place the transmission
in NEUTRAL, but do not increase engine idle speed.
NOTE: There are steps that you can take to slow down
an impending overheat condition:
•If your air conditioner (A/C) is on, turn it off. The A/C
system adds heat to the engine cooling system and
turning the A/C off can help remove this heat.
•You can also turn the temperature control to maximum
heat, the mode control to floor and the blower control
to high. This allows the heater core to act as a
supplement to the radiator and aids in removing heat
from the engine cooling system.
384 WHAT TO DO IN EMERGENCIES

▫Cooling System ..................... 417
▫ Brake System ....................... 422
▫ Automatic Transmission (CVT) –
If Equipped ........................ 425
▫ Manual Transmission – If Equipped ....... 426
▫ Rear Drive Assembly (RDA) – AWD/4WD
Models Only ....................... 427
▫ Power Transfer Unit (PTU) – AWD/4WD
Models Only ....................... 427
▫ Appearance Care And Protection From
Corrosion .......................... 428
 Fuses .............................. 433
▫ Integrated Power Module (IPM) .......... 433
Vehicle Storage ....................... 437
 Replacement Bulbs .................... 437
 Bulb Replacement ..................... 438
▫ Headlamps ........................ 438
▫ Fog Lamps ......................... 441
▫ Tail Lamps, Rear Turn Signals And Backup
Lamps ............................ 441
▫ License Lamps ...................... 441
▫ Center High-Mounted Stoplamp ......... 442
 Fluid Capacities ...................... 443
 Fluids, Lubricants, And Genuine Parts ....... 444
▫ Engine ............................ 444
▫ Chassis ........................... 445
400 MAINTAINING YOUR VEHICLE

LIGHTS BULBS – ExteriorBulb No.
Low Beam/High Beam Headlamp ............ H13
Front Park/Turn Signal/Side Marker Lamp . . . 3757KA
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp (CHMSL) . . LED As-
sembly
Rear Tail/Turn/Stop Lamp .................3157
Backup Lamp ..................... W16W (921)
License Lamp .......................... W5WBULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.
438 MAINTAINING YOUR VEHICLE

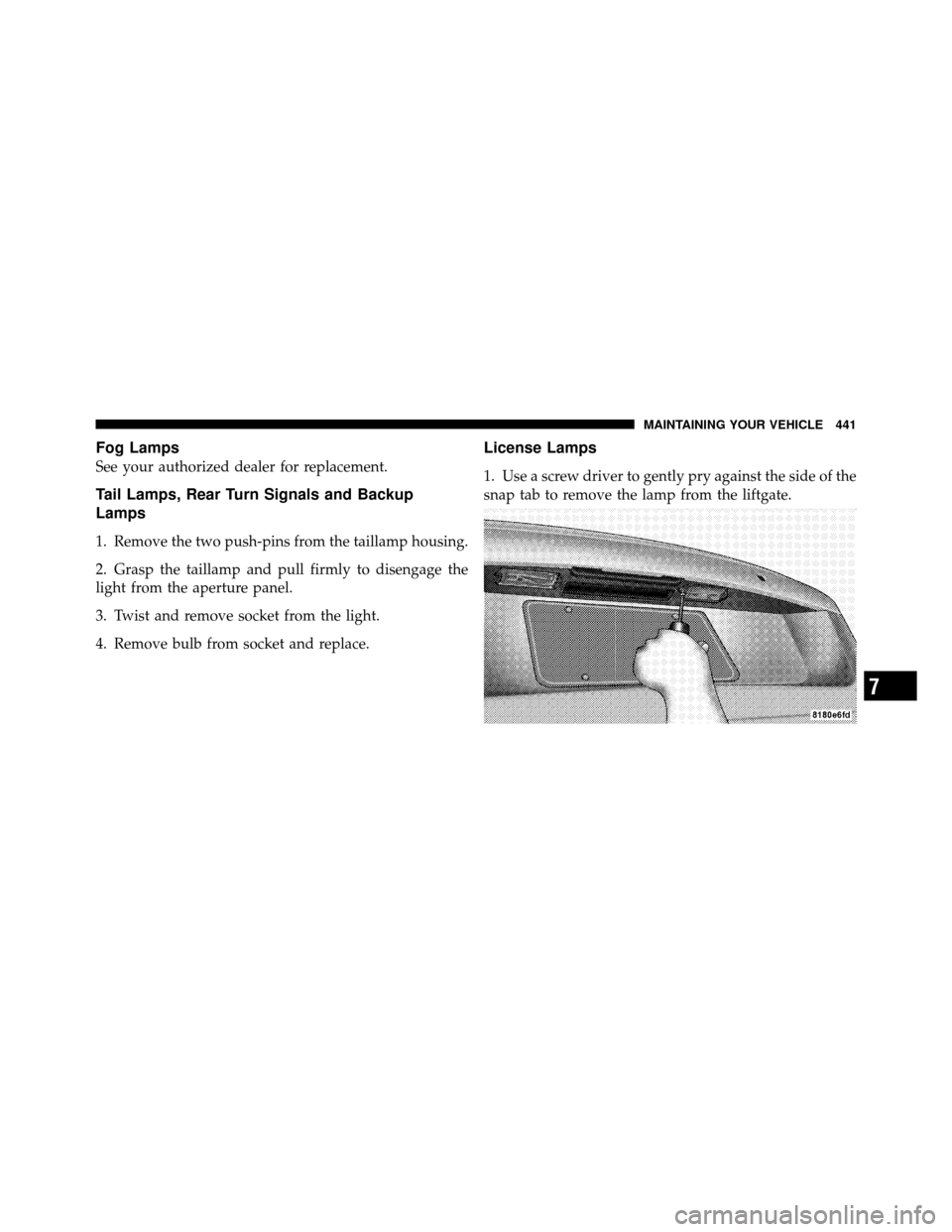

Fog Lamps
See your authorized dealer for replacement.
Tail Lamps, Rear Turn Signals and Backup
Lamps
1. Remove the two push-pins from the taillamp housing.
2. Grasp the taillamp and pull firmly to disengage the
light from the aperture panel.
3. Twist and remove socket from the light.
4. Remove bulb from socket and replace.
License Lamps
1. Use a screw driver to gently pry against the side of the
snap tab to remove the lamp from the liftgate.
7
MAINTAINING YOUR VEHICLE 441

Hazard Warning....................... 384
Turn Signal ...................... 85,190,441
Flat Tire Stowage ........................ 391
Flooded Engine Starting ................... 292
Fluid, Brake ........................... 445
Fluid Capacities ......................... 443
Fluid Leaks ............................. 86
Fluid Level Checks Automatic Transaxle .................... 426
Power Steering ........................ 315
Fluids ................................ 444
Fluids, Lubricants and Genuine Parts .......... 444
Fog Lights ....................... 144,200,441
Folding Rear Seat ........................ 139
Folding Rear Seat (Sedan) .................. 139
Four Wheel Drive ....................... 300
Systems ............................. 300
Four Wheel Drive Operation ................ 300
Freeing A Stuck Vehicle ................... 396 Fuel
.............................. 360,444
Adding ............................. 365
Additives ............................ 363
Capacity ............................ 443
Clean Air ............................ 361
Filler Cap (Gas Cap) .................... 365
Gasoline ............................ 360
Gauge .............................. 189
Light ............................... 190
Octane Rating ........................ 360
Requirements ......................... 360
Tank Capacity ........................ 443
Fuel System Caution ..................... 366
Fueling ............................... 365
Fuses ................................ 433
Garage Door Opener (HomeLink) ........... 155
Gas Cap (Fuel Filler Cap) ............365,367,403
Gasoline, Clean Air ...................... 361
10
INDEX 483

Ignition............................... 12
Key ................................ 12
Ignition Key Removal ..................... 12
Immobilizer (Sentry Key) ................... 14
Infant Restraint .......................... 73
Information Center, Vehicle ................. 202
Inside Rearview Mirror .................... 91
Instrument Cluster ....................... 189
Instrument Panel and Controls .............. 187
Instrument Panel Cover ................... 432
Instrument Panel Lens Cleaning ............. 432
Integrated Power Module (Fuses) ............ 433
Interior Appearance Care .................. 431
Intermittent Wipers (Delay Wipers) ........... 149
Introduction ............................. 4
Jack Location ........................... 386
Jack Operation ....................... 386,387
Jacking Instructions ...................... 387 Jump Starting
.......................... 391
Key, Programming ........................ 16
Key, Replacement ........................ 15
Key, Sentry (Immobilizer) ................... 14
Key-In Reminder ......................... 14
Keyless Entry System (Sedan) ................ 18
Keys ................................. 12
Knee Bolster ............................ 56
Lane Change and Turn Signals .............. 441
Lane Change Assist ...................... 146
Lap/Shoulder Belts ....................... 38
Latches ................................ 85
Hood .............................. 141
Lead Free Gasoline ...................... 360
Leaks, Fluid ............................ 86
Life of Tires ............................ 348
Liftgate (Sedan) .......................... 35
10
INDEX 485

Liftgate Window Wiper/Washer............. 178
Light Bulbs .......................... 85,437
Lights .............................. 85,143
Airbag ........................ 65,70,83,190
Alarm .............................. 194
Anti-Lock ........................... 191
Back-Up ............................ 441
Brake Warning ........................ 192
Bulb Replacement ...................... 438
Cargo .............................. 173
Center Mounted Stop ................... 442
Daytime Running ...................... 145
Dimmer Switch, Headlight ............... 143
Electronic Stability Program (ESP) Indicator . . . 328
Engine Temperature Warning .............. 192
Exterior .............................. 85
Fog .......................... 144,200,441
Headlight Switch ...................... 143
Headlights ........................... 143 High Beam Indicator
.................... 190
Instrument Cluster ..................... 143
License ............................. 441
Lights On Reminder .................... 144
Low Fuel ............................ 190
Malfunction Indicator (Check Engine) ........ 199
Map Reading ......................... 147
Oil Pressure .......................... 190
Seat Belt Reminder ..................... 191
Security Alarm (Theft Alarm) ............18,194
Theft Alarm (Security Alarm) .............. 194
Tire Pressure Monitoring (TPMS) ........... 196
Traction Control ....................... 328
Turn Signal ................... 85,143,145,441
Voltage ............................. 189
Warning (Instrument Cluster Description) ..... 189
Loading Vehicle ...................... 367,369
Capacities ........................... 369
Tires ............................... 338
486 INDEX

Sentry Key Replacement................... 15
Service Assistance ....................... 469
Service Contract ......................... 471
Service Manuals ........................ 473
Setting the Clock .............214,229,230,234,243
Settings, Personal ........................ 207
Shift Speeds, Manual Transaxle .............. 294
Shoulder Belts ........................... 38
Side Airbag ............................. 66
Side Window Demisters (Defrosters) .......... 281
Signals, Turn ...................... 85,190,441
Slippery Surfaces, Driving On ............... 301
Snow Chains (Tire Chains) ................. 349
Snow Tires ............................ 350
Spare Tire .......................... 345,386
Specifications Oil ................................ 408
Speed Control (Cruise Control) ...........152,195
Speedometer ........................... 190 Starting
............................... 290
Automatic Transmission ................. 290
Engine Fails to Start .................... 292
Manual Transmission ................... 290
Remote .............................. 25
Starting Procedures ...................... 290
Steering Power ........................... 314,315
Tilt Column .......................... 151
Steering Wheel Mounted Sound System
Controls .............................. 268
Storage ............................ 170,437
Storage Bin ............................ 170
Storage, Vehicle ......................... 281
Stuck, Freeing .......................... 396
Sun Roof .............................. 162
Sun Visor Extension ....................... 96
Supplemental Restraint System - Airbag ........ 56
Synthetic Engine Oil ...................... 409
10
INDEX 491
