2010 JEEP PATRIOT load capacity

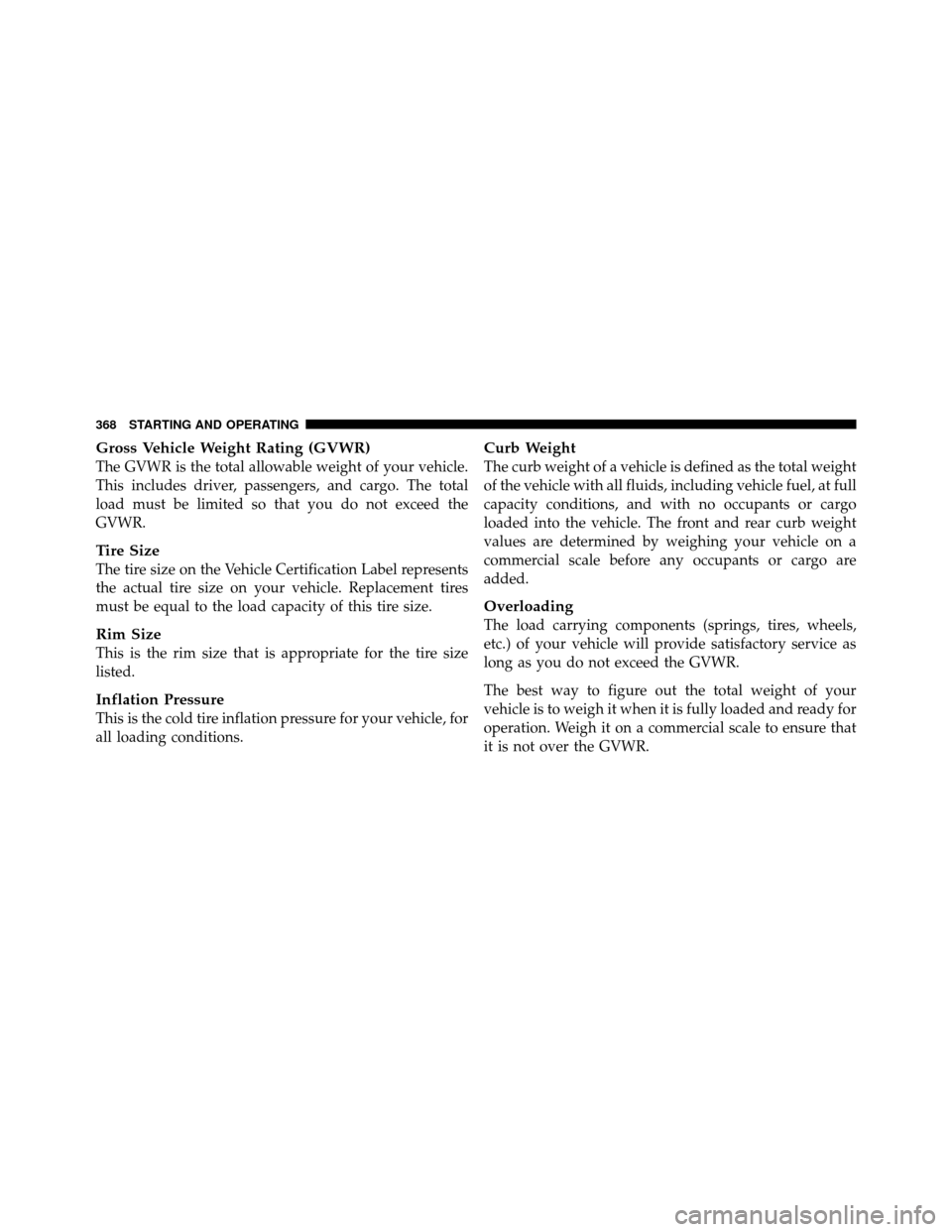

Gross Vehicle Weight Rating (GVWR)
The GVWR is the total allowable weight of your vehicle.
This includes driver, passengers, and cargo. The total
load must be limited so that you do not exceed the
GVWR.
Tire Size
The tire size on the Vehicle Certification Label represents
the actual tire size on your vehicle. Replacement tires
must be equal to the load capacity of this tire size.
Rim Size
This is the rim size that is appropriate for the tire size
listed.
Inflation Pressure
This is the cold tire inflation pressure for your vehicle, for
all loading conditions.
Curb Weight
The curb weight of a vehicle is defined as the total weight
of the vehicle with all fluids, including vehicle fuel, at full
capacity conditions, and with no occupants or cargo
loaded into the vehicle. The front and rear curb weight
values are determined by weighing your vehicle on a
commercial scale before any occupants or cargo are
added.
Overloading
The load carrying components (springs, tires, wheels,
etc.) of your vehicle will provide satisfactory service as
long as you do not exceed the GVWR.
The best way to figure out the total weight of your
vehicle is to weigh it when it is fully loaded and ready for
operation. Weigh it on a commercial scale to ensure that
it is not over the GVWR.
368 STARTING AND OPERATING

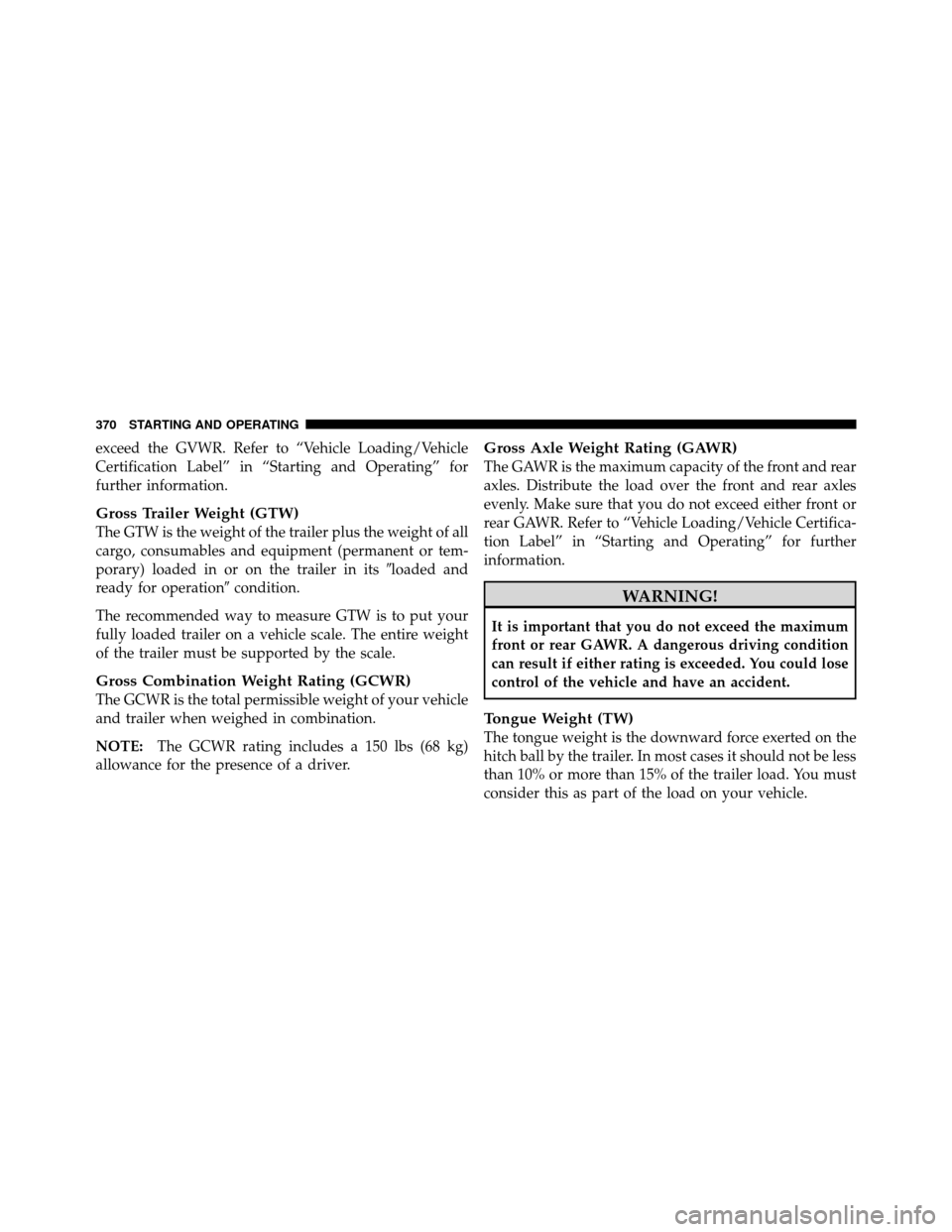

exceed the GVWR. Refer to “Vehicle Loading/Vehicle
Certification Label” in “Starting and Operating” for
further information.
Gross Trailer Weight (GTW)
The GTW is the weight of the trailer plus the weight of all
cargo, consumables and equipment (permanent or tem-
porary) loaded in or on the trailer in itsloaded and
ready for operation condition.
The recommended way to measure GTW is to put your
fully loaded trailer on a vehicle scale. The entire weight
of the trailer must be supported by the scale.
Gross Combination Weight Rating (GCWR)
The GCWR is the total permissible weight of your vehicle
and trailer when weighed in combination.
NOTE: The GCWR rating includes a 150 lbs (68 kg)
allowance for the presence of a driver.
Gross Axle Weight Rating (GAWR)
The GAWR is the maximum capacity of the front and rear
axles. Distribute the load over the front and rear axles
evenly. Make sure that you do not exceed either front or
rear GAWR. Refer to “Vehicle Loading/Vehicle Certifica-
tion Label” in “Starting and Operating” for further
information.
WARNING!
It is important that you do not exceed the maximum
front or rear GAWR. A dangerous driving condition
can result if either rating is exceeded. You could lose
control of the vehicle and have an accident.
Tongue Weight (TW)
The tongue weight is the downward force exerted on the
hitch ball by the trailer. In most cases it should not be less
than 10% or more than 15% of the trailer load. You must
consider this as part of the load on your vehicle.
370 STARTING AND OPERATING

Check for signs of tire wear or visible tire damage
before towing a trailer. Refer to “Tires – General
Information” in “Starting and Operating” for the
proper inspection procedure.
When replacing tires, refer to “Tires – General Infor-
mation” in “Starting and Operating” for proper tire
replacement procedures. Replacing tires with a higher
load carrying capacity will not increase the vehicle’s
GVWR and GAWR limits.
Towing Requirements – Trailer Brakes

Donot interconnect the hydraulic brake system or
vacuum system of your vehicle with that of the trailer.
This could cause inadequate braking and possible
personal injury.
An electronically actuated trailer brake controller is
required when towing a trailer with electronically actuated brakes. When towing a trailer equipped with
a hydraulic surge actuated brake system, an electronic
brake controller is not required.
Trailer brakes are recommended for trailers over
1,000 lbs (454 kg) and required for trailers in excess of
2,000 lbs (907 kg).
CAUTION!
If the trailer weighs more than 1,000 lbs (454 kg)
loaded, it should have its own brakes and they
should be of adequate capacity. Failure to do this
could lead to accelerated brake lining wear, higher
brake pedal effort, and longer stopping distances.5
STARTING AND OPERATING 377

Octane Rating, Gasoline (Fuel).............. 360
Odometer ............................. 197
Trip ............................. 196,197
Oil Change Indicator ..................... 204
Oil Change Indicator, Reset ................. 204
Oil, Engine ......................... 407,443
Capacity ............................ 443
Change Interval ....................... 408
Checking ............................ 407
Disposal ............................ 409
Filter ............................... 409
Identification Logo ..................... 408
Materials Added to ..................... 409
Recommendation ................... 408,443
Synthetic ............................ 409
Viscosity ............................ 409
Onboard Diagnostic System ..............403,404
Opener, Garage Door (HomeLink) ........... 155
Operator Manual (Owner’s Manual) ............ 5Overdrive
............................. 298
Overheating, Engine ................... 195,384
Owner’s Manual (Operator Manual) .........5,473
Paint Care ............................. 428
Panic Alarm ............................ 22
Parking Brake .......................... 316
Passing Light ........................... 146
Personal Settings ........................ 207
Pets .................................. 81
Phone, Cellular .......................... 96
Phone, Hands-Free (Uconnect™) .............. 96
Placard, Tire and Loading Information ......... 338
Power Door Locks ........................... 28
Mirrors .............................. 93
Outlet (Auxiliary Electrical Outlet) .......... 165
Steering .......................... 314,315
Sunroof ............................. 162
488 INDEX

System, Remote Starting.................... 25
Tachometer ............................ 191
Taillights .............................. 441
Temperature Control, Automatic (ATC) ........ 274
Temperature Gauge, Engine Coolant .......195,385
Tether Anchor, Child Restraint ............... 77
Theft Alarm (Security Alarm) ................ 17
Theft System (Security Alarm) ............... 17
Tie Down Hooks, Cargo ................... 176
Tilt Steering Column ..................... 151
Tire and Loading Information Placard ......... 338
Tire Identification Number (TIN) ............. 336
Tire Markings .......................... 332
Tire Safety Information .................... 332
Tires ............................ 85,342,475
Aging (Life of Tires) .................... 348
Air Pressure .......................... 342
Chains .............................. 349 Changing
............................ 386
Compact Spare ........................ 345
Flat Changing ........................ 391
General Information .................... 342
High Speed .......................... 345
Inflation Pressures ..................... 343
Jacking ............................. 386
Life of Tires .......................... 348
Load Capacity ..................... 338,339
Pressure Monitor System (TPMS) ........... 351
Pressure Warning Light .................. 196
Quality Grading ....................... 475
Radial .............................. 345
Replacement ......................... 348
Rotation ............................ 350
Safety ........................... 332,342
Sizes ............................... 334
Snow Tires ........................... 350
Spare Tire ........................... 386
492 INDEX
