2010 JEEP LIBERTY fog light

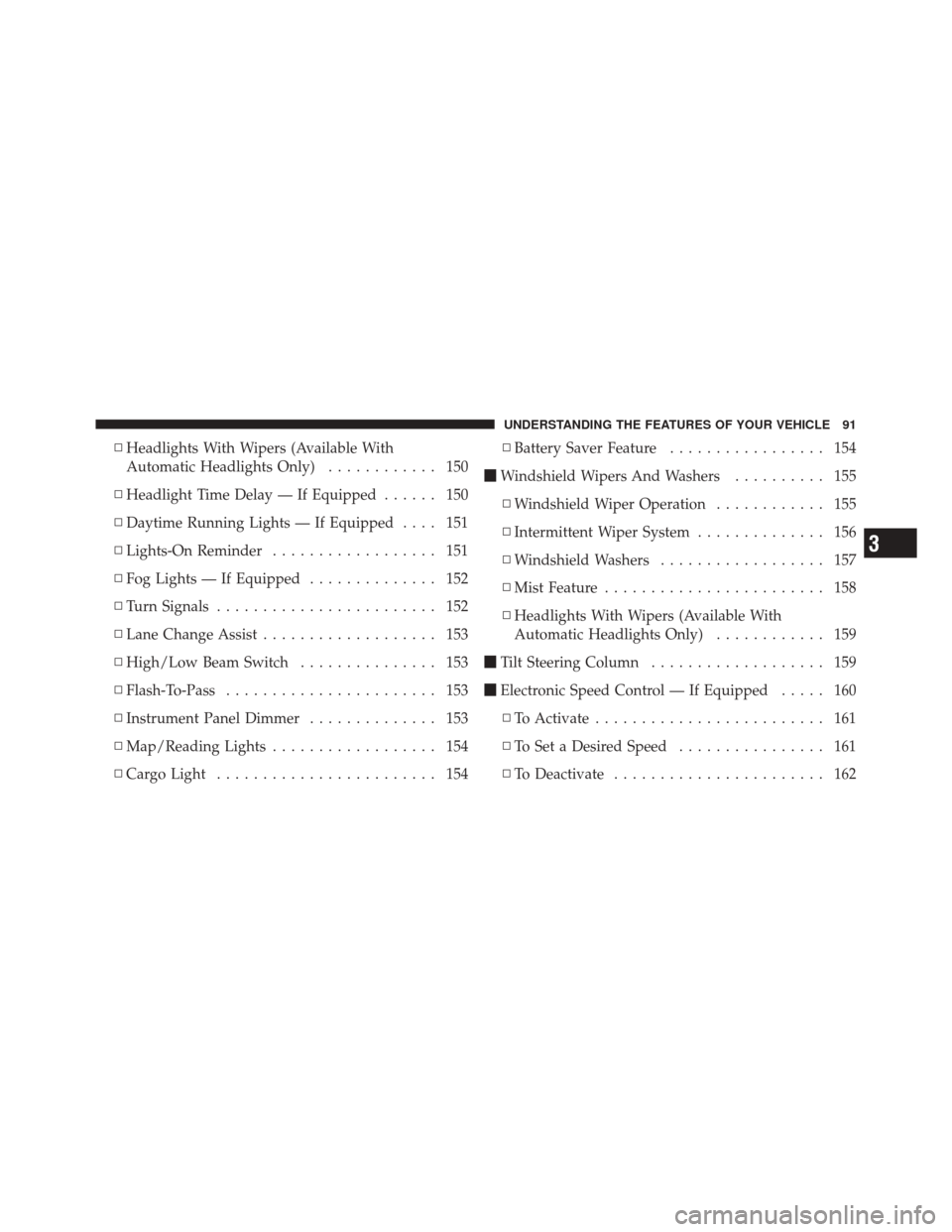

▫Headlights With Wipers (Available With
Automatic Headlights Only) ............ 150
▫ Headlight Time Delay — If Equipped ...... 150
▫ Daytime Running Lights — If Equipped .... 151
▫ Lights-On Reminder .................. 151
▫ Fog Lights — If Equipped .............. 152
▫ Turn Signals ........................ 152
▫ Lane Change Assist ................... 153
▫ High/Low Beam Switch ............... 153
▫ Flash-To-Pass ....................... 153
▫ Instrument Panel Dimmer .............. 153
▫ Map/Reading Lights .................. 154
▫ Cargo Light ........................ 154 ▫
Battery Saver Feature ................. 154
 Windshield Wipers And Washers .......... 155
▫ Windshield Wiper Operation ............ 155
▫ Intermittent Wiper System .............. 156
▫ Windshield Washers .................. 157
▫ Mist Feature ........................ 158
▫ Headlights With Wipers (Available With
Automatic Headlights Only) ............ 159
 Tilt Steering Column ................... 159
 Electronic Speed Control — If Equipped ..... 160
▫ To Activate ......................... 161
▫ To Set a Desired Speed ................ 161
▫ To Deactivate ....................... 162
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91

CAUTION! (Continued)
•Lower the hood to approximately 6 in (15.2 cm)
above the closed position and drop the hood to
latch it.
•Never drive your vehicle unless the hood is fully
closed, with both latches engaged.
WARNING!
If the hood is not fully latched, it could fly up when
the vehicle is moving and block your forward vision.
Be sure all hood latches are fully latched before
driving.
LIGHTS
Multifunction Lever
The multifunction lever on the left side of the steering
column controls the operation of the headlights, parking
lights, turn signal lights, instrument panel lights, instru-
ment panel light dimming, interior lights and fog lights
(if equipped).
Multifunction Lever
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Fog Lights — If Equipped
To activate the front fog lights, turn on the parking
lights or the low beam headlights and pull out on
the end of the multifunction lever.
NOTE: The front fog lights will only operate with the
headlights on low beam. Selecting high beam headlights
will turn off the front fog lights.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
NOTE: If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
Front Fog Light Control
Turn Signal Control
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Prolonged driving with the MIL on could cause
damage to the engine control system. It also could
affect fuel economy and drivability. If the MIL is
flashing, severe catalytic converter damage and
power loss will soon occur. Immediate service is
required.
WARNING!
A malfunctioning catalytic converter, as referenced
above, can reach higher temperatures than in normal
operating conditions. This can cause a fire if you
drive slowly or park over flammable substances such
as dry plants or wood or cardboard, etc. This could
result in death or serious injury to the driver, occu-
pants or others.7. High Beam Indicator
This indicator shows that the high beam head-
lights are on. Pull the multifunction control lever
on the left side of the steering column toward you to
switch to low beam.
8. Front Fog Light Indicator — If Equipped This indicator will illuminate when the fog lights
are on.
9. Speedometer
Shows the vehicle speed in Miles Per Hour (MPH) or
kilometers per hour (km/h).
10. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
If the vehicle electronics sense that the vehicle has
traveled about 1 mile (1.6 km) with the turn signals on, a
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211

Recirculation ControlPressing the Recirculation Control button will
put the system in recirculation mode. This can
be used when outside conditions such as
smoke, odors, dust, or high humidity are
present. Activating recirculation will cause the LED in the
control button to illuminate. After ten minutes, the sys-
tem will return to normal mode function and the LED
will turn off.
NOTE:
•Continuous use of the recirculation mode may make
the inside air stuffy and window fogging may occur.
Extended use of this mode is not recommended.
•The use of the recirculation mode in cold or damp
weather will cause windows to fog on the inside,
because of moisture buildup inside the vehicle. Select
the Outside Air position for maximum defogging.
•The A/C will engage automatically to prevent fogging
when the recirculation button is pressed and the mode
control is set to panel or panel / floor.
•The A/C can be deselected manually without disturb-
ing the mode control selection.
•When the ignition switch is turned to the LOCK
position, the recirculation feature will be cancelled.
Air Conditioning Control
Press this button to engage the Air
Conditioning. A light will illuminate
when the Air Conditioning System is
engaged. Rotating the dial left into the
blue area of the scale indicates cooler
temperatures while rotating right into
the red area indicates warmer tem-
peratures.
284 UNDERSTANDING YOUR INSTRUMENT PANEL

CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
REPLACEMENT BULBS
LIGHT BULBS — InteriorBulb No.
Cargo Lamp ......................... TL212–2
Overhead Console Lamp ............. PLW214–2A
Reading Lamp ...................... WL212–2LIGHT BULBS — Exterior
Bulb No.
Headlamp ......................... 9008 H13
Front Park/Turn Signal Lamp .............3757AK
Front Side Marker Lamp ................... 168
Back-Up Lamp ........................ 3157K
Center High Mounted Stop Lamp
(CHMSL) ...... LED (serviced at an authorized dealer)
Fog Lamp .......................... H10 9145
License Plate Lamp ....................... 168
Rear Tail/Stop ......................... 3157K
Rear Turn Signal Lamp .................3757AKBULB REPLACEMENT
Headlamp
1. Open the hood.
2. Reach behind the headlamp housing to access the
headlamp bulb lock ring.
7
MAINTAINING YOUR VEHICLE 461

Turn Signal................ 88,152,211,462,464
Flash-To-Pass ........................... 153
Flipper Glass, Liftgate ..................... 39
Flooded Engine Starting ................... 300
Floor Console .......................... 192
Fluid, Brake ........................... 467
Fluid Capacities ......................... 465
Fluid Leaks ............................. 88
Fluid Level Checks .................... 444,445
Automatic Transmission ................. 443
Brake .............................. 441
Cooling System ....................... 435
Engine Oil ........................... 424
Power Steering ........................ 327
Fluids, Lubricants and Genuine Parts .......... 466
Fog Light Service ........................ 463
Fog Lights .................... 148,152,211,463
Folding Rear Seat ........................ 139 Four Wheel Drive
Shifting ..................... 309,312,315,318
Systems .......................... 309,315
Four Wheel Drive Operation ................ 309
Shifting into Transfer Case Neutral (N) ....... 397
Shifting out of Transfer Case Neutral (N) ..... 397
Front Axle (Differential) ................... 445
Fuel ................................. 373
Additives ............................ 375
Clean Air ............................ 373
Ethanol ............................. 374
Filler Cap (Gas Cap) .................... 378
Gasoline ............................ 373
Gauge .............................. 208
Materials Added ....................... 375
Methanol ............................ 374
Octane Rating ...................... 373,466
Requirements ......................... 373
Specifications ......................... 466
506 INDEX

Dimmer Switch, Headlight.............148,153
Electronic Stability Program (ESP) Indicator . . . 339
Engine Temperature Warning .............. 215
Exterior .............................. 88
Fog .......................... 152,211,463
Four-Wheel Drive Indicator ....214,215,217,313,319
Hazard Warning Flasher ................. 404
Headlight Switch ................... 148,149
Headlights ........................ 149,461
Headlights On Reminder ................. 151
Headlights On With Wipers ............150,159
High Beam ........................ 153,211
High Beam Indicator .................... 211
High Beam/Low Beam Select ............. 153
Hill Descent Control Indicator ..........214,337
Illuminated Entry ....................... 19
Instrument Cluster .................. 148,208
Lights On Reminder .................... 151
Low Fuel ............................ 208 Malfunction Indicator (Check Engine)
........ 210
Oil Pressure .......................... 213
Park ............................ 148,149
Passing ............................. 153
Rear Servicing ........................ 464
Rear Tail ............................ 464
Seat Belt Reminder ..................... 221
Service ............................. 461
Service Engine Soon (Malfunction Indicator) . . . 210
Side Marker .......................... 462
Tire Pressure Monitoring (TPMS) ........208,363
Tow/Haul Indicator .................... 214
Traction Control ....................... 339
Transfer Case ...................... 313,319
Turn Signal ................ 88,148,152,462,464
Vanity Mirror .......................... 97
Voltage ............................. 212
Warning (Instrument Cluster Description) ..... 208
Load Floor, Cargo ....................... 193
510 INDEX
