N
Neutral - This range disengages both the front driveshaft
and rear driveshaft from the powertrain. To be used for
flat towing behind another vehicle. Refer to “Recreational
Towing” in this section for more information.
Transfer Case Position Indicator Lights
The four-wheel drive indicator lights (4WD, 4 LOW) are
located in the instrument cluster. The NEUTRAL indica-
tor light is located on the transfer case switch. If there is
no indicator light on or flashing, the transfer case posi-
tion is two-wheel drive (2WD). If the indicator light is on,
the desired position (4WD AUTO, 4WD LOW, or NEU-
TRAL) has been obtained.
If one or more shift requirements are not met:
•An indicator light will flash.
•The transfer casewill notshift. NOTE:
The “SERV 4WD Warning Light” monitors the
electric shift four-wheel drive system. If this light re-
mains on after engine start up, or it illuminates during
driving, it means that the four-wheel drive system is not
functioning properly and that service is required.
Shifting Procedures
NOTE: If any of the requirements to select a new
transfer case position have not been met, the transfer case
will not shift, the indicator light for the previous position
will remain on, and the newly selected position indicator
light will continue to flash until all the requirements for
the selected position have been met. To retry a shift, move
the transfer case switch back to the original position,
make certain all shift requirements have been met, wait
five seconds, and try the shift again.
2WD to 4WD Auto
Move the transfer case switch to the desired position.
Shifts between 2WD and 4WD Auto can be done with the
5
STARTING AND OPERATING 319

Replacement Tires
The tires on your new vehicle provide a balance of many
characteristics. They should be inspected regularly for
wear and correct cold tire inflation pressure. The manu-
facturer strongly recommends that you use tires equiva-
lent to the originals in size, quality and performance
when replacement is needed. (Refer to the paragraph on
“Tread Wear Indicators”). Refer to the “Tire and Loading
Information” placard for the size designation of your
tires. The service description and load identification will
be found on the original equipment tire. Failure to use
equivalent replacement tires may adversely affect the
safety, handling, and ride of your vehicle. We recommend
that you contact your original equipment or an autho-
rized tire dealer with any questions you may have on tire
specifications or capability.WARNING!
•Do not use a tire, wheel size or rating other than
that specified for your vehicle. Some combinations
of unapproved tires and wheels may change sus-
pension dimensions and performance characteris-
tics, resulting in changes to steering, handling, and
braking of your vehicle. This can cause unpredict-
able handling and stress to steering and suspen-
sion components. You could lose control and have
an accident resulting in serious injury or death.
Use only the tire and wheel sizes with load ratings
approved for your vehicle.
•Never use a tire with a smaller load index or
capacity than what was originally equipped on
your vehicle. Using a tire with a smaller load index
could result in tire overloading and failure. You
could lose control and have an accident.(Continued)
5
STARTING AND OPERATING 359

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated Onboard
Diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
“gASCAP” message will display in the odometer or a
“CHECK GASCAP” message will be displayed in the
Electronic Vehicle Information Center (EVIC). Refer to
“Electronic Vehicle Information Center” in Section 4 of
420 MAINTAINING YOUR VEHICLE

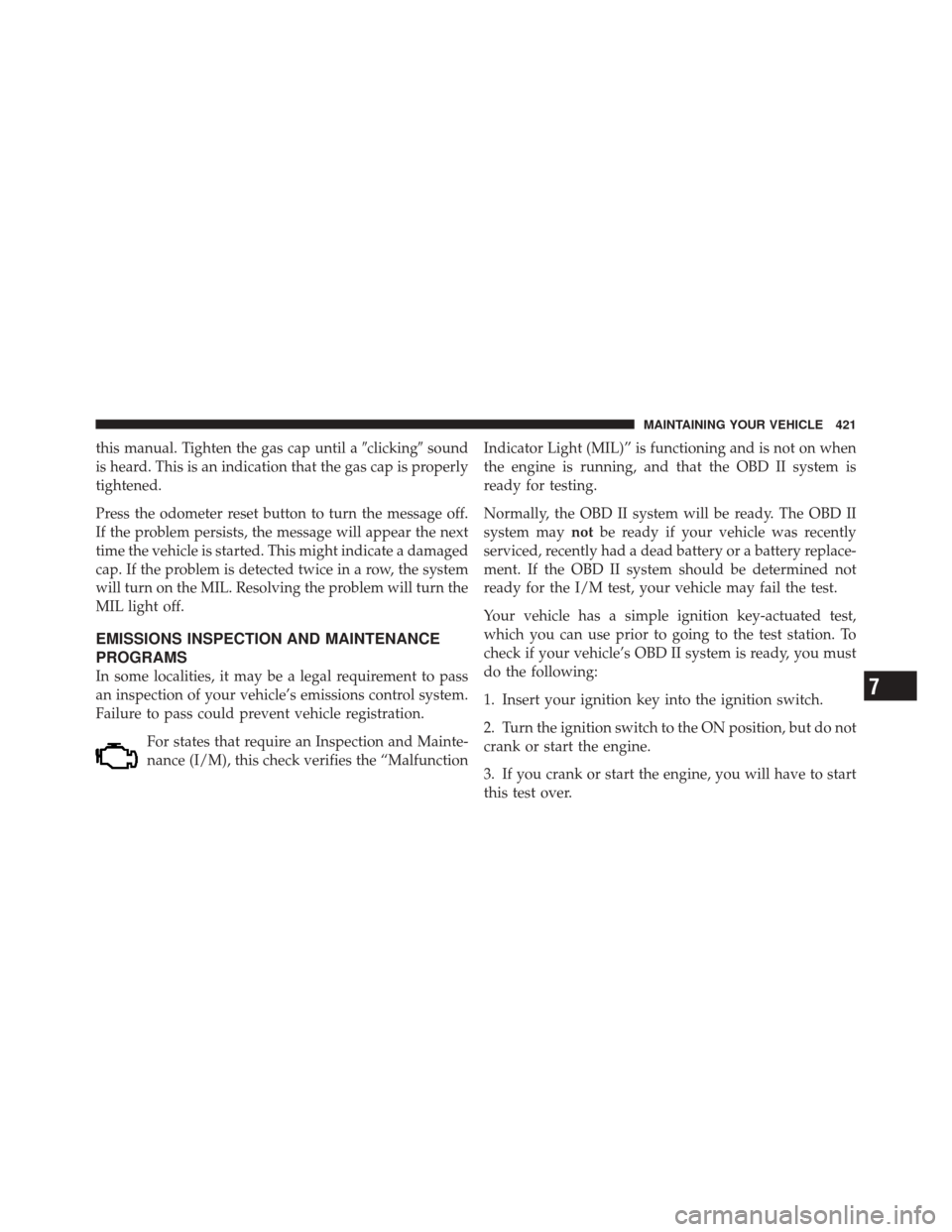

this manual. Tighten the gas cap until aclickingsound
is heard. This is an indication that the gas cap is properly
tightened.
Press the odometer reset button to turn the message off.
If the problem persists, the message will appear the next
time the vehicle is started. This might indicate a damaged
cap. If the problem is detected twice in a row, the system
will turn on the MIL. Resolving the problem will turn the
MIL light off.
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction Indicator Light (MIL)” is functioning and is not on when
the engine is running, and that the OBD II system is
ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may
notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Insert your ignition key into the ignition switch.
2. Turn the ignition switch to the ON position, but do not
crank or start the engine.
3. If you crank or start the engine, you will have to start
this test over.7
MAINTAINING YOUR VEHICLE 421

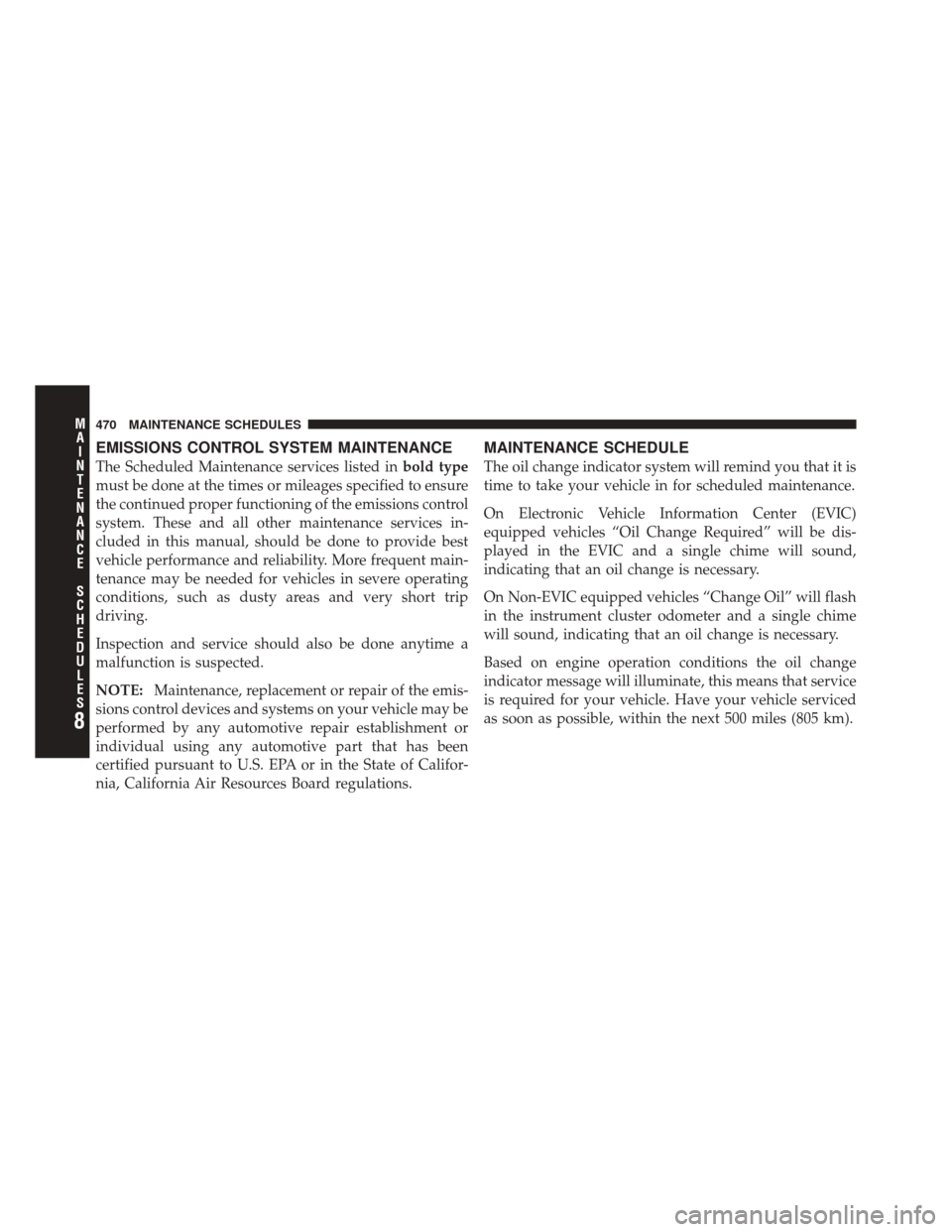

EMISSIONS CONTROL SYSTEM MAINTENANCE
The Scheduled Maintenance services listed inbold type
must be done at the times or mileages specified to ensure
the continued proper functioning of the emissions control
system. These and all other maintenance services in-
cluded in this manual, should be done to provide best
vehicle performance and reliability. More frequent main-
tenance may be needed for vehicles in severe operating
conditions, such as dusty areas and very short trip
driving.
Inspection and service should also be done anytime a
malfunction is suspected.
NOTE: Maintenance, replacement or repair of the emis-
sions control devices and systems on your vehicle may be
performed by any automotive repair establishment or
individual using any automotive part that has been
certified pursuant to U.S. EPA or in the State of Califor-
nia, California Air Resources Board regulations.
MAINTENANCE SCHEDULE
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
On Electronic Vehicle Information Center (EVIC)
equipped vehicles “Oil Change Required” will be dis-
played in the EVIC and a single chime will sound,
indicating that an oil change is necessary.
On Non-EVIC equipped vehicles “Change Oil” will flash
in the instrument cluster odometer and a single chime
will sound, indicating that an oil change is necessary.
Based on engine operation conditions the oil change
indicator message will illuminate, this means that service
is required for your vehicle. Have your vehicle serviced
as soon as possible, within the next 500 miles (805 km).
8
M A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S470 MAINTENANCE SCHEDULES

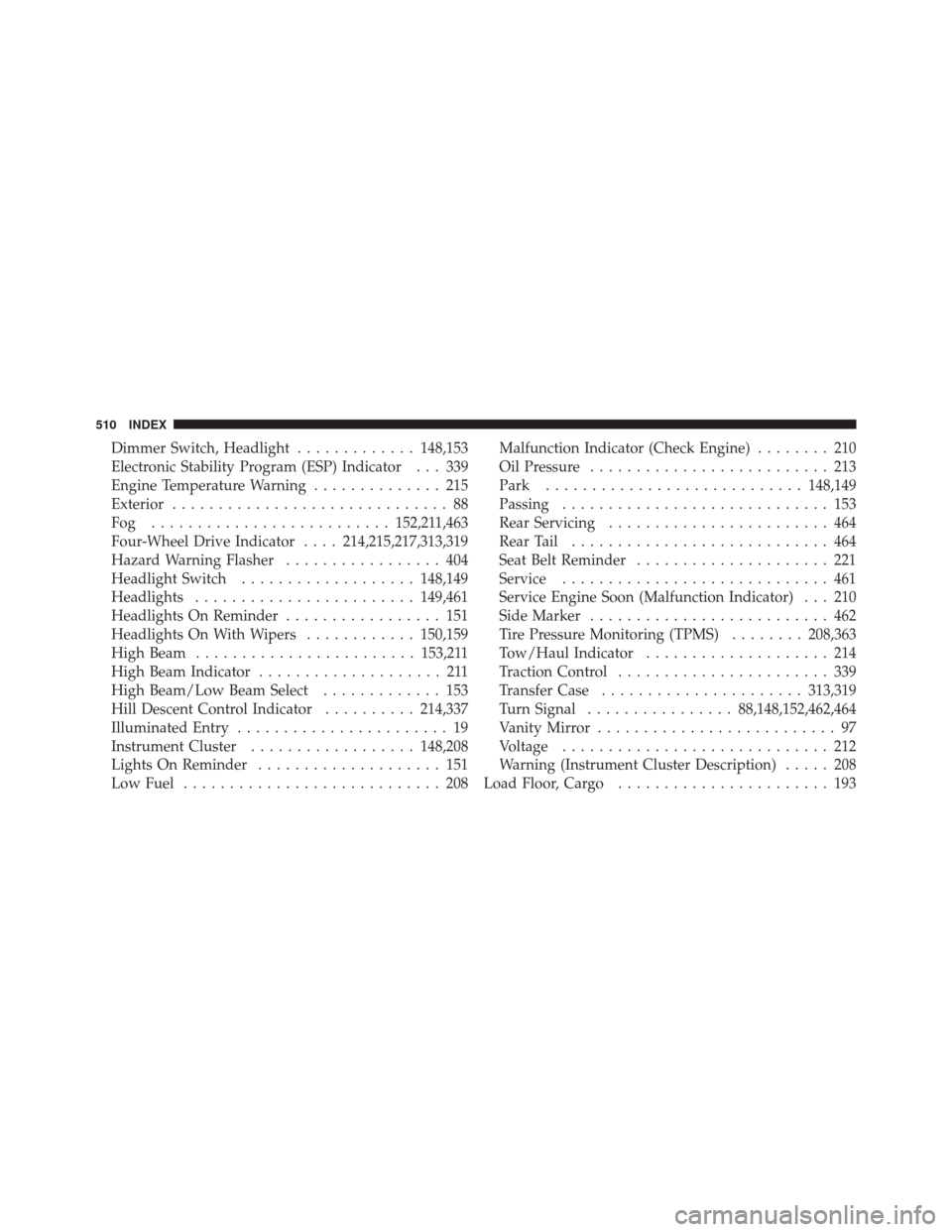

Dimmer Switch, Headlight.............148,153
Electronic Stability Program (ESP) Indicator . . . 339
Engine Temperature Warning .............. 215
Exterior .............................. 88
Fog .......................... 152,211,463
Four-Wheel Drive Indicator ....214,215,217,313,319
Hazard Warning Flasher ................. 404
Headlight Switch ................... 148,149
Headlights ........................ 149,461
Headlights On Reminder ................. 151
Headlights On With Wipers ............150,159
High Beam ........................ 153,211
High Beam Indicator .................... 211
High Beam/Low Beam Select ............. 153
Hill Descent Control Indicator ..........214,337
Illuminated Entry ....................... 19
Instrument Cluster .................. 148,208
Lights On Reminder .................... 151
Low Fuel ............................ 208 Malfunction Indicator (Check Engine)
........ 210
Oil Pressure .......................... 213
Park ............................ 148,149
Passing ............................. 153
Rear Servicing ........................ 464
Rear Tail ............................ 464
Seat Belt Reminder ..................... 221
Service ............................. 461
Service Engine Soon (Malfunction Indicator) . . . 210
Side Marker .......................... 462
Tire Pressure Monitoring (TPMS) ........208,363
Tow/Haul Indicator .................... 214
Traction Control ....................... 339
Transfer Case ...................... 313,319
Turn Signal ................ 88,148,152,462,464
Vanity Mirror .......................... 97
Voltage ............................. 212
Warning (Instrument Cluster Description) ..... 208
Load Floor, Cargo ....................... 193
510 INDEX

Loading Vehicle......................... 380
Tires ............................... 348
Locks ................................. 28
Auto Unlock .......................... 31
Automatic Door ........................ 30
Child Protection ........................ 32
Door ................................ 28
Power Door ........................... 30
Low Tire Pressure System .................. 363
Lower Anchors and Tether for CHildren
(LATCH) ............................ 79,80
Lubrication, Body ....................... 431
Luggage Carrier ......................... 201
Lumbar Support ........................ 134
Maintenance Free Battery .................. 428
Maintenance, General ..................... 423
Maintenance Procedures ................... 423
Maintenance Schedule .................... 470 Maintenance, Sunroof
..................... 182
Malfunction Indicator Light
(Check Engine) ....................... 210,421
Manual, Service ......................... 495
Manual Transmission Lubricant Selection ..................... 467
Marker Lights, Side ...................... 462
Master Cylinder (Brakes) .................. 441
Memory Feature (Memory Seat) ............. 142
Memory Seat ........................... 142
Memory Seats and Radio .................. 142
Methanol ............................. 374
Mini-Trip Computer ...................... 227
Mirrors ................................ 94
Automatic Dimming ..................... 94
Electric Powered ....................... 96
Electric Remote ........................ 96
Heated .............................. 97
Outside .............................. 95
10
INDEX 511

Sentry Key (Immobilizer)................... 14
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 15
Service Assistance ....................... 491
Service Contract ......................... 493
Service Engine Soon Light
(Malfunction Indicator) .................... 210
Service Manuals ........................ 495
Setting the Clock ................ 237,251,254,263
Settings, Personal ........................ 231
Shift Lock Manual Override ................ 303
Shifting Automatic Transmission ................. 305
Transfer Case ................. 309,312,315,318
Shoulder Belts ........................... 42
Side View Mirror Adjustment ................ 95
Side Window Demisters (Defrosters) .......... 292
Signals, Turn ................. 88,152,211,462,464
Sky Slider Power Roof .................183,446Snow Chains (Tire Chains)
................. 360
Spare Tire .......................... 355,406
Spark Plugs ............................ 466
Specifications Fuel (Gasoline) ........................ 466
Oil .............................. 425,466
Speed Control (Cruise Control) .............. 160
Speedometer ........................... 211
Starting ............................. 26,299
Cold Weather ......................... 300
Emergency (Jump Starting) ............... 412
Engine Block Heater .................... 301
Engine Fails to Start .................... 300
Remote .............................. 26
Starting and Operating .................... 299
Starting Procedures ...................... 299
Steering Power ........................... 325,327
Tilt Column .......................... 159
516 INDEX
