Key Fob
The Key Fob operates the ignition switch. It also contains
the Remote Keyless Entry (RKE) transmitter and an
emergency key, which stores in the rear of the Key Fob.
The emergency key allows for entry into the vehicle
should the battery in the vehicle or the RKE transmitter
go dead. The emergency key is also for locking the glove
box. You can keep the emergency key with you when
valet parking.
NOTE:Entering a vehicle using the emergency key with
the theft alarm armed, will results in the alarm sounding.
Insert the Key Fob (even if the Key Fob battery is dead)
into the WIN to disarm theft alarm.
To remove the emergency key, slide the mechanical latch
at the top of the Key Fob sideways with your thumb and
then pull the key out with your other hand. NOTE:
You can insert the double-sided emergency key
into the lock cylinders with either side up.
Removing Key Fob From Ignition
Place the shift lever in PARK. Turn the Key Fob to the
OFF position and then remove the Key Fob.
Emergency Key Removal
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
CavityCartridge
Fuse Mini-
Fuse Description
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation/
Air Conditioning
(HVAC), Rear Heated
Seat Switch, O/H,
Heater Ventilation/
Air Conditioning
(HVAC) Relay, Rear
Park Assist
11 Spare (B+)
12 10 Amp
RedDoor Mods, O/H
Lamps, IP Courtesy
Lamps, Glove Box
Lamp (B+)
13 10 Amp
RedAutowipe (R/A)Cavity
Cartridge
Fuse Mini-
Fuse Description
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare
(R/S)
20 10 Amp
RedSteering Column Con-
trol Module (SCCM),
Cluster (R/S), BUX
Trailer Tow
342 MAINTAINING YOUR VEHICLE

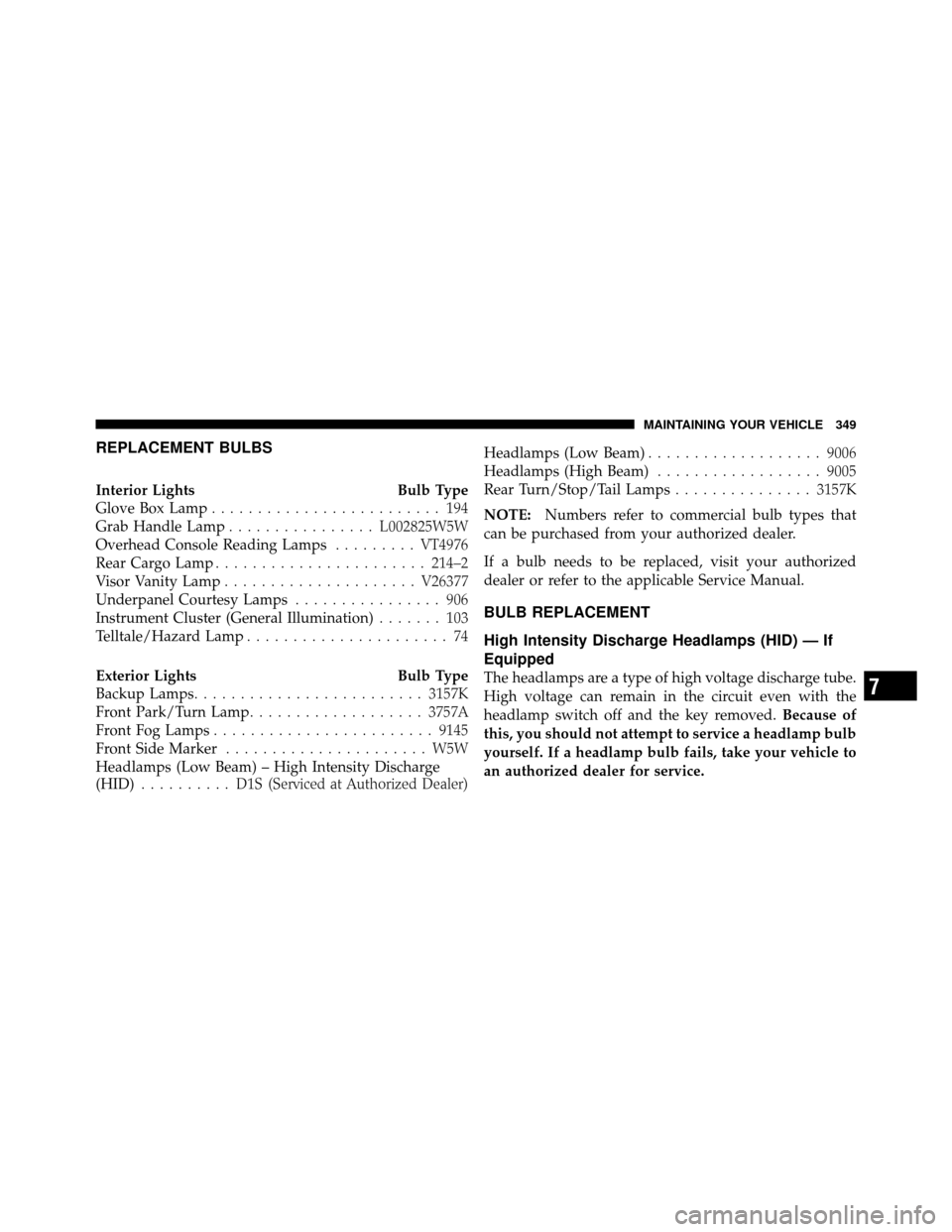

REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
Exterior Lights Bulb Type
Backup Lamps ......................... 3157K
Front Park/Turn Lamp ................... 3757A
Front Fog Lamps ........................ 9145
Front Side Marker ...................... W5W
Headlamps (Low Beam) – High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer) Headlamps (Low Beam)
................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3157K
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.7
MAINTAINING YOUR VEHICLE 349
