•Gate Ajar (with a single chime)
•Headlamps or Park Lamps On
•Key In Ignition
•Check TPM System
Engine Oil Change Indicator System —
If Equipped
Oil Change Required
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately five
seconds after a single chime has sounded, to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty-cycle based, which means the
engine oil change interval may fluctuate dependent upon
your personal driving style.Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Trip Odometer button on the instrument
cluster. To reset the oil change indicator system (after
performing the scheduled maintenance) refer to the fol-
lowing procedure.
1. Turn the ignition switch to the ON position.
Do not
start the engine.
2. Fully depress the accelerator pedal, slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
198 UNDERSTANDING YOUR INSTRUMENT PANEL

position (automatic transmission). Press and hold the
EVIC button when in this display until “ON” or “OFF”
appears to make your selection.
RKE Unlock Driver’s Door 1st
When Driver’s Door 1st is selected only the driver’s door
will unlock on the first press of the Remote Keyless Entry
(RKE) transmitter UNLOCK button and require a second
press to unlock the remaining locked doors. When Re-
mote Unlock All Doors is selected, all of the doors will
unlock at the first press of the RKE transmitter UNLOCK
button. Press and hold the EVIC button when in this
display until “Driver’s Door 1st” or “All Doors” appears
to make your selection.
Flash Lamps with Lock
When ON is selected, the front and rear turn signals will
flash when the doors are locked or unlocked using the
RKE transmitter. This feature may be selected with or
without the sound horn on lock feature selected. Pressand hold the EVIC button when in this display until
“ON” or “OFF” appears to make your selection.
Sound Horn with Lock
When ON is selected, a short horn sound will occur when
the RKE transmitter LOCK button is pressed. This feature
may be selected with or without the Flash Lights with
Lock feature. Press and hold the EVIC button when in
this display until “ON” or “OFF” appears to make your
selection.
Headlamp Off Delay
When this feature is selected the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. Press and hold the EVIC button
when in this display until 0, 30, 60, or 90 appears to make
your selection.
Key Off Power Delay
When this feature is selected the power window
switches, radio, Uconnect™ Phone, power sunroof, and
202 UNDERSTANDING YOUR INSTRUMENT PANEL

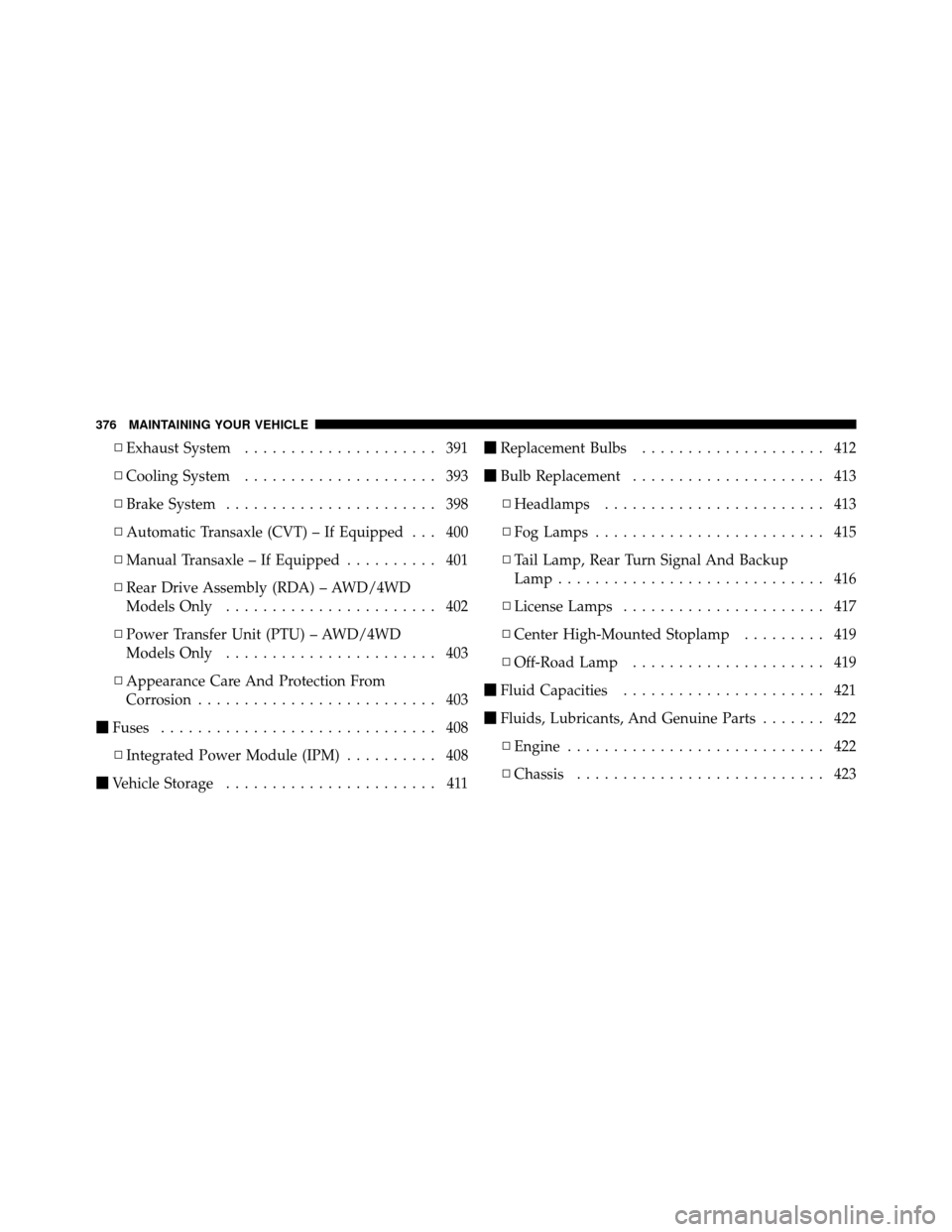

▫Exhaust System ..................... 391
▫ Cooling System ..................... 393
▫ Brake System ....................... 398
▫ Automatic Transaxle (CVT) – If Equipped . . . 400
▫ Manual Transaxle – If Equipped .......... 401
▫ Rear Drive Assembly (RDA) – AWD/4WD
Models Only ....................... 402
▫ Power Transfer Unit (PTU) – AWD/4WD
Models Only ....................... 403
▫ Appearance Care And Protection From
Corrosion .......................... 403
 Fuses .............................. 408
▫ Integrated Power Module (IPM) .......... 408
 Vehicle Storage ....................... 411
Replacement Bulbs .................... 412
 Bulb Replacement ..................... 413
▫ Headlamps ........................ 413
▫ Fog Lamps ......................... 415
▫ Tail Lamp, Rear Turn Signal And Backup
Lamp ............................. 416
▫ License Lamps ...................... 417
▫ Center High-Mounted Stoplamp ......... 419
▫ Off-Road Lamp ..................... 419
 Fluid Capacities ...................... 421
 Fluids, Lubricants, And Genuine Parts ....... 422
▫ Engine ............................ 422
▫ Chassis ........................... 423
376 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuseMini-
Fuse Description
31 10 Amp
RedHeadlamp Washer
Relay Control –
If Equipped
32 30 Amp Pink ENG ASD Control
Feed 1
33 10 Amp
RedABS MOD/J1962
Conn/PCM
34 30 Amp Pink ABS Valve Feed
35 40 Amp Green ABS Pump Feed
36 30 Amp Pink Headlamp/Washer
Control/Smart
Glass – If Equipped
37 25 Amp
NaturalDiesel Fuel
Heater – If EquippedCAUTION!
•When installing the IPM cover, it is important to
ensure the cover is properly positioned and fully
latched. Failure to do so may allow water to get
into the IPM, and possibly result in an electrical
system failure.
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
7
MAINTAINING YOUR VEHICLE 411

•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Header Lamp...................... T578
Center Dome Lamp ...................... T578
Rear Cargo Lamp/Flashlight .............8–A35LFLIGHTS BULBS – Exterior
Bulb No.
Low Beam/High Beam Headlamp ............ H13
Front Park/Turn Signal/Side Marker Lamp . . . 3757KA
Front Fog Lamp ...................... PSX24W
Center High Mounted Stop Lamp
(CHMSL) ...................... LED Assembly
Rear Tail/Stop Lamp ..................... 3157
Rear Turn Lamp ............... 3157AK or 3157A
Backup Lamp ..................... W16W (921)
License Lamp .......................... W5W
Off-Road Lamp .......................... H3
412 MAINTAINING YOUR VEHICLE

BULB REPLACEMENT
Headlamps
1. Raise the hood and locate the connector behind the
headlamp.2. Reach into the engine compartment and pull the red
lock out at the green connector.
7
MAINTAINING YOUR VEHICLE 413
