2010 JEEP COMMANDER tow

Towing — Quadra-Trac I(Single-Speed Transfer
Case) Four-Wheel Drive Models
Recreational towing is not allowed. This model does not
have a NEUTRAL position in the transfer case.
Towing — Quadra–Trac II /Quadra–DriveII
Four-Wheel Drive Models
CAUTION!
Front or rear wheel lifts should not be used. Internal
damage to the transmission or transfer case will occur
if a front or rear wheel lift is used when recreational
towing.
NOTE: The transfer case must be in the NEUTRAL
position, and the transmission must be in the PARK
position for recreational towing.
Shifting Into NEUTRAL
Use the following procedure to prepare your vehicle for
recreational towing.
CAUTION!
It is necessary to follow these steps to be certain that
the transfer case is fully in NEUTRAL before recre-
ational towing to prevent damage to internal parts.
1. Press the brake pedal.
2. Turn the ignition key ON, engine off.
3. Shift the transmission into NEUTRAL.
4. Shift the transfer case into NEUTRAL.
Hold down the NEUTRAL “pin” switch (with a pen, etc.)
for four seconds until the LED lamp by the switch starts
to blink, indicating shift in progress. The lamp will stop
blinking (stay on solid) when the NEUTRAL shift is
5
STARTING AND OPERATING 337

complete. A “4WD SYSTEM IN NEUTRAL” message will
display on the EVIC (Electronic Vehicle Information
Center). Refer to “Electronic Vehicle Information Center
(EVIC)” in Section 4 of this manual.5. Start the engine.
6. Shift the transmission into DRIVE.
7. Release the brake pedal and ensure that there is no
vehicle movement.
8. Shut the engine off.
9. Shift the transmission into PARK.
10. Place the ignition key in the OFF position, and
remove key.
11. Apply the parking brake.
12. Attach the vehicle to the tow vehicle with tow bar.
13. Release the parking brake.
Neutral Switch
338 STARTING AND OPERATING

5. Shift the transmission into PARK.
6. Start the engine.
7. Shift the transmission into DRIVE.
NOTE:When shifting out of transfer case NEUTRAL,
turning the engine OFF may be required to avoid gear
clash.
WARNING!
You or others could be injured if you leave the
vehicle unattended with the transfer case in the
NEUTRAL position without first fully engaging the
parking brake. The transfer case NEUTRAL position
disengages both the front and rear driveshafts from
the powertrain and will allow the vehicle to move
even if the transmission is in PARK. The parking
brake should always be applied when the driver is
not in the vehicle.
CAUTION!
Do not use a bumper-mounted clamp-on tow bar on
your vehicle. The bumper face bar will be damaged.
Neutral Switch
340 STARTING AND OPERATING

WHAT TO DO IN EMERGENCIES
CONTENTS
Hazard Warning Flashers ................ 342
 If Your Engine Overheats ................ 342
 Jacking And Tire Changing ............... 343
▫ Jack Location ....................... 344
▫ Spare Tire Stowage ................... 344
▫ Spare Tire Removal ................... 345
▫ Preparations For Jacking ............... 345 ▫
Jacking Instructions ................... 346
 Jump-Starting ........................ 351
 Emergency Tow Hooks — If Equipped ...... 353
 Towing A Disabled Vehicle ............... 354
▫ 2–Wheel Drive Models Only ............ 354
▫ 4–Wheel Drive Models Only ............ 354
6

Jack Location
The scissor-type jack and tire changing tools are located
in a compartment behind the third row seat. Refer to
“Cargo Area Features” in Section 3 for further informa-
tion.
Spare Tire Stowage
The spare tire is stowed under the rear of the vehicle by
means of a cable winch mechanism. To remove or stow
the spare, use the jack handle to rotate the “spare tire
drive” nut. The nut is located under a plastic cover at the
center-rear of the cargo floor area, just inside the liftgate
opening.
CAUTION!
Do not use power tools to winch the tire up or down.
Impact type tools can damage the winch mechanism.
Jack Storage Location
344 WHAT TO DO IN EMERGENCIES

WARNING! (Continued)
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack.
•Only use the jack in the positions indicated and
for lifting this vehicle during a tire change.
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.
•Turn on the Hazard Warning flasher.1. Remove the spare tire, jack, and tools from storage.
2. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.
3. Assemble the jack and jacking tools as shown. Connect
jack handle driver (1) to two extensions (2), then to the
lug wrench (3).
Jack Warning Label
6
WHAT TO DO IN EMERGENCIES 347

5. Raise the vehicle by turning the jack screw clockwise.
Raise the vehicle only until the tire just clears the surface
and enough clearance is obtained to install the spare tire.
Minimum tire lift provides maximum stability.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable. It could slip off the jack and
hurt someone near it. Raise the vehicle only enough
to remove the tire.
6. Remove the lug nuts and wheel.
7. Position the spare wheel/tire on the vehicle and install
the lug nuts with the cone-shaped end toward the wheel.
Lightly tighten the nuts. To avoid the risk of forcing the
vehicle off the jack, do not tighten the nuts fully until the
vehicle has been lowered.
8. Lower the vehicle by turning the jack screw counter-
clockwise, and remove the jack and wheel blocks.
Rear Jacking Location6
WHAT TO DO IN EMERGENCIES 349

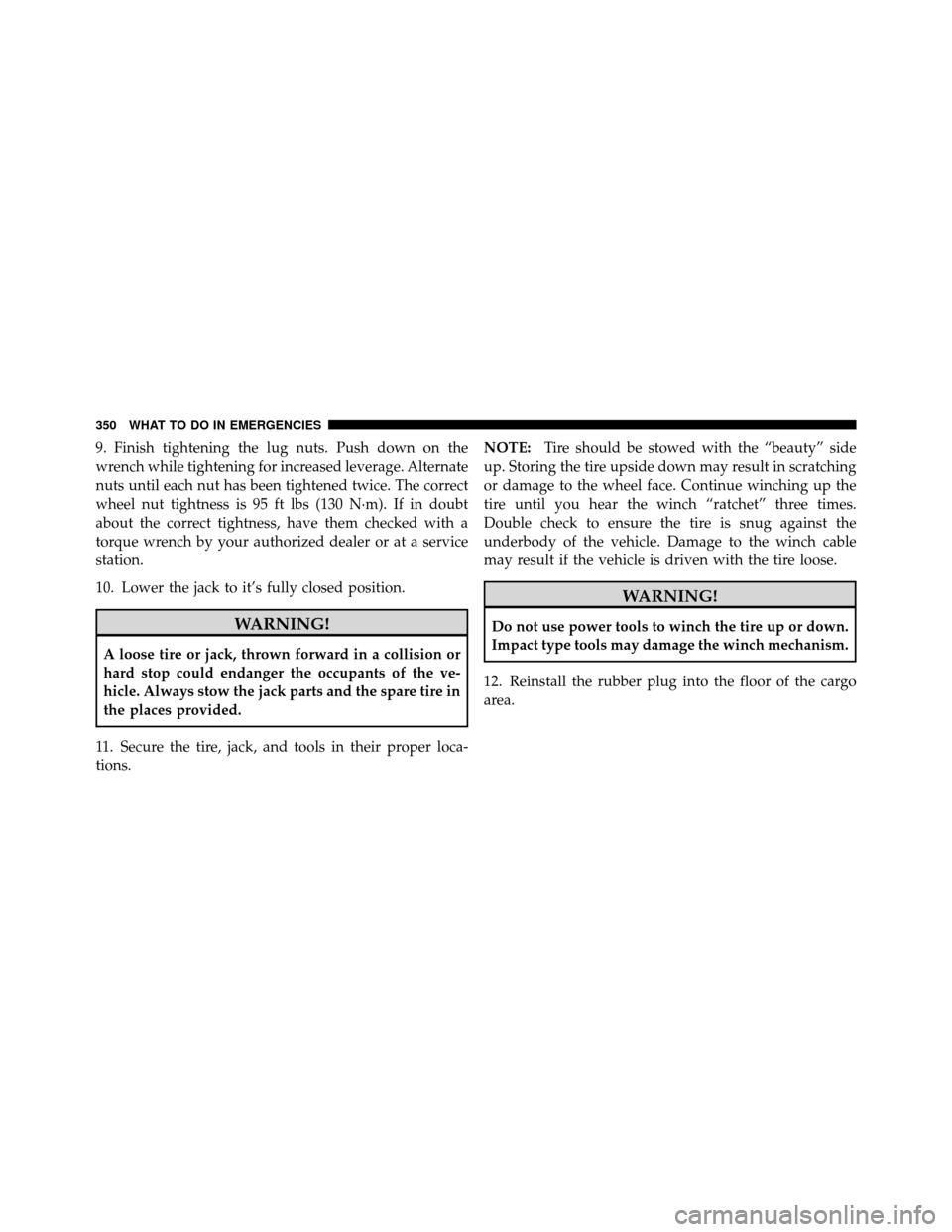

9. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
nuts until each nut has been tightened twice. The correct
wheel nut tightness is 95 ft lbs (130 N·m). If in doubt
about the correct tightness, have them checked with a
torque wrench by your authorized dealer or at a service
station.
10. Lower the jack to it’s fully closed position.
WARNING!
A loose tire or jack, thrown forward in a collision or
hard stop could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided.
11. Secure the tire, jack, and tools in their proper loca-
tions. NOTE:
Tire should be stowed with the “beauty” side
up. Storing the tire upside down may result in scratching
or damage to the wheel face. Continue winching up the
tire until you hear the winch “ratchet” three times.
Double check to ensure the tire is snug against the
underbody of the vehicle. Damage to the winch cable
may result if the vehicle is driven with the tire loose.
WARNING!
Do not use power tools to winch the tire up or down.
Impact type tools may damage the winch mechanism.
12. Reinstall the rubber plug into the floor of the cargo
area.
350 WHAT TO DO IN EMERGENCIES
