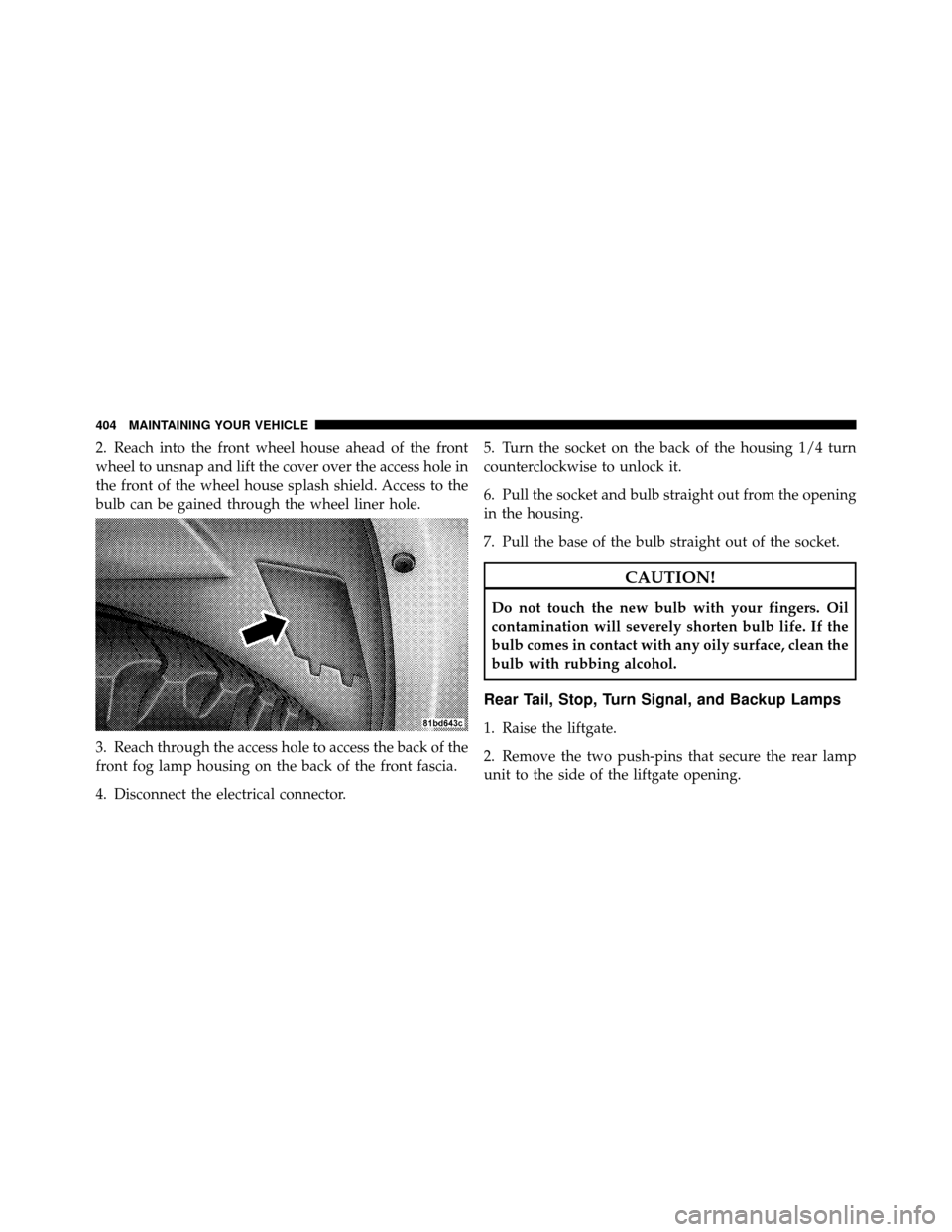

2. Reach into the front wheel house ahead of the front
wheel to unsnap and lift the cover over the access hole in
the front of the wheel house splash shield. Access to the
bulb can be gained through the wheel liner hole.
3. Reach through the access hole to access the back of the
front fog lamp housing on the back of the front fascia.
4. Disconnect the electrical connector.5. Turn the socket on the back of the housing 1/4 turn
counterclockwise to unlock it.
6. Pull the socket and bulb straight out from the opening
in the housing.
7. Pull the base of the bulb straight out of the socket.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
Rear Tail, Stop, Turn Signal, and Backup Lamps
1. Raise the liftgate.
2. Remove the two push-pins that secure the rear lamp
unit to the side of the liftgate opening.
404 MAINTAINING YOUR VEHICLE

3. Pull the outboard side of the rear lamp unit rearward
far enough to unsnap the two ball studs on the outboard
side of the lamp housing from the two plastic grommets
in the quarter outer panel. Pull the lamp unit rearward
far enough away to access the bulbs.4. Firmly grasp the appropriate bulb socket on the back
of the rear lamp unit housing, and turn 1/4 turn coun-
terclockwise to unlock it.
1 — Rear Backup Lamp Bulb
2 — Rear Park/Stop Lamp Bulb
3 — Rear Park/Turn Signal Bulb
4 — Rear Side Marker Lamp Bulb
7
MAINTAINING YOUR VEHICLE 405

Cargo Load Floor........................ 147
Cargo (Vehicle Loading) ................... 320
Cellular Phone ........................ 85,223
Center High Mounted Stop Light ............ 406
Certification Label ....................... 320
Chains, Tire ............................ 301
Changing A Flat Tire ..................... 343
Chart, Tire Sizing ........................ 287
Check Engine Light (Malfunction Indicator Light) . 360
Checking Your Vehicle For Safety ............. 73
Checks, Safety ........................... 73
Child Restraint .................... 63,64,69,71
Child Restraint Tether Anchors .............68,69
Child Safety Locks ........................ 30
Climate Control ......................... 223
Clock ........................... 186,190,199
Cold Weather Operation ................... 244
Command View Skylights .................. 139
Compact Disc (CD) Maintenance ............. 222Compact Spare Tire
...................... 297
Compass .............................. 179
Compass Calibration ..................... 179
Compass Variance ....................... 180
Computer, Trip/Travel .................... 176
Connector UCI ................................ 209
Universal Consumer Interface (UCI) ......... 209
Conserving Fuel ........................ 176
Console, Overhead ....................... 130
Contract, Service ........................ 435
Cooling System ......................... 374
Adding Coolant (Antifreeze) .............. 376
Coolant Capacity ...................... 407
Coolant Level ......................... 378
Disposal of Used Coolant ................ 377
Drain, Flush, and Refill .................. 375
Inspection ........................... 374
Points to Remember .................... 378
444 INDEX

Pretensioners.......................... 46
Reminder ............................ 168
Shoulder Belt Anchorage ................. 44
Seats ................................. 85
Adjustment ........................... 86
Cleaning ............................ 390
Easy Entry ........................... 102
Fold and Tumble Rear ................... 93
Head Restraints ........................ 89
Heated ............................ 90,91
Lumbar Support ....................... 87
Memory ............................. 98
Power ............................... 88
Rear Folding ........................ 93,97
Reclining ............................. 86
Seatback Release ....................... 97
Security Against Theft ..................... 19
Security Alarm (Theft Alarm) .............19,163
Selection of Oil ......................... 364 Sentry Key (Immobilizer)
................... 17
Sentry Key Programming ................... 18
Sentry Key Replacement ................... 18
Service Assistance ....................... 433
Service Contract ......................... 435
Service Engine Soon Light (Malfunction
Indicator) ............................. 162
Service Manuals ........................ 437
Setting the Clock .................. 186,190,199
Settings, Personal ........................ 181
Shift Lock Manual Override ................ 247
Shifting ............................... 246
Automatic Transmission ................. 246
Shoulder Belts ........................... 40
Signals, Turn ................. 76,110,161,402,404
Sirius Backseat TV™ (uconnect studios)....... 219
Skylights, Command View ................. 139
SmartBeams ........................... 106
Snow Chains (Tire Chains) ................. 301
456 INDEX
