Fuel and refuelling
153
METHYL TERTIARY BUTYL ETHER
(MTBE)
Unleaded fuel containing an oxygenate known
as MTBE can be used prov ided that the ratio of
MTBE to conventional fuel does not exceed
15%. MTBE is an Ether based compound
derived from Petroleum, which has been
specified by several refiners as the substance
to enhance the Octane rating of fuel.
DIESEL ENGINED VEHICLES
Do not use RME (bio-diesel) except in
the case of those proprietary diesel
fuels which contain a mix of up to 5%.
Jaguar can accept no responsibility for
damage caused by using RME in
concentrations greater than 5%.
Use only high quality diesel fuel according to
EN590 or equivalent.
The quality of diesel fu el is variable, depending
on geographic location. Always use premium
or the highest quality fuel available in your
locality. High quality fuel ensures a longer life
for your engine components. Lower grade fuel
contains higher levels of sulphur, which is
detrimental to engine components. If low
quality fuel is used, li ght coloured smoke may
be evident at the exhaust.
Note: Jaguar vehicles ar e capable of running
with up to a 5% blend of bio-diesel, in
accordance with European Standard EN590.
Prolonged use of additives is not
recommended. Do not add paraffin or petrol to
diesel fuels.
If you inadvertently fill your vehicle with
petrol instead of di esel, do not attempt
to start the engine. Contact your Dealer/
Authorised Repairer immediately. Jaguar cars can accept no
responsibility for any damage caused
by running your vehicle with petrol or
vegetable oil in the fuel tank.
SULPHUR CONTENT
Your vehicle is fitted with a Diesel
Particulate Filter (DPF), the maximum
Sulphur content must not exceed
0.005%. Using an incorrect fuel will
cause serious damage to the DPF.
In some countries diesel may contain higher
levels of Sulphur, wh ich could cause damage
to the vehicle, if in doubt contact a local
Dealer/Authorised Repairer for advice.
RUNNING OUT OF FUEL
Avoid running out of fuel!
If the vehicle does run out of fuel, a
minimum of 4 litres (0.9 gallons) will be
required to restart the engine. The vehicle
should be left with the ignition on for 5 minutes
after refuelling before attempting to restart the
engine.
Note: If the vehicle does run out of fuel,
seeking qualified assistance is advisable.
WATER IN FUEL
If the warning WATER IN FUEL is
displayed in the message centre, an
excessive amount of water has
collected in the fuel filter bowl. Seek
assistance from a Jaguar Dealer/
Authorised Repairer to have the filter
drained as soon as possible.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fuel and refuelling
154
DIESEL ENGINES
Vehicles with diesel e ngines are equipped with
a system to prevent the fuel tank from
emptying completely. When the fuel reaches a
minimum level, the system will activate a
reduced power mode (i.e. the engine will not
run properly). This will be followed by the
engine stopping in appr oximately 1.6 km (1
mile).
This feature prevents the fuel system from
running dry, which could cause damage to the
vehicle. If the gauge indicates low fuel or the
warning indicator illuminates, the fuel tank
should be refuelled as s oon as possible at the
next filling station, with at least 4 litres (0.9
gallons) of fuel.
If the system protection function has activated,
the vehicle must firstly be refuelled, then
restarted using the following procedure:
1. With the brake pedal pressed, press and
hold the engine START/STOP button and
crank the engine for five seconds.
2. Release the STAR T/STOP button.
3. With the brake pedal pressed, press and
release the START/STOP button to crank
the engine. The engine should start within
approximately five seconds.
Note: If the engine does not start, pause for ten
seconds with the ignition in convenience
mode, before repeating the procedure from the
beginning.
Do not crank the engine for longer than
30 seconds continuously.
FUEL FILLER FLAP
Take note of all warnings and
instruction given on the label affixed
to the inside of the filler flap.
The vehicle must be unl ocked using the Smart
Key, before the filler flap can be opened.
1. Press and release the rear of the flap (in the
area indicated) to unlatch.
2. Pull the flap open. The label on the inside of
the flap indicates the correct fuel for the
vehicle.
3. Twist the cap anticlockwise to undo.
4. Stow the cap on the lip provided on the top
of the hinge arm, as shown.
When replacing the cap, turn it clockwise until
the ratchet clicks. Failure to do so may cause
the Engine malfunction warning lamp to
illuminate. If the warning lamp illuminates,
ensure the cap is fitted properly.

R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fuel and refuelling
155
To close the filler flap, push the flap until
latched closed.
Note: The filler flap will only be locked closed
when the vehicle is centrally locked.
FUEL FILLER
When refuelling ensure that all
windows, doors, and sunroof are fully
closed, particularly if young children
or animals are in the vehicle.
Do not attempt to fill the tank to its
maximum capacity. If the vehicle is to
be parked on a slope, in direct
sunlight or high am bient temperature,
expansion of the fuel could cause
spillage.
Check the fuel pump information
carefully, to ensure that you are putting
the correct fuel into the vehicle.
If the vehicle is filled with incorrect fuel,
it is essential that you seek qualified
assistance before you start the engine.
Fuel station pumps are equipped with
automatic cut-off sensing, to avoid fuel
spillage. Fill the tank until the filler nozzle
automatically cuts off the supply. Do not
attempt to fill the tank beyond this point.
Note: Filling station pumps used for diesel
commercial vehicles deliver fuel at a higher
rate than normal. The hi gher fill rate can cause
premature cut-off and ma y cause fuel spillage.
Therefore, it is recommended that only
standard light vehicle pumps are used.
DIESEL MISFUELLING PROTECTION
DEVICE
When the misfuelling device is
activated it may cause fuel to be
discharged from the filler neck.
If the narrow filler nozzl e fitted to pumps
delivering unleaded petrol is fully inserted into
the filler neck the misfue l protection device will
activate.
Note: The spout on some fuel cans and older
fuel pumps may trigger the misfuelling device.
When activated, the ye llow protection device
will be visible inside the filler neck. It will
prevent fuel flow into the tank. Before fuelling
can continue with the correct fuel the device
will need to be reset.
The reset tool is stored in the luggage
compartment clipped onto the battery retaining
bar.

L
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Fuel and refuelling
156

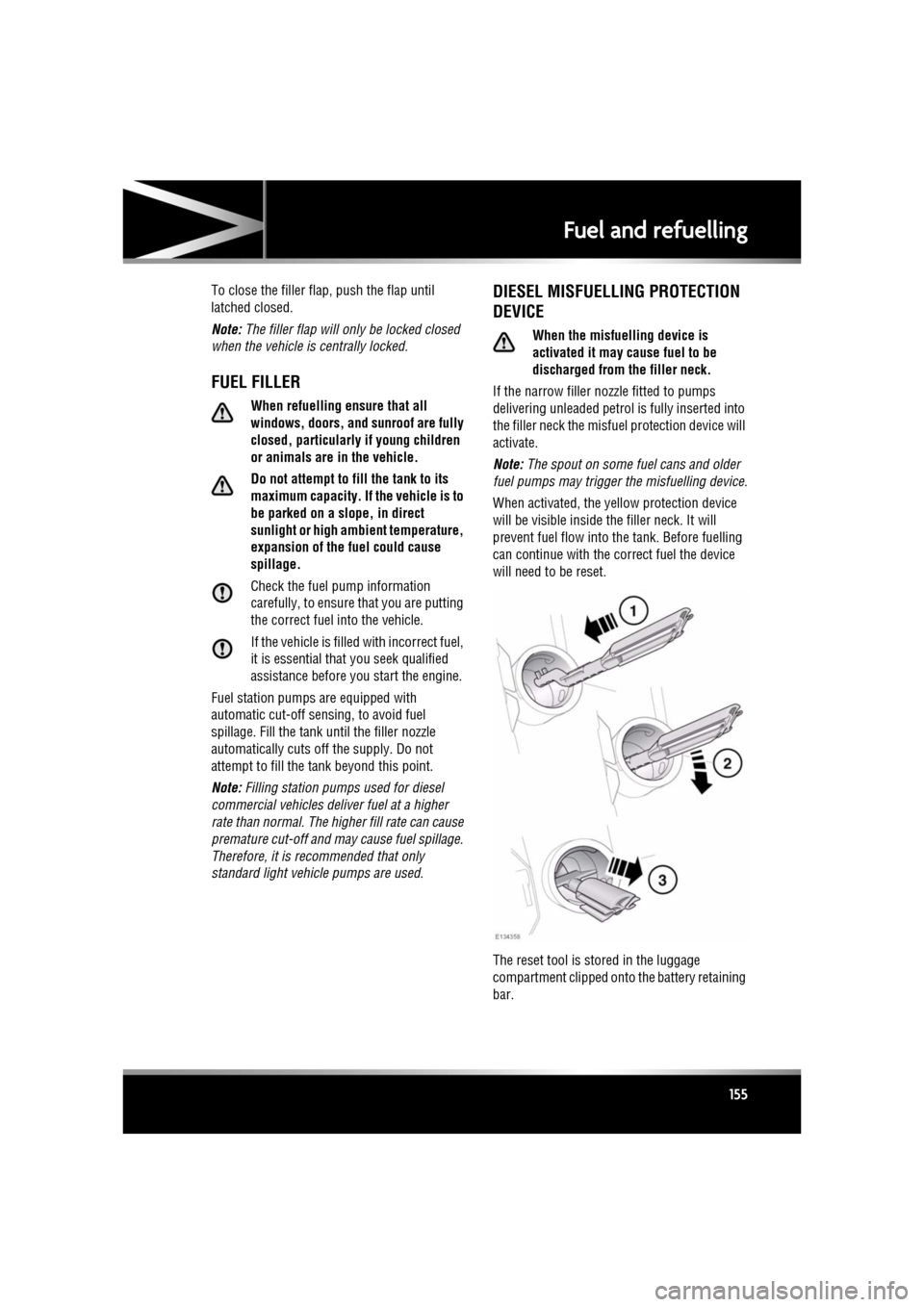

To reset the misfuelling device:-
1. Insert the reset tool with teeth uppermost,
as far as it will go into the filler neck.
2. Locate the teeth by pushing down the top
of the reset tool.
3. With the top of the tool pressed down and
the teeth engaged, slowly pull the tool out
of the filler neck to reset the device.
Do not twist the device, once the teeth
have engaged.
Note: The yellow part of the protection device
should no longer be visible in the filler neck.
Replace the reset tool in position on the battery
restraining bar.
FUEL TANK CAPACITY
Avoid the risk of running out of fuel and never
intentionally drive the vehicle when the fuel
gauge indicates that the tank is empty. When
refuelling your vehicle after the fuel gauge
reads empty, you may not be able to add the
fuel quantity shown below, as there will be a
small reserve remaining in the tank.
FUEL SPECIFICATION
Total tank capacity (usable):
Petrol engines 69.5 litres (15.3 gallons)
Diesel engines 68.1 litres (15 gallons)
Fill capacity (when fuel
gauge reads empty) 64 litres (14.1
gallons)
Reserve capacity (when fuel
gauge reads empty) 5.5 litres (1.2
gallons)
Petrol Diesel
95-98 RON EN 590

R
(FM8) SEMCON JLR OWNER GUIDE VER 1.00 EURO
LANGUAGE: english-en; MARQUE: jaguar; MODEL: XF
Technical specifications
179
CAPACITIES
The quoted capacities are approximate and
provided as a guide only. All levels must be
checked using the level marks or information
displayed in the message centre, as applicable. Item Variant Capacity
Fuel tank (usable) Diesel
68.1 litres (15 gallons)
Petrol 69.5 litres (15.3 gallons)
Fuel capacity (when the fuel gauge
indicates empty) Diesel 64 litres (14.1 gallons)
Petrol 64 litres (14.1 gallons)
Reserve capacity (when the fuel
gauge indicates empty) Diesel 5.5 litres (1.2 gallons)
Petrol 5.5 litres (1.2 gallons)
Engine oil refill and filter change I4 Diesel 5.86 litres (10.3 pints)
V6 Diesel 6.4 litres (11.3 pints)
V6 Petrol 6.5 litres (11.4 pints)
V8 Petrol 7.25 litres (12.8 pints)
Washer reservoir With headlamp wash 5.5 litres (9.7 pints)
Without headlamp wash 4.4 litres (7.7 pints)
Cooling system (fill from dry) I4 Diesel 11.56 litres (20.3 pints)
V6 Diesel 12.5 litres (22 pints)
V6 Petrol 9.25 litres (16.3 pints)
V8 Petrol (Normally Aspi rated) 12.5 litres (22 pints)
V8 Petrol (Supercharged ) 12.3 litres (21.6 pints)
Cooling system (service fill) I 4 Diesel8.2 litres (14.4 pints)
V6 Diesel 9.7 litres (17.1 pints)
V6 Petrol 7.42 litres (13.1 pints)
V8 Petrol (Normally Aspira ted) 7.5 litres (13.2 pints)
V8 Petrol (Supercharged) - both
drain points used 8.6 litres (15.1 pints)

L
english-en (10, 18, 21 & 25)
Index
210
pairing . . . . . . . . . . . . . . . . . . . . . . . 130
phonebook . . . . . . . . . . . . . . . . . . . . 132
settings . . . . . . . . . . . . . . . . . . . . . . 133
television
analogue/digital option. . . . . . . . . . . 123
controls . . . . . . . . . . . . . . . . . . . . . . 122
touch screen . . . . . . . . . . . . . . . . . . . . 166 display icons . . . . . . . . . . . . . . . . . . . 59
home menu . . . . . . . . . . . . . . . . . . . . 58
operating . . . . . . . . . . . . . . . . . . . . . . 59
setup . . . . . . . . . . . . . . . . . . . . . . . . . 59
system settings . . . . . . . . . . . . . . . . . 60
touch screen care . . . . . . . . . . . . . . . 59
video media player controls . . . . . . . . . . . . . . . . . . . . . . 124
Entry and exit mode. . . . . . . . . . . . . . . . . . 22
EPB (Electric parking brake) . . . . . . . . . . . 88
Ethanol . . . . . . . . . . . . . . . . . . . . . . . . . . 152
EU conformity (navigati on system) . . . . . 146
Event data recording . . . . . . . . . . . . . . . . 199
Exiting the vehicle
door locks and release levers. . . . . . . . . . 9
global closing . . . . . . . . . . . . . . . . . . . . 10
keyless locking . . . . . . . . . . . . . . . . . . . 10
Exterior cleaning . . . . . . . . . . . . . . . . . . . 164
Exterior mirrors . . . . . . . . . . . . . . . . . . . . . 44
External temperature display . . . . . . . . . . . 65
Extinguisher . . . . . . . . . . . . . . . . . . . . . . 164
F
Faulty alarm sensors . . . . . . . . . . . . . . . . . 11
Fire extiguisher . . . . . . . . . . . . . . . . . . . . 164
First aid kit . . . . . . . . . . . . . . . . . . . . . . . . 164
Flat spots . . . . . . . . . . . . . . . . . . . . . . . . . 186
Fluids brakecheck . . . . . . . . . . . . . . . . . . . . . . . . 171
specification. . . . . . . . . . . . . . . . . . . 172
top up . . . . . . . . . . . . . . . . . . . . . . . 172
capacities. . . . . . . . . . . . . . . . . . . . . . . 179
coolant specification. . . . . . . . . . . . . . . . . . . 171 top up . . . . . . . . . . . . . . . . . . . . . . . . 171
engine oil check. . . . . . . . . . . . . . . . . . . . . . . . . 168
specification . . . . . . . . . . . . . . . . . . . 169
fuel tank capacity . . . . . . . . . . . . . . . . . 156
power steering check. . . . . . . . . . . . . . . . . . . . . . . . . 173
specification . . . . . . . . . . . . . . . . . . . 173
specifications . . . . . . . . . . . . . . . . . . . . 175
washer specification . . . . . . . . . . . . . . . . . . . 174
top up . . . . . . . . . . . . . . . . . . . . . . . . 174
Fog lamps warning lamp . . . . . . . . . . . . . . . . . . . . . 53
Follow mode
entering. . . . . . . . . . . . . . . . . . . . . . . . . . 97
gap change . . . . . . . . . . . . . . . . . . . . . . . 98
override. . . . . . . . . . . . . . . . . . . . . . . . . . 98
resume . . . . . . . . . . . . . . . . . . . . . . . . . . 99
suspending . . . . . . . . . . . . . . . . . . . . . . 103
Forward alert. . . . . . . . . . . . . . . . . . . . . . . 100
Front parking aid operation. . . . . . . . . . . . . . . . . . . . . . . . . 92
system fault . . . . . . . . . . . . . . . . . . . . . . 93
Fuel and refuelling consumption . . . . . . . . . . . . . . . . . . . . . 157 extra-urban cycle. . . . . . . . . . . . . . . . 157
urban cycle . . . . . . . . . . . . . . . . . . . . 157
diesel . . . . . . . . . . . . . . . . . . . . . . . . . . 153 sulphur content . . . . . . . . . . . . . . . . . 153
ethanol . . . . . . . . . . . . . . . . . . . . . . . . . 152
Filler flap . . . . . . . . . . . . . . . . . . . . . . . . 155
filler flap . . . . . . . . . . . . . . . . . . . . . . . . 154
fuel consumption urban cycle . . . . . . . . . . . . . . . . . . . . 157
fuel specification . . . . . . . . . . . . . . . . . . 156
fuel system . . . . . . . . . . . . . . . . . . . . . . 160
methanol . . . . . . . . . . . . . . . . . . . . . . . . 152
misfuel device . . . . . . . . . . . . . . . . . . . . 155
MTBE (Methyl tertiary butyl ether) . . . . 153
octane rating . . . . . . . . . . . . . . . . . . . . . 152
running out . . . . . . . . . . . . . . . . . . . . . . 153
safety precautions . . . . . . . . . . . . . . . . . 152

R
english-en (10, 18, 21 & 25)
Index
211
tank capacity . . . . . . . . . . . . . . . . . . . . 156
water in fuel . . . . . . . . . . . . . . . . . . . . . 153
Fuses changing . . . . . . . . . . . . . . . . . . . . . . . 188
engine compartment fuse box . . . . . . . 189
locations . . . . . . . . . . . . . . . . . . . . . . . 188
luggage compartment fuse box . . . . . . 192
Passenger compartment fuse box . . . . 191
G
Garage door opener. . . . . . . . . . . . . . . . . . 48entry gate . . . . . . . . . . . . . . . . . . . . . . . 50
erase all programming. . . . . . . . . . . . . . 49
programming. . . . . . . . . . . . . . . . . . . . . 48a single button . . . . . . . . . . . . . . . . . . 49
rolling code device . . . . . . . . . . . . . . . 49
Gear selector . . . . . . . . . . . . . . . . . . . . . . . 82 malfunction . . . . . . . . . . . . . . . . . . . . . . 82
Gearbox
automatic. . . . . . . . . . . . . . . . . . . . . . . . 81
identification number. . . . . . . . . . . . . . 201
limp home mode . . . . . . . . . . . . . . . . . . 82
operation . . . . . . . . . . . . . . . . . . . . . . . . 86
selector . . . . . . . . . . . . . . . . . . . . . . . . . 82
selector malfunction . . . . . . . . . . . . . . . 82
temporary manual selection . . . . . . . . . 82
winter mode . . . . . . . . . . . . . . . . . . . . . 83
Glass cleaning . . . . . . . . . . . . . . . . . . . . . 165
Global closing . . . . . . . . . . . . . . . . . . . . . . 10
Global opening . . . . . . . . . . . . . . . . . . . . . . 7
H
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . 88
Handling adaptive dynamics . . . . . . . . . . . . . . . . . 84
DSC warning lampactive . . . . . . . . . . . . . . . . . . . . . . . . . 53
off . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
dynamic mode . . . . . . . . . . . . . . . . . . . . 83
EBD (Electronic brake force distribution) 87
Head restraints . . . . . . . . . . . . . . . . . . . . . 20
active . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 manual . . . . . . . . . . . . . . . . . . . . . . . . . . 21
removing. . . . . . . . . . . . . . . . . . . . . . . . . 21
Headlamps adaptive . . . . . . . . . . . . . . . . . . . . . . . . . 37
AFS (Adaptive front li ghting system) . . . 37
approach lamps . . . . . . . . . . . . . . . . . . . 37
auto high beam . . . . . . . . . . . . . . . . . . . . 38
condensation . . . . . . . . . . . . . . . . . . . . . 38
controls. . . . . . . . . . . . . . . . . . . . . . . . . . 36
daylight running lamps . . . . . . . . . . . . . . 37
high beam warning lamp . . . . . . . . . . . . 54
warning lamp (AFS) . . . . . . . . . . . . . . . . 53
washers . . . . . . . . . . . . . . . . . . . . . . . . . 41
wiper detection . . . . . . . . . . . . . . . . . . . . 37
Heated screens . . . . . . . . . . . . . . . . . . . . . . 64
Heated seats . . . . . . . . . . . . . . . . . . . . . . . . 65
Heated steering wheel. . . . . . . . . . . . . . . . . 22
Heating and ventilation
auto. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
recirculation . . . . . . . . . . . . . . . . . . . . . . 64
High beam
automatic . . . . . . . . . . . . . . . . . . . . . . . . 38
warning lamp . . . . . . . . . . . . . . . . . . . . . 54
Homelink . . . . . . . . . . . . . . . . . . . . . . . . . . 48
programming a single button . . . . . . . . . 49
rolling code device programming . . . . . . 49
I
Identifying the vehicletransmission number . . . . . . . . . . . . . . 201
Ignition
rolling re-start . . . . . . . . . . . . . . . . . . . . . 77
switching off while moving . . . . . . . . . . . 77
switching on . . . . . . . . . . . . . . . . . . . . . . 74
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 36 warning lamp . . . . . . . . . . . . . . . . . . . . . 54
Information messages . . . . . . . . . . . . . . . . 56
Infotainment CD controls . . . . . . . . . . . . . . . . . . . . . . . 120
DAB radio controls . . . . . . . . . . . . . . . . . . . . . . . 111

L
english-en (10, 18, 21 & 25)
Index
218
fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Fuel tank capacity . . . . . . . . . . . . . . . . 156
label locations . . . . . . . . . . . . . . . . . . . 200
lubricants. . . . . . . . . . . . . . . . . . . . . . . 175
methanol . . . . . . . . . . . . . . . . . . . . . . . 152
weight . . . . . . . . . . . . . . . . . . . . . . . . . 176
wheel alignment. . . . . . . . . . . . . . . . . . 180
Speed limiter setting . . . . . . . . . . . . . . . . . . . . . . . . . 103
Speed-dependent wipers . . . . . . . . . . . . . . 40
Split screen map . . . . . . . . . . . . . . . . . . . 137
SRS Airbags . . . . . . . . . . . . . . . . . . . . . . . . 158
SRS (Supplementary restraint system)
airbag covers . . . . . . . . . . . . . . . . . . . . 167
airbag deployment . . . . . . . . . . . . . . . . . 34
airbag warning lamp . . . . . . . . . . . . 34, 53
child seat check list . . . . . . . . . . . . . . . . 28
child seat positioning. . . . . . . . . . . . . . . 29
child seats . . . . . . . . . . . . . . . . . . . . . . . 27
ISOFIX Anchor points . . . . . . . . . . . . . . 30
seatbelts (beltminder) . . . . . . . . . . . . . . 26
seatbelts (beltminder) warning lamp . . . 52
Stability control
switching between DSC and tracDSC . . 84
switching off . . . . . . . . . . . . . . . . . . . . . 84
switching on . . . . . . . . . . . . . . . . . . . . . 84
tracDSC . . . . . . . . . . . . . . . . . . . . . . . . . 83 switching between tracDSC and DSC . 84
warning lamps . . . . . . . . . . . . . . . . . . . . 84
Starting preparation . . . . . . . . . . . . . . . . . . . . . 198
Starting navigation guidance . . . . . . . . . . 139
Starting the engine diesel engine . . . . . . . . . . . . . . . . . . . . . 74
petrol engine . . . . . . . . . . . . . . . . . . 74, 77
Steering column lock . . . . . . . . . . . . . . . . . 75
Steering wheel adjusting . . . . . . . . . . . . . . . . . . . . . . . . 22
column lock . . . . . . . . . . . . . . . . . . . . . . 75
controlsconnect phone call . . . . . . . . . . . . . . 132
decrease volume . . . . . . . . . . . . . . . 132 disconnect phone call . . . . . . . . . . . . 132
increase volume . . . . . . . . . . . . . . . . 132
scroll/search down . . . . . . . . . . . . . . 132
set cruise speed . . . . . . . . . . . . . . . . . 94
voice control talk . . . . . . . . . . . . . . . . 132
heated . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Steering wheel controls . . . . . . . . . . . . . . 132
Stop/Start . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Storage compartments . . . . . . . . . . . . . . . . 72 cup holders . . . . . . . . . . . . . . . . . . . . . . . 72
front cubby box. . . . . . . . . . . . . . . . . . . . 72
glove box . . . . . . . . . . . . . . . . . . . . . . . . 72
rear armrest . . . . . . . . . . . . . . . . . . . . . . 72
Sunroof anti-trap mechanism . . . . . . . . . . . . . . . . 43
reset . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Suspending ASL (Automatic speed limiter) . . . . . . . . . . . . . . . . . . . . . . . . . 103
Switching off the engine . . . . . . . . . . . . . . . 75
Switching off the ignition while moving . . . 77
Switching on the engine diesel engine . . . . . . . . . . . . . . . . . . . . . . 74
petrol engine . . . . . . . . . . . . . . . . . . . . . . 74
Switching on the ignition . . . . . . . . . . . . . . 74
T
Technical specifications weights . . . . . . . . . . . . . . . . . . . . . . . . . 176
wheel alignment . . . . . . . . . . . . . . . . . . 180
Telephone bluetooth. . . . . . . . . . . . . . . . . . . . . . . . 129
call volume . . . . . . . . . . . . . . . . . . . . . . 132
changing the connected telephone . . . . 131
compatibility . . . . . . . . . . . . . . . . . . . . . 130
controls steering wheel . . . . . . . . . . . . . . . . . . 132
dialling . . . . . . . . . . . . . . . . . . . . . . . . . 132
icons . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
last 10 . . . . . . . . . . . . . . . . . . . . . . . . . . 133
overview . . . . . . . . . . . . . . . . . . . . . . . . 128
pairing. . . . . . . . . . . . . . . . . . . . . . . . . . 130
phonebook . . . . . . . . . . . . . . . . . . . . . . 132
