2010 INFINITI M snow chains

cReplacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
c Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CAUTION
cThe TPMS may not function properly when
the wheels are equipped with tire chains or
the wheels are buried in snow.
c Do not place metalized film or any metal
parts (antenna, etc.) on the windows. This
may cause poor reception of the signals from
the tire pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
± Facilities or electric devices using similar radio frequencies are near the vehicle.
± If a transmitter set to similar frequencies is being used in or near the vehicle. ± If a computer (or similar equipment) or a
DC/AC converter is being used in or near the
vehicle.
FCC Notice:
Changes or modifications not expressly ap-
proved by the party responsible for compliance
could void the user's authority to operate the
equipment.
This device complies with Part 15 of the FCC
Rules and RSS-210 of Industry Canada.
Operation is subject to the following two condi-
tions: (1) This device may not cause harmful in-
terference, and (2) this device must accept any
interference received, including interference
that may cause undesired operation of the de-
vice.
AVOIDING COLLISION AND ROLLOVER
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control or
an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering ma-
neuvers, because these driving practices could cause you to lose control of your vehicle.
As
with any vehicle, a loss of control could result in
a collision with other vehicles or objects, or
cause the vehicle to rollover, particularly if the
loss of control causes the vehicle to slide side-
ways. Be attentive at all times, and avoid
driving when tired. Never drive when under the
influence of alcohol or drugs (including pre-
scription or over-the-counter drugs which may
cause drowsiness). Always wear your seat belt
as outlined in the ªSEAT BELTSº in the ª1. Safety
Ð Seats, seat belts and supplemental restraint
systemº section of this manual, and also in-
struct your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is signifi-
cantly more likely to be injured or killed than a
person properly wearing a seat belt.
OFF-ROAD RECOVERY
While driving, the right side or left side wheels
may unintentionally leave the road surface. If
this occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
Starting and driving5-5
wÐ
Ð
05/15/09Ðpattie
X

cThe LDP system will not operate at speeds
below approximately 45 MPH 72 km/h) or if it
cannot detect lane markers.
c The LDP system may not function properly
under the following conditions, and do not
use the LDP system:
± During bad weather (rain, fog, snow, wind, etc.).
± When driving on slippery roads, such as on ice or snow, etc.
± When driving on winding or uneven roads.
± When there is a lane closure due to road repairs.
± When driving in a makeshift lane.
± When driving on roads where the lane width is too narrow.
± When driving without normal tire condi- tions (for example, tire wear, low tire
pressure, installation of spare tire, tire
chains, non-standard wheels).
± When the vehicle is equipped with non- original brake parts or suspension parts. c
If the LDP system malfunctions, it will cancel
automatically. The lane departure warning
light (orange) on the instrument panel will
illuminate.
c If the lane departure warning light (orange)
illuminates, pull off the road to a safe loca-
tion and stop the vehicle. Turn the engine off
and restart the engine. If the warning light
(orange) continues to illuminate, have the
LDP system checked by an INFINITI retailer.
c Excessive noise will interfere with the warn-
ing chime sound, and the chime may not be
heard.
The functions of the LDP system (warning and
brake control assist) may or may not operate
properly under the following conditions:
c On roads where there are multiple parallel
lane markers; lane markers that are faded or
not painted clearly; yellow painted lane
markers; non-standard lane markers; or lane
markers covered with water, dirt, snow, etc.
c On roads where discontinued lane markers
are still detectable.
c On roads where there are sharp curves.
c On roads where there are sharply contrast-
ing objects, such as shadows, snow, water, wheel ruts, seams or lines remaining after
road repairs. (The LDP system could detect
these items as lane markers.)
c On roads where the traveling lane merges or
separates.
c When the vehicle's traveling direction does
not align with the lane marker.
c When traveling close to the vehicle in front
of you, which obstructs the lane camera unit
detection range.
c When rain, snow or dirt adheres to the
windshield in front of the lane camera unit.
c When the headlights are not bright due to
dirt on the lens or if the aiming is not
adjusted properly.
c When strong light enters the lane camera
unit. (For example, the light directly shines
on the front of the vehicle at sunrise or
sunset.)
c When a sudden change in brightness occurs.
(For example, when the vehicle enters or
exits a tunnel or under a bridge.)
While the LDP system is operating, you may
hear a sound of brake operation. This is normal
and indicates that the LDP system is operating
properly.
5-20Starting and driving
wÐ
Ð
05/15/09Ðpattie
X

ANTI-LOCK BRAKING SYSTEM (ABS)
WARNING
cThe Anti-lock Braking System (ABS) is a so-
phisticated device, but it cannot prevent ac-
cidents resulting from careless or dangerous
driving techniques. It can help maintain ve-
hicle control during braking on slippery sur-
faces. Remember that stopping distances on
slippery surfaces will be longer than on nor-
mal surfaces even with ABS. Stopping dis-
tances may also be longer on rough, gravel
or snow covered roads, or if you are using
tire chains. Always maintain a safe distance
from the vehicle in front of you. Ultimately,
the driver is responsible for safety.
c Tire type and condition may also affect brak-
ing effectiveness.
± When replacing tires, install the specified size of tires on all four wheels.
± When installing a spare tire, make sure that it is the proper size and type as speci-
fied on the Tire and Loading Information
label. See ªTIRE AND LOADING INFORMA-
TION LABELº in the ª9. Technical and con-
sumer informationº section of this
manual. ± For detailed information, see ªWHEELS
AND TIRESº in the ª8. Maintenance and
do-it-yourselfº section of this manual.
The Anti-lock Braking System (ABS) controls the
brakes so the wheels do not lock during hard
braking or when braking on slippery surfaces.
The system detects the rotation speed at each
wheel and varies the brake fluid pressure to
prevent each wheel from locking and sliding. By
preventing each wheel from locking, the system
helps the driver maintain steering control and
helps to minimize swerving and spinning on
slippery surfaces.
Using the system
Depress the brake pedal and hold it down.
Depress the brake pedal with firm steady pres-
sure, but do not pump the brakes. The ABS will
operate to prevent the wheels from locking up.
Steer the vehicle to avoid obstacles.
WARNING
Do not pump the brake pedal. Doing so may
result in increased stopping distances.
Self-test feature
The ABS includes electronic sensors, electric
pumps, hydraulic solenoids and a computer.
The computer has a built-in diagnostic feature
that tests the system each time you start the
engine and move the vehicle at a low speed in
forward or reverse. When the self-test occurs,
you may hear a ªclunkº noise and/or feel a
pulsation in the brake pedal. This is normal and
does not indicate a malfunction. If the computer
senses a malfunction, it switches the ABS off
and illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by an INFINITI retailer.
Starting and driving5-53
wÐ
Ð
05/15/09Ðpattie
X

WARNING
cThe VDC system is designed to help improve
driving stability but does not prevent acci-
dents due to abrupt steering operation at
high speeds or due to careless or dangerous
driving techniques. Reduce vehicle speed
and be especially careful when driving and
cornering on slippery surfaces and always
drive carefully.
c Do not modify the vehicle's suspension. If
suspension parts such as shock absorbers,
struts, springs, stabilizer bars and bushings
and wheels are not INFINITI approved or are
extremely deteriorated the VDC system may
not operate properly. This could adversely
affect vehicle handling performance, and the
ªVDC OFFº indicator or ªSLIPº indicator or
both indicator lights may illuminate.
c If brake related parts such as brake pads,
rotors and calipers are not standard equip-
ment or are extremely deteriorated, the
ªVDC OFFº indicator or ªSLIPº indicator or
both indicator lights may illuminate.
c If engine related parts such as muffler are
not standard equipment or are extremely de-
teriorated, the ªVDC OFFº indicator or ªSLIPº
indicator or both indicator lights may
illuminate. c
When driving on extremely inclined surfaces
such as higher banked corners, the VDC sys-
tem may not operate properly and the ªVDC
OFFº indicator or ªSLIPº indicator or both
indicator lights may illuminate. Do not drive
on these types of roads.
c When driving on unstable surfaces such as a
turntable, ferry, elevator or ramp, the ªVDC
OFFº indicator or ªSLIPº indicator or both
indicator lights may illuminate. This is not a
malfunction. Restart the engine after driving
onto a stable surface.
c If wheels or tires other than those recom-
mended are used, the VDC system may not
operate properly and ªVDC OFFº indicator or
ªSLIPº indicator or both indicator lights may
illuminate.
c The VDC system is not a substitute for winter
tires or tire chains on a snow covered road. The Rear Active Steer system is an electronically
controlled four-wheel steering system.
The angle of the rear wheels are adjusted by the
Rear Active Steer system, depending on the
vehicle speed and steering angle. The rear
wheels are designed to turn momentarily in the
opposite direction and then change to the same
direction as the front wheels.
At low speeds, the rear wheels will not turn and
the system functions as a two-wheel steering
system.
If a malfunction occurs in the system, the Rear
Active Steer function will stop but the ordinary
two-wheel steering system will operate nor-
mally. The ªRASº warning light will illuminate. If
the light illuminates while driving, contact an
INFINITI retailer for repair.
WARNING
The Rear Active Steer system, although a so-
phisticated device, cannot prevent accidents
resulting from careless or dangerous driving
techniques. Ultimately the responsibility for
safety of self and others rests in the hands of
the driver. Therefore only through attentive
and careful driving methods can the Rear Active
Steer system be fully appreciated and safety
assured.
REAR ACTIVE STEER SYSTEM (if so
equipped)
Starting and driving5-55
wÐ
Ð
05/15/09Ðpattie
X

FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTI-FREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32ÉF (0ÉC),
check antifreeze to assure proper winter protec-
tion. For additional information, see ªENGINE
COOLING SYSTEMº in the ª8. Maintenance and
do-it-yourselfº section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see ªBATTERYº in the ª8. Mainte-
nance and do-it-yourselfº section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see ªENGINE COOLING SYS-
TEMº in the ª8. Maintenance and do-it-yourselfº
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see ªTIRE
CHAINSº in the ª8. Maintenance and do-it-
yourselfº section of this manual.
All-Wheel Drive (AWD) model
If you install snow tires, they must also be the
same size, brand, construction and tread pat-
tern on all four wheels.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
cA scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
c A sturdy, flat board to be placed under the
jack to give it firm support.
c A shovel to dig the vehicle out of snowdrifts.
c Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
cWet ice (32ÉF, 0ÉC and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or ªgripº under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
c Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction.
COLD WEATHER DRIVING
5-56Starting and driving
wÐ
Ð
05/15/09Ðpattie
X

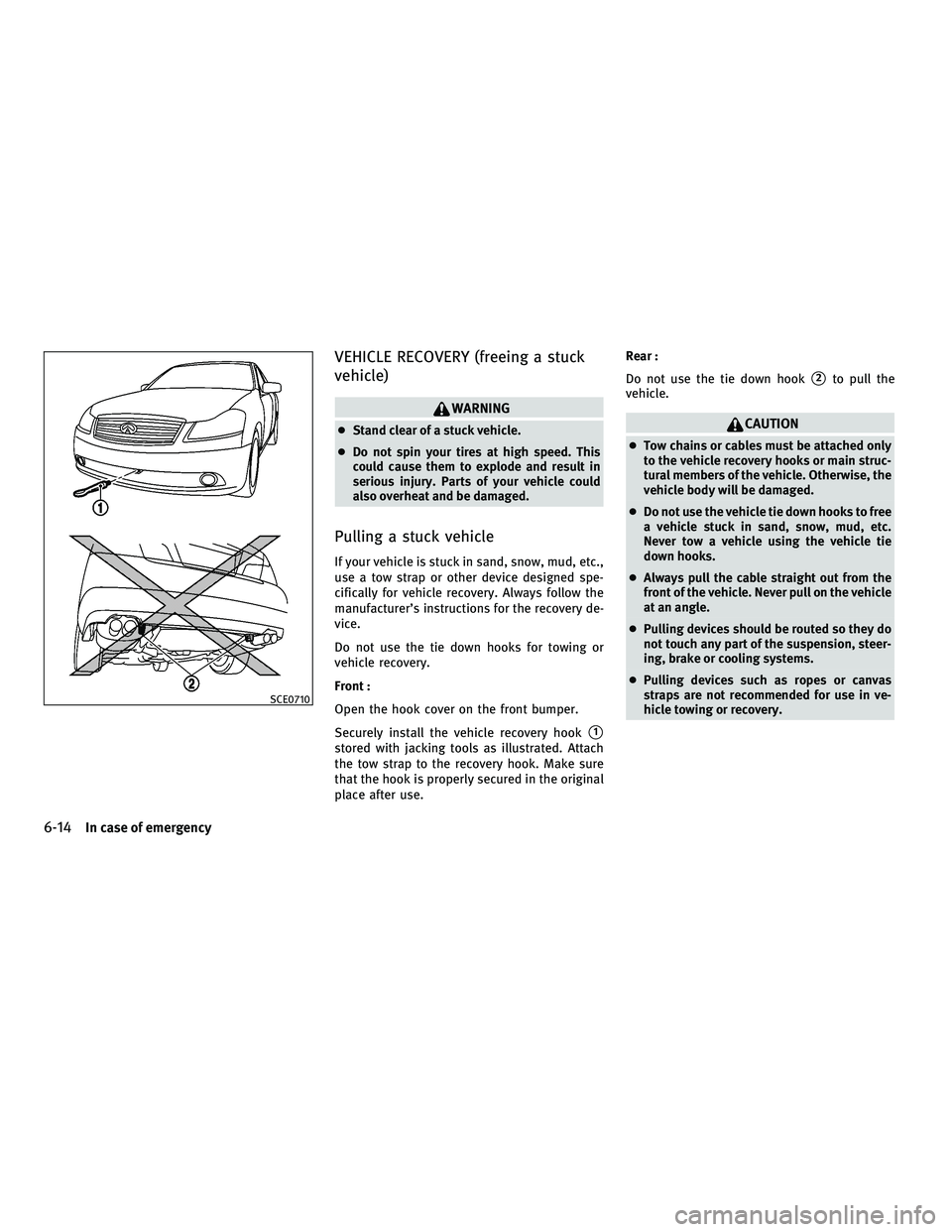

VEHICLE RECOVERY (freeing a stuck
vehicle)
WARNING
cStand clear of a stuck vehicle.
c Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer's instructions for the recovery de-
vice.
Do not use the tie down hooks for towing or
vehicle recovery.
Front :
Open the hook cover on the front bumper.
Securely install the vehicle recovery hook
s1
stored with jacking tools as illustrated. Attach
the tow strap to the recovery hook. Make sure
that the hook is properly secured in the original
place after use. Rear :
Do not use the tie down hook
s2to pull the
vehicle.
CAUTION
c Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
c Do not use the vehicle tie down hooks to free
a vehicle stuck in sand, snow, mud, etc.
Never tow a vehicle using the vehicle tie
down hooks.
c Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
c Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
c Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
SCE0710
6-14In case of emergency
wÐ
Ð
05/15/09Ðpattie
X

cWith the TEMPORARY USE ONLY spare tire
installed do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
c When driving on roads covered with snow or
ice, the TEMPORARY USE ONLY spare tire
should be used on the front wheels and origi-
nal tire used on the rear wheels (drive
wheels). Use tire chains only on the two rear
original tires.
c Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than the
standard tire. Replace the spare tire as soon
as the tread wear indicators appear.
c Do not use the spare tire on other vehicles.
c Do not use more than one spare tire at the
same time.CAUTION
cDo not use tire chains on a TEMPORARY USE
ONLY spare tire. Tire chains will not fit prop-
erly and may cause damage to the vehicle.
c Because the TEMPORARY USE ONLY spare
tire is smaller than the original tire, ground
clearance is reduced. To avoid damage to the
vehicle, do not drive over obstacles. Also do
not drive the vehicle through an automatic
car wash since it may get caught.
Maintenance and do-it-yourself8-45
wÐ
Ð
05/19/09Ðtbrooks
X
