LANE CAMERA UNIT MAINTENANCE
The lane camera units1for the LDW/LDP
system is located inside the map light cover. To
keep the proper operation of the LDW/LDP
systems and prevent a system malfunction, be
sure to observe the following:
c Always keep the windshield clean.
c Do not attach a sticker (including transpar-
ent material) or install an accessory near the
camera unit.
c Do not place reflective materials, such as
white paper or a mirror, on the instrument
panel. The reflection of sunlight may ad-
versely affect the camera unit's capability of
detecting the lane markers. c
Do not strike or damage the areas around
the camera unit. Do not touch the camera
lens or remove the screw located on the
camera unit. If the camera unit is damaged
due to an accident, contact an INFINITI re-
tailer.
PRECAUTIONS ON CRUISE CONTROL
cIf the cruise control system malfunctions, it
will cancel automatically. The SET indicator
on the dot matrix crystal display will then
blink to warn the driver.
c If the engine coolant temperature becomes
excessively high, the cruise control system
will be canceled automatically.
c If the SET indicator blinks, turn the cruise
control main switch off and have the system
checked by your INFINITI retailer.
c The SET indicator may sometimes blink
when the cruise control main switch is
turned ON while pushing the
RESUME/ACCELERATE, SET/COAST or CAN-
CEL switch. To properly set the cruise control
system, perform the steps below in the order
indicated.
WARNING
Do not use the cruise control when driving un-
der the following conditions:
cwhen it is not possible to keep the vehicle at
a set speed
c in heavy traffic or in traffic that varies in
speed
c on winding or hilly roads
SSD0453
CRUISE CONTROL
Starting and driving5-23
wÐ
Ð
05/15/09Ðpattie
X

NOTE:
The approach warning chime may sound and the
system display may blink when the ICC sensor
detects some reflectors
sAwhich are fitted on
vehicles in other lanes or on the side of the road.
This may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may de-
tect these reflectors when the vehicle is driven
on winding roads, hilly roads or when entering
or exiting a curve. The ICC sensor may also de-
tect reflectors on narrow roads or in road con-
struction zones. In these cases you will have to
manually control the proper distance ahead of
your vehicle. Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
c
When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
c When the selector lever is not in the D, DS or
Manual mode
c When the windshield wipers are operating at
low (LO) or high speed (HI). If the vehicle is
equipped with a rain sensing auto-wiper, the
system may cancel when the wipers are set
to intermittent (INT).
c When the SNOW mode switch is turned on
c When the VDC is turned off
c When the VDC operates
c When the engine coolant temperature be-
comes excessively high
Warning light and display
Condition A :
The chime sounds and the Intelligent Cruise
Control system is canceled automatically in the
conditions described below. Part of the system
display will come on or blink, making it impos-
sible to set.
cWhen the VDC is turned off
c When the ABS or VDC (including the traction
control system) operates
c When a tire slips
c When the SNOW mode switch is turned on
c When strong light (sunlight, etc.) is directly
shining on the front of the vehicle
SSD0284ASSD0465
5-40Starting and driving
wÐ
Ð
05/19/09Ðtbrooks
X

FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTI-FREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32ÉF (0ÉC),
check antifreeze to assure proper winter protec-
tion. For additional information, see ªENGINE
COOLING SYSTEMº in the ª8. Maintenance and
do-it-yourselfº section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see ªBATTERYº in the ª8. Mainte-
nance and do-it-yourselfº section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see ªENGINE COOLING SYS-
TEMº in the ª8. Maintenance and do-it-yourselfº
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see ªTIRE
CHAINSº in the ª8. Maintenance and do-it-
yourselfº section of this manual.
All-Wheel Drive (AWD) model
If you install snow tires, they must also be the
same size, brand, construction and tread pat-
tern on all four wheels.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
cA scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
c A sturdy, flat board to be placed under the
jack to give it firm support.
c A shovel to dig the vehicle out of snowdrifts.
c Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
cWet ice (32ÉF, 0ÉC and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or ªgripº under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
c Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction.
COLD WEATHER DRIVING
5-56Starting and driving
wÐ
Ð
05/15/09Ðpattie
X

cAllow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
c Allow greater following distances on slip-
pery roads.
c Watch for slippery spots (glare ice). These
may appear on an otherwise clear road in
shaded areas. If a patch of ice is seen ahead,
brake before reaching it. Try not to brake
while on the ice, and avoid any sudden steer-
ing maneuvers.
c Do not use the cruise control on slippery
roads.
c Snow can trap dangerous exhaust gases un-
der your vehicle. Keep snow clear of the ex-
haust pipe and from around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in cold
temperature starting.
The engine block heater should be used when
the outside temperature is 20ÉF ( 27ÉC) or
lower.
To use the engine block heater
1. Turn the engine off.
2. Open the hood and unwrap the engine block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected, grounded
110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at leas t2-4hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.
WARNING
cDo not use your engine block heater with an
ungrounded electrical system or a
2-pronged adapter. You can be seriously in-
jured by an electrical shock if you use an
ungrounded connection.
c Disconnect and properly store the engine
block heater cord before starting the engine.
Damage to the cord could result in an electri-
cal shock and can cause serious injury.
c Use a heavy-duty 3-wire, 3-pronged exten-
sion cord rated for at least 10A. Plug the
extension cord into a Ground Fault Interrupt
(GFI) protected, grounded 110-VAC outlet.
Failure to use the proper extension cord or a
grounded outlet can result in a fire or electri-
cal shock and cause serious personal injury.
Starting and driving5-57
wÐ
Ð
05/19/09Ðtbrooks
X

3. If engine overheating is caused by climb-ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing, the drive belts are missing or loose,
or the cooling fan does not run, stop the
engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada). When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.WARNING
c
Never ride in a vehicle that is being towed.
c Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
cWhen towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any unit is dam-
aged, dollies must be used.
c Always attach safety chains before towing.
TOWING YOUR VEHICLE
In case of emergency6-11
wÐ
Ð
05/15/09Ðpattie
X

8 Maintenance and do-it-yourself
Maintenance requirement.......................... 8-2
Scheduled maintenance ........................ 8-2
General maintenance ........................... 8-2
Where to go for service ......................... 8-2
General maintenance .............................. 8-2
Explanation of maintenance items ............... 8-2
Maintenance precautions .......................... 8-5
Engine compartment check locations ................ 8-6
VK45DE engine ................................. 8-6
VQ35HR engine ................................ 8-8
Engine cooling system ............................ 8-10
Checking engine coolant level ...................8-11
Changing engine coolant ........................ 8-11
Engine oil ....................................... 8-12
Checking engine oil level ......................8-12
Changing engine oil and filter ..................8-12
Automatic transmission fluid ......................8-15
5-speed automatic transmission ................8-15
7-speed automatic transmission ................8-15
Power steering fluid .............................. 8-16
Brake fluid ...................................... 8-16
Brake fluid ................................... 8-16
Window washer fluid ............................. 8-17
Battery .......................................... 8-17
Jump starting ................................. 8-19Variable voltage control system (if so equipped)
....8-19
Drive belts ....................................... 8-19
Spark plugs ..................................... 8-20
Replacing spark plugs ......................... 8-21
Air cleaner ....................................... 8-21
Windshield wiper blades .......................... 8-22
Cleaning ...................................... 8-22
Replacing ..................................... 8-23
Brakes .......................................... 8-24
Self-adjusting brakes .......................... 8-24
Brake pad wear warnings ......................8-24
Fuses ........................................... 8-25
Engine compartment ........................... 8-25
Passenger compartment ....................... 8-27
Battery replacement .............................. 8-28
Intelligent Key ................................ 8-28
Lights ........................................... 8-30
Headlights .................................... 8-31
Exterior and interior lights .....................8-32
Wheels and tires ................................. 8-34
Tire pressure .................................. 8-34
Tire labeling .................................. 8-38
Types of tires ................................. 8-40
Tire chains ................................... 8-41
Changing wheels and tires..................... 8-41
wÐ
Ð
05/15/09Ðpattie
X

Steering wheel:Check for changes in the steer-
ing conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating prop-
erly.
Windshield defroster: Check that the air comes
out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Windshield wiper and washer*: Check that the
wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time
you check the engine oil or refuel).
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or un-
der severe condition require frequent checks of
the battery fluid level.
Brake fluid level*: Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold. Engine drive belts*:
Make sure that the drive
belts are not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 10 or 15 minutes for the
oil to drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by an INFINITI retailer. (See
ªPRECAUTIONS WHEN STARTING AND DRIVINGº
in the ª5. Starting and drivingº section for
exhaust gas (carbon monoxide).)
Fluid leaks: Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from
the air conditioner after use is normal. If you
should notice any leaks or if gasoline fumes are
evident, check for the cause and have it cor-
rected immediately.
Power steering fluid level* and lines: Check the
level when the fluid is cold, with the engine off.
Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves, etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody:
The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, being careful
to clean those areas where mud and dirt may
accumulate. For additional information, see
ªCLEANING EXTERIORº in the ª7. Appearance
and careº section.
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself
wÐ
Ð
05/19/09Ðtbrooks
X

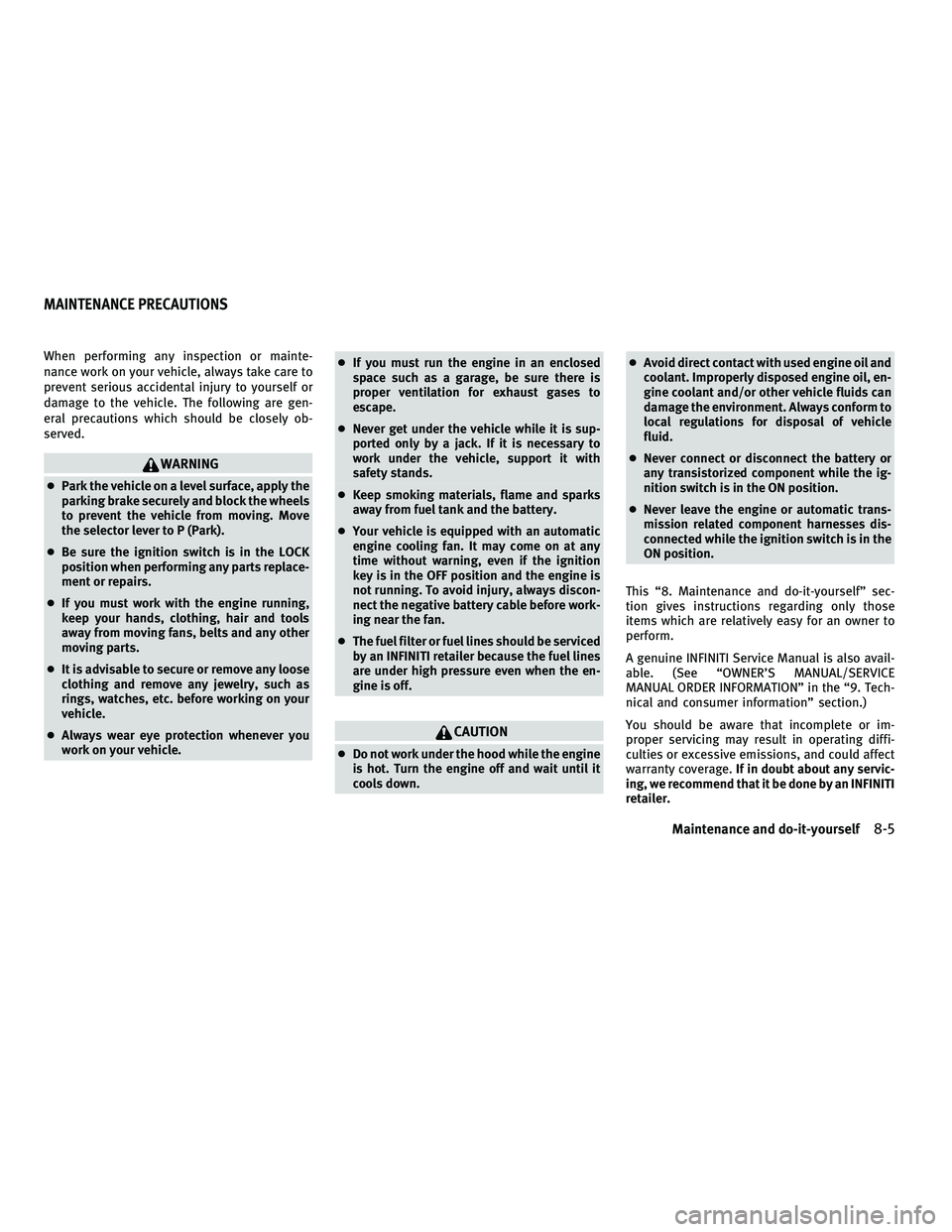

When performing any inspection or mainte-
nance work on your vehicle, always take care to
prevent serious accidental injury to yourself or
damage to the vehicle. The following are gen-
eral precautions which should be closely ob-
served.
WARNING
cPark the vehicle on a level surface, apply the
parking brake securely and block the wheels
to prevent the vehicle from moving. Move
the selector lever to P (Park).
c Be sure the ignition switch is in the LOCK
position when performing any parts replace-
ment or repairs.
c If you must work with the engine running,
keep your hands, clothing, hair and tools
away from moving fans, belts and any other
moving parts.
c It is advisable to secure or remove any loose
clothing and remove any jewelry, such as
rings, watches, etc. before working on your
vehicle.
c Always wear eye protection whenever you
work on your vehicle. c
If you must run the engine in an enclosed
space such as a garage, be sure there is
proper ventilation for exhaust gases to
escape.
c Never get under the vehicle while it is sup-
ported only by a jack. If it is necessary to
work under the vehicle, support it with
safety stands.
c Keep smoking materials, flame and sparks
away from fuel tank and the battery.
c Your vehicle is equipped with an automatic
engine cooling fan. It may come on at any
time without warning, even if the ignition
key is in the OFF position and the engine is
not running. To avoid injury, always discon-
nect the negative battery cable before work-
ing near the fan.
c The fuel filter or fuel lines should be serviced
by an INFINITI retailer because the fuel lines
are under high pressure even when the en-
gine is off.
CAUTION
cDo not work under the hood while the engine
is hot. Turn the engine off and wait until it
cools down. c
Avoid direct contact with used engine oil and
coolant. Improperly disposed engine oil, en-
gine coolant and/or other vehicle fluids can
damage the environment. Always conform to
local regulations for disposal of vehicle
fluid.
c Never connect or disconnect the battery or
any transistorized component while the ig-
nition switch is in the ON position.
c Never leave the engine or automatic trans-
mission related component harnesses dis-
connected while the ignition switch is in the
ON position.
This ª8. Maintenance and do-it-yourselfº sec-
tion gives instructions regarding only those
items which are relatively easy for an owner to
perform.
A genuine INFINITI Service Manual is also avail-
able. (See ªOWNER'S MANUAL/SERVICE
MANUAL ORDER INFORMATIONº in the ª9. Tech-
nical and consumer informationº section.)
You should be aware that incomplete or im-
proper servicing may result in operating diffi-
culties or excessive emissions, and could affect
warranty coverage. If in doubt about any servic-
ing, we recommend that it be done by an INFINITI
retailer.
MAINTENANCE PRECAUTIONS
Maintenance and do-it-yourself8-5
wÐ
Ð
05/19/09Ðtbrooks
X
