CAUTION
●Do not use leaded gasoline. Deposits from
leaded gasoline seriously reduce the three-
way catalyst’s ability to help reduce exhaust
pollutants.
● Keep your engine tuned up. Malfunctions in
the ignition, fuel injection, or electrical sys-
tems can cause overrich fuel flow into the
three-way catalyst, causing it to overheat.
Do not keep driving if the engine misfires, or
if noticeable loss of performance or other
unusual operating conditions are detected.
Have the vehicle inspected promptly by an
INFINITI retailer.
● Avoid driving with an extremely low fuel
level. Running out of fuel could cause the
engine to misfire, damaging the three-way
catalyst.
● Do not race the engine while warming it up.
● Do not push or tow your vehicle to start the
engine.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation
pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure, even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.
Starting and driving5-3
—
—
04/21/10—debbie


The ignition switch is equipped with an anti-
theft steering lock device.
In order for the steering wheel to be locked, it
must be turned about 1/8 of a right or left turn
from the straight up position.
To lock the steering wheel, shift the ignition
switch to the LOCK position. To unlock the steer-
ing wheel, push the ignition switch. If the steer-
ing lock release malfunction indicator appears
on the dot matrix liquid crystal display, push the
push-button ignition switch again while lightly
turning the steering wheel right and left. (See
“DOT MATRIX LIQUID CRYSTAL DISPLAY” in the
“2. Instruments and controls” section.)
If the battery of the vehicle is discharged, the
push-button ignition switch cannot be turned
from the LOCK position.
Some indicators and warnings for operation are
displayed on the dot matrix liquid crystal dis-
play between the speedometer and tachometer.
(See “DOT MATRIX LIQUID CRYSTAL DISPLAY” in
the “2. Instruments and controls” section.)
Automatic transmission models
The ignition lock is designed so that the ignition
switch position cannot be switched to LOCK
until the selector lever is moved to the P (Park)
position.When the ignition switch cannot be pushed
toward the LOCK position, proceed as follows:
1. Move the selector lever into the P (Park)
position.
2. Push the ignition switch to the OFF posi- tion. The ignition switch position indicator
will not illuminate.
3. Open the door. The ignition switch will change to the LOCK position.
The selector lever can be moved from the P (Park)
position if the ignition switch is in the ON posi-
tion and the brake pedal is depressed.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
LOCK (Normal parking position)
The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key in-
serted in the port.
ACC (Accessories)
This position activates electrical accessories
such as the radio, when the engine is not
running.
ON (Normal operating position)
This position turns on the ignition system and
electrical accessories.
OFF
The engine can be turned off without locking
the steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the selector lever is moved to the P (Park)
position.
CAUTION
Do not leave the vehicle with the push-button
ignition switch in ACC or ON positions when the
engine is not running for an extended period.
This can discharge the battery.
Emergency engine shut off
To shut off the engine in an emergency situation
while driving peform the following procedure:
− Rapidly push the push-button ignition switch3 consecutive times, or
− Push and hold the push-button ignition for more than 2 seconds.
Starting and driving5-9
—
—
04/21/10—debbie

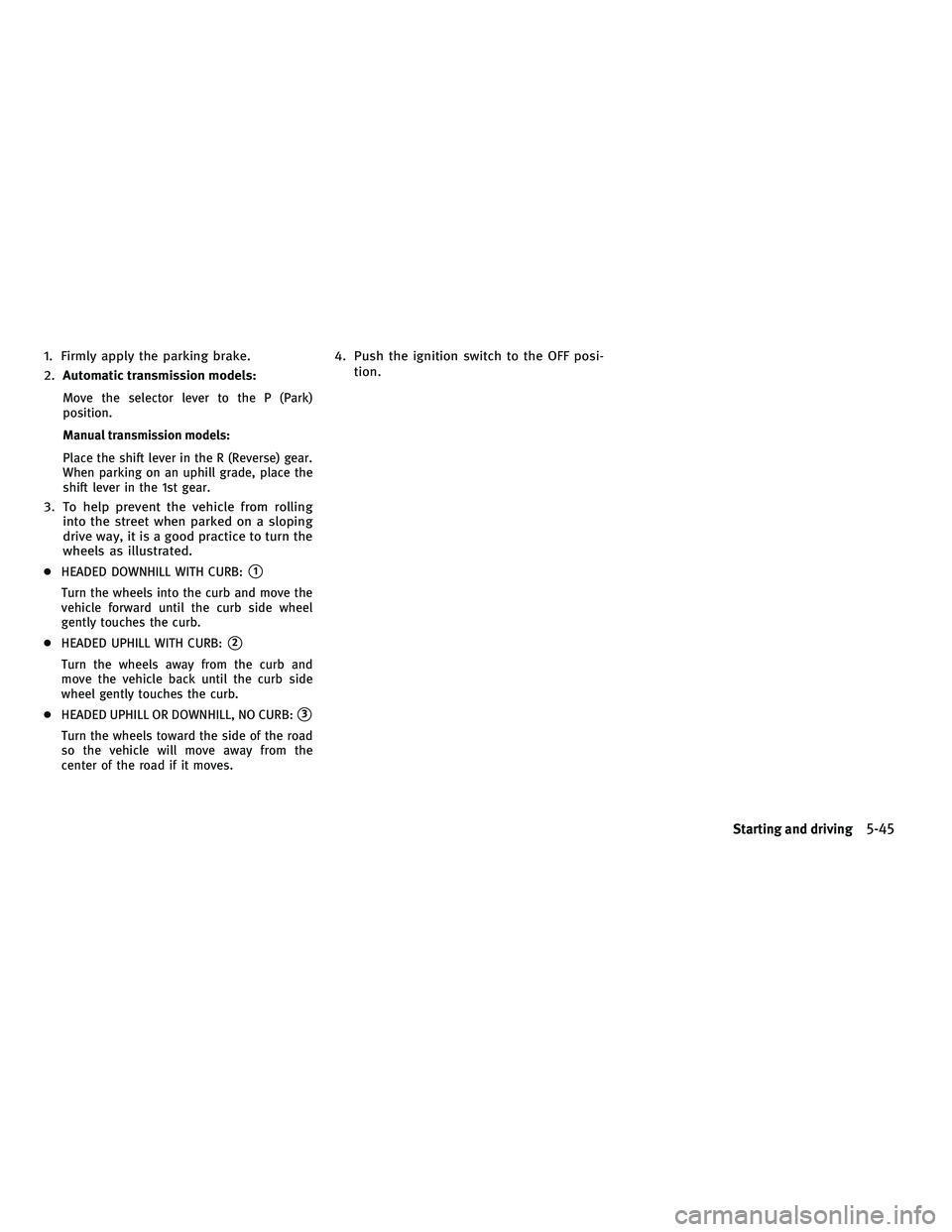

1. Firmly apply the parking brake.
2.Automatic transmission models:
Move the selector lever to the P (Park)
position.
Manual transmission models:
Place the shift lever in the R (Reverse) gear.
When parking on an uphill grade, place the
shift lever in the 1st gear.
3. To help prevent the vehicle from rolling
into the street when parked on a sloping
drive way, it is a good practice to turn the
wheels as illustrated.
●HEADED DOWNHILL WITH CURB:1
Turn the wheels into the curb and move the
vehicle forward until the curb side wheel
gently touches the curb.
● HEADED UPHILL WITH CURB:
2
Turn the wheels away from the curb and
move the vehicle back until the curb side
wheel gently touches the curb.
● HEADED UPHILL OR DOWNHILL, NO CURB:
3
Turn the wheels toward the side of the road
so the vehicle will move away from the
center of the road if it moves.
4. Push the ignition switch to the OFF posi-
tion.
Starting and driving5-45
—
—
04/29/10—pattie

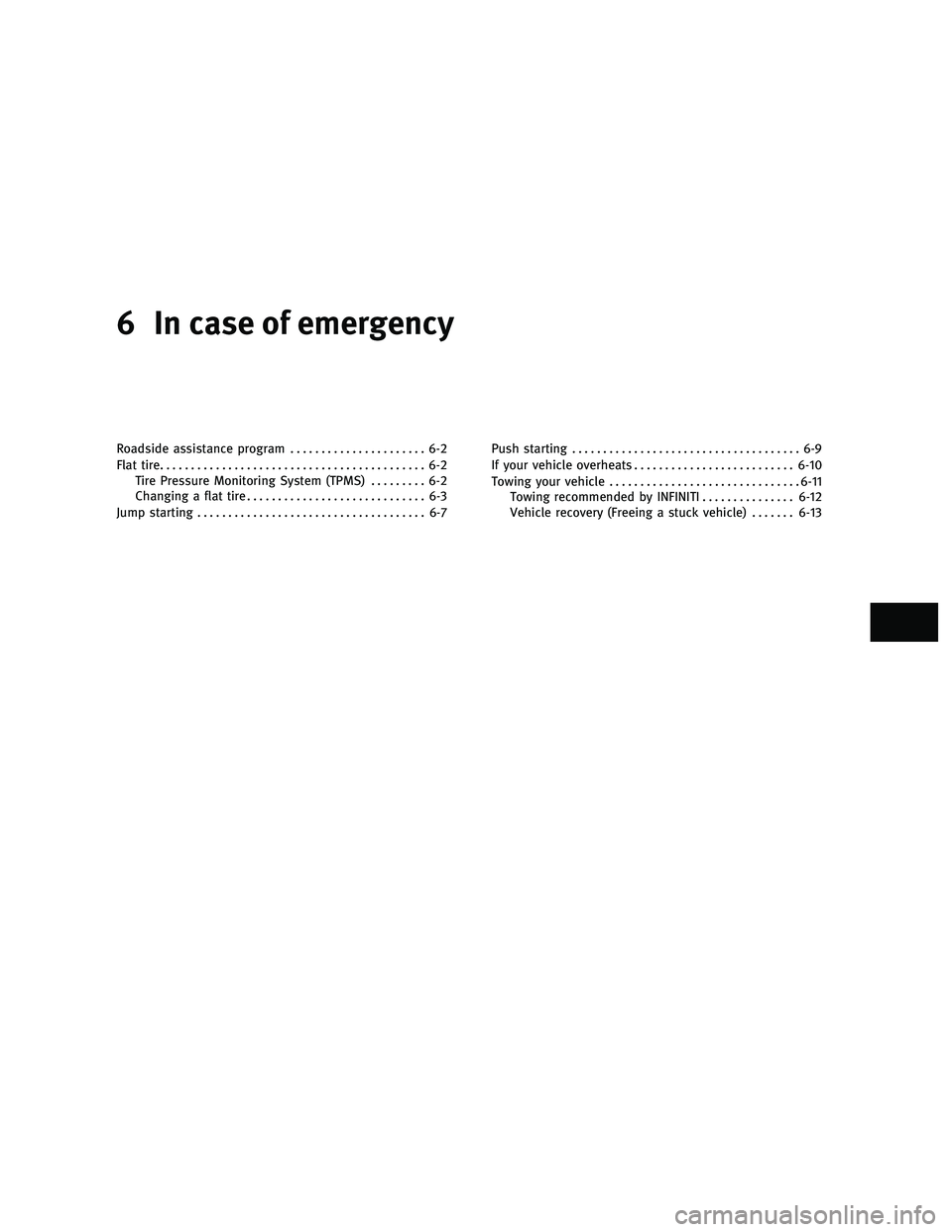

6 In case of emergency
Roadside assistance program...................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Changing a flat tire ............................. 6-3
Jump starting ..................................... 6-7 Push starting
..................................... 6-9
If your vehicle overheats .......................... 6-10
Towing your vehicle ............................... 6-11
Towing recommended by INFINITI ...............6-12
Vehicle recovery (Freeing a stuck vehicle) .......6-13
—
—
04/29/10—pattie


4. Connect jumper cables in the sequence asillustrated (
1→2→3→4).
If the battery is disconnected or discharged,
the steering wheel will lock and cannot be
turned. Supply power using jumper cables
before pushing the ignition switch and dis-
engaging the steering lock.
CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
5. Start the engine of the booster vehicleA
and let it run for a few minutes.
6. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle being jump
started
B.
CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
7. After starting your engine, carefully dis- connect the negative cable and then the
positive cable (
4→3→2→1).
8. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
9. Put the battery cover on.
Do not attempt to start the engine by pushing.
CAUTION
● Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
PUSH STARTING
In case of emergency6-9
—
—
04/21/10—debbie

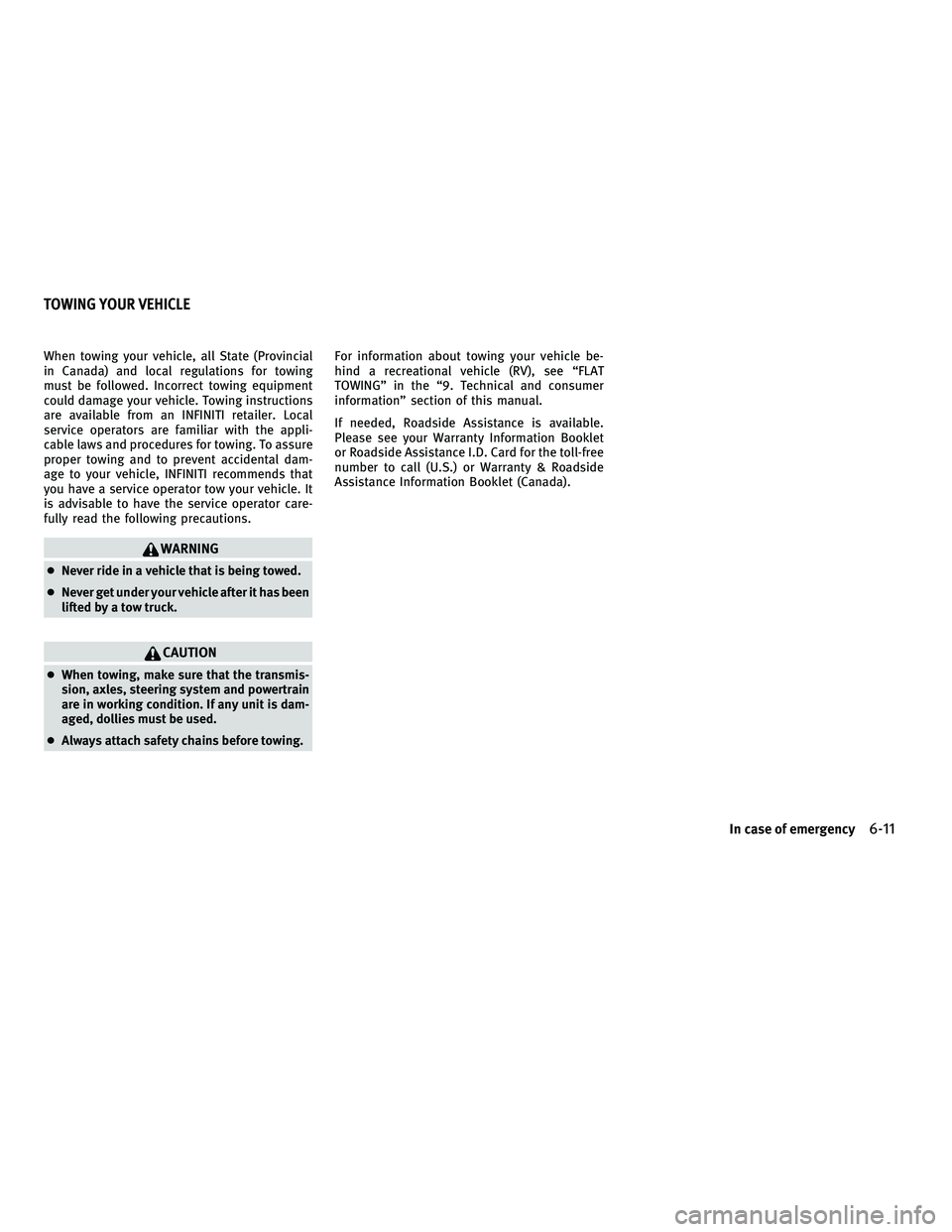

When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.
WARNING
●Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing. For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING YOUR VEHICLE
In case of emergency6-11
—
—
04/21/10—debbie


TOWING RECOMMENDED BY INFINITI
Two-Wheel Drive (2WD) models
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive damage to the transmission. If it is neces-
sary to tow the vehicle with the front wheels
raised, always use towing dollies under the
rear wheels.
●
When towing rear wheel drive models with the
front wheels on the ground or on towing dol-
lies: Push the ignition switch to the ACC or ON
position, and secure the steering wheel in a
straight-ahead position with a rope or similar
device. Never secure the steering wheel by
selecting the LOCK position. This may damage
the steering lock mechanism.
● If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
● Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
transmission.
Two-wheel drive models
SCE0788
6-12In case of emergency
—
—
04/21/10—debbie


All-Wheel Drive (AWD) models
INFINITI recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow AWD models with any of the wheels
on the ground as this may cause serious and
expensive damage to the powertrain.
VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
All-wheel drive models
SCE0488
In case of emergency6-13
—
—
04/21/10—debbie
