PRECAUTIONS ON VEHICLE-TO-
VEHICLE DISTANCE CONTROL MODE
The system is intended to enhance the opera-
tion of the vehicle when following a vehicle
traveling in the same lane and direction.
If the distance sensor
Adetects a slower
moving vehicle ahead, the system will reduce
the vehicle speed so that your vehicle follows
the vehicle in front at the selected distance.
The system automatically controls the throttle
and applies the brakes (up to 25% of vehicle
braking power) if necessary. The detection range of the sensor is approxi-
mately 390 ft (120 m) ahead.
WARNING
●
This system is only an aid to assist the driver
and is not a collision warning or avoidance
device. It is the driver’s responsibility to stay
alert, drive safely and be in control of the
vehicle at all times.
● The system is primarily intended for use on
straight, dry, open roads with light traffic. It
is not advisable to use the system in city
traffic or congested areas.
● This system will not adapt automatically to
road conditions. This system should be used
in evenly flowing traffic. Do not use the sys-
tem on roads with sharp curves, or on icy
roads, in heavy rain or in fog.
The distance sensor will not detect under most
conditions:
● Stationary and slow moving vehicles
● Pedestrians or objects in the roadway
● Oncoming vehicles in the same lane
● Motorcycles traveling offset in the travel
lane
Sedan
SSD0926
Coupe — Type A
SSD0662
Coupe — Type B
SSD0663
Starting and driving5-23
—
—
04/29/10—pattie


This system will not automatically brake the ve-
hicle to a stop.
WARNING
●As there is a performance limit to the dis-
tance control function, never rely solely on
the Intelligent Cruise Control system. This
system does not correct careless, inatten-
tive or absent-minded driving, or overcome
poor visibility in rain, fog, or other bad
weather. Decelerate the vehicle speed by de-
pressing the brake pedal, depending on the
distance to the vehicle ahead and the sur-
rounding circumstances in order to maintain
a safe distance between vehicles.
● Although the brake operation is controlled
by the system, the system does not auto-
matically stop the vehicle. If the vehicle
speed falls below approximately 20 MPH (32
km/h), the Intelligent Cruise Control system
is automatically canceled and a warning
chime sounds. (The brake control is also
canceled.)
● The system may not detect the vehicle in
front of you in certain road or weather condi-
tions. To avoid accidents, never use the In-
telligent Cruise Control system under the
following conditions: – On roads where the traffic is heavy or
there are sharp curves
– On slippery road surfaces such as on ice or snow, etc.
– During bad weather (rain, fog, snow, etc.) When the windshield wiper is operated at
the low speed (LO) or high speed (HI) po-
sition, the Intelligent Cruise Control sys-
tem is automatically canceled.
– When strong light (for example, at sun- rise or sunset) is directly shining on the
front of the vehicle
– When rain, snow or dirt adhere to the sys- tem sensor
– On steep downhill roads (the vehicle may go beyond the set vehicle speed and fre-
quent braking may result in overheating
the brakes)
– On repeated uphill and downhill roads
– When traffic conditions make it difficult to keep a proper distance between vehicles
because of frequent acceleration or
deceleration ●
In some road or traffic conditions, a vehicle
or object can unexpectedly come into the
sensor detection zone and cause automatic
braking. You may need to control the dis-
tance from other vehicles using the accelera-
tor pedal. Always stay alert and avoid using
the ICC system when it is not recommended
in this section.
5-24Starting and driving
—
—
04/29/10—pattie


VEHICLE-TO-VEHICLE DISTANCE
CONTROL MODE OPERATION
Always pay attention to the operation of the
vehicle and be ready to manually control the
proper following distance. The vehicle-to-
vehicle distance control mode of the Intelligent
Cruise Control (ICC) system may not be able to
maintain the selected distance between ve-
hicles (following distance) or selected vehicle
speed under some circumstances.The vehicle-to-vehicle distance control mode
uses a sensor
Alocated on the front of the
vehicle to detect vehicles traveling ahead. The
sensor generally detects the signals returned
from the reflectors on a vehicle ahead. There-
fore, if the sensor cannot detect the reflector on
the vehicle ahead, the ICC system may not
maintain the selected distance.
The following are some conditions in which the
sensor cannot detect the signals:
● When the reflector of the vehicle ahead is
positioned high on the vehicle (trailer, etc.)
● When the reflector on the vehicle ahead is
missing, damaged or covered
● When the reflector of the vehicle ahead is
covered with dirt, snow and road spray
● When the snow or road spray from traveling
vehicles reduces the sensor’s visibility
● When dense exhaust or other smoke (black
smoke) from vehicles reduces the sensor’s
visibility
● When excessively heavy baggage is loaded
in the rear seat or the trunk of your vehicle
Sedan
SSD0926
Coupe — Type A
SSD0662
Coupe — Type B
SSD0663
Starting and driving5-25
—
—
04/29/10—pattie


The ICC system is designed to automatically
check the sensor’s operation within the limita-
tions of the system. When the sensor is covered
with dirt or obstructs, the system will automati-
cally be canceled. If the sensor is covered with
ice, a transparent or translucent vinyl bag, etc.,
the ICC system may not detect them. In these
instances, the vehicle-to-vehicle distance con-
trol mode may not cancel and may not be able
to maintain the selected following distance
from the vehicle ahead. Be sure to check and
clean the sensor regularly.
The vehicle-to-vehicle distance control mode is
designed to maintain a selected distance and
reduce the speed to match the slower vehicle
ahead; the system will decelerate the vehicle as
necessary. However, the ICC system can only
apply up to 25% of the vehicles total braking
power. This system should only be used when
traffic conditions allow vehicle speeds to re-
main fairly constant or when vehicle speeds
change gradually. If a vehicle moves into the
traveling lane ahead or if a vehicle traveling
ahead rapidly decelerates, the distance be-
tween vehicles may become closer because the
ICC system cannot decelerate the vehicle
quickly enough. If this occurs, the ICC system
will sound a warning chime and blink the
system display to notify the driver to take
necessary action.The system will cancel and a warning chime will
sound if the speed falls below approximately 20
MPH (32 km/h). The system will also disengage
below the 20 MPH (32 km/h) cut-off speed or
over the maximum set speed.
See “Approach warning” later in this section.
The following items are controlled in the
vehicle-to-vehicle distance control mode:
●
When there are no vehicles traveling ahead,
the vehicle-to-vehicle distance control mode
maintains the speed set by the driver. The
set speed range is between approximately
25 and 90 MPH (40 and 144 km/h).
● When there is a vehicle traveling ahead, the
vehicle-to-vehicle distance control mode ad-
justs the speed to maintain the distance,
selected by driver, from the vehicle ahead.
The adjusting speed range is between ap-
proximately 20 MPH (32 km/h) and up to the
set speed.
● When the vehicle traveling ahead has moved
out from its lane of travel, the vehicle-to-
vehicle distance control mode accelerates
and maintains vehicle speed up to the set
speed. The ICC system does not control vehicle speed
or warn you when you approach stationary and
slow moving vehicles. You must pay attention to
vehicle operation to maintain proper distance
from vehicles ahead when approaching toll
gates or traffic congestion.
5-26Starting and driving
—
—
04/29/10—pattie

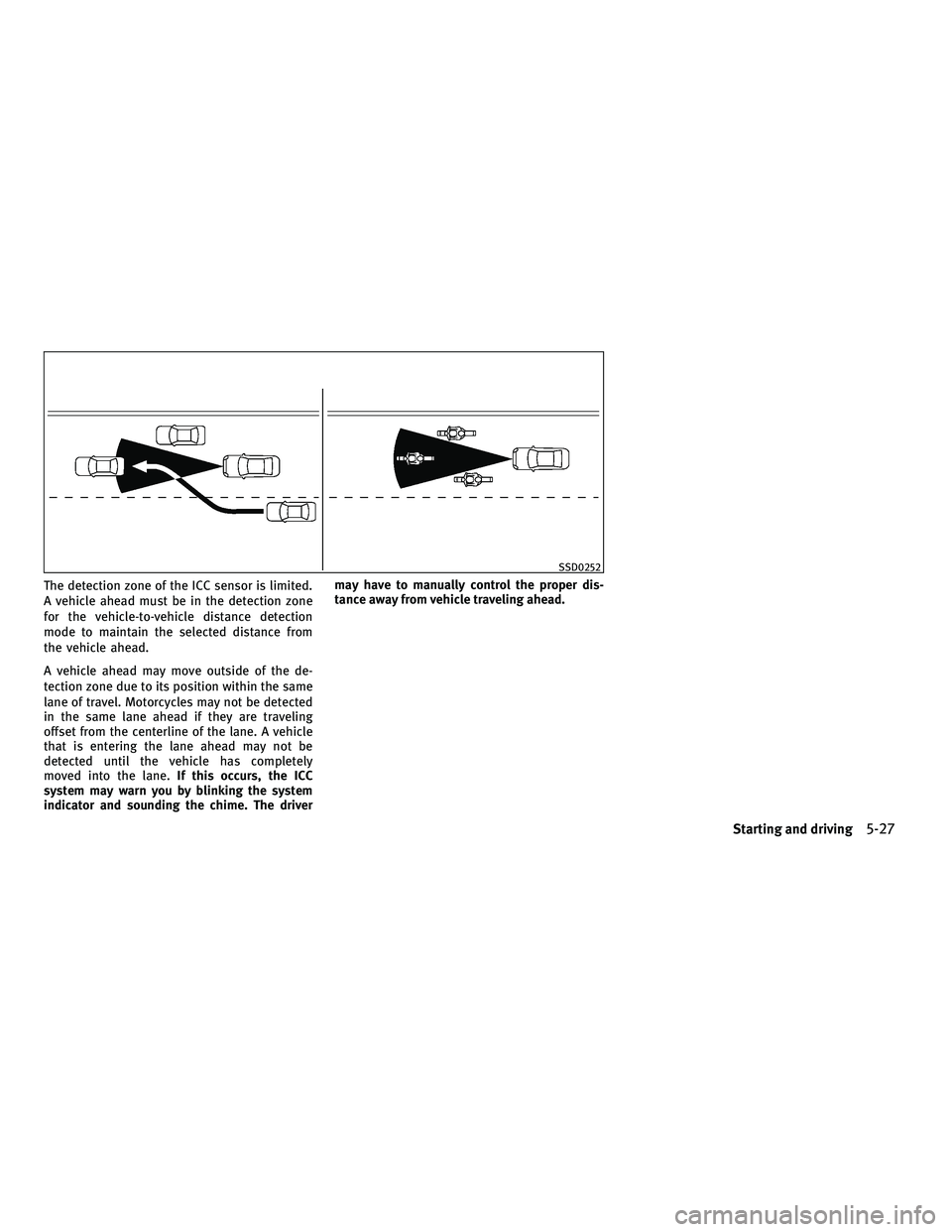

The detection zone of the ICC sensor is limited.
A vehicle ahead must be in the detection zone
for the vehicle-to-vehicle distance detection
mode to maintain the selected distance from
the vehicle ahead.
A vehicle ahead may move outside of the de-
tection zone due to its position within the same
lane of travel. Motorcycles may not be detected
in the same lane ahead if they are traveling
offset from the centerline of the lane. A vehicle
that is entering the lane ahead may not be
detected until the vehicle has completely
moved into the lane.If this occurs, the ICC
system may warn you by blinking the system
indicator and sounding the chime. The driver may have to manually control the proper dis-
tance away from vehicle traveling ahead.
SSD0252
Starting and driving5-27
—
—
04/29/10—pattie


When driving on some roads, such as winding,
hilly, curved, narrow roads, or roads which are
under construction, the ICC sensor may detect
vehicles in a different lane, or may temporarily
not detect a vehicle traveling ahead. This may
cause the ICC system to decelerate or acceler-
ate the vehicle.
The detection of vehicles may also be affected
by vehicle operation (steering maneuver or trav-
eling position in the lane, etc.) or vehicle con-
dition.If this occurs, the ICC system may warn
you by blinking the system indicator and sound-
ing the chime unexpectedly. You will have to
manually control the proper distance away from
the vehicle traveling ahead. When driving on the freeway at a set speed and
approaching a slower traveling vehicle ahead,
the ICC will adjust the speed to maintain the
distance, selected by the driver, from the ve-
hicle ahead. If the vehicle ahead changes lanes
or exits the freeway, the ICC system will accel-
erate and maintain the speed up to the set
speed. Pay attention to the driving operation to
maintain control of the vehicle as it accelerates
to the set speed.
The vehicle may not maintain the set speed on
winding or hilly roads. If this occurs, you will
have to manually control the vehicle speed.
SSD0253
SSD0254
5-28Starting and driving
—
—
04/29/10—pattie


NOTE:
The approach warning chime may sound and the
system display may blink when the ICC sensor
detects some reflectors
Awhich are fitted on
vehicles in other lanes or on the side of the road.
This may cause the ICC system to decelerate or
accelerate the vehicle. The ICC sensor may de-
tect these reflectors when the vehicle is driven
on winding roads, hilly roads or when entering
or exiting a curve. The ICC sensor may also de-
tect reflectors on narrow roads or in road con-
struction zones. In these cases you will have to
manually control the proper distance ahead of
your vehicle. Also, the sensor sensitivity can be affected by
vehicle operation (steering maneuver or driving
position in the lane) or traffic or vehicle condi-
tion (for example, if a vehicle is being driven
with some damage).
Automatic cancellation
A chime sounds under the following conditions
and the control is automatically canceled.
●
When the vehicle speed falls below approxi-
mately 20 MPH (32 km/h)
● When the selector lever is not in the D
(Drive), DS (Drive Sport) or manual shift
mode
● When the windshield wipers are operated at
low speed (LO) or high speed (HI)
● When the SNOW mode switch is turned on
● When the VDC is turned off
● When the VDC operates
Warning light and display
Condition A :
The chime sounds and the Intelligent Cruise
Control system is canceled automatically in the
conditions described below. Part of the system
display will come on or blink, making it impos-
sible to set.
●When the VDC is turned off
● When the ABS or VDC (including the traction
control system) operates
● When a tire slips
● When the SNOW mode switch is turned on
● When strong light (sunlight, etc.) is directly
shining on the front of the vehicle
SSD0284ASSD0614
5-36Starting and driving
—
—
04/29/10—pattie


Action to take :
When the conditions listed above are no longer
present, turn the system off using the Intelli-
gent Cruise Control MAIN Switch. Turn the ICC
system back on to use the system.Condition B :
When the sensor window is dirty, making it
impossible to detect a vehicle ahead, the ICC
system is automatically canceled.
The chime sounds and the ICC system warning
light (orange) will come on and the “CLEAN
SENSOR” indicator will appear.
Action to take :
If the warning light comes on, park the vehicle
in a safe place, turn the engine off. Clean the
sensor window with a soft cloth and then
perform the settings again.Condition C :
When the ICC system is not operating properly,
the chime sounds and the ICC system warning
light (orange) will come on.
Action to take :
If the warning light comes on, park the vehicle
in a safe place. Turn the engine off, restart the
engine, resume driving and set the ICC system
again.
If it is not possible to set the system or the
indicator stays on, it may indicate that the ICC
system is malfunctioning. Although the vehicle
is still driveable under normal conditions, have
the vehicle checked at an INFINITI retailer.
SSD0615SSD0616
Starting and driving5-37
—
—
04/29/10—pattie
