2010 INFINITI G buttons

Locking doors and fuel-filler door
1. Push the ignition switch to the OFF posi-tion and make sure you carry the Intelli-
gent Key with you.*1
2. Close all the doors.*2
3. Push the LOCK
button1on the
Intelligent Key.
4. All the doors and fuel-filler door will lock.
5. The hazard indicator flashes twice and the horn chirps once.
*1: Doors will lock with the Intelligent Key while the ignition switch is in the ACC or ON
position.
*2: Doors will not lock with the Intelligent Key while any door is open. Operate the door
handles to confirm that the doors have been
securely locked.
Unlocking doors and fuel-filler door
1. Push the UNLOCKbutton2on the
Intelligent Key once.
2.
The hazard indicator flashes once. The driv-
er’s door and fuel-filler door will unlock.
3. Push the UNLOCKbutton on the
Intelligent Key again within 1 minute.
4. The hazard indicator flashes once again. All the doors will unlock.
All doors will be locked automatically unless
one of the following operations is performed
within 1 minute after pushing the UNLOCK but-
ton on the Intelligent Key while the doors are
locked. If during this 1-minute time period, the
UNLOCK button on the Intelligent Key is
pushed, all doors will be locked automatically
after another 1 minute.
●Opening any door
● Pushing the ignition switch
Opening windows
The UNLOCKbutton operation also al-
lows you to open the window that is equipped
with the automatic open/close function. (See
“POWER WINDOWS” in the “2. Instruments and
controls” section).
To open the window, push the door UNLOCK
button2on the Intelligent Key for
about 3 seconds after the door is unlocked.
To stop opening, release the UNLOCK
button.
If the window open operation is stopped in
mid-operation while pushing the UNLOCK
button, release and push the UNLOCK
button again until the window opens
completely. Window cannot be closed using the Intelligent
Key.
The door window can also be operated by
turning the mechanical key in a door lock. (See
“DOORS” earlier in this section.)
Opening trunk lid
1. Push the TRUNKbutton3on the
Intelligent Key for more than 1 second.
2. The trunk will unlatch.
3. Raise the trunk lid to open the trunk.
Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANICbutton4on the
key for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
● It has run for 25 seconds, or
● Any of the buttons on the Intelligent Key
are pushed. (Note: Panic button should be
pushed for more than 1 second.)
Pre-driving checks and adjustments3-15
—
—
10/12/09—tbrooks

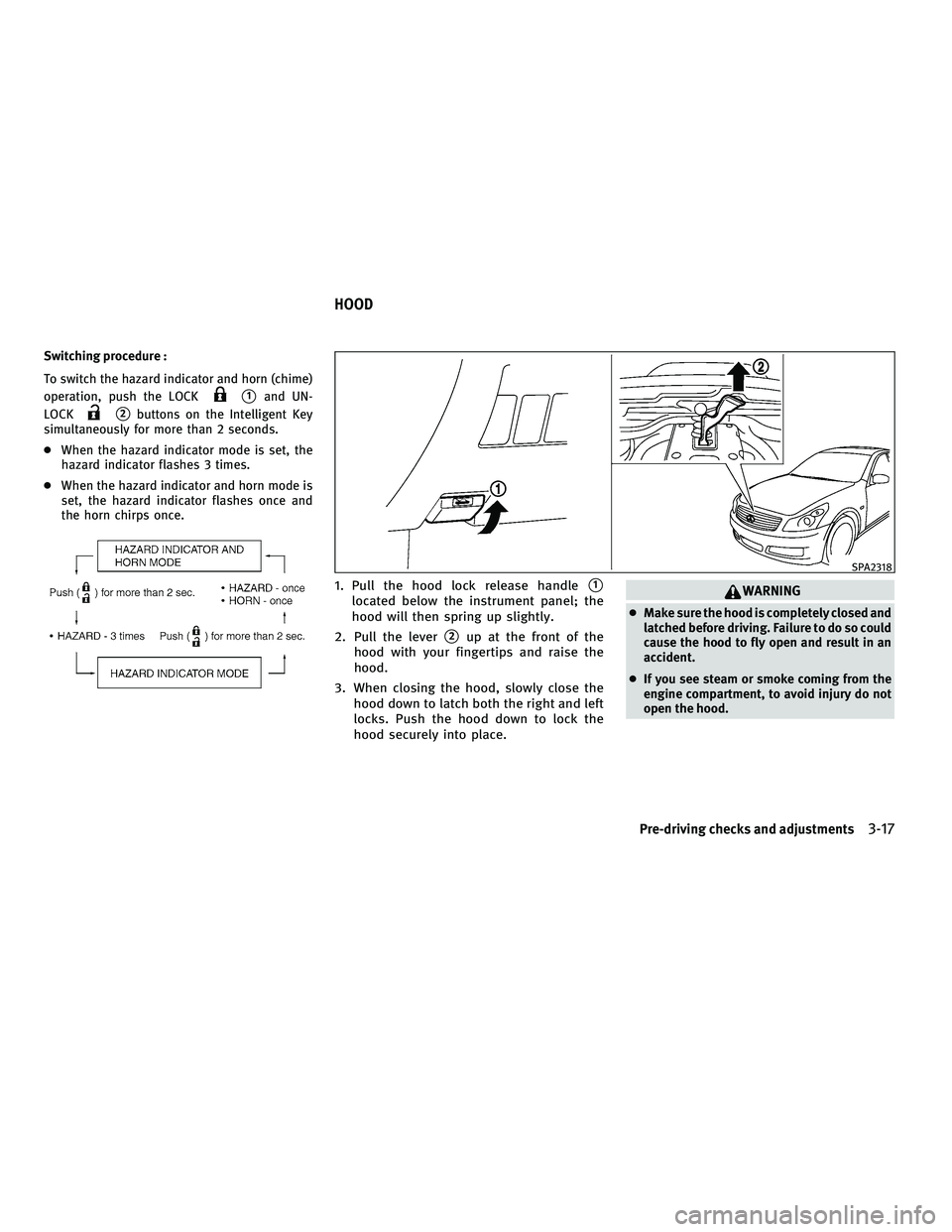

Switching procedure :
To switch the hazard indicator and horn (chime)
operation, push the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than 2 seconds.
● When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
● When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
1. Pull the hood lock release handle1
located below the instrument panel; the
hood will then spring up slightly.
2. Pull the lever
2up at the front of the
hood with your fingertips and raise the
hood.
3. When closing the hood, slowly close the hood down to latch both the right and left
locks. Push the hood down to lock the
hood securely into place.
WARNING
●Make sure the hood is completely closed and
latched before driving. Failure to do so could
cause the hood to fly open and result in an
accident.
● If you see steam or smoke coming from the
engine compartment, to avoid injury do not
open the hood.
SPA2318
HOOD
Pre-driving checks and adjustments3-17
—
—
10/12/09—tbrooks


Voice commands.............................. 4-87
Control buttons ............................... 4-87
Connecting procedure ......................... 4-88
Phone selection ............................... 4-88
Vehicle phonebook ............................ 4-88
Making a call ................................. 4-91
Receiving a call ............................... 4-92
During a call .................................. 4-93
Phone setting ................................. 4-93
Troubleshooting guide ......................... 4-95
Bluetooth Hands-Free Phone System
(models without navigation system) ................4-96
Regulatory information ......................... 4-97
Control buttons ............................... 4-97
Voice recognition system ......................4-98Pairing procedure
............................ 4-102
Phonebook registration ....................... 4-103
Making a call ................................ 4-103
Receiving a call .............................. 4-104
During a call ................................. 4-104
Phone settings ............................... 4-105
Voice adaptation mode ....................... 4-108
INFINITI Voice Recognition system
(models with navigation system) ..................4-109
INFINITI Voice Recognition standard mode ......4-109
Using the system .............................. 4-112
INFINITI Voice Recognition alternate
command mode .............................. 4-122
Using the system ............................. 4-128
Troubleshooting guide ........................ 4-133
—
—
04/21/10—debbie


WARNING
●Do not disassemble or modify this system. If
you do, it may result in accidents, fire, or
electric shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or lack
of sound. Continued use of the system may
result in accident, fire or electric shock.
● In case you notice any foreign object in the
system hardware, spill liquid on it, or notice
smoke or smell coming from it, stop using
the system immediately and contact your
nearest INFINITI retailer. Ignoring such con-
ditions may lead to accidents, fire, or electric
shock.
● Park the vehicle in a safe location and apply
the parking brake to view the images on the
front center display screen using devices
connected to the auxiliary input jacks.
Do not attempt to operate the system in extreme
temperature conditions [below 4°F (20°C)
and above 158°F (70°C)]. Operating this system
under these conditions may result in system
malfunctions.
1. “STATUS ” status display button (P. 4-7)
2, 6, 7, 10, 11. For navigation system control buttons (Refer to the sepa-
rate Navigation System Own-
er’s Manual.)
3. INFINITI controller (P. 4-4)
4. “PHONE ” Bluetooth Hands-Free Phone
System button (P. 4-85)
5. “
OFF ” brightness control and dis-
play ON/OFF button (P. 4-7) 8. “AM·FM·SAT
” band selector button
(P. 4-39)
9. “DISC·AUX ” selector button (P. 4-39)
12. “INFO ” vehicle and navigation informa-
tion button (P. 4-8)
13. “SETTING ” button (P. 4-12)
Models with navigation system
SAA1523
SAFETY NOTE CENTER MULTI-FUNCTION CONTROL PANEL
4-2Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


HOW TO USE INFINITI CONTROLLER
Choose an item on the display using the main
directional buttons
2(or additional directional
buttons
6with navigation system) or center
dial
3, and push the ENTERbutton1for
operation.
If you push the BACKbutton
4before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
4and return to the previous screen.
For the VOICEbutton
5functions, refer to the
separate Navigation System Owner’s Manual.
HOW TO USE TOUCH SCREEN (models
with navigation system)
CAUTION
● The glass screen on the liquid crystal display
may break if it is hit with a hard or sharp
object. If the glass breaks, do not touch the
liquid crystalline material, which contains a
small amount of mercury. In case of contact
with skin, wash immediately with soap and
water.
● To clean the display, use a soft, dry cloth. If
additional cleaning is necessary, use a small
amount of neutral detergent with a soft
cloth. Never use a rough cloth, alcohol, ben-
zine, thinner or any kind of solvent or paper
towel with a chemical cleaning agent. They
will scratch or deteriorate the panel.
● Do not splash any liquid such as water or car
fragrance on the display. Contact with liquid
will cause the system to malfunction. To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be “grayed out” or muted.
Park the vehicle in a safe location and then
operate the navigation system.
WARNING
●
ALWAYS give your full attention to driving.
● Avoid using vehicle features that could dis-
tract you. If distracted, you could lose con-
trol of your vehicle and cause an accident.
4-4Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


Manual operation
Fan speed control :
Push the fan speed increase “
”orde-
crease “
” buttons to manually control the
fan speed.
Push the “AUTO” button to return to automatic
control of the fan speed.
Air recirculation :
Push the intake air control button
“
” to recirculate interior air inside
the vehicle. The indicator light on the “
”
side will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrost-
ing mode “
”.
Outside air circulation :
Push the intake air control button
“
” to draw outside air into the
passenger compartment. The indicator light on
the “
” side will come on. Automatic intake air control :
In the AUTO mode, the intake air will be con-
trolled automatically. To manually control the
intake air, push the intake air control button
“
”. To return to the automatic con-
trol mode, push the intake air control button
“
” for about 2 seconds. The indi-
cator lights (both air recirculation and outside
air circulation sides) will flash twice, and then
the intake air will be controlled automatically.
Air flow control :
Pushing the “MODE” manual air flow control
button selects the air outlet to:
: Air flows from center and side ventila- tors.
: Air flows from center and side ventila-tors and foot outlets.
: Air flows mainly from foot outlets.
: Air flows from defroster and foot outlets.
To turn the system off :
Push the OFF button.
Monitor, climate, audio, phone and voice recognition systems4-31
—
—
04/21/10—debbie


1. ON·OFF/VOLUME control knob
2. Radio SCAN (tuning) button
3. RDM (random) RPT (repeat) play button4. Radio CAT (category)/REW (rewind) button
for SEEK/TRACK
5. Radio CAT (category)/FF (fast forward) but- ton for SEEK/TRACK 6. Radio tuning / MP3/WMA/AAC folder se-
lector / AUDIO control knob
7. CD EJECT button
8. Radio station preset buttons
No satellite radio reception is available unless
an XM Satellite Radio subscription is active.
The audio control buttons are also located on
the center multi-function control panel.
Type A
SAA2724
4-52Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


1. ON·OFF/VOLUME control knob
2. Radio PRESET A-B-C selector button
3. Radio SCAN (tuning)/CD RPT (repeat) playbutton 4. Radio CAT (category)/REW (rewind) button
for SEEK/TRACK
5. Radio CAT (category)/FF (fast forward) but- ton for SEEK/TRACK 6. Radio tuning / MP3/WMA folder selector /
AUDIO control knob
7. CD EJECT button
8. Radio station preset buttons
No satellite radio reception is available unless
an XM satellite radio service subscription is
active.
Type B
SAA2921
Monitor, climate, audio, phone and voice recognition systems4-53
—
—
04/21/10—debbie
