2010 INFINITI G-COUPE display

may be distorted momentarily until the rear-
view monitor screen is displayed completely.
● When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
● When strong light directly enters the cam-
era, objects may not be displayed clearly.
This is not a malfunction.
● Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
● The screen may flicker under fluorescent
light. This is not a malfunction.
● The colors of objects on the rearview monitor
may differ somewhat from those of the ac-
tual object.
● Objects on the monitor may not be clear in a
dark place or at night. This is not a malfunc-
tion.
● If dirt, rain or snow attaches to the camera,
the rearview monitor may not clearly display
objects. Clean the camera.
● Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth. ●
Do not damage the camera as the monitor
screen may be adversely affected.
● Do not use wax on the camera window. Wipe
off any wax with a clean cloth dampened
with mild detergent diluted with water.
Center ventilators
SAA1499
Side ventilators
SAA1500
VENTILATORS
Monitor, climate, audio, phone and voice recognition systems4-27
—
—
04/21/10—debbie

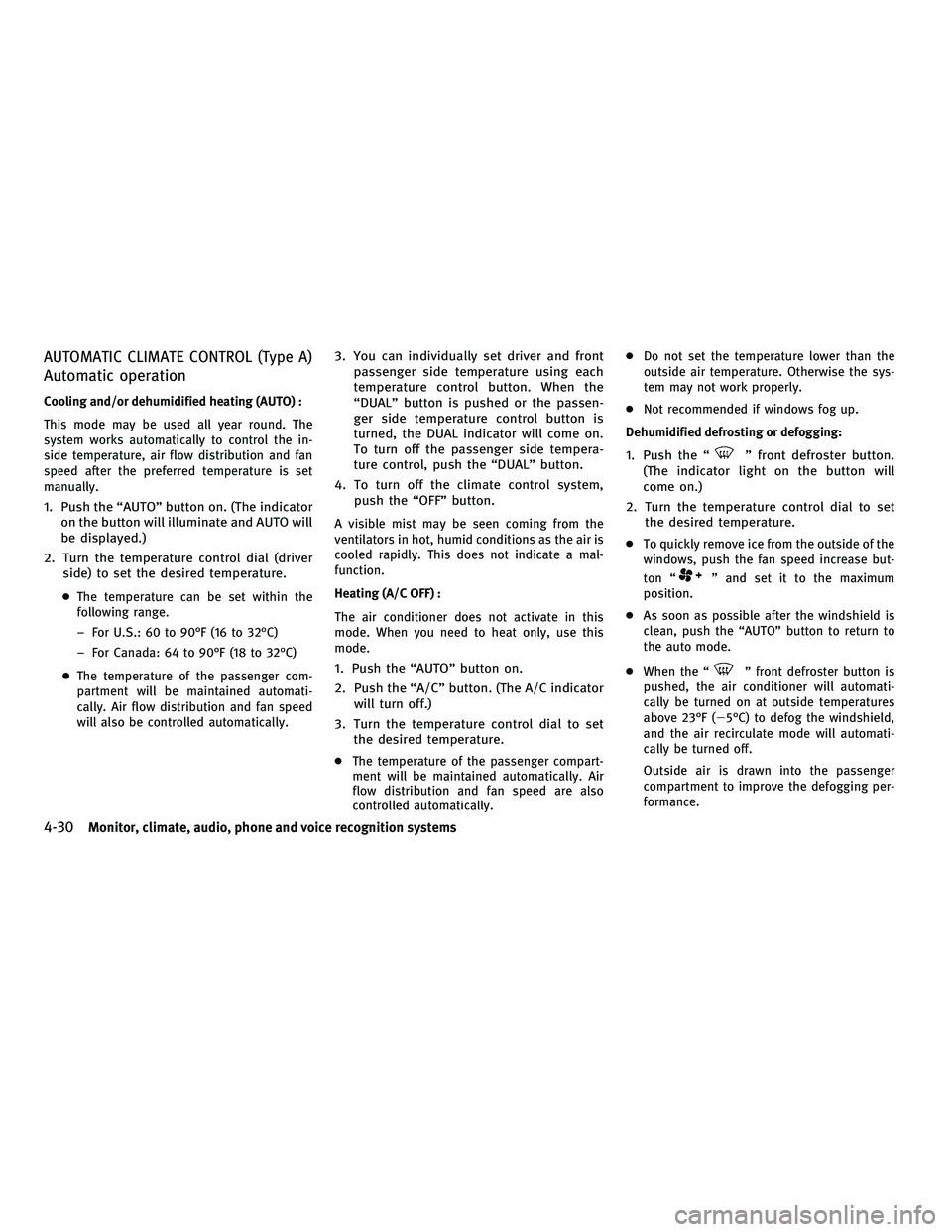

AUTOMATIC CLIMATE CONTROL (Type A)
Automatic operation
Cooling and/or dehumidified heating (AUTO) :
This mode may be used all year round. The
system works automatically to control the in-
side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicator
on the button will illuminate and AUTO will
be displayed.)
2. Turn the temperature control dial (driver side) to set the desired temperature.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control button. When the
“DUAL” button is pushed or the passen-
ger side temperature control button is
turned, the DUAL indicator will come on.
To turn off the passenger side tempera-
ture control, push the “DUAL” button.
4. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF) :
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicatorwill turn off.)
3. Turn the temperature control dial to set the desired temperature.
●The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically. ●
Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
● Not recommended if windows fog up.
Dehumidified defrosting or defogging:
1. Push the “” front defroster button.
(The indicator light on the button will
come on.)
2. Turn the temperature control dial to set the desired temperature.
●To quickly remove ice from the outside of the
windows, push the fan speed increase but-
ton “
” and set it to the maximum
position.
● As soon as possible after the windshield is
clean, push the “AUTO” button to return to
the auto mode.
● When the “
” front defroster button is
pushed, the air conditioner will automati-
cally be turned on at outside temperatures
above 23°F (5°C) to defog the windshield,
and the air recirculate mode will automati-
cally be turned off.
Outside air is drawn into the passenger
compartment to improve the defogging per-
formance.
4-30Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


1. “AUTO” automatic climate control ONbutton/Temperature control dial
2. Air flow control button
3. “
” Fan speed control dial
4. “OFF” button
5. “
” front defroster button
6. “
” rear window defroster button
(See “REAR WINDOW AND OUTSIDE MIR-
ROR DEFROSTER SWITCH” in the “2. In-
struments and controls” section.)
7. “
” intake air control button
AUTOMATIC CLIMATE CONTROL (Type B)
Automatic operation
Cooling and/or dehumidified heating (AUTO) :
This mode may be used all year round. The
system works automatically to control the in-
side temperature, air flow distribution and fan
speed after the preferred temperature is set
manually.
1. Push the “AUTO” button on. (The indicator
on the button will illuminate and AUTO will
be displayed.) 2. Use the temperature control dial to set
the desired temperature.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. To turn off the climate control system, push the “OFF” button.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C OFF) :
The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.
1. Push the “AUTO” button on.
2. Push the “A/C” button. (The A/C indicator will turn off.)
3. Turn the temperature control dial to set the desired temperature.
Type B
SAA1526
4-32Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


1. “AUTO” automatic operation button/Temperature control dial (driver side)
2. “A/C” air conditioner ON/OFF button
3. “
” fan speed increase button
4. “
” front defroster button
5. “MODE” manual air flow control button
6. “DUAL” zone control ON/OFF button/ Temperature control dial (passenger side)
7. “OFF” button for climate control system
8. “
” fan speed decrease button 9. “
” rear window defogger button
(See “REAR WINDOW AND OUTSIDE MIR-
ROR DEFROSTER SWITCH” in the “2. In-
struments and controls” section.)
10. “
” auto-recirculation
button/intake air control button
AUTOMATIC CLIMATE CONTROL (Type C)
Automatic operation (AUTO)
The AUTO mode may be used year-round as the
system automatically controls constant tem- perature, air flow distribution and fan speed
after the desired temperature is set manually.
To turn off the heater and air conditioner, push
the “OFF” button.
Cooling and dehumidified heating:
1. Push the “AUTO” button.
(The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light does not illumi- nate, push the “A/C” button.
(The A/C indicator light will illuminate.)
3. Turn the temperature control dial (driver’s side) to set the desired temperature.
●The temperature can be set within the
following range.
– For U.S.: 60 to 90°F (16 to 32°C)
– For Canada: 64 to 90°F (18 to 32°C)
● When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but- ton changes both the driver’s and front
passenger’s side temperature.
– Pushing the passenger’s side “DUAL” button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)Type C
SAA2972
4-34Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie


●To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
● To cancel the separate temperature set-
ting, push the “DUAL” button, the indica-
tor light turns off, and the driver’s side
temperature setting will be applied to
both the driver’s and front passenger’s
sides.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C off):
1. Push the “AUTO” button. (The AUTO indicator light will illuminate
and “AUTO” will appear on the display.)
2. If the A/C indicator light illuminates, push the “A/C” button.
(The A/C indicator light will turn off.)
3. Turn the temperature control dial to set the desired temperature.
●When the DUAL indicator light is turned
off:
– Pushing the driver’s side “AUTO” but- ton changes both the driver’s and front passenger’s side temperature.
– Pushing the passenger’s side “DUAL” button changes only the front passen-
ger’s side temperature. (The DUAL indi-
cator light will illuminate and “DUAL”
will appear on the display.)
● To set separate desired temperatures for
the driver and front passenger, push the
“DUAL” button, the indicator light illumi-
nates, and then turn the corresponding
temperature control dial.
● To cancel the separate temperature set-
ting, push the “DUAL” button, the indica-
tor light turns off, and the driver’s side
temperature setting will be applied to
both the driver’s and front passenger’s
sides.
● Do not set the temperature lower than the
outside air temperature. Doing so may
cause the temperature not to be con-
trolled properly.
● If the windows fog up, use dehumidified
heating instead of the A/C off heating. Dehumidified defrosting/defogging:
1. Push the “” button. (The indicator
light will illuminate.)
2. Turn the temperature control dial to set the desired temperature.
●To remove frost from the outside surface
of the windshield quickly, set the tem-
perature control and fan speed control to
their maximum position.
● After the windshield is cleared, push the
“AUTO” button to set to the automatic
mode.
● When the “
” button is pushed, the
air conditioner will automatically turn on
when the outside air temperature is
above 23°F (5°C) to defog the wind-
shield. The air recirculation mode will
automatically turn off. The outside air
circulation mode will be selected to im-
prove the defogging performance.
Monitor, climate, audio, phone and voice recognition systems4-35
—
—
04/21/10—debbie


Ion control :
This unit generates highly concentrated Plas-
macluster ions into the air blown from the
ventilators and reduces odor absorbed into the
interior trim.
When the air conditioner is turned on, the
system generates Plasmacluster ions automati-
cally.
The amount of Plasmacluster ions increases
according to the amount of air flow. When the
air flow is high, “
” is displayed on the
screen and when the air flow is low, the indica-
tion in the screen changes to “
”.
Exhaust gas detection sensor :
This vehicle is equipped with an exhaust gas
detection sensor. When the automatic intake air
control is ON, the sensor detects pollutants
such as CO and NO
2outside and the system
automatically changes from the outside air cir-
culation mode to the recirculation mode.
When the intake air control button is pushed
under the following conditions, the indicator
light on the “
” side will illuminate and the
exhaust gas detection sensor will turn on.
● The air flow control is not in the front
defogger mode (the indicator light on the
“
” front defogger button is turned off). ●
The outside temperature is about 32°F (0°C)
or more.
When the automatic intake air control is ON, for
the first 5 minutes, the recirculation mode is
selected to prevent dust, dirt and pollen from
entering the vehicle and cleans the air inside of
the vehicle with Plasmacluster ion that are
emitted from the ventilator.
After 5 minutes, the sensor detects exhaust gas
and automatically alternates between the recir-
culation mode and outside air circulation mode.
OPERATING TIPS
When the engine coolant temperature and out-
side air temperature are low, the air flow from
the foot outlets may not operate for a maximum
of 150 seconds. This is not a malfunction. After
the coolant temperature warms up, air will flow
normally from the foot outlets.Models with navigation system
SAA2734
Models without navigation system
SAA2735
Monitor, climate, audio, phone and voice recognition systems4-37
—
—
04/21/10—debbie


●During cold weather or rainy days, the player
may malfunction due to the humidity. If this
occurs, remove the CD and dehumidify or
ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD player sometimes cannot function
when the passenger compartment tempera-
ture is extremely high. Decrease the tem-
perature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” logo on the disc or packaging.
● Do not expose the CD to direct sunlight.
● CDs that are of poor quality, dirty, scratched,
covered with fingerprints, or that have pin
holes may not work properly.
● The following CDs may not work properly:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
● Do not use the following CDs as they may
cause the CD player to malfunction.
– 3.1 in (8 cm) discs
– CDs that are not round – CDs with a paper label
– CDs that are warped, scratched, or have
abnormal edges
● This audio system can only play prerecorded
CDs. It has no capabilities to record or burn
CDs.
● If the CD cannot be played, one of the
following messages will be displayed.
CHECK DISC: – Confirm that the CD is inserted correctly (the label side is facing up, etc.).
– Confirm that the CD is not bent or warped and it is free of scratches.
PUSH EJECT:
This is an error due to the temperature inside
the player is too high. Remove the CD by
pushing the EJECT button, and after a short
time reinsert the CD. The CD can be played
when the temperature of the player returns to
normal.
UNPLAYABLE:
The file is unplayable in this audio system
(only MP3 or WMA CD).
DVD (Digital Versatile Disc) player
(models with navigation system)
● Do not force a compact disc into the CD/DVD
insert slot. This could damage the CD/DVD
player.
LHA0484
Monitor, climate, audio, phone and voice recognition systems4-41
—
—
04/21/10—debbie


●During cold weather or rainy days, the player
may malfunction due to humidity. If this
occurs, remove the CD/DVD and dehumidify
or ventilate the player completely.
● The player may skip while driving on rough
roads.
● The CD/DVD player sometimes cannot func-
tion when the passenger compartment tem-
perature is extremely high. Decrease the
temperature before use.
● Only use high quality 4.7 in (12 cm) round
discs that have the “COMPACT disc DIGITAL
AUDIO” or “DVD Video” logo on the disc or
packaging.
● Do not expose the CD/DVD to direct sunlight.
● CD/DVDs that are of poor quality, dirty,
scratched, covered with fingerprints, or that
have pinholes may not work properly.
● The following CD/DVDs are not guaranteed
to play:
– Copy control compact discs (CCCD)
– Recordable compact discs (CD-R)
– Rewritable compact discs (CD-RW)
– Recordable DVDs (DVD±R, DVD±R DL)
– Rewritable DVDs (DVD±RW, DVD±RW DL) ●
Do not use the following CD/DVDs as they
may cause the CD/DVD player to malfunc-
tion.
– 3.1 in (8 cm) discs
– CD/DVDs that are not round
– CD/DVDs with a paper label
– CD/DVDs that are warped, scratched or have abnormal edges
– This audio system can only play prere- corded CD/DVDs. It has no capabilities to
record or burn CD/DVDs.
● If the CD/DVD cannot be played, one of the
following messages will be displayed.
Disc Read Error:
– Confirm that the CD/DVD is inserted cor- rectly (the label side is facing up, etc.).
– Confirm that the CD/DVD is not bent or warped and it is free of scratches.
Please Eject Disc: – This may be an error due to the tempera- ture inside the player being too high.
Remove the CD/DVD by pushing the EJECT
button, and after a short time reinsert the
CD/DVD. The CD/DVD can be played when
the temperature of the player returns to normal. If the error persists, consult your
local retailer.
Unplayable File: – The file may be copy protected.
– The file is not MP3, WMA, AAC, M4A or DivX type.
Region Invalid: – The DVD is not for region 1 or all regions. Use DVDs with a region code “1”, “ALL” or
“1 included” for your DVD entertainment
system. (The region code
Ais displayed
as a small symbol printed on the top of
the DVD
B.) This vehicle-installed DVD
player cannot play DVDs with a region
code other than “1” or “ALL”.
Copyright and trademark :
● The technology protected by the U.S. patent
and other intellectual property rights owned
by Macrovision Corporation and other right
holders is adopted for this system.
● This copyright protected technology cannot
be used without a permit from Macrovision
Corporation. It is limited to be personal use,
etc., as long as the permit from Macrovision
Corporation is not issued.
● Modifying or disassembling is prohibited.
4-42Monitor, climate, audio, phone and voice recognition systems
—
—
04/21/10—debbie
