2010 INFINITI G-COUPE engine

DIMENSIONS
IN (MM)
Sedan:Overall length (with front license plate) 187.2 (4,755)
Overall length (without front license plate) 187.0 (4,750)
Overall width 69.8 (1,773)
Overall height 57.2 (1,453)*1*2
57.8 (1,468)*3
Front tread 59.8 (1,520)
Rear tread 59.8 (1,520)*2
60.2 (1,530)*1*3
Wheelbase 112.2 (2,850)
Coupe: Overall length (with front license plate) 183.1 (4,650)
Overall length (without front license plate) 183.1 (4,650)
Overall width 71.8 (1,823)
Overall height 54.8 (1,391)*4*5
55.4 (1,406)*6
Front tread 60.8 (1,545)
Rear tread 61.4 (1,560)
Wheelbase 112.2 (2,850)
*1: Sedan/Two-Wheel Drive (2WD)/17-in tire models
*2: Sedan/Two-Wheel Drive (2WD)/18-in tire models
*3: Sedan/All-Wheel Drive (AWD) models
*4: Coupe/Two-Wheel Drive (2WD)/18-in tire models
*5: Coupe/Two-Wheel Drive (2WD)/19-in tire models
*6: Coupe/All-Wheel Drive (AWD) models
If you plan to travel in another country, you
should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your ve-
hicle to another country, state, province or dis-
trict, it may be necessary to modify the vehicle
to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into another
country, state, province or district and regis-
tered, its modifications, transportation, and reg-
istration are the responsibility of the user.
INFINITI is not responsible for any inconvenience
that may result.
WHEN TRAVELING OR REGISTERING YOUR
VEHICLE IN ANOTHER COUNTRY
Technical and consumer information9-11
—
—
04/21/10—debbie


VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
ENGINE SERIAL NUMBER
The number is stamped on the engine as
shown.
STI0431STI0492STI0509
VEHICLE IDENTIFICATION
9-12Technical and consumer information
—
—
04/21/10—debbie

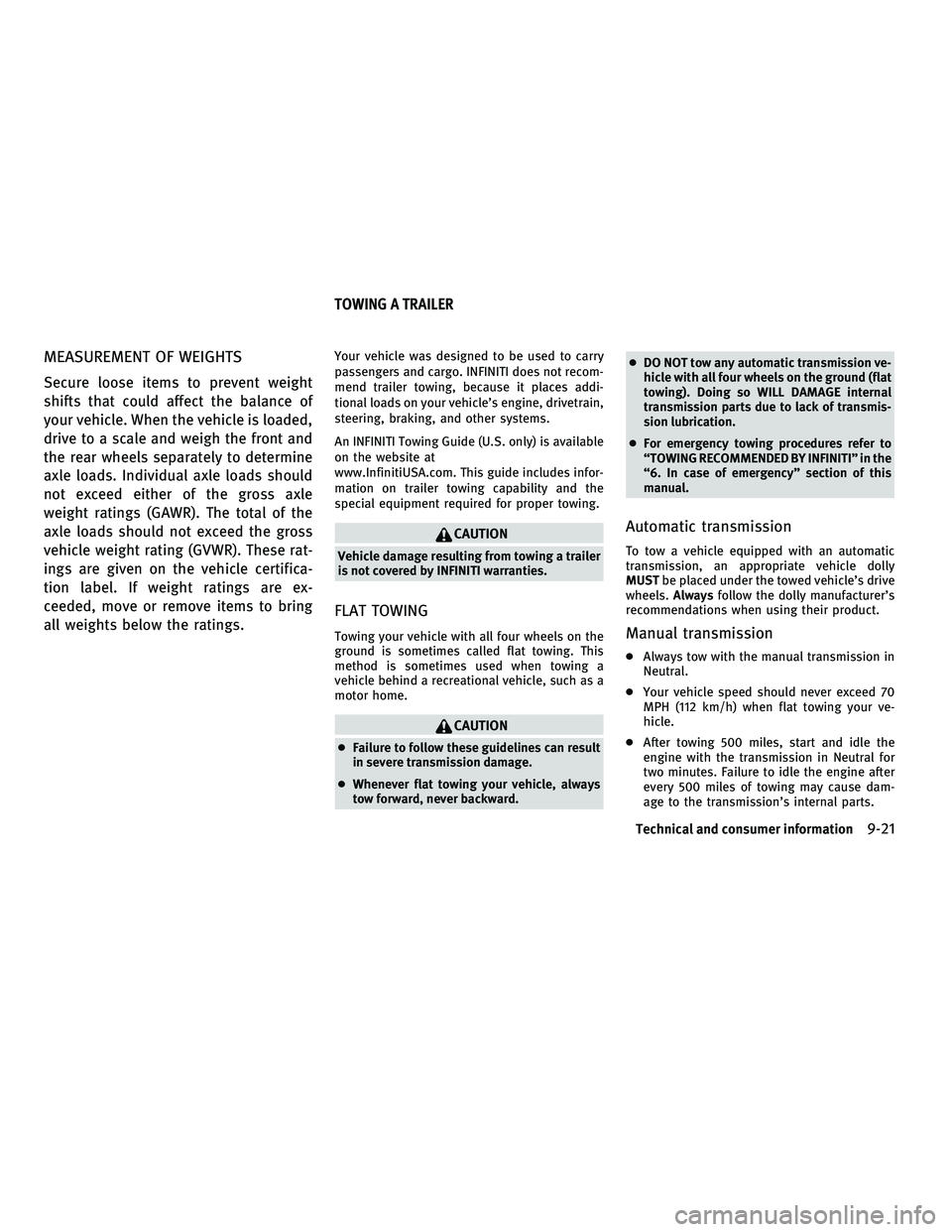

MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the gross axle
weight ratings (GAWR). The total of the
axle loads should not exceed the gross
vehicle weight rating (GVWR). These rat-
ings are given on the vehicle certifica-
tion label. If weight ratings are ex-
ceeded, move or remove items to bring
all weights below the ratings.
Your vehicle was designed to be used to carry
passengers and cargo. INFINITI does not recom-
mend trailer towing, because it places addi-
tional loads on your vehicle’s engine, drivetrain,
steering, braking, and other systems.
An INFINITI Towing Guide (U.S. only) is available
on the website at
www.InfinitiUSA.com. This guide includes infor-
mation on trailer towing capability and the
special equipment required for proper towing.
CAUTION
Vehicle damage resulting from towing a trailer
is not covered by INFINITI warranties.
FLAT TOWING
Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
●Failure to follow these guidelines can result
in severe transmission damage.
● Whenever flat towing your vehicle, always
tow forward, never backward. ●
DO NOT tow any automatic transmission ve-
hicle with all four wheels on the ground (flat
towing). Doing so WILL DAMAGE internal
transmission parts due to lack of transmis-
sion lubrication.
● For emergency towing procedures refer to
“TOWING RECOMMENDED BY INFINITI” in the
“6. In case of emergency” section of this
manual.
Automatic transmission
To tow a vehicle equipped with an automatic
transmission, an appropriate vehicle dolly
MUST be placed under the towed vehicle’s drive
wheels. Alwaysfollow the dolly manufacturer’s
recommendations when using their product.
Manual transmission
● Always tow with the manual transmission in
Neutral.
● Your vehicle speed should never exceed 70
MPH (112 km/h) when flat towing your ve-
hicle.
● After towing 500 miles, start and idle the
engine with the transmission in Neutral for
two minutes. Failure to idle the engine after
every 500 miles of towing may cause dam-
age to the transmission’s internal parts.
TOWING A TRAILER
Technical and consumer information9-21
—
—
04/21/10—debbie


A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/
areas, your vehicle may be required to be in
what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s
inspection/maintenance test readiness condi-
tion. Push the ignition switch to the ON position
without starting the engine. If the Malfunction
Indicator Light (MIL) comes on steady for 20
seconds and then blinks for 10 seconds, the I/Mtest condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
If the MIL indicates the vehicle is in a “not
ready” condition, drive the vehicle through the
following pattern to set the vehicle to the
“ready condition”. If you cannot or do not want
to perform the driving pattern, an INFINITI re-
tailer can conduct it for you.
WARNING
Always drive the vehicle in a safe and prudent
manner according to traffic conditions and
obey all traffic laws.
1. Start the engine. Allow the engine to idle
until the engine coolant temperature
gauge needle points between the C and H
(normal operating temperature).
2. Accelerate the vehicle to 55 MPH (88 km/h), then quickly release the accelera-
tor pedal completely and keep it released
for at least 10 seconds.
3. Quickly depress the accelerator pedal for a moment, then drive the vehicle at a
speed of 53 to 60 MPH (86 to 96 km/h) for
at least 9 minutes.
4. Stop the vehicle. Leave the engine run- ning. 5. Accelerate the vehicle to 55 MPH (88
km/h) and maintain the speed for 2 min-
utes.
6. Repeat steps 4 and 5 at least 10 times.
7. Quickly release the accelerator pedal completely and keep it released for at
least for 1 minute. Maintain the speed for
at least 5 minutes.
8. Stop the vehicle. Place the automatic transmission selector lever in the P (Park)
or N (Neutral) position or the manual
transmission shift lever in the N (Neutral)
position.
9. Turn the engine off.
10. Start the engine and allow the engine to idle for at least 2 hours.
11. Place the ignition switch to the OFF posi- tion and leave the vehicle for at least 90
minutes.
If step 1 through 7 is interrupted, repeat the
preceding step. Any safe driving mode is ac-
ceptable between steps. Do not stop the engine
until step 7 is completed.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)
9-24Technical and consumer information
—
—
04/21/10—debbie


10 Index
4 Wheel Active Steer (4WAS) system.....5-544 Wheel Active Steer (4WAS) warning light . .2-13
A
ABS (Anti-lock Braking System) ........5-52
Advanced air bag system ...........1-45
Air bag system Advanced air bag system .........1-45
Front passenger air bag and status
light ..................... 1-47
Front-seat mounted side-impact
supplemental air bag system .......1-50
Roof-mounted curtain side-impact
supplemental air bag system .......1-50
Air bag warning labels .............1-53
Air bag warning light ..........1-53 , 2-16
Air cleaner housing filter ...........8-17
Air conditioner Air conditioner service ...........4-38
Air conditioner specification label ....9-14
Air conditioning system refrigerant and
lubricant recommendations .......4-38
Automatic climate control ........4-28
In-cabin microfilter ............4-38
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) .........2-28
Alcohol, drugs and driving ...........5-6
All-wheel drive (AWD) .............5-43 All-wheel drive (AWD) driving safety
precautions
................... .5-7
All-wheel drive (AWD) warning light .....2-12
Antenna .................... .4-84
Anti-lock Braking System (ABS) ........5-52
Anti-lock braking system (ABS) warning
light ...................... .2-12
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Armrest .................... .1-12
Ashtrays (See cigarette lighter
and ashtrays) ................. .2-42
Audible reminders .............. .2-18
Audio operation precautions .........4-39
Audio system ................. .4-39
Audio system, Steering wheel
audio controls ................ .4-83
Autolight system ............... .2-33
Automatic Automatic adjusting function (front
windows) ................. .2-52
Automatic

climate control ........4-30
Automatic transmission fluid (ATF) ....8-11
Climate control .............. 4-28
Driving with automatic transmission . . . 5-12
Automatic door locks ..............3-6
Automatic drive positioner ..........3-28
Automatic seat positioner...........3-28
Average fuel consumption and speed . . . .2-25
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-13
Battery Battery saver system ............2-35
Intelligent Key ............... 8-22
Variable voltage control system .....8-15
Before starting the engine ...........5-10
Belts (See drive belts) .............8-16
Bluetooth hands-free phone system
(models with navigation system) .......4-85
Booster seats ................. .1-35
Brake Anti-lock Braking System (ABS) ......5-52
Brake and clutch fluid ...........8-12
Brake system ............... 5-48
Parking brake operation . . . ......5-18
Brake warning light ............. .2-12
Break-in schedule .............. .5-42
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-36
Bulb check/instrument panel . . . ......2-11
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-38
Capacities and recommended
fuel/lubricants ................. .9-2
—
—
04/30/10—diane


Car phone or CB radio.............4-85
Card holder .................. .2-47
Cargo net retainers ............. .2-49
Catalytic converter, Three way catalyst . . . .5-2
Center multi-function control panel ......4-2
Child restraints ................ .1-20
Child restraints Booster seats ............... .1-35
Installation using LATCH .........1-25
Installation using the seat belts .....1-29
LATCH system ............... 1-22
Precautions on child restraints ......1-21
Top tether strap .............. 1-24
Child safety .................. .1-15
Child safety rear door lock ...........3-6
Chimes Audible reminders .............2-18
Seat belt warning light and chime ....2-16
Cigarette lighter and ashtrays ........2-42
Circuit breaker, Fusible link ..........8-21
Cleaning exterior and interior ......7-2 , 7-4
Climate control, Automatic
climate control ................ .4-28
Clock ..................... .2-40
Clutch fluid .................. .8-12
Coat hooks .................. .2-48
Cockpit ..................... .2-2
Cold weather driving ............. .5-55
Command (See Bluetooth Hands-Free
Phone System) .............4-87 , 4-101
Compact Disc (CD) player
(See audio system) .............. .4-57
Compact spare tire .............. .8-39
Compass .................... .2-8
Console box ................. .2-45Controller, Center multi-function control
panel
...................... .4-4
Controls Control panel button (display) .......4-2
Heater

and air conditioner controls
(See automatic climate control) .....4-28
Coolant Capacities and recommended fuel/
lubricants .................. .9-2
Changing engine coolant .........8-8
Checking engine coolant level .......8-7
Corrosion protection ..............7-6
Cruise control ................. .5-19
Cruise control Fixed speed cruise control (on ICC
system) .................. .5-38
Intelligent cruise control (ICC) system . . 5-21
Cruise indicator ............... .2-22
Cup holders .................. .2-43
Current fuel consumption ...........2-25
D
Daytime running light system .........2-35
Defroster switch, Rear window and outside
mirror defroster switch ............2-32
Dimensions .................. .9-11
Display cleaning ................ .4-6
Display controls (See center multi-function
control panel) ................. .4-2
Distance to empty .............. .2-25
Door/trunk open warning ...........2-22
Dot matrix liquid crystal display .......2-19
Drive belts .................. .8-16
Drive positioner ............... .3-28Driving
All-wheel drive (AWD) ...........5-43
Cold weather driving ...........5-55
Driving with automatic transmission . . . 5-12
Driving with manual transmission ....5-16
Precautions when starting and driving . . 5-2
DS (Drive Sport) mode .............5-14
E
Economy, Fuel ................ .5-42
Elapsed time ................. .2-25
Elapsed time and trip odometer .......2-25
Emission control information label . . . . . .9-13
Emission control system warranty ......9-23
Engine Before starting the engine .........5-10
Break-in schedule ............. 5-42
Capacities and recommended fuel/
lubricants ..................
9-2
Changing engine coolant . . . . . . . . . 8-8
Changing engine oil and filter .......8-9
Checking engine coolant level .......8-7
Checking engine oil level . . . . . . . . . 8-8
Engine block heater ............5-56
Engine compartment check locations . . . 8-6
Engine cooling system ...........8-7
Engine oil ..................8-8
Engine oil and oil filter recommendation . 9-6
Engine oil replacement indicator ....2-23
Engine oil viscosity .............9-6
Engine serial number ...........9-12
Engine specifications ............9-8
Engine start operation indicator
(Automatic Transmission models) ....2-21
10-2
—
—
04/30/10—diane


Engine start operation indicator (Manual
Transmission models)...........2-22
If your vehicle overheats .........6-10
Starting the engine ............. 5-11
Engine coolant temperature gauge ......2-6
Entry/exit function .............. .3-28
Event Data Recorders (EDR) ..........9-25
Exhaust gas (carbon monoxide) ........5-2
F
F.M.V.S.S./C.M.V.S.S. certification label . . .9-13
Filter Air cleaner housing filter .........8-17
Changing engine oil and filter .......8-9
Flashers (See hazard warning
flasher switch) ................ .2-37
Flat tire ..................... .6-2
Flat towing .................. .9-21
Floor mat cleaning ............... .7-5
Fluid Automatic transmission fluid (ATF) . . . .8-11
Brake and clutch fluid ...........8-12
Capacities and recommended fuel/
lubricants ..................9-2
Engine coolant ...............8-7
Engine oil ..................8-8
Power steering fluid ............8-11
Window washer fluid ...........8-13
FM-AM-SAT radio with Compact Disc (CD)
player ..................... .4-54
Fog light switch ............... .2-37
Front passenger air bag and status light . .1-47
Front power seat adjustment ..........1-3
Front seat, Front seat adjustment .......1-3Front-seat active head restraints
.......1-11
Fuel Capacities and recommended fuel/
lubricants .................. .9-2
Fuel economy ............... 5-42
Fuel economy information (display) ....4-9
Fuel octane rating .............9-4
Fuel recommendation ...........9-4
Fuel-filler cap ................ 3-21
Fuel-filler door ............... 3-21
Gauge ....................2-7
Fuses ..................... .8-20
Fusible links ................. .8-21
G
Garage

door opener, HomeLink Universal
Transceiver .................. .2-57
Gascap .................... .3-21
Gauge ...................... .2-4
Gauge Engine coolant temperature gauge . . . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ................2-5
Tachometer .................2-6
Trip computer ............... 2-24
General maintenance ..............8-2
Glove box ................... .2-45
Golf bag stowing ............... .2-48 H
Hands-free phone system, Bluetooth
(with navigation system) ...........4-85
Hands-free phone system, Bluetooth
(without navigation system) .........4-96
Hazard warning flasher switch . . ......2-37
Head restraints ................. .1-9
Headlights Bulb replacement .............8-25
Headlight switch .............. 2-33
Xenon headlights ............. 2-32
Heated seats ................. .2-38
Heater Automatic climate control .........4-28
Engine block heater ............5-56
HomeLink Universal Transceiver .......2-57
Hood release ................. .3-17
Hook, Coat hooks .............. .2-48
Horn ...................... .2-38
Ignition switch Automatic transmission models ......5-12
Manual transmission models . . . . . . . 5-16
I
Ignition switch (Push-button) ..........5-7
Immobilizer system ............. .2-29
In-cabin microfilter .............. .4-38
Indicator

lights ................ .2-16
Indicator, Dot matrix display .........2-19
INFINITI Vehicle Immobilizer System .....2-29
INFINITI voice recognition standard
mode ..................... .4-109
10-3
—
—
04/30/10—diane


INFINITI voice recognition system......4-109
INFO button .................. .4-8
Inside mirror ................. .3-25
Inspection/maintenance (I/M) test ......9-24
Instrument brightness control ........2-36
Instrument panel ............... .2-3
Intelligent cruise control (ICC) system . . . .5-21
Intelligent cruise control (ICC) system main
switch indicator ............... .2-23
Intelligent Cruise Control (ICC) system
warning light ................. .2-14
Intelligent cruise control (ICC) system,
Preview function ............... .5-42
Intelligent Key ................. .3-2
Intelligent Key battery discharge
indicator .................... .2-22
Intelligent Key insertion indicator ......2-21
Intelligent Key removal indicator .......2-21
Intelligent Key system ..............3-7
Intelligent Key system Battery replacement ............8-22
Key operating range ............3-8
Key operation ............... 3-10
Warning light ................ 2-14
Warning signals .............. 3-12
Intelligent Key warning light .........2-14
Interior light control switch ..........2-55
Interior light replacement ...........8-25
Interior lights ................. .2-54
Interior trunk lid release ...........3-20
iPod player operation .............4-71
ISOFIX child restraint ............. .1-22 J
Jump starting .................. .6-7
K
Keyless entry (See remote keyless entry
system) .................... .3-14
Keys ....................... .3-2
Keys, For Intelligent Key system ........3-7
Labels Air bag warning labels ...........1-53
Air conditioner specification label ....9-14
Emission
control information label ....9-13
Engine serial number ...........9-12
F.M.V.S.S./C.M.V.S.S. certification
label ..................... 9-13
Tire and Loading information label . . . 9-14
Vehicle identification number (VIN) . . . 9-12
L
LATCH system ................. .1-22
License plate, Installing front license plate .9-15
Light Air bag warning light ............1-53
Bulb replacement ............. 8-23
Fog light switch .............. 2-37
Headlight switch .............. 2-33
Headlights bulb replacement .......8-25
Indicator lights ............... 2-16
Interior light control switch ........2-55
Interior lights ............... 2-54Map lights
................. 2-54
Trunk light ................. 2-56
Vanity mirror lights ............2-56
Warning/indicator lights and audible
reminders .................. 2-12
Xenon headlights ............. 2-32
Light replacement .............. .8-23
Lights, Exterior and interior light
replacement ................. .8-25
Loading information (See vehicle loading
information) .................. .9-17
Lock Automatic door locks ............3-6
Door locks ..................3-4
Power door lock ...............3-4
Trunk lid .................. 3-18
Locking with mechanical key ..........3-4
Low fuel warning ............... .2-22
Low outside temperature warning ......2-22
Low tire pressure warning light . . ......2-14
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) .....5-3
Low washer fluid warning ...........2-22
Maintenance Battery ................... .8-13
General maintenance ............8-2
Indicators for maintenance
(dot
matrix) ................ 2-23
Inside the vehicle ..............8-3
Maintenance precautions .........8-5
Maintenance requirements . . ......8-2
Outside the vehicle .............8-2
Seat belt maintenance ..........1-20
10-4
—
—
04/30/10—diane
