2010 INFINITI G-CONVERTIBLE ECO mode

Skip (Previous chapter)
Select the “
” key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the “
” key is se-
lected.
List
Select the “List” key on the movie file operation
screen to display the file list.
Settings
Select the “Settings” key to adjust the following
settings.
●Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains the audio files.
● Play Mode
Select the “Normal” or “1 Track Repeat” play
mode. ●
10 Key Search
Select the “10 Key Search” key to open the
number entry screen.
Input the number to be searched and select
the “OK” key.
The specified folder/file will be played.
● Display
To adjust the image quality of the screen,
select the preferred adjustment items.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Select the preferred language for audio.
● Subtitle
Select the preferred language for subtitle.
● Display Mode
Select the “Normal”, “Wide”, “Cinema” or
“Full” mode.
Example
SAA2504
4-60Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks


BLUETOOTHSTREAMING AUDIO
(models with navigation system)
Your INFINITI is equipped with Bluetooth Stream-
ing Audio. If you have a compatible Bluetooth
device with streaming audio (A2DP profile), you
can set up the wireless connection between your
Bluetooth device and the in-vehicle audio sys-
tem. This connection allows you to listen to the
audio from the Bluetooth device using your
vehicle speakers. It also may allow basic control
of the device for playing and skipping audio files
using the AVRCP Bluetooth profile. All Bluetooth
Devices do not have the same level of controls for
AVRCP. Please consult the manual for your
Bluetooth Device for more details.
Once your Bluetooth device is connected to
the in-vehicle audio system, it will automati-
cally reconnect whenever the device is present
in the vehicle and you select Bluetooth Audio
from your audio system. You do not need to
manually reconnect for each usage.
Regulatory information
FCC Regulatory information
– CAUTION: To maintain compliance with FCC’s RF exposure guidelines, use only the sup-
plied antenna. Unauthorized antenna, modi-
fication, or attachments could damage the
transmitter and may violate FCC regulations. – Operation is subject to the following two
conditions:
1) This device may not cause interference and
2) This device must accept any interference, including interference that may cause
undesired operation of the device
IC Regulatory information
– Operation is subject to the following two conditions:
1) This device may not cause interference, and
2) This device must accept any interference, including interference that may cause
undesired operation of the device.
– This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations.
Bluetooth trademark:Bluetooth is a trademark
owned by Bluetooth SIG,
Inc. and licensed to
Clarion Co., Ltd.
Connecting procedure
1. Push the SETTING button and select the “Bluetooth” key.
SAA2505
Monitor, climate, audio, phone and voice recognition systems4-61
—
—
10/15/09—tbrooks

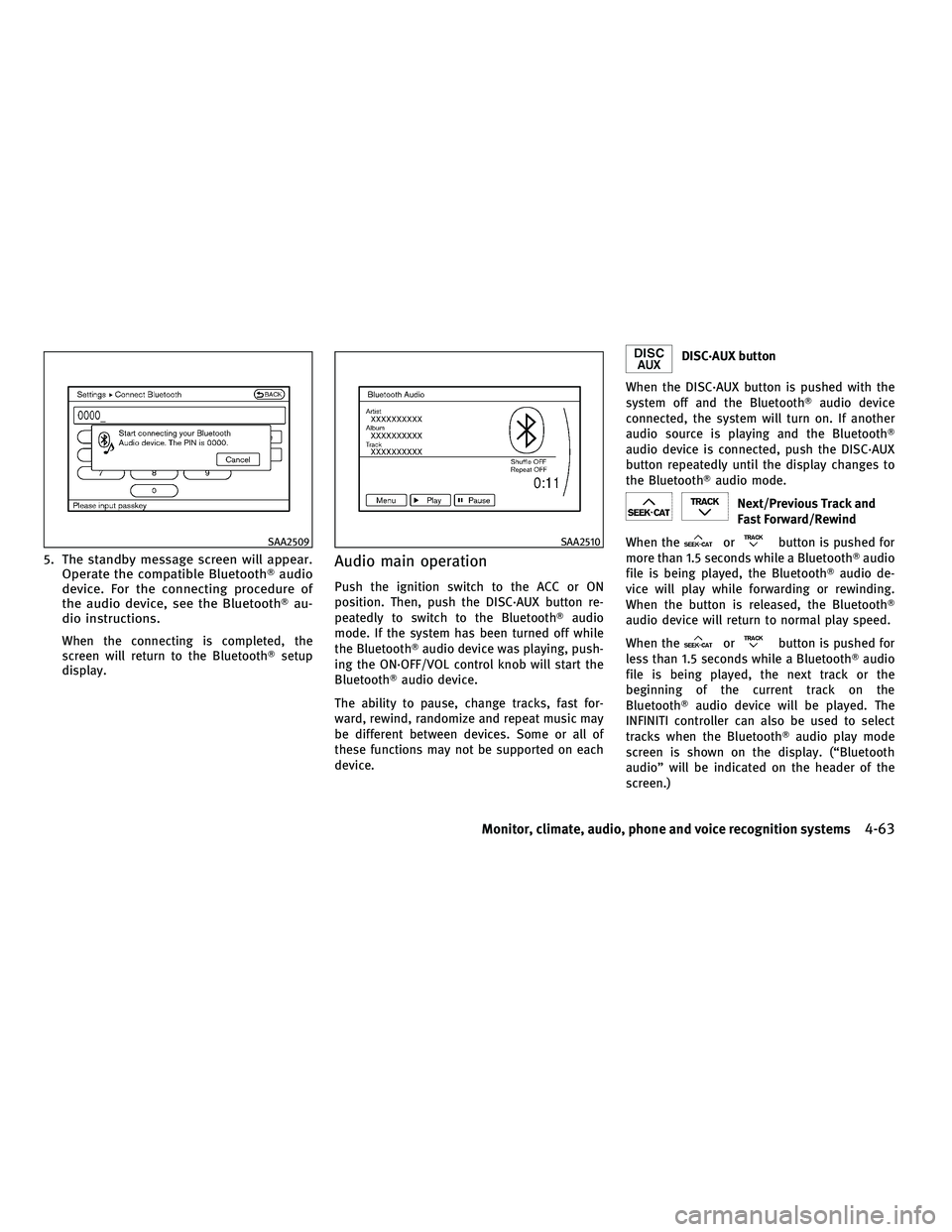

5. The standby message screen will appear.Operate the compatible Bluetooth audio
device. For the connecting procedure of
the audio device, see the Bluetooth au-
dio instructions.
When the connecting is completed, the
screen will return to the Bluetooth setup
display.
Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX button re-
peatedly to switch to the Bluetooth audio
mode. If the system has been turned off while
the Bluetooth audio device was playing, push-
ing the ON·OFF/VOL control knob will start the
Bluetooth audio device.
The ability to pause, change tracks, fast for-
ward, rewind, randomize and repeat music may
be different between devices. Some or all of
these functions may not be supported on each
device.
DISC·AUX button
When the DISC·AUX button is pushed with the
system off and the Bluetooth audio device
connected, the system will turn on. If another
audio source is playing and the Bluetooth
audio device is connected, push the DISC·AUX
button repeatedly until the display changes to
the Bluetooth audio mode.
Next/Previous Track and
Fast Forward/Rewind
When the
orbutton is pushed for
more than 1.5 seconds while a Bluetooth audio
file is being played, the Bluetooth audio de-
vice will play while forwarding or rewinding.
When the button is released, the Bluetooth
audio device will return to normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while a Bluetooth audio
file is being played, the next track or the
beginning of the current track on the
Bluetooth audio device will be played. The
INFINITI controller can also be used to select
tracks when the Bluetooth audio play mode
screen is shown on the display. (“Bluetooth
audio” will be indicated on the header of the
screen.)
SAA2509SAA2510
Monitor, climate, audio, phone and voice recognition systems4-63
—
—
10/15/09—tbrooks


REPEAT (RPT), RANDOM (RDM)
To change the play mode, push the
button repeatedly and the mode changes as
follows.
Normal →Shuffle All Tracks →Shuffle Group →
Repeat 1 Track →Repeat All Tracks →Repeat
Group →Normal
Operation keys
To operate a Bluetooth audio device, select a
key displayed on the operation screen using the
INFINITI controller.
Play
Select the “
” key to start playing when
pausing. Select this key again to pause the
audio play.
Pause
Select the “
” key to pause the Bluetooth
audio device. Select this key again to resume
playing. Play Mode
The play mode setting display will appear when
the “Menu” key is selected.
Choose the preferred play mode from the fol-
lowing items.
●
Shuffle
Choose “Shuffle OFF”, “Shuffle All Tracks”
and “Shuffle Group”.
● Repeat
Choose from “Repeat OFF”, “Repeat 1 Track”,
“Repeat All Tracks” and “Repeat Group”.
Bluetooth settings
To set up the Bluetooth device system to the
preferred settings, push the SETTING button
and select the “Bluetooth” key.
Bluetooth
If this setting is turned off, the connection
between the Bluetooth devices and the in-
vehicle Bluetooth module will be canceled.
Connect Bluetooth
Connects to the Bluetooth device. See “Con-
necting procedure” earlier in this section. Up to
5 devices can be registered.
SAA2511
4-64Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks


Connected Devices
Registered devices are shown on the list. Select
a Bluetoothdevice from the list, the following
options will be available.
● Select
Select “Select” to connect the selected de-
vice to the vehicle. If there is a different
device currently connected, the selected de-
vice will replace the current device.
● Edit
Rename the selected Bluetooth device us-
ing the keypad displayed on the screen. (See
“HOW TO USE TOUCH SCREEN (models with
navigation system)” earlier in this section.)
● Delete
Delete the selected Bluetooth device.
Edit Bluetooth Info
Change the name broadcasted by this system
over Bluetooth. Change the PIN code that is
entered when connecting a hands free device to
this system.
Replace Connected Phone
Replace the Bluetooth connection with a con-
nected Bluetooth cellular phone. For details
about Hands-Free Phone System, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM (mod-
els with navigation system)” later in this section.
IPOD PLAYER OPERATION (if so
equipped)
Connecting iPod
Open the console lid and connect the iPod
cable to the USB connector. If compatible, the
battery of the iPod is charged while the con-
nection to the vehicle.
Depending on the version of the iPod, the
display on the iPod shows an INFINITI or
Accessory Attached screen when the connection
is completed. When the iPod is connected to
the vehicle, the iPod music library can only be
operated by the vehicle audio controls.
* iPod is a trademark of Apple Inc., registered
in the U.S. and other countries.
Compatibility
The following models are available:
Models with navigation system
● Fifth generation iPod (version 1.2.3 or later)
● iPod Classic (version 1.1.1 or later)
● First generation iPod touch (version 2.0.0
or later)
● Second generation iPod touch (version
1.2.3 or later)
Automatic transmission models
SAA2974
Manual transmission models
SAA2426
Monitor, climate, audio, phone and voice recognition systems4-65
—
—
10/15/09—tbrooks


●First generation iPod nano (version 1.3.1 or
later)
● Second generation iPod nano (version 1.1.3
or later)
● Third generation iPod nano (version 1.1 or
later)
● Fourth generation iPod nano (version 1.0.2
or later)
Models without navigation system
● Fifth generation iPod (firmware version 1.3)
● First generation iPod Classic (firmware ver-
sion 1.1.2 PC)
● Second generation iPod Classic (firmware
version 2.0 PC)
● First generation iPod touch (firmware ver-
sion 2.1)
● Second generation iPod touch (firmware
version 2.1.1)
● First generation iPod nano (firmware ver-
sion 1.3.1)
● Second generation iPod nano (firmware
version 1.1.3)
● Third generation iPod nano (firmware ver-
sion 1.1 PC)
Make sure that the iPod version is updated.Audio main operation
Push the ignition switch to the ACC or ON
position. Then, push the DISC·AUX or DISC
button repeatedly to switch to the iPod mode.
If the system has been turned off while the
iPod was playing, pushing the ON·OFF button
will start the iPod.
orPLAY
When the DISC·AUX or AUX button is pushed
with the system off and the iPod connected,
the system will turn on. If another audio source
is playing and the iPod is connected, push the
DISC·AUX or AUX button repeatedly until the
center display changes to the iPod mode.
Interface
The interface for iPod operation shown on the
vehicle center display is similar to the iPod
interface. Use the INFINITI controller and the
ENTER or BACK button to play the iPod with
your favorite settings. The following items can be chosen from the
menu list screen. For further information about
each item, see the iPod
Owner’s Manual.
● Now Playing
● Playlists
● Artists
● Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following touch-panel buttons shown on
the screen are also available:
●
: returns to the previous screen.
●
: plays/pauses the music selected.
4-66Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks


Next/Previous Track and
Fast Forward/Rewind
When the
orbutton is pushed for
more than 1.5 seconds while the iPod is play-
ing, the iPod will play while fast forwarding or
rewinding. When the button is released, the
iPod will return to the normal play speed.
When the
orbutton is pushed for
less than 1.5 seconds while the iPod is play-
ing, the next track or the beginning of the
current track on the iPod will be played.
The INFINITI controller can also be used to
select tracks when the iPod is playing.
REPEAT (RPT), RANDOM (RDM)
When the RPT button is pushed while a track is
being played, the play pattern can be changed
as follows:
MUSIC BOX®(if so equipped)
The Music Box hard-disk drive audio system
can store songs from CDs being played. The
system has a 9.3 gigabyte (GB) storage capacity
(models with navigation system) or a 2.0 GB
(800 MB for music storage) (without navigation
system).
The following CDs can be recorded in the “Mu-
sic Box” hard-disk drive audio system.
● CDs that contain uncompressed audio files
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs
● Compact Disc Digital Audio (CD-DA) specifi-
cation in CD-Extras
● First session of multisession disc
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect the
performance of the hard-disk. NOTE:
If the hard-disk needs to be replaced due to a
malfunction, all stored music data will be
erased.
Monitor, climate, audio, phone and voice recognition systems4-67
—
—
05/12/10—tbrooks


Recording CDs
1. Operate the audio system to play a CD. Forthe details of playing CDs, see “Compact
Disc (CD) player operation” earlier in this
section.
2. Select the “Start REC” or “REC” key.
NOTE:
● The system starts playing and recording the
1st track on the CD when the “Start REC” or
“REC” key is selected.
● The recording process can be stopped at any
time. All tracks that were played before the
CD was stopped are stored.
● Individual tracks can be deleted from the
hard-disk drive after the CD is recorded.
● The order of the tracks may not be changed
while recording.
Models with navigation system
SAA2513
Models without navigation system
SAA2612
Models with navigation system
SAA2514
Models without navigation system
SAA2613
4-68Monitor, climate, audio, phone and voice recognition systems
—
—
10/15/09—tbrooks
