DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of alcohol or
drugs. Alcohol in the bloodstream reduces co-
ordination, delays reaction time and impairs
judgement. Driving after drinking alcohol in-
creases the likelihood of being involved in an
accident injuring yourself and others. Addition-
ally, if you are injured in an accident, alcohol
can increase the severity of the injury.
INFINITI is committed to safe driving. However,
you must choose not to drive under the influ-
ence of alcohol. Every year thousands of people
are injured or killed in alcohol-related acci-
dents. Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of alco-
hol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs). Don’t drive if
your ability to operate your vehicle is impaired
by alcohol, drugs, or some other physical con-
dition.
WARNING
Do not operate the push-button ignition switch
while driving the vehicle except in an emer-
gency. (The engine will stop when the ignition
switch is pushed 3 consecutive times or the
ignition switch is pushed and held for more
than 2 seconds.) If the engine stops while the
vehicle is being driven, this could lead to a
crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the selector lever to the
P (Park) position (for automatic transmission
model) or the shift lever to the N (Neutral)
position (for manual transmission model).
OPERATING RANGE FOR ENGINE
START FUNCTION
The Intelligent Key can only be used for starting
the engine when the Intelligent Key is within the
specified operating range
1.
When the Intelligent Key battery is almost dis-
charged or strong radio waves are present near
the operating location, the Intelligent Key sys-
tem’s operating range becomes narrower and
may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even someone
who does not carry the Intelligent Key, to push
the ignition switch to start the engine.
SSD0872
PUSH-BUTTON IGNITION SWITCH
Starting and driving5-7
—
—
10/15/09—tbrooks


3. Push the ignition switch to the ON posi-tion. Depress the brake pedal (AT model)
or the clutch pedal (MT model) and push
the ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal or the clutch pedal (MT model)
with the ignition switch in any position.
●If the engine is very hard to start in
extremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the
accelerator pedal when the engine starts.
● If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON posi-
tion to start cranking the engine. After 5
or 6 seconds, stop cranking by pushing
the ignition switch to OFF. After cranking
the engine, release the accelerator pedal.
Crank the engine with your foot off the
accelerator pedal by depressing the brake
pedal and the clutch pedal (MT model)
and pushing the push-button ignition
switch to start the engine. If the engine
starts, but fails to run, repeat the above
procedure.
CAUTION
Do not operate the starter for more than 15
seconds at a time. If the engine does not start,
push the ignition switch to OFF and wait 10
seconds before cranking again, otherwise the
starter could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather. In cold weather, keep the
engine running for a minimum of2-3
minutes before shutting it off. Starting and
stopping the engine over a short period of
time may make the vehicle more difficult to
start.
When racing the engine up to 4,000 rpm or
more under no load condition, the engine
will enter the fuel cut mode.
5. To stop the engine, shift the selector lever
to the P (Park) position (AT model) or
move the shift lever to the N (Neutral)
position (MT model), and push the igni-
tion switch to the OFF position.
AUTOMATIC TRANSMISSION
7 speed automatic transmission
The automatic transmission in your vehicle is
electronically controlled by a transmission con-
trol module to produce maximum efficiency and
smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum
vehicle performance and driving enjoyment.
Starting the vehicle
After starting the engine, fully depress the foot
brake pedal and push the selector lever button
before shifting the selector lever to the R (Re-
verse), N (Neutral), D (Drive), DS (Drive Sport) or
Manual shift mode position. Be sure the vehicle
is fully stopped before attempting to shift the
selector lever.
This automatic transmission model is designed
so that the foot brake pedal must be depressed
before shifting from P (Park) to any drive posi-
tion while the ignition switch position is ON.
The selector lever cannot be moved out of the P
(Park) position and into any of the other gear
positions if the ignition switch is pushed to the
LOCK, OFF or ACC position.
DRIVING THE VEHICLE
Starting and driving5-11
—
—
10/15/09—tbrooks


1. Keep the foot brake pedal depressed andpush the selector lever button to shift into
a driving gear.
2. Release the parking brake and foot brake, then gradually start the vehicle in motion.
WARNING
●Do not depress the accelerator pedal while
shifting from P (Park) or N (Neutral) to R (Re-
verse), D (Drive), DS (Drive Sport) or manual
shift mode. Always depress the brake pedal
until shifting is completed. Failure to do so
could cause you to lose control and have an
accident.
● Cold engine idle speed is high, so use cau-
tion when shifting into a forward or reverse
gear before the engine has warmed up.
● Never shift to P (Park) or R (Reverse) while
vehicle is moving forward. Never shift to P
(Park), D (Drive) or DS (Drive Sport) while
vehicle is moving rearward. Failure to do so
could cause you to lose control and have an
accident.
CAUTION
● When stopping the vehicle on an uphill
grade, do not hold the vehicle by depressing
the accelerator pedal. The foot brake should
be used for this purpose.
● Do not downshift abruptly on slippery roads.
This may cause a loss of control.
Shifting
To move the selector lever,
: Push the button while depressing the
brake pedal,
: Push the button,
: Just move the selector lever.
After starting the engine, fully depress the
brake pedal and shift the selector lever from P
(Park) to R (Reverse), N (Neutral), D (Drive), DS
(Drive Sport) or Manual shift mode position.
Selector lever
SSD0596
5-12Starting and driving
—
—
10/15/09—tbrooks


Push the button to shift into P (Park) or R
(Reverse). All other positions can be selected
without pushing the button.
WARNING
Apply the parking brake if the selector lever is
in any position while the engine is not running.
Failure to do so could cause the vehicle to move
unexpectedly or roll away and result in serious
personal injury or property damage.
CAUTION
Make sure the vehicle is completely stopped
and the transmission is in the P (Park) position.
P (Park) position
Use this selector position when the vehicle is
parked or when starting the engine. Make sure
the vehicle is completely stopped. The brake
pedal must be depressed and the selector lever
button pushed in to move the selector lever from
the N (Neutral) position or any drive position to
the P (Park) position. Apply the parking brake.
When parking on a hill, apply the parking brake
first, then move the selector lever to the P (Park)
position.
CAUTION
Use this position only when the vehicle is com-
pletely stopped.
R (Reverse)
Use this position to back up. Always be sure the
vehicle is completely stopped before selecting
the R (Reverse) position. The brake pedal must
be depressed and the selector lever button
pushed in to move the selector lever from the P
(Park) position, the N (Neutral) position or any
drive position to the R (Reverse) position.
N (Neutral)
Neither forward nor reverse gear is engaged.
The engine can be started in this position. You
may shift to the N (Neutral) position and restart
a stalled engine while the vehicle is moving.
D (Drive)
Use this position for all normal forward driving.
DS (Drive Sport) mode
Move the selector lever from D (Drive) to the left
into the manual shift gate. The transmission
position indicator in the meter shows “DS”.
In the DS (Drive Sport) mode, the transmission
changes to the “sporty” driving shift operation,
creating a more aggressive acceleration feeling
than the D (Drive) mode and providing a gear
change sensation when the driver accelerates
quickly.
When the driver selects the manual shift mode
using the selector lever (or the paddle shifter)
during the DS (Drive Sport) mode operation, the
driver must move the selector lever from DS
(Drive Sport) to D (Drive) and back again to
re-select the DS (Drive Sport) mode.
Starting and driving5-13
—
—
10/15/09—tbrooks


The sensitivity level of the corner/center sonar
can be adjusted (higher or lower) in the SONAR
setting display. (See “HOW TO USE SETTING
BUTTON” in the “4. Monitor, climate, audio,
phone and voice recognition systems” section
for the “Sonar” settings.)
1Rear view monitor display
ACorner sonar indicator
BCenter sonar indicator
SONAR INDICATOR
With the “Sonar Display” key ON in the “Sonar”
settings, when the corner/center sonar detects
obstacles near the bumper, a tone will sound
and the sonar indicator will appear in the center
display. When the rear view monitor is dis-
played, the sonar indicator will appear in the
upper corner of the display
1.
The sonar indicators
AandBindicate the
position of the object and the distance to the
object with its color and rate of blinking. When an object is detected, the indicator
(green) appears and blinks (the tone sounds
intermittently). When the vehicle moves closer
to the object, the color of the indicator turns
yellow and the rate of blinking increases (the
rate of the tone increases). When the corner of
the vehicle is very close to the object, less than
11.8 in (30 cm) away, the indicator stops blink-
ing and turns red (the tone sounds continu-
ously).
When the rear view monitor is displayed, the
colors of the sonar indicator and the distance
guide lines in the rear view indicate different
distances to the object.
The sonar indicator can be turned off in the
SONAR setting display. (See “HOW TO USE
SETTING BUTTON” in the “4. Monitor, climate,
audio, phone and voice recognition systems”
section for the “Sonar” settings.) When the
sonar indicator is off, only a tone sounds when
the sonar detects obstacles.
SSD0928
5-44Starting and driving
—
—
10/15/09—tbrooks


Every new INFINITI comes with a 4 year, unlim-
ited mileage Roadside Assistance plan. In the
event of a roadside emergency, Roadside Assis-
tance Service is available to you. Please refer to
your Warranty Information Booklet (U.S.) or
Warranty & Roadside Assistance Information
Booklet (Canada) for details. Both the Warranty
Information Booklet and Roadside Assistance
Calling Card in your Owner’s Literature Portfolio
provide the Toll-Free Number to call for assis-
tance. Roadside Assistance is provided 24
hours a day, 365 days a year, for 4 years from
the date sold to give emergency roadside help,
in the event of mechanical or nonmechanical
trouble(s) such as flat tires, out-of-gas, dead
battery, lost keys, mechanical breakdown, acci-
dent, etc.
EMERGENCY ENGINE SHUT OFF
To shut off the engine in an emergency situation
while driving perform the following procedure:
- Rapidly push the push-button ignition switch3 consecutive times, or
- Push and hold the push-button ignition for more than 2 seconds.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section and “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the “5.
Starting and driving” section.
WARNING
● If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
ROADSIDE ASSISTANCE PROGRAM FLAT TIRE
6-2In case of emergency
—
—
12/21/09—tbrooks

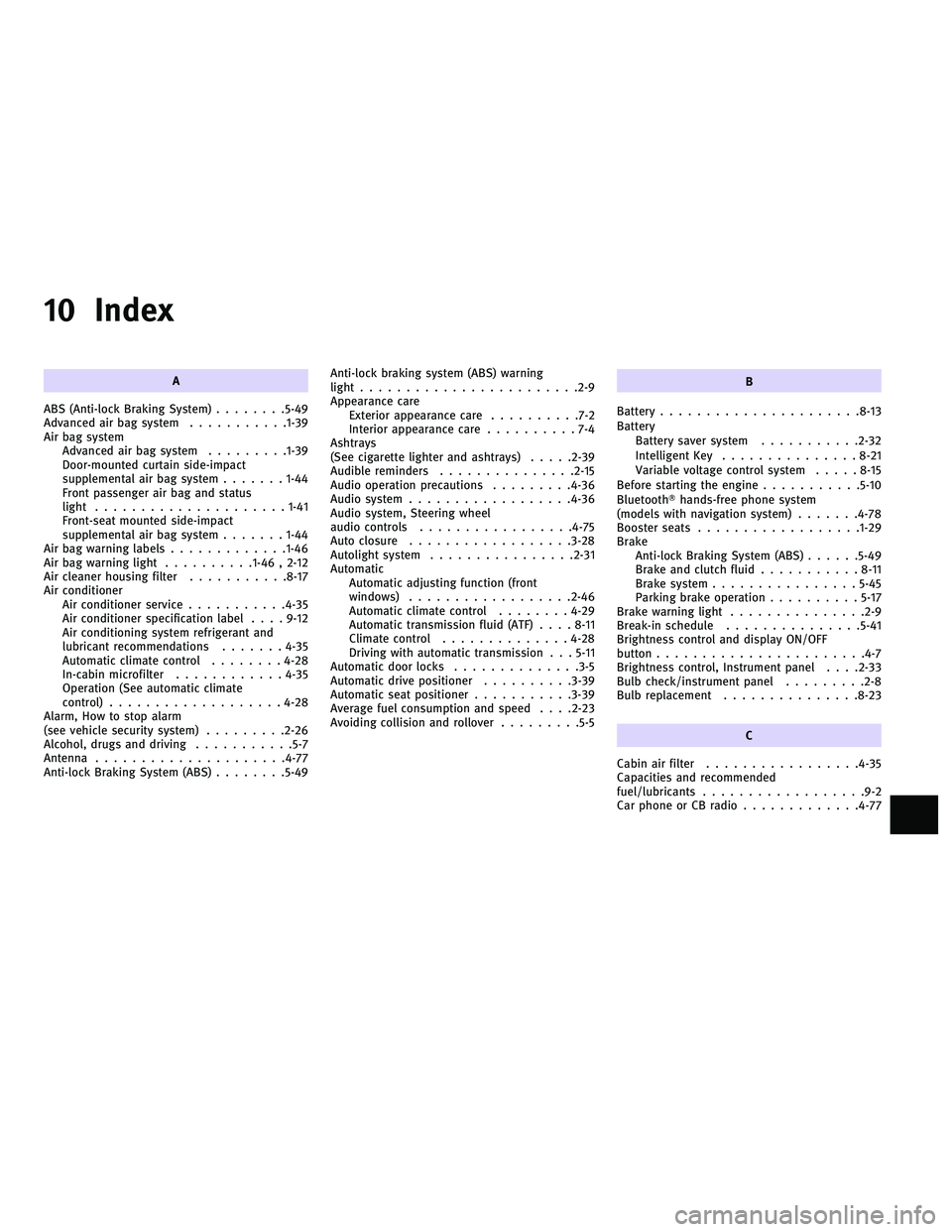

10 Index
A
ABS (Anti-lock Braking System) ........5-49
Advanced air bag system ...........1-39
Air bag system Advanced air bag system .........1-39
Door-mounted curtain side-impact
supplemental air bag system .......1-44
Front passenger air bag and status
light ..................... 1-41
Front-seat mounted side-impact
supplemental air bag system .......1-44
Air bag warning labels .............1-46
Air bag warning light ..........1-46 , 2-12
Air cleaner housing filter ...........8-17
Air conditioner Air conditioner service ...........4-35
Air conditioner specification label ....9-12
Air conditioning system refrigerant and
lubricant recommendations .......4-35
Automatic climate control ........4-28
In-cabin microfilter ............4-35
Operation (See automatic climate
control) ................... 4-28
Alarm, How to stop alarm
(see vehicle security system) .........2-26
Alcohol, drugs and driving ...........5-7
Antenna .................... .4-77
Anti-lock Braking System (ABS) ........5-49Anti-lock braking system (ABS) warning
light
....................... .2-9
Appearance care Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Ashtrays
(See cigarette lighter and ashtrays) .....2-39
Audible reminders .............. .2-15
Audio operation precautions .........4-36
Audio system ................. .4-36
Audio system, Steering wheel
audio controls ................ .4-75
Auto closure ................. .3-28
Autolight system ............... .2-31
Automatic Automatic adjusting function (front
windows) ................. .2-46
Automatic climate control ........4-29
Automatic transmission fluid (ATF) ....8-11
Climate control .............. 4-28
Driving
with automatic transmission . . . 5-11
Automatic door locks ..............3-5
Automatic drive positioner ..........3-39
Automatic seat positioner ...........3-39
Average fuel consumption and speed . . . .2-23
Avoiding collision and rollover .........5-5 B
Battery ..................... .8-13
Battery Battery saver system ...........2-32
Intelligent Key ............... 8-21
Variable voltage control system .....8-15
Before starting the engine ...........5-10
Bluetooth hands-free phone system
(models with navigation system) .......4-78
Booster seats ................. .1-29
Brake Anti-lock Braking System (ABS) ......5-49
Brake and clutch fluid ...........8-11
Brake system ................ 5-45
Parking brake operation ..........5-17
Brake warning light .............. .2-9
Break-in schedule .............. .5-41
Brightness control and display ON/OFF
button ...................... .4-7
Brightness control, Instrument panel . . . .2-33
Bulb check/instrument panel .........2-8
Bulb replacement .............. .8-23
C
Cabin air filter ................ .4-35
Capacities and recommended
fuel/lubricants ................. .9-2
Car phone or CB radio .............4-77
—
—
04/30/10—diane
