2010 INFINITI FX warning

1 Safety — Seats, seat belts and supplemental
restraint system
Seats.............................................1-2
Front seats .....................................1-2
Rear seats ......................................1-5
Head restraints .................................1-6
Adjustable headrest .............................1-9
Armrest (if so equipped) ........................ 1-12
Seat belts ........................................ 1-12
Precautions on seat belt usage ..................1-12
Child safety .................................... 1-15
Pregnant women ............................... 1-16
Injured persons ................................ 1-16
Pre-crash seat belts with comfort function
(front seats) (if so equipped) ....................1-16
Three-point type seat belt .......................1-17
Seat belt extenders ............................. 1-19
Seat belt maintenance ......................... 1-20
Child restraints .................................. 1-20
Precautions on child restraints .................1-20
Lower Anchors and Tethers for CHildren
System (LATCH) ............................... 1-22Top tether strap child restraint
.................1-24
Child restraint installation using LATCH ..........1-25
Child restraint installation using the seat
belts ......................................... 1-29
Booster seats ..................................... 1-35
Precautions on booster seats ....................1-35
Booster seat installation ....................... 1-38
Supplemental restraint system ....................1-40
Precautions on supplemental restraint
system ....................................... 1-40
INFINITI Advanced Air Bag System
(front seats) ................................... 1-45
Front seat-mounted side-impact
supplemental air bag and roof-mounted
curtain side-impact and rollover
supplemental air bag systems ..................1-50
Seat belts with pretensioners (front seats) .......1-52
Supplemental air bag warning labels ............1-53
Supplemental air bag warning light ..............1-53
Repair and replacement procedure ...............1-54
—
—
08/03/09—tbrooks


WARNING
●Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section. ●
After adjustment, gently rock in the seat to
make sure it is securely locked.
● Do not leave children unattended inside the
vehicle. They could unknowingly activate
switches or controls. Unattended children
could become involved in serious accidents.
● The seatback should not be reclined any
more than needed for comfort. Seat belts are
most effective when the passenger sits well
back and straight up in the seat. If the seat-
back is reclined, the risk of sliding under the
lap belt and being injured is increased.
FRONT SEATS
Front power seat adjustment
Operating tips :
● The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
See “AUTOMATIC DRIVE POSITIONER” in the “3.
Pre-driving checks and adjustments” section for
the seat position memory function.
CAUTION
When adjusting the seat positions, be sure not
to contact any moving parts to avoid possible
injuries and/or damages.
SSS0133
SEATS
1-2Safety — Seats, seat belts and supplemental restraint system
—
—
08/03/09—tbrooks


REAR SEATS
WARNING
●Never allow anyone to ride in the cargo area
or on the rear seat when it is in the fold-down
position. Use of these areas by passengers
without proper restraints could result in se-
rious injury in an accident or sudden stop.
● When returning the seatbacks to the upright
position, be certain they are completely se-
cured in the latched position. If they are not
completely secured, passengers may be in-
jured in an accident or sudden stop.
● Properly secure all cargo to help prevent it
from sliding or shifting. Do not place cargo
higher than the seatbacks. In a sudden stop
or collision, unsecured cargo could cause
personal injury.
Reclining
Pull the reclining leverAand position the
seatback at the desired angle. Release the
reclining lever after positioning the seat at the
desired angle.
To return the seatback, pull the lever.
The reclining feature allows adjustment of the
seatback for occupants of different sizes to help
obtain proper seat belt fit. (See “PRECAUTIONS
ON SEAT BELT USAGE” later in this section.) The
seatback may also be reclined to allow occu-
pants to rest when the vehicle is parked.
WARNING
● Do not ride in a moving vehicle when the
seatback is reclined. This can be dangerous.
The shoulder belt will not be against your
body. In an accident, you could be thrown
into it and receive neck or other serious inju-
ries. You could also slide under the lap belt
and receive serious internal injuries.
● For the most effective protection when the
vehicle is in motion, the seat should be up-
right. Always sit well back in the seat with
both feet on the floor and adjust the seat belt
properly. See “PRECAUTIONS ON SEAT BELT
USAGE” later in this section.
● After adjustment, check to be sure the seat is
securely locked.
SSS0894
Safety — Seats, seat belts and supplemental restraint system1-5
—
—
07/30/09—pattie

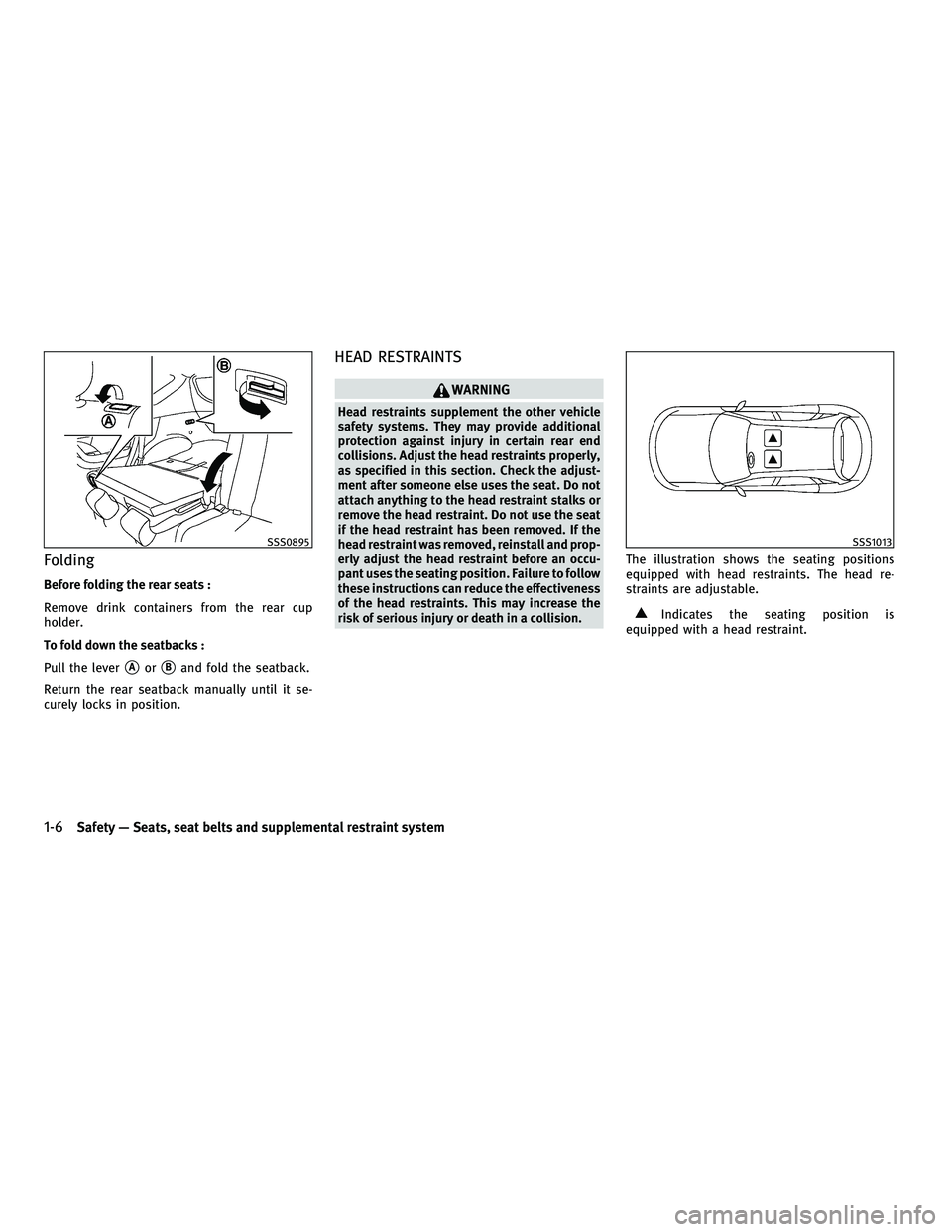

Folding
Before folding the rear seats :
Remove drink containers from the rear cup
holder.
To fold down the seatbacks :
Pull the lever
AorBand fold the seatback.
Return the rear seatback manually until it se-
curely locks in position.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other vehicle
safety systems. They may provide additional
protection against injury in certain rear end
collisions. Adjust the head restraints properly,
as specified in this section. Check the adjust-
ment after someone else uses the seat. Do not
attach anything to the head restraint stalks or
remove the head restraint. Do not use the seat
if the head restraint has been removed. If the
head restraint was removed, reinstall and prop-
erly adjust the head restraint before an occu-
pant uses the seating position. Failure to follow
these instructions can reduce the effectiveness
of the head restraints. This may increase the
risk of serious injury or death in a collision. The illustration shows the seating positions
equipped with head restraints. The head re-
straints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0895SSS1013
1-6Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


Front-seat Active Head Restraint
The Active Head Restraint moves forward utiliz-
ing the force that the seatback receives from
the occupant in a rear-end collision. The move-
ment of the head restraint helps support the
occupant’s head by reducing its backward
movement and helping absorb some of the
forces that may lead to whiplash-type injuries.
Active Head Restraints are effective for colli-
sions at low to medium speeds in which it is
said that whiplash injury occurs most.
Active Head Restraints operate only in certain
rear-end collisions. After the collision, the head
restraints return to their original position.Adjust the Active Head Restraints properly as
described earlier in this section.
ADJUSTABLE HEADREST
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may provide
additional protection against injury in certain
rear end collisions. Adjust the headrests prop-
erly, as specified in this section. Check the ad-
justment after someone else uses the seat. Do
not attach anything to the adjustable headrest
stalks or remove the adjustable headrests. Do
not use the seat if the adjustable headrests
have been removed. If the headrest was re-
moved, reinstall and properly adjust the head-
rest before an occupant uses the seating posi-
tion. Failure to follow these instructions can
reduce the effectiveness of the adjustable
headrests. This may increase the risk of serious
injury or death in a collision.
The illustration shows the seating positions
equipped with adjustable headrests.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0508SSS1014
Safety — Seats, seat belts and supplemental restraint system1-9
—
—
07/30/09—pattie


WARNING
●Every person who drives or rides in this ve-
hicle should use a seat belt at all times. Chil-
dren should be properly restrained in the
rear seat and, if appropriate, in a child
restraint.
● The seat belt should be properly adjusted to
a snug fit. Failure to do so may reduce the
effectiveness of the entire restraint system
and increase the chance or severity of injury
in an accident. Serious injury or death can
occur if the seat belt is not worn properly.
● Always route the shoulder belt over your
shoulder and across your chest. Never put
the belt behind your back, under your arm or
across your neck. The belt should be away
from your face and neck, but not falling off
your shoulder.
● Position the lap belt as low and snug as
possible AROUND THE HIPS, NOT THE WAIST.
A lap belt worn too high could increase the
risk of internal injuries in an accident.
● Be sure the seat belt tongue is securely fas-
tened to the proper buckle.
● Do not wear the seat belt inside out or
twisted. Doing so may reduce its
effectiveness.
SSS0136A
SSS0134A
Safety — Seats, seat belts and supplemental restraint system1-13
—
—
07/30/09—pattie


●Do not allow more than one person to use the
same seat belt.
● Never carry more people in the vehicle than
there are seat belts.
● If the seat belt warning light glows continu-
ously while the ignition is turned ON with all
doors closed and all seat belts fastened, it
may indicate a malfunction in the system.
Have the system checked by an INFINITI
retailer.
● No changes should made to the seat belt
system. For example, do not modify the seat
belt, add material, or install devices that
may change the seat belt routing or tension.
Doing so may affect the operation of the seat
belt system. Modifying or tampering with
the seat belt system may result in serious
personal injury.
● Once a seat belt pretensioner has activated,
it cannot be reused and must be replaced
together with the retractor. See an INFINITI
retailer.
● Removal and installation of pretensioner
system components should be done by an
INFINITI retailer. ●
All seat belt assemblies, including retractors
and attaching hardware, should be in-
spected after any collision by an INFINITI re-
tailer. INFINITI recommends that all seat belt
assemblies in use during a collision be re-
placed unless the collision was minor and
the belts show no damage and continue to
operate properly.
Seat belt assemblies not in use during a col-
lision should also be inspected and replaced
if either damage or improper operation is
noted.
● All child restraints and attaching hardware
should be inspected after any collision. Al-
ways follow the restraint manufacturer’s in-
spection instructions and replacement rec-
ommendations. The child restraints should
be replaced if they are damaged.
SSS0016
SSS0014
1-14Safety — Seats, seat belts and supplemental restraint system
—
—
07/30/09—pattie


CHILD SAFETY
Children need adults to help protect them. They
need to be properly restrained.
In addition to the general information in this
manual, child safety information is available
from many other sources, including doctors,
teachers, government traffic safety offices, and
community organizations. Every child is differ-
ent, so be sure to learn the best way to trans-
port your child.
There are three basic types of child restraint
systems:
●Rear-facing child restraint
● Front-facing child restraint
● Booster seat
The proper restraint depends on the child’s
size. Generally, infants (up to about 1 year and
less than 20 lb (9 kg)) should be placed in
rear-facing child restraints. Front-facing child
restraints are available for children who out-
grow rear-facing child restraints and are at least
1 year old. Booster seats are used to help
position a vehicle lap/shoulder belt on a child
who can no longer use a front facing child
restraint.
WARNING
Infants and children need special protection.
The vehicle’s seat belts may not fit them prop-
erly. The shoulder belt may come too close to
the face or neck. The lap belt may not fit over
their small hip bones. In an accident, an im-
properly fitting seat belt could cause serious or
fatal injury. Always use appropriate child
restraints.
All U.S. states and Canadian provinces or terri-
tories require the use of approved child re-
straints for infants and small children. (See
“CHILD RESTRAINTS” later in this section.)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
INFINITI recommends that all pre-teens and chil-
dren be restrained in the rear seat. According to
accident statistics, children are safer when
properly restrained in the rear seat than in the
front seat.
This is especially important because your ve-
hicle has a supplemental restraint system (air
bag system) for the front passenger. (See
“SUPPLEMENTAL RESTRAINT SYSTEM” later in
this section.)
Infants
Infants up to at least 1 year old should be
placed in a rear-facing child restraint. INFINITI
recommends that infants be placed in child
restraints that comply with Federal Motor Ve-
hicle Safety Standards or Canadian Motor Ve-
hicle Safety Standards. You should choose a
child restraint which fits your vehicle and al-
ways follow the manufacturer’s instructions for
installation and use.
Small children
Children that are over 1 year old and weigh at
least 20 lb (9 kg) can be placed in a forward
facing child restraint. Refer to the manufactur-
er’s instructions for minimum and maximum
weight and height recommendations. INFINITI
recommends that small children be placed in
child restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for in-
stallation and use.
Larger children
Children who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in
Safety — Seats, seat belts and supplemental restraint system1-15
—
—
07/30/09—pattie
