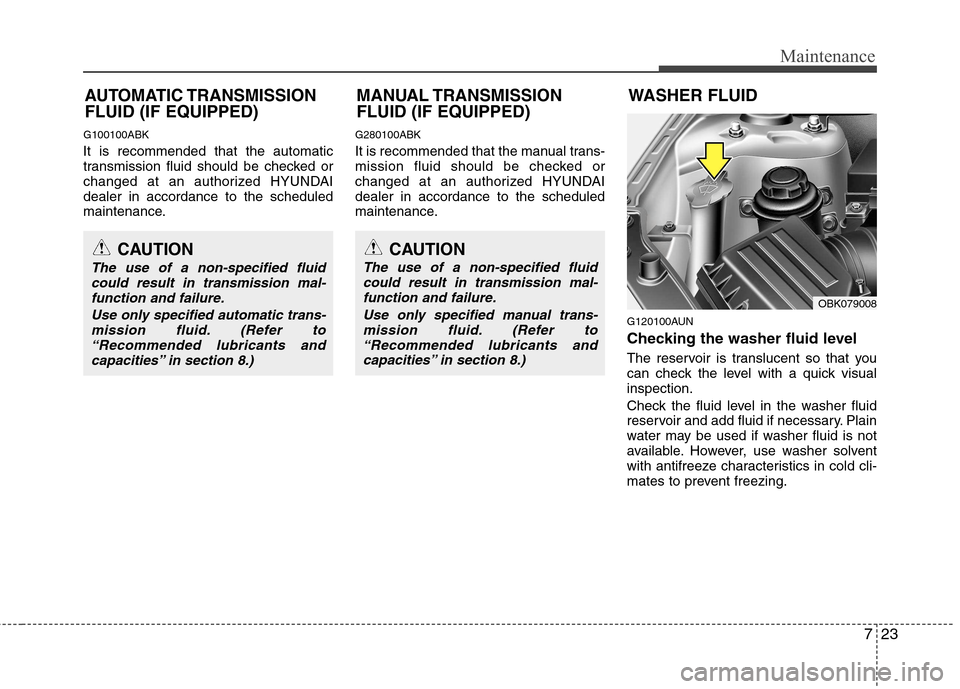

723
Maintenance
G100100ABK It is recommended that the automatic
transmission fluid should be checked or
changed at an authorized HYUNDAIdealer in accordance to the scheduled
maintenance.G280100ABK
It is recommended that the manual trans-
mission fluid should be checked or
changed at an authorized HYUNDAIdealer in accordance to the scheduled
maintenance.
G120100AUN
Checking the washer fluid level
The reservoir is translucent so that you
can check the level with a quick visualinspection.
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available. However, use washer solvent
with antifreeze characteristics in cold cli-
mates to prevent freezing.
WASHER FLUID
OBK079008
AUTOMATIC TRANSMISSION
FLUID (IF EQUIPPED)
MANUAL TRANSMISSION
FLUID (IF EQUIPPED)
CAUTION
The use of a non-specified fluid
could result in transmission mal-
function and failure.
Use only specified automatic trans-mission fluid. (Refer to“Recommended lubricants andcapacities” in section 8.)
CAUTION
The use of a non-specified fluid
could result in transmission mal-function and failure.
Use only specified manual trans-mission fluid. (Refer to
“Recommended lubricants andcapacities” in section 8.)
Specifications & Consumer information
4
8
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000ABK
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
* 1
Refer to the recommended SAE viscosity numbers on the next page.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3
If the API service SM engine oil is not available in your country, you are able to use API service SL.
Lubricant Volume Classification
10 l (10.57 US qt.) APOLLOIL ATF RED-1K
9.5 l (10.04 US qt.) ATF M-1375
Manual 2.0 l (2.11 US qt.)
SAE 75W/85, API GL-4
transmission fluid 2.2 l (2.32 US qt.)
Power steering 0.9 l (0.95 US qt.) Pentosin CHF 202
Coolant 5.5
l (5.81 US qt.) Mixture of antifreeze and water
9.6 l (10.14 US qt.) (Ethylene glycol base coolant for aluminum radiator)
Brake fluid 0.7~0.8 l (0.7~0.8 US qt.) SAE J1703, FMVSS116 DOT-3 or DOT-4
Fuel 65 l (68.69 US qt.) Unleaded gasoline
Rear axle oil 1.45 l (1.53 US qt.) API GL-5, SAE 75W/90 (SHELL SPIRAXX)
Engine oil * 1
*2
(drain and refill) Recommends 2.0 TCI
3.8L
Automatic
transmission fluid
2.0L3.8L
2.0L
3.8L
2.0L
3.8L API Service SM*
3
, ILSAC GF-4 or above5.4 l (5.7 US qt.)
5.3 l (5.6 US qt.)
5.2 l
(5.49 US qt.)
Except Middle East
For Middle East
Except MiddleEast
For Middle East
Index
2
I
Air bag - supplemental restraint system ······················ 3-33
Air cleaner ··································································· 7-25
Appearance care ·························································· 7-60
Audio system ······························································· 4-97
Automatic climate control system ······························· 4-77
Automatic transmission ··············································· 5-16
Automatic transmission fluid ······································ 7-23
Battery ········································································· 7-31
Before driving ································································ 5-3
Brake and clutch fluid ················································· 7-21
Brake system ······························································· 5-22
Bulb wattage ·································································· 8-2
Child restraint system ·················································· 3-24
Climate control air filter ·············································· 7-26
Cruise control system ·················································· 5-32
Defroster ······································································ 4-67
Dimensions ···································································· 8-2
Door locks ··································································· 4-14 Economical operation ·················································· 5-36
Emergency commodity ················································ 6-19
Emergency starting ························································ 6-4
Emission control system ·············································· 7-66
Engine compartment ·············································· 2-4, 7-2
Engine coolant ····························································· 7-18
Engine number ······························································· 8-7
Engine oil ····································································· 7-17
Engine Start/Stop button ················································ 5-7
Explanation of scheduled maintenance items ············· 7-14
Fuel filler lid ································································ 4-25
Fuel requirements ·························································· 1-2
Fuses ············································································ 7-44
Hazard warning flasher ················································ 4-56
Hood ············································································ 4-24
How to use this manual ················································· 1-2
A
B
C
D
E
F
H
