2010 HONDA ODYSSEY dashboard

To open a power sliding door, push
and release the bottom of the
appropriate switch. If you f orget to
unlock the door, you will hear three
beeps. Unlock the door, and try
again.To open and close a power sliding
door, press and hold the appropriate
button f or at least 1 second. If you
f orget to unlock the door, you will
hear three beeps. Unlock the door,
and try again.Each power sliding door has an auto-
reverse f eature. If a door meets
resistance while closing, it will beep
three times and reverse direction.
However, the door may not reverse
immediately and may cause some
bruising or discomf ort. Always make
sure passengers and objects are
clear of the doors bef ore closing
them.
If a rear window is open more than
3 in (8 cm), the power sliding door is
designed to stop about half way to
avoid accidents. If this happens,
close the door with the door handles,
the dashboard switch, or the remote
transmitter. Close the window and
open the sliding door. Make sure the
window is f ully closed bef ore you
operate the power sliding door.
To stop movement, push the
appropriate door button; you will
hear three beeps. Push and hold the
same button again f or at least 1
second and the door will reverse
direction.
When the MAIN switch is in the
OFF position, you have to operate
the doors manually. To stop a door, push either the top or
bottom of the switch. The door will
stop and you will hear three beeps.
Push the switch again to resume
movement. To close a sliding door, push and
release the top of the switch.
CONT INUED
Remote Transmitter
Auto-Reverse
Sliding Doors
Inst rument s and Cont rols
163
LED
DRIVER’S SIDE
SLIDING DOOR
BUTTON
PASSENGER’S SIDE
SLIDING DOOR BUTTON
——
y


y
(y
y
2010 Odyssey

You can manually open or close the
sliding doors. The MAIN switch
must be in the OFF position. To
open a door, pull the inside or
outside door handle, and slide the
door back. It will latch in the f ully
open position. To close, pull either
handle and slide the door f orward.
When the door is almost closed, the
auto-closer will pull the door shut.If there is an obstacle in the door sill,
the power sliding door may not open
or close properly. When removing
the obstacle f rom the door sill, make
sure to turn off the main switch on
the dashboard.
When replacing a flat tire, make sure
to turn of f the power sliding door
main switch on the dashboard.
Do not allow anyone to step on the
lower arm of the sliding door while
the door is open. This could damage
the sliding door mechanism.
Whenyoudrivewithchildreninyour
vehicle, use the childproof door
locks (see page ). This will
prevent children f rom opening the
doors accidentally.Do not put any item in the door
pocket that sticks out f rom the
pocket. It can prevent the doors f rom
opening or closing properly, and
damage the vehicle body.
Bef ore operating the sliding doors,
check that passengers, especially
children, do not have their hands on
the edge of the sliding door or on the
door pillar. The auto-reverse motor
stops working when the door is
about to latch so the auto-closer can
pull the door shut. 157
On all models
On EX, EX-L and Touring models
Manually Opening/Closing t he
Power Sliding Door
Important Sliding Door
Precautions
Sliding Doors
164
Closing a sliding door while any
part of a passenger is in the
door’s path can cause serious
injury.
Make sure all passengers are
clear of the doorway before
closing a sliding door.
——
y

y
(y
y
2010 Odyssey

When you release the f uel f ill door,
the driver’s side sliding door
automatically locks so it cannot open
and interfere with the fuel door. If a
passenger attempts to unlock the
door by cycling the lock knob several
times, the door can be opened.
If a passenger needs to get out while
you are ref ueling, instruct that
person to exit on the passenger’s
side.
When you close the f uel f ill door, the
driver’s side sliding door unlocks if it
was unlocked when you opened the
fuel fill door.When parking f acing downhill, make
sure the doors are latched in the
f ully open position, and then hold the
door open f or your passengers. Do
not pull the inside or outside door
handle, or the door will slam shut.
If you leave the vehicle on a steep
downhill with a power sliding door
half open and the engine of f , the
magnetic lock will turn off after 30
minutes and the sliding door will
automatically open or close. In this
case you will hear a continuous tone.
If your vehicle is f acing downhill, do
not turn the main switch to OFF
while the door is opening because
thedoormayslamshut.
If you open the f uel f ill door while
the driver’s side sliding door is
opening, the sliding door stops. If
this happens, the door must be
operated manually. Make sure the main switch on the
dashboard is in the ON position.
When parking f acing downhill on a
steep grade, the power sliding doors
may not open or close as they do
normally.
On EX, EX-L and Touring models
On EX, EX-L and Touring models
Ref ueling
Parking on a Hill
Sliding Doors
Inst rument s and Cont rols
165
——
y

y
(y
y
2010 Odyssey

If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting. Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions when using
the seat heaters: In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
In LO, the heater does not cycle with
temperature change.

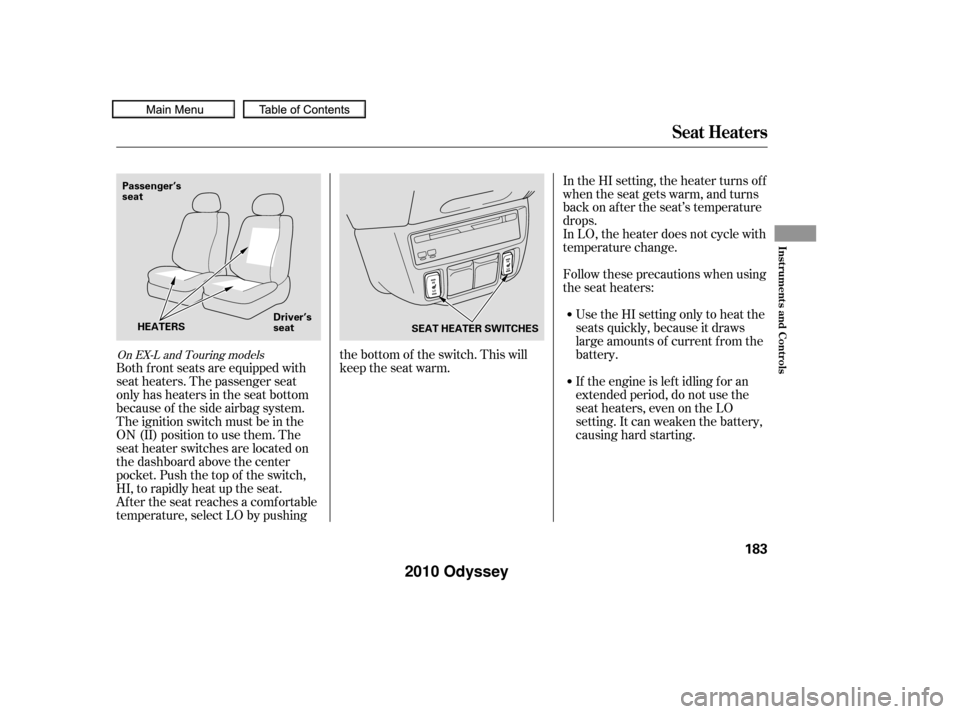

Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of the side airbag system.
The ignition switch must be in the
ON (II) position to use them. The
seat heater switches are located on
the dashboard above the center
pocket. Push the top of the switch,
HI, to rapidly heat up the seat.
After the seat reaches a comfortable
temperature, select LO by pushing the bottom of the switch. This will
keep the seat warm.
On EX-L and Touring models
Seat Heaters
Inst rument s and Cont rols
183
SEAT HEATER SWITCHES
Passenger’s
seat
Driver’s
seat
HEATERS
——
y
y
(y
y
2010 Odyssey

To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the top of the switch
( ). To open the moonroof ,
press and hold the bottom of the
switch ( ).The moonroof has a key-of f delay.
You can still open and close the
moonroof f or up to 10 minutes af ter
you turn of f the ignition. The key-of f
delay cancels as soon as you open
either f ront door. You must then
turn the ignition to the ON (II)
position f or the moonroof to operate.
The moonroof can be tilted up in the
back f or ventilation, or it can be slid
back into the roof. Use the switch
under the lef t dashboard vent to
operate the moonroof . You must
turn the ignition switch to the ON
(II) position f or the moonroof to
operate.
On EX-L and Touring models
Moonroof
Inst rument s and Cont rols
189
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or its
motor.
——
y
y
(y
y
2010 Odyssey

When you switch to f rom, the A/C stays on, and you
canturnitonandoff manually.
When you switch to another mode,
the A/C returns to its original setting,
either on or of f , as displayed by the
A/C indicator.
The system automatically
turns on the A/C and switches to
recirculation mode. Air f lows f rom
the center and side vents in the
dashboard. In this mode, you cannot
turn of f the A/C and also cannot
switch to f resh air mode. The passenger’s temperature cannot
be set separately f rom the driver’s. When you select , the system
automatically switches to f resh air
mode and turns on the A/C. Air f lows f rom the def roster
vents at the base of the windshield. Airf low is divided between
the f loor vents and def roster vents at
the base of the windshield.
The outside air intakes f or the
heating and cooling system are at
the base of the windshield. Keep this
area clear of leaves and other debris.
This button turns the rear window
def ogger on and of f (see page ).
Use the mode control dial or button
to select the vents the air flows from.
Some air will flow from the
dashboard vents in all modes.
Air flows from the center
and corner vents in the dashboard.
Airf low is divided between
the vents in the dashboard and the
f loor vents. Air f lows f rom the f loor
vents. When you select , the
system automatically switches to
f resh air mode.
When you want to change the
temperature of the rear passenger
compartment, press the REAR
button. The indicator in the button
comes on, and you can change the
temperature using the rear
temperature control button. When
you press the REAR LOCK button,
the indicator in the button comes on,
the rear A/C passenger control
panel is disabled, and you cannot
change any settings f rom it.
See page f or how to operate the
rear passenger control panel.
140
219
On LX and Canadian DX modelsOn EX, EX-L and Touring models
Vents, Heating, and A/C
REAR/REAR LOCK Button
Rear Window Def ogger Button
Mode Control
212
——
y
y
(y
y
2010 Odyssey

To remove f og f rom the inside of the
windows:To clear the windows f aster, you can
close the dashboard corner vents by
rotating the wheel next to each vent.
This sends more warm air to the
windshield def roster vents. Once the
windshield is clear, select f resh air
mode to avoid f ogging the windows.
For your saf ety, make sure you have
a clear view through all the windows
bef ore driving.
you can
cool it down more rapidly by partially
opening the windows, turning on the
air conditioning, and setting the f an
to maximum speed in f resh air mode.
Air conditioning, as it cools, removes
moisture from the air. When used in
combination with the heater, it
makes the interior warm and dry.
This setting is suitable f or all driving
conditions whenever the outside
temperature is above 32°F (0°C). Switch the f an on.
Turn on the air conditioning.
Select and fresh air mode.
Adjust the temperature to your
pref erence. Set the f an to high.
Select . The system
automatically switches to the fresh
air mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, and Touring models), if the
A/C was off to start with.
Adjust the temperature so the
airflow feels warm.
Select to help clear the
rear window.Select . The system
automatically switches to f resh air
mode and turns on the A/C.
The indicator in the A/C button
will not come on (LX and Canadian
DX models), or the A/C ON
indicator will not come on (EX,
EX-L, and Touring models), if the
A/C was off to start with.
Select .
Set the f an and temperature
controls to maximum level.
When you switch to another mode
f rom , the A/C turns of f . But
if it was on to start with, it stays on.
1.
2.
3.
4. 1.
1.
2.
3.
4. 2.
3.
If the interior is very warm,
Vents, Heating, and A/C
T o Def og and Def rost
T o Remove Exterior Frost or Ice
From the Windows
Dehumidif y the Interior
214
——
y
y
(y
y
2010 Odyssey

The direction and quantity of airf low
f rom each rear ceiling vent is
adjustable.
To adjust the direction of air coming
f rom a rear ceiling vent, move the
tab in the center of each vent back-
and-forth, and rotate the vent with
the tab. The lever next to each vent
can be opened and closed to regulate
the amount of airf low.Theclimatecontrolsystemhasthree
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. There is also a rear
sensor on the rear sidewall near the
exhaust vent. Do not cover the
sensors or spill any liquid on them.
On EX, EX-L and Touring models
Sunlight and T emperature
Sensors
Rear Ceiling Vents
Vents, Heating, and A/C, Climate Control Sensors
220
SUNLIGHT SENSOR TEMPERATURE SENSOR
TAB
LEVER
——
y
y
(yy
2010 Odyssey
