Playing a USB Flash Memory Device (Models with navigation system)
Features
237
AUDIO BUTTON USB ICON
SKIP BUTTON SKIP BUTTON JOYSTICK
POWER/VOLUME KNOB
CD/AUX BUTTON
SCAN BUTTON
REPEAT BUTTONRANDOM BUTTON
TUNE FOLDER
BAR WMA/MP3 INDICATOR
—
—y

y
)"yy
2010 Insight

Î
Î This audio system can operate the
audio f iles on a USB f lash memory
device with the same controls used
f or the in-dash disc player. To play a
USB f lash memory device, connect it
to the USB adapter cable in the
console compartment, then press the
CD/AUX button.
The audio system reads and plays
the audio f iles on the USB f lash
memory device in MP3, WMA or
AAC f ormats. Depending on the
f ormat, the display shows MP3,
WMA or AAC when a USB flash
memory device is playing. The USB
f lash memory device limit is up to
700 f olders or up to 65535 f iles.Only AAC f ormat f iles recorded
with iTunes are playable on this
audio unit. The recommended USB f lash
memory devices are 256 MB or
higher. Some digital audio players
maybecompatibleaswell.
Some USB f lash memory devices
(such as devices with security lock-
out f eatures, etc.) will not work in
this audio unit.
Do not use a device such as a card
reader or hard drive as the device
or your f iles may be damaged.
Do not connect your USB f lash
memory device using a hub.
Do not use an extension cable to
the USB adapter cable equipped
with your vehicle.
Do not keep a USB f lash memory
device in the vehicle. Direct
sunlight and high heat will damage
it. We recommend backing up your
data bef ore playing a USB f lash
memory device.
Depending on the type and
number of f iles, it may take some
time bef ore they begin to play.
Depending on the sof tware the
f iles were made with, it may not be
possible to play some f iles, or
displaysometextdata.
:
To Play a USB Flash Memory
Device
Playing a USB Flash Memory Device (Models with navigation system)
238
NOTE:
—
—y

y
)"yy
2010 Insight

µµ
µ
µ
µ
µ
µ µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
CONT INUED
The specif ications f or compatible
MP3 f iles are:
Sampling f requency:
32/44.1/48 kHz (MPEG1)
16/22.05/24 kHz (MPEG2) The specif ications f or compatible
WMA f iles are:
Bitrate:
32/40/48/56/64/80/96/112/128/
160/192/224/256/320/VBR kbps
(MPEG1)
8/16/24/32/40/48/56/64/80/96/
112/128/144/160/VBR kbps
(MPEG2)
Maximum layers: 8 Partition:
Top partition only Bitrate:
48 320/VBR kbps (Max 384)
Maximum layers: 8 Sampling f requency:
32/44.1/48 kHz
Supported standards:
WMA version 7/8/9
Partition:
Top partition only
The specif ications f or compatible
AAC files are:
Bitrate:
8 320 kbps
Supported standards:
MPEG4/AAC LC
MPEG2/AAC LC
Maximum layers: 8 Sampling f requency:
8/11.025/12/16/22.05/24/32/
44.1/48 kHz
Partition:
Top partition only
Supported standards:
MPEG1 Audio Layer3
MPEG2 Audio LSF Layer3
Playing a USB Flash Memory Device (Models with navigation system)
Features
239
—
—y

y
)"yy
2010 Insight

Some versions of MP3, WMA, or
AAC f ormat may not be supported. If
an unsupported f ile is f ound, the
audio unit displays UNSUPPORTED,

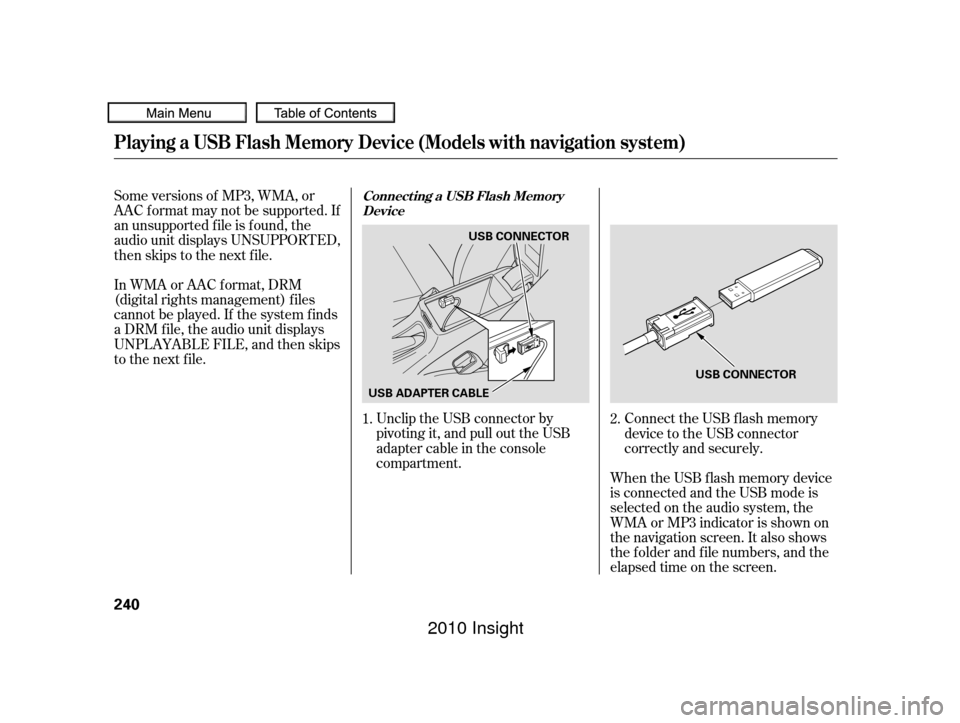

then skips to the next f ile.Unclip the USB connector by
pivoting it, and pull out the USB
adapter cable in the console
compartment.
In WMA or AAC format, DRM
(digital rights management) f iles
cannot be played. If the system f inds
a DRM f ile, the audio unit displays
UNPLAYABLE FILE, and then skips
to the next file.
Connect the USB f lash memory
device to the USB connector
correctly and securely.
When the USB f lash memory device
is connected and the USB mode is
selected on the audio system, the
WMAorMP3indicatorisshownon
the navigation screen. It also shows
the f older and f ile numbers, and the
elapsed time on the screen.
1.
2.
Playing a USB Flash Memory Device (Models with navigation system)
Connect ing a USB Flash Memory
Device
240
USB CONNECTOR
USB ADAPTER CABLE USB CONNECTOR
—
—y


y
)"yy
2010 Insight

µ
´
µ
µ
Û Ý ÛÝ
CONT INUED
Use the SKIP button while a USB
f lash memory device is playing to
change f iles.
Each time you press the
SKIP button (Preset 6), the
system skips f orward to the
beginning of the next f ile. Press the
SKIP button (Preset 5), to skip
backward to the beginning of the
current f ile. Press it again to skip to
the beginning of the previous f ile.
To
select a dif f erent f older, press either
side of the TUNE FOLDER bar.
Press the side to skip to the next
f older, and press the side to skip
to the beginning of the previous
f older. You can also select a f ile directly
f rom a track list on the audio display.
Press the AUDIO button to show the
audio display, then touch the Track
List icon. The track list menu
appears on the display.
To scroll through the display, touch
the or icononthesideof the
screen.Togobacktotheprevious
display, touch the Return icon.
To play a f ile, touch its icon on the
screen. The current f older is
highlighted in blue.
Playing a USB Flash Memory Device (Models with navigation system)
T o Change or Select Files
Using a T rack L ist
SK IP
FOLDER SELECTION
Features
241
TRACK LIST ICON FOLDER ICON
RETURN ICON
—
—y

y
)"yy
2010 Insight

µµ
You can select any type of repeat,
random and scan modes by using the
RPT button or RDM button, or
SCAN button. This feature
continuously plays a f ile. To activate
the track repeat f eature, press the
RPT button (Preset 1). You will see
‘‘TRACK REPEAT’’ in the display.
To turn it off, press the RPT button
(Preset 1). This feature
replays all the f iles in the selected
f older in the order they are stored.
To activate the folder repeat feature,
press and hold the RPT button
(Preset 1). You will see ‘‘FOLDER
REPEAT’’ in the display. To turn it
off, press and hold the RPT button
(Preset 1).
Playing a USB Flash Memory Device (Models with navigation system)
T o Select Repeat , Random or Scan
Mode:T RA CK REPEA T FOL DER REPEA T
242
—
—y

y
)"yy
2010 Insight

µµµThis feature
plays all the f iles in random order.
To activate the track random feature,
press the RDM button (Preset 2).
You will see ‘‘TRACK RANDOM’’ in
the display. To turn it of f , press the
RDM button (Preset 2). This
f eature plays the f iles in the selected
f older in random order. To activate
the f older random f eature, press and
hold the RDM button (Preset 2). You
will see ‘‘FOLDER RANDOM’’ in the
display. To turn it of f , press and hold
the RDM button (Preset 2). This feature
samples all f iles in the selected
f older in the order they are stored.
To activate the scan feature, press
the SCAN button. You will see
‘‘TRACK SCAN’’ in the display. You
will also see the f ile number blinking.
You will get a 10 second sampling of
each f ile in the f older. Press the
SCAN button to get out of the scan
mode. The system plays the last f ile
sampled.
CONT INUED
TRACK RANDOM FOLDER RANDOM TRACK SCAN
Playing a USB Flash Memory Device (Models with navigation system)
Features
243
—
—y

y
)"yy
2010 Insight

µTo play the radio when a USB flash
memory device is playing, press the
FM/AM button or touch the FM1,
FM2, or AM icon. If a disc is in the
audio unit, press the CD/AUX
button or touch the CD icon to play
thedisc.If aPCcardisintheaudio
unit, Press the CD/AUX button or
touch the CARD icon to play a PC
card.
Press the CD/AUX button again or
touch the AUX icon to switch back to
the USB f lash memory device. You can disconnect the USB f lash
memory device at any time even if
the USB mode is selected on the
audio system. Always f ollow the USB
f lash memory device’s instructions
when you remove it.
When you disconnect the USB f lash
memory device while it is playing,
the navigation screen shows ‘‘NO
DATA.’’
If you reconnect the same USB f lash
memory device, the system will
begin playing where it lef t of f .
If you see an error message on the
screen, see page .
This feature
samples the f irst f ile in each f older in
the order they are stored. To
activate the folder scan feature,
press and hold the SCAN button.
You will see ‘‘FOLDER SCAN’’ in the
display. You will also see the f older
number blinking. You will get a 10
second sampling of the f irst f ile in
each folder. Press the SCAN button
to get out of the scan mode. The
system plays the last f ile sampled.
245
To Stop Playing a USB Flash
Memory Device
USB Flash Memory Device Error
Messages
FOLDER SCANDisconnect ing a USB Flash Memory
Device
Playing a USB Flash Memory Device (Models with navigation system)
