2010 HONDA CIVIC HYBRID tire type

Your vehicle has several convenient
storage areas:Glove box
Door pockets
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages. Trunk Console compartment
Center pocket
Carrying Cargo
252

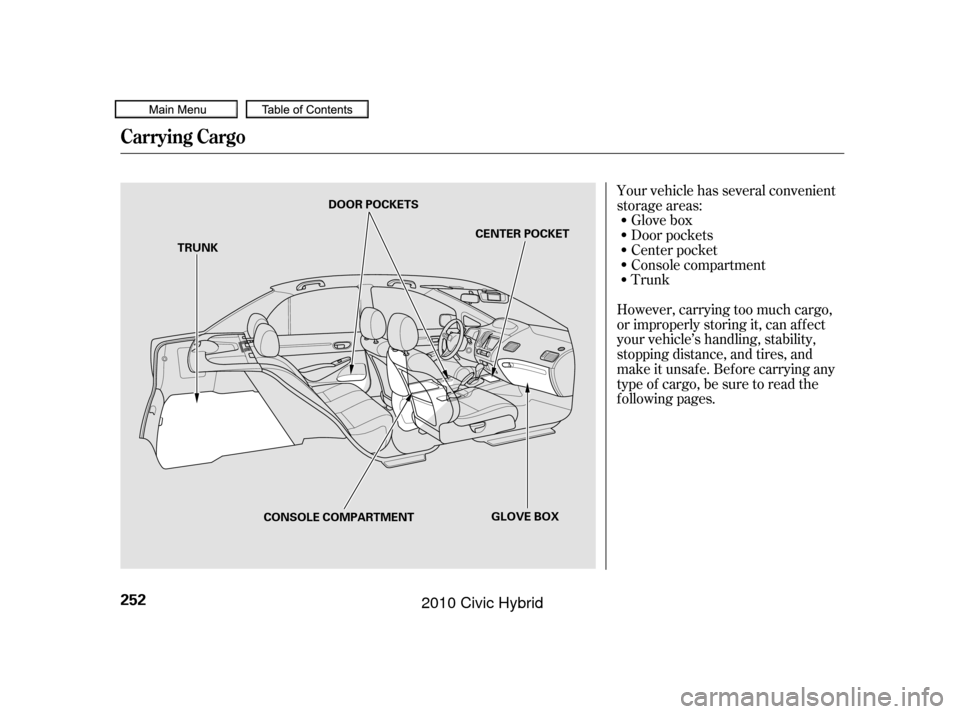

CONSOLE COMPARTMENT CENTER POCKET
TRUNK DOOR POCKETS
GLOVE BOX
09/07/15 11:03:49 31SNC640_257
2010 Civic Hybrid

Driving with varying tire or wheel
sizes may cause the VSA to
malf unction. When replacing tires,
make sure they are of the same size
and type as your original tires (see
page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
This switch is under the driver’s side
vent. To turn the VSA system on and
of f , press and hold it until you hear a
beep.
When VSA is off, the VSA activation
indicator comes on as a reminder.
Press and hold the switch again. It
turns the system back on. VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
In certain unusual conditions when
your vehicle gets stuck in shallow
mud or f resh snow, it may be easier
to free it with the VSA temporarily
switched of f . When the VSA system
is of f , the traction control system is
alsooff.Youshouldonlyattemptto
f ree your vehicle with the VSA of f if
you are not able to f ree it when the
VSA is on.
Immediately af ter f reeing your
vehicle, be sure to switch the VSA on
again. We do not recommend driving
your vehicle with the VSA and
traction control systems switched off.
307
VSA and Tire Sizes
VSA OFF Switch
Vehicle Stability A ssist (VSA), aka Electronic Stability Control (ESC), System
Driving
271
VSA OFF SWITCH
09/07/15 17:39:17 31SNC640_276
2010 Civic Hybrid

Keeping the tires properly inf lated
provides the best combination of
handling, tread lif e, and riding
comf ort.Underinf lated tires wear unevenly,
adversely af f ect handling and f uel
economy, and are more likely to
fail from being overheated.
To saf ely operate your vehicle, your
tires must be the proper type and
size, in good condition with adequate
tread, and correctly inf lated.
The f ollowing pages give more
detailed inf ormation on how to take
care of your tires and what to do
when they need to be replaced.
Clean the wheels as you would the
rest of the exterior. Wash them with
thesamesolution,andrinsethem
thoroughly.
Aluminum alloy wheels have a
protective clear-coat that keeps the
aluminum f rom corroding and
tarnishing. Cleaning the wheels with
harsh chemicals (including some
commercial wheel cleaners) or a stif f
brush can damage the clear-coat. To
clean the wheels, use a mild
detergent and a sof t brush or sponge.
Overinf lated tires can make your
vehicleridemoreharshly,are
more prone to damage f rom road
hazards, and wear unevenly.
Thetirepressuremonitoringsystem
(TPMS) warns you when a tire
pressure is low. See page f or
more inf ormation.
We recommend that you visually
check your tires every day. If you
think a tire might be low, check it
immediately with a tire gauge. 272
On U.S. models
On Canadian models
CONT INUED
Inf lation Guidelines
Tires
Wheels
Wheels, Tires
Maint enance
303
Using tires that are excessively
worn or improperly inflated can
cause a crash in which you can
be seriously hurt or killed.
Follow all instructions in this
owner’s manual regarding tire
inflation and maintenance.
09/07/15 11:10:59 31SNC640_308
2010 Civic Hybrid

´
Tires marked ‘‘M S’’ or ‘‘All
Season’’ on the sidewall have an all-
weather tread design suitable for
most winter driving conditions.
For the best perf ormance in snowy
or icy conditions, you should install
snow tires or tire chains. They may
be required by local laws under
certain conditions.
If you mount snow tires on your
vehicle, make sure they are radial
tires of the same size and load range
as original tires. Mount snow tires on
all f our wheels. The traction
provided by snow tires on dry roads
maybelowerthanyouroriginaltires.
Check with the tire dealer f or
maximum speed recommendations.
See page f or DOT tire quality
grading inf ormation, and page
f or tire size inf ormation.
Tires: Wheels:
The ABS and VSA system work by
comparing the speed of the wheels.
When replacing tires, use the same
size originally supplied with the
vehicle. Tire size and construction
can af f ect wheel speed and may
cause the ABS or VSA system to
activate.
If you ever replace a wheel, make
sure that the wheel’s specif ications
match those of the original wheels.
Also be sure you use only TPMS
specif ic wheels (if equipped). If you
do not, the tire pressure monitoring
system will not work.
Replacement wheels are available at
your dealer.
340
342
CONT INUED
Tires
Winter Driving
Wheel and T ire Specif ications
Snow T iresMaint enance
307
P195/65R15 89S 15x6J
Installing improper tires on your
vehicle can affect handling and
stability. This can cause a crash
in which you can be seriously
hurt or killed.
Always use the size and type of
tires recommended in this
owner’s manual.
09/07/15 11:11:40 31SNC640_312
2010 Civic Hybrid

Mount tire chains on your tires when
required by driving conditions or
local laws. Install them only on the
f ront tires.
Because your vehicle has limited tire
clearance, Honda strongly
recommends using the chains listed
below, made by Security Chain
Company (SCC).When installing cables, f ollow the
manuf acturer’s instructions, and
mount them as tight as you can.
Make sure they are not contacting
the brake lines or suspension. Drive
slowly with them installed. If you
hear them coming into contact with
the body or chassis, stop and
investigate. Remove them as soon as
you begin driving on cleared roads.
Cable-type: SCC RADIAL CHAIN
SC1030
T ire Chains
Tires
308
Using the wrong chains, or not
properly installing chains, can
damage the brake lines and
cause a crash in which you can
be seriously injured or killed.
Follow all instructions in this
owner’s manual regarding the
selection and use of tire chains.
Traction devices that are the wrong
size or improperly installed can
damage your vehicle’s brake lines,
suspension, body, and wheels. Stop
driving if they are hitting any part of
the vehicle.
09/07/15 11:11:46 31SNC640_313
2010 Civic Hybrid

µµµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Specif ications
Technical Inf ormation
339
Air Conditioning
Fuses
Alignment
12 Volt Battery Tires
Lights
HFC-134a (R-134a)
14.1 15.9 oz (400 450 g) SE-10Y
12 V 60 W
12 V 3 CP 12 V 21/5 W 12 V 21 W 7°6’1°39’ 0°3’
0.00 in (0.0 mm)
P195/65R15 89S 2.0 in (2.0 mm)
Refrigerant type
Charge quantity
Lubricant oil type
Interior
Under-hood
Toe-in
Camber
Caster
12 V 12 V 51 W
12 V 21 W
12 V
12 V
12 V
12 V
5W
8W
8W
5W
Capacity 12 V 35 AH/20 HR T135/80D15 99M
32 psi (220 kPa , 2.2 kgf/cm
)
60 psi (420 kPa , 4.2 kgf/cm)
Size
Pressure
12 V 2 CP
12 V 28 AH/5 HR 24/2.2 CP
Headlights
Front turn signal/side marker
lights
Rear turn signal lights
Brake/Taillights (in fenders)
Back-up lights
Rear side marker lights
Taillights (in trunk lid)
License plate lights
Ceiling light
Spotlights
Trunk light See page
332or the fuse label
attached to the inside of the fuse
box door under the steering
column.
See page 331or the fuse box
cover.
Front
Rear
Front
Rear
Front
High
Low
(HB3)
(HB4)
Front/Rear
Spare
Front/Rear
Spare
09/07/15 11:15:43 31SNC640_344
2010 Civic Hybrid

µ
µ µ
µ
µ µ
µ
µ
µ
µ
µ
µ µ
µ
Tire type code.
Date of manufacture.
Whenever tires are replaced, they
should be replaced with tires of the
same size. The f ollowing is an
exampleof tiresizewithan
explanation of what each component
means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
Rim diameter in inches. Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.
Manuf acturer’s
identification mark. Year
Week
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold. Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure. Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
drivenlessthan1mile(1.6km).
P
R DOT
B97RFW6X
2202
S
195
65
15 89
Tire Labeling
Tire Size
T ire Ident if icat ion Number (T IN)
Glossary of T ire T erminology
342
DOT B97R FW6X 2202
P195/65R15 89S
09/07/15 11:16:15 31SNC640_347
2010 Civic Hybrid

µ
µ µ
µ
µ µ
µ µ
µ
Your new vehicle is covered by these
warranties:
covers your new vehicle, except f or
the battery, emissions control
systems, and accessories, against
def ects in materials and
workmanship.
these two
warranties cover your vehicle’s
emissions control systems. Time,
mileage, and coverage are
conditional. Please read your
warranty booklet f or exact
inf ormation. provides
coverageforaslongasthepur-
chaser of the muf f ler owns the
vehicle. provides prorated
coverage f or a replacement battery
purchased f rom your dealer.
this warranty gives up
to 100% credit toward a replacement
battery. a seat
belt that f ails to f unction properly is
covered by a limited warranty.
Please read your warranty booklet
f or details.
covers all Honda
replacement parts against defects in
materials and workmanship. Honda accessories are covered
under this warranty. Time and
mileage limits depend on the type of
accessory and other factors. Please
read your warranty booklet f or
details. all exterior body panels are
covered f or rust-through f rom the
inside f or the specif ied time period
with no mileage limit. Restrictions and exclusions apply to
all these warranties. Please read the
2010 Honda warranty inf ormation
booklet that came with your vehicle
f or precise inf ormation on warranty
coverages. Your vehicle’s original
tires are covered by their
manuf acturer. Tire warranty
inf ormation is in a separate booklet.
Please ref er to the 2010 warranty
manual that came with your vehicle.
Warranty Coverages
U.S. Owners
Canadian Owners
New Vehicle L imit ed Warrant yEmissions Cont rol Syst ems Def ect sWarrant y and EmissionsPerf ormance Warranty Replacement Muf f ler L if et ime
Limited Warranty
Replacement Bat t ery L imit ed
Warranty
Original Equipment Bat t ery L imit ed Warranty Seat Belt Limited Warranty
Replacement Part s L imit edWarranty
Accessory Limited Warranty
Rust Perf orat ion L imit ed Warrant yWarrant y and Cust omer Relat ions
353
09/07/15 11:17:29 31SNC640_358
2010 Civic Hybrid
