2010 HONDA ACCORD COUPE engine coolant

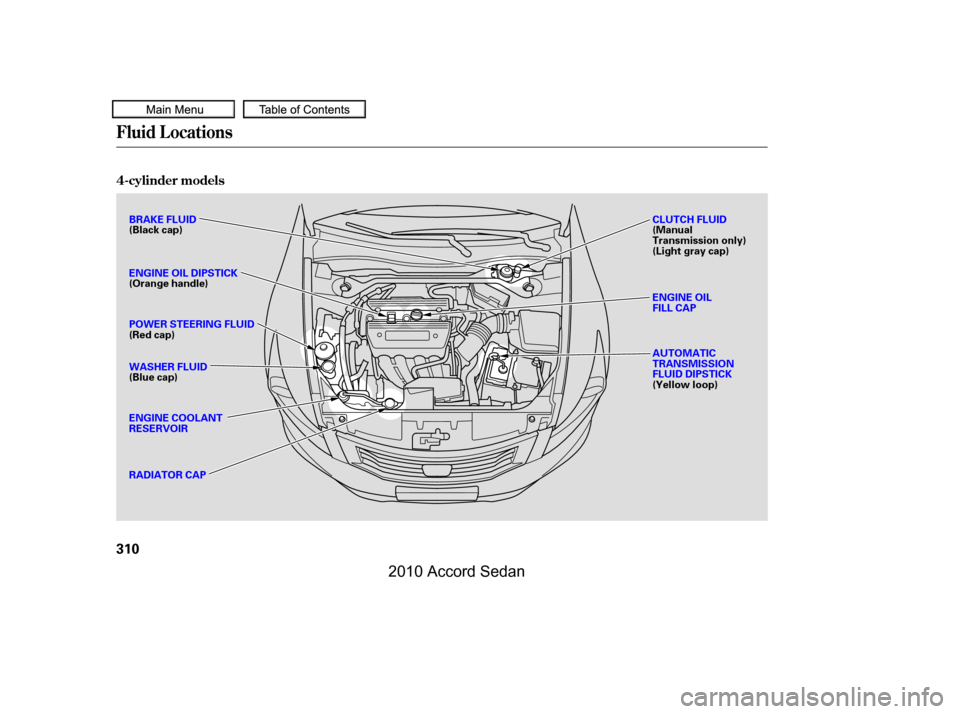

Fluid Locations
4-cylinder models
310
ENGINE OIL FILL CAP
CLUTCH FLUID (ManualTransmission only)(Light gray cap)
AUTOMATIC TRANSMISSIONFLUID DIPSTICK(Yellow loop)
BRAKE FLUID(Black cap)
ENGINE OIL DIPSTICK (Orange handle)
POWER STEERING FLUID (Red cap)
WASHER FLUID (Blue cap)
RADIATOR CAP
ENGINE COOLANT RESERVOIR
——
y
y
)y
y
2010 Accord Sedan

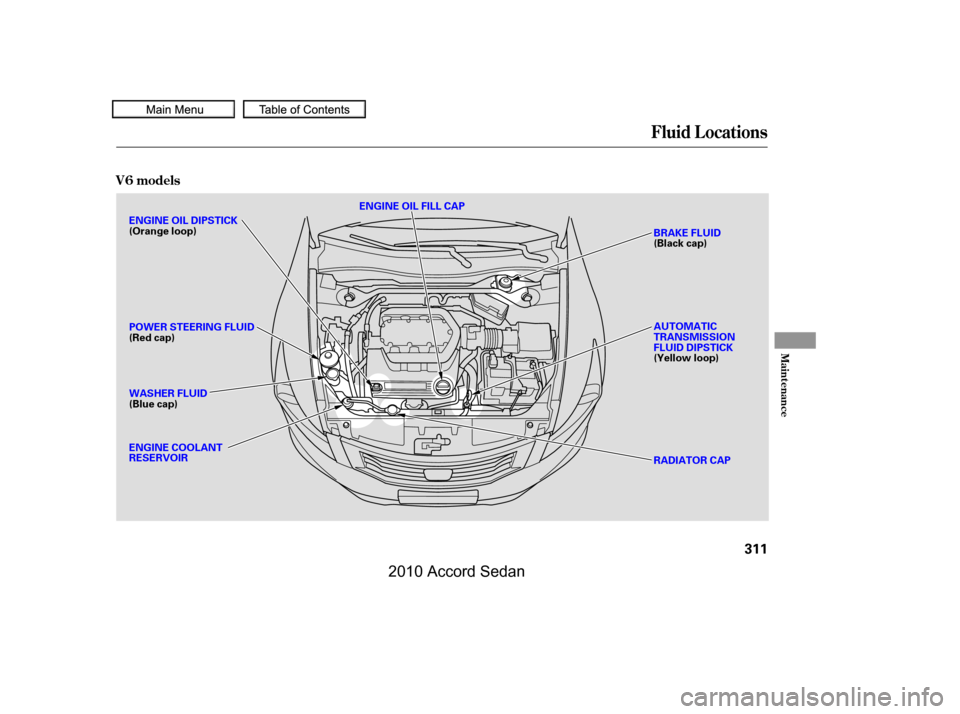

Fluid Locations
V6 models
Maint enance
311
ENGINE OIL FILL CAP
BRAKE FLUID (Black cap)
AUTOMATIC TRANSMISSIONFLUID DIPSTICK(Yellow loop)
RADIATOR CAP
ENGINE OIL DIPSTICK (Orange loop)
POWER STEERING FLUID (Red cap)
WASHER FLUID (Blue cap)
ENGINE COOLANT RESERVOIR
——
y
y
)y
y
2010 Accord Sedan

µµ
Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent distilled
water. Never add straight antif reeze
or plain water.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.
4-cylinder models only
A dding Engine Coolant
Engine Coolant
316

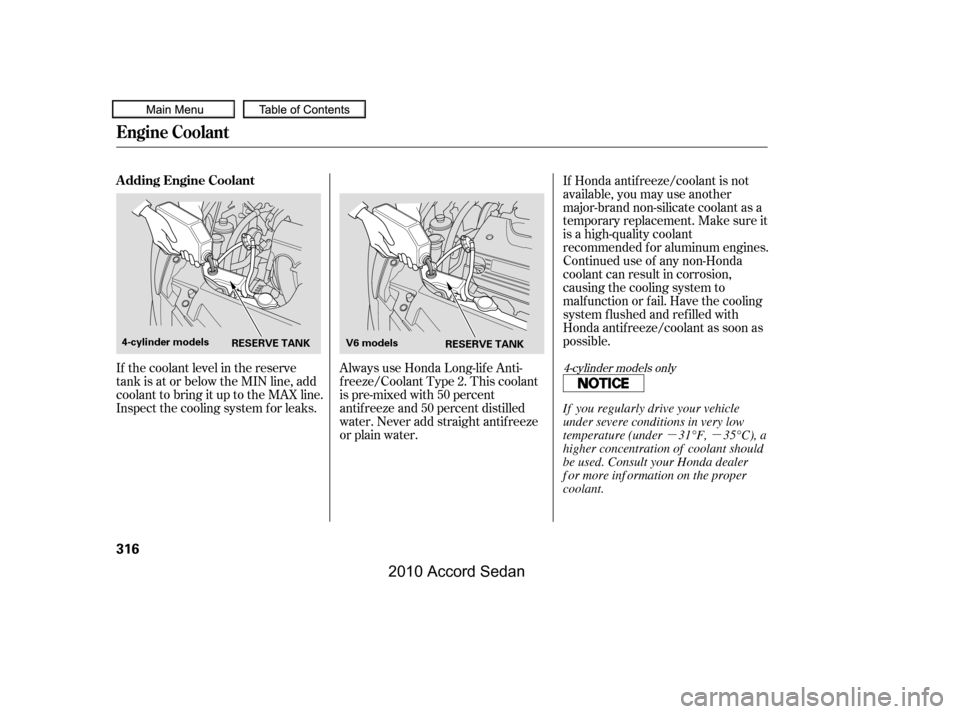

V6 modelsRESERVE TANKRESERVE TANK4-cylinder models
If you regularly drive your vehicle
under severe conditions in very low
temperature (under 31°F, 35°C), a
higher concentration of coolant should
be used. Consult your Honda dealer
f or more inf ormation on the proper
coolant.
——
y
y
)y
y
2010 Accord Sedan

The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spill immediately; it
could damage components in the
engine compartment.
Put the radiator cap back on, and
tighten it fully.
Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.
If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Remove the radiator cap by
pushingitdownandturningit
counterclockwise.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Make sure the engine and radiator
are cool.
4.
1.
2.
3.
5.
6.
Engine Coolant
Maint enance
317

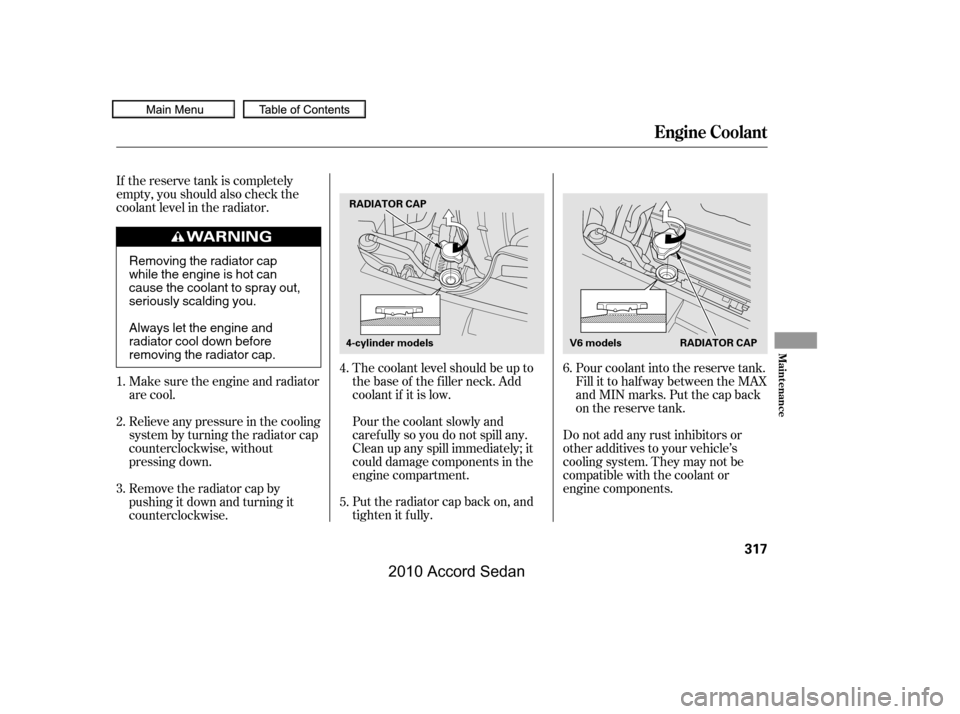

RADIATOR CAP
RADIATOR CAP
V6 models4-cylinder models
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
09/07/08 21:41:58 31TA5620_322
2010 Accord Sedan

Theheadlightswereproperlyaimed
when your vehicle was new. If you
regularly carry heavy items in the
trunk or pull a trailer, readjustment
may be required. Adjustments
should be done by your dealer or
another qualif ied technician.
Your vehicle has halogen headlight
bulbs. When replacing a bulb, handle
it by its base, and protect the glass
f rom contact with your skin or hard
objects. If you touch the glass, clean
it with denatured alcohol and a clean
cloth.
Open the hood.
To change a bulb on the
passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay.
1.
CONT INUED
Headlight A imingReplacing a Headlight Bulb
Lights
High Beam Headlight
Maint enance
325
STAY4-cylinder models
Halogen headlight bulbs get very hot
when lit. Oil, perspiration, or a scratch
on the glass can cause the bulb to
overheat and shatter.
——
y
y
)yy
2010 Accord Sedan

To change the passenger’s side
bulb, start the engine, turn the
steering wheel all the way to the
lef t, and turn of f the engine. To
change the driver’s side bulb, turn
the steering wheel to the right.
Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Turn on the headlights to test the
new bulb.
Reinstall the engine coolant
reserve tank.
Remove the electrical connector
f rom the bulb by pushing on the
tab to unlock it, then slide the
connector of f the bulb.
Remove the bulb by turning it
approximately one-quarter turn
counterclockwise.
Pull the inner f ender cover away
f rom the f ender and bumper.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.
Reinstall the air intake cover and
duct securely. Reinstall the
f astener and secure it by pushing
on the head until it locks.
6.
5.
3.
4.
5.
1.
2.
7.
4.
CONT INUED
Passenger’s side
Driver’s side on V6 models
L ow Beam Headlight
Lights
Maint enance
327
HOLDING CLIPSBULB
TAB
——
y
y
)yy
2010 Accord Sedan

Install the new bulb, and turn it
one-quarter turn clockwise to lock
it in place.
Push the electrical connector onto
the bulb.
Put the inner f ender cover in place.
Install the two holding clips. Lock
each one in place by pushing on
the center.
Turn on the headlights to test the
new bulb.
Open the hood.
To change the turn signal bulb on
the passenger’s side, remove the
engine coolant reserve tank by
pulling it out of its stay.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
To remove the burned out bulb,
push it in and turn it
counterclockwise until it unlocks.
1. 2.
8.
7.
6.
9.
3.
Lights
Replacing a Front T urn Signal/
Parking L ight Bulb
328
BULBSTAYV6 model is shown.
——
y
y
)yy
2010 Accord Sedan

Install the new bulb and turn it
clockwise to lock it in place.
Turn on the lights to make sure
the new bulb is working.
Reinstall the coolant reserve tank.
To change the bulb on the driver’s
side, start the engine, turn the
steering wheel all the way to the
right, then turn of f the engine. To
change the bulb on the passenger’s
side, turn the steering wheel to the
lef t.
Insert the socket back into the
headlight assembly. Turn it
clockwise to lock it in place.
Use a f lat-tip screwdriver to
remove the two holding clips f rom
the inner f ender.
Remove the socket from the
headlight assembly by turning it
one-quarter turn counterclockwise.
Pull the burned out bulb straight
out of its socket.
Push the new bulb straight into
the socket until it bottoms.
6.
1.
7.
5.
4.
2.
3.
4.
CONT INUED
Passenger’s side
Lights
Replacing a Front Side Marker
Light Bulb
Maint enance
329
HOLDING CLIPSBULB
——
y

y
)yy
2010 Accord Sedan
