Fuse/Relay
LocationFuse Amp
RatingPower Circuits
58 — Not used
59 Half ISO relay Left halogen headlamp relay
60 Half ISO relay Right halogen headlamp relay
61 — Not used
62 — Not used
63 Half ISO relay Daytime running lamps (DRL) 1
relay
64 Half ISO relay DRL 2 high beam control relay
65 G8VA relay Run/start relay (PEPS)
66 — Not used
*Mini fuse **Cartridge fuse
CHANGING THE TIRES
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensor, refer toChanging tires with TPMSin theTires,
Wheels and Loadingchapter. Replace the spare tire with a road tire as
soon as possible.
WARNING:The use of tire sealants may damage your Tire
Pressure Monitoring System and should not be used.
WARNING:Refer toTire Pressure Monitoring System (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Roadside Emergencies
287
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

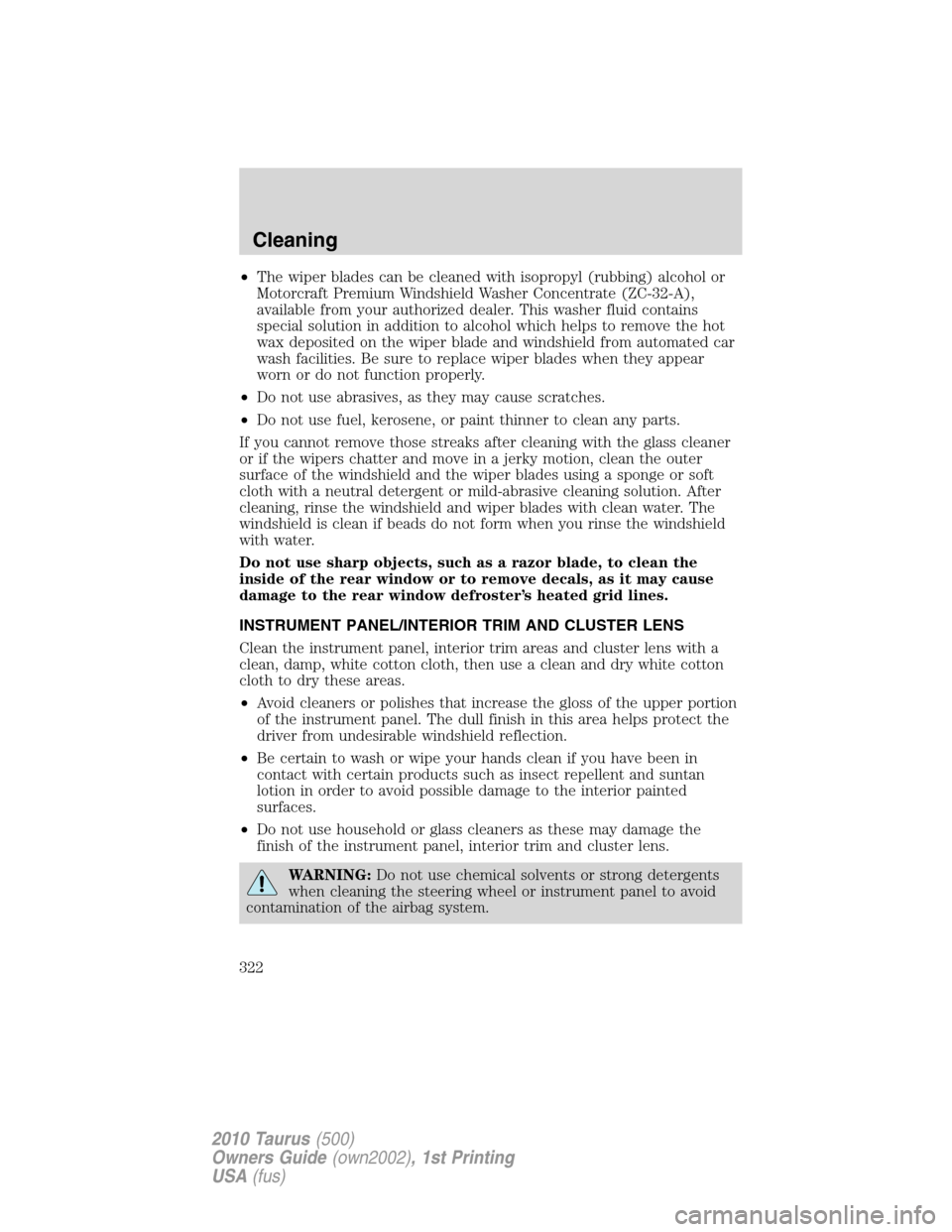

•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
Motorcraft Premium Windshield Washer Concentrate (ZC-32-A),
available from your authorized dealer. This washer fluid contains
special solution in addition to alcohol which helps to remove the hot
wax deposited on the wiper blade and windshield from automated car
wash facilities. Be sure to replace wiper blades when they appear
worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL/INTERIOR TRIM AND CLUSTER LENS
Clean the instrument panel, interior trim areas and cluster lens with a
clean, damp, white cotton cloth, then use a clean and dry white cotton
cloth to dry these areas.
•Avoid cleaners or polishes that increase the gloss of the upper portion
of the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
•Do not use household or glass cleaners as these may damage the
finish of the instrument panel, interior trim and cluster lens.
WARNING:Do not use chemical solvents or strong detergents
when cleaning the steering wheel or instrument panel to avoid
contamination of the airbag system.
Cleaning
322
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID (EXCEPT SHO ENGINE)
Refer toscheduled maintenance information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
Maintenance and Specifications
354
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Cargo net ...................................108
CD ................................................30
Cell phone use ..............................8
Changing a tire .........................287
Child safety seats ......................190
attaching with tether
straps .......................................197
in front seat ............................190
in rear seat ..............................190
LATCH .....................................194
recommendations ...................188
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............320
instrument panel ....................322
interior .....................................323
plastic parts ............................321
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................321
Climate control
(see Air conditioning
or Heating) ......................48, 51, 53
Clock adjust
AM/FM .......................................31
Collision Warning System .........260
Compass, electronic ....................76
calibration .................................77
set zone adjustment .................76
Console
overhead ....................................75
Controls
power seat ...............................145
steering column ........................95
Coolant
checking and adding ..............336refill capacities ................340, 360
specifications ..........................360
Cross Traffic Alert ....................263
Cruise control
(see Speed control) ....................84
Cupholder(s) .............................156
Customer Assistance ................277
Ford Extended Service
Plan ..........................................369
Getting assistance outside the
U.S. and Canada .....................315
Getting roadside assistance ...277
Getting the service you
need .........................................311
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ................................63
Defrost
rear window and rearview
mirrors .......................................51
windshield ...........................51, 53
Dipstick
automatic transmission
fluid ..........................................355
engine oil .................................331
Doors
central unlocking ....................112
Driving under special
conditions ..........................271, 274
sand .........................................272
snow and ice ...........................275
through water .................273, 276
E
Electronic message center .........19
Index
373
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Occupant Classification
Sensor ......................................159
warning light and chime ........166
Safety restraints - LATCH
anchors ......................................194
Safety seats for children ..........190
Safety Compliance
Certification Label ....................364
Satellite Radio (if equipped) .....30
Satellite Radio Information ........44
Seats ..........................................140
child safety seats ....................190
climate control ..................51, 149
easy access/easyout
feature .....................................151
front seats .......................143, 148
heated ..............................147, 157
memory seat ...................122, 150
SecuriCode keyless entry
system ........................................127
SecuriLock passive anti-theft
system ........................................129
Servicing your vehicle ..............326
Setting the clock .........................31
SOS Post Crash Alert ...............185
Spare tire
(see Changing the Tire) ...........290
Spark plugs,
specifications .....................359, 363
Specification chart,
lubricants ...................................360
Speed control ..............................84
Starting your vehicle ........234–236
jump starting ..........................304
push button start system .......237Steering wheel
controls ......................................95
tilting .........................................74
Stereo
6-CD in dash .............................30
CD-MP3 .....................................30
SYNC
..........................................47
T
Temporary mobility kit .............294
Tilt steering wheel ......................74
Tire Pressure Monitoring
System (TPMS)
Roadside Emergencies ...........287
Tires, Wheels and Loading ....218
Tires ...........................203–204, 287
alignment ................................211
care ..........................................207
changing ..........................287, 290
checking the pressure ............207
inflating ...................................205
label .........................................217
replacing ..................................209
rotating ....................................211
safety practices .......................210
sidewall information ...............213
snow tires and chains ............222
spare tire .................................288
Temporary mobility kit ..........294
terminology .............................204
tire grades ...............................204
treadwear ........................203, 208
Towing .......................................230
recreational towing .................232
trailer towing ..........................230
wrecker ....................................309
Transaxle
fluid, refill capacities ..............360
lubricant specifications ..........360
Index
377
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
