2010 FORD TAURUS engine coolant

indicate that the vehicle is not ready for I/M testing. To determine if the
vehicle is ready for I/M testing, turn the ignition key to the on position
for 15 seconds without cranking the engine. If the service engine
soon
indicator blinks eight times, it means that the vehicle is not
ready for I/M testing; if the service engine soon
indicator stays on
solid, it means that the vehicle is ready for I/M testing.
The OBD-II system is designed to check the emission control system
during normal driving. A complete check may take several days. If the
vehicle is not ready for I/M testing, the following driving cycle consisting
of mixed city and highway driving may be performed:
15 minutes of steady driving on an expressway/highway followed by
20 minutes of stop-and-go driving with at least four 30-second idle
periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
POWER STEERING FLUID (EXCEPT SHO ENGINE)
Refer toscheduled maintenance information.
1. Start the engine and let it run
until it reaches normal operating
temperature (the engine coolant
temperature gauge indicator will be
near the center of the normal area
between H and C).
2. While the engine idles, turn the
steering wheel left and right several
times.
3. Turn the engine off.
4. Check the fluid level in the reservoir. It should be between the MIN
and MAX lines. Do not add fluid if the level is in this range.
5. If the fluid is low, add fluid in small amounts, continuously checking
the level until it reaches the range between the MIN and MAX lines. Be
sure to put the cap back on the reservoir. Refer toMaintenance
product specifications and capacitiesin this chapter for the proper
fluid type.
Maintenance and Specifications
354
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Engine oil 5.5 quarts (5.2L)•Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil (US)
•Motorcraft SAE 5W-20
Full Synthetic Motor Oil
(US)
•Motorcraft SAE 5W-20
Super Premium Motor
Oil (Canada)
•Motorcraft SAE 5W-20
Synthetic Motor Oil
(Canada)
3
•XO-5W20-QSP (US)
•XO-5W-20-QFS (US)
•CXO-5W20- LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and API
Certification Mark
Engine coolant11.1 quarts
(10.5L)
Motorcraft Specialty
Green Engine Coolant
4
VC-10-A (US)
CVC -10-A (Canada) /
WSS-M97B55-A 11.4 quarts
(10.8L) – SHO
Power steering fluid
(except SHO engine)Between MAX and
MIN on reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Windshield washer fluidTop-off fluid as
neededMotorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Maintenance and Specifications
361
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

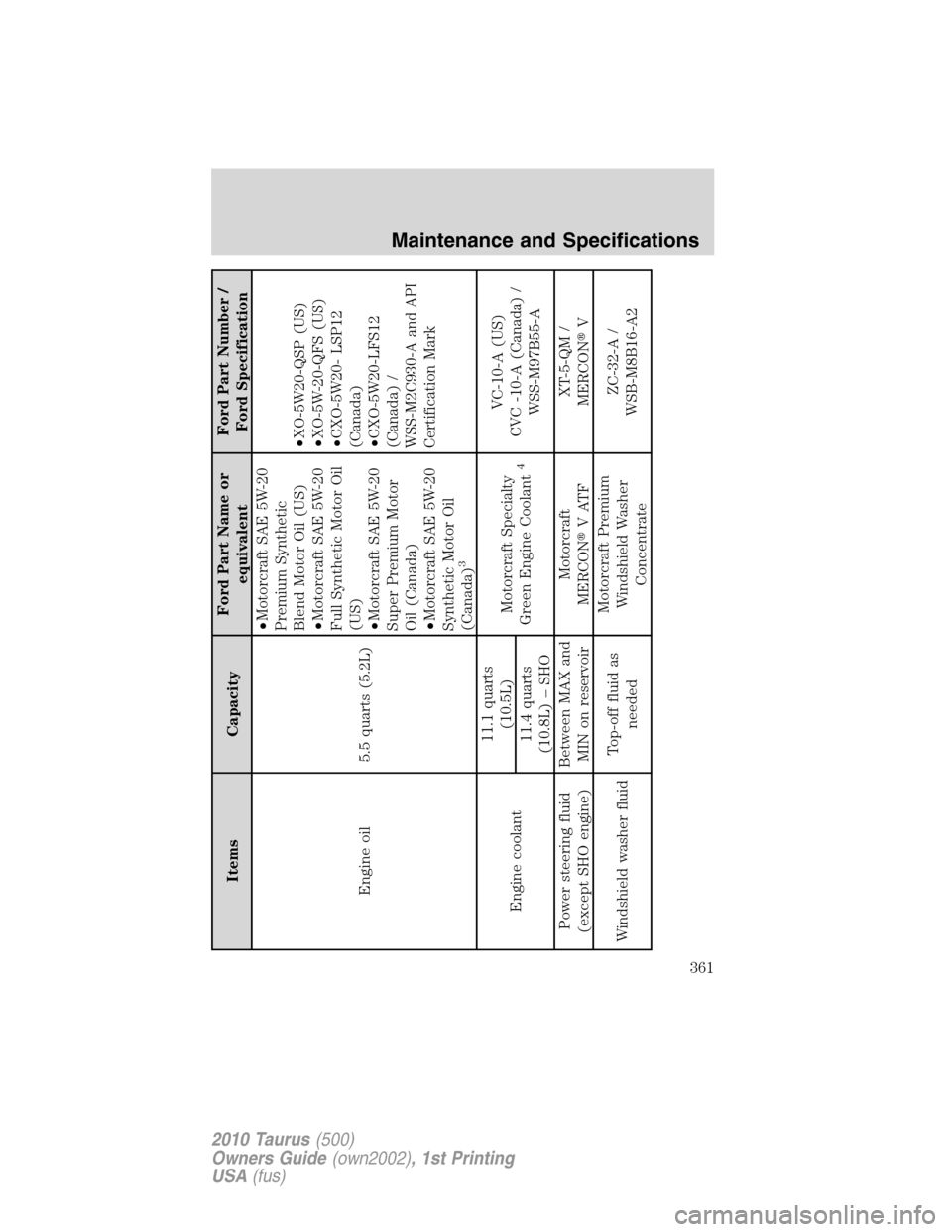

Items CapacityFord Part Name or
equivalentFord Part Number /
Ford Specification
Fuel tank19.0 gallons
(71.9 L)——
1Approximate dry fill capacity. Actual amount may vary during fluid changes.2Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.3Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.4Add the coolant type originally equipped in your vehicle. To determine your vehicle’s coolant type
(color), check your coolant reservoir.5See your authorized dealer for fluid level checking or filling.
Maintenance and Specifications
362
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ..........................82
Adaptive Cruise Control .............86
AdvanceTrac ..............................244
AdvanceTrac Sport Mode .........248
Air cleaner filter ...............357–359
Air conditioning ....................48, 51
automatic temperature
control system ..........................53
manual heating and air
conditioning system .................48
Airbag supplemental restraint
system ................171–172, 180, 182
and child safety seats ............173
description ..............172, 180, 182
disposal ....................................186
driver airbag ............174, 181, 183
indicator light .................180, 185
operation .................174, 181, 183
passenger airbag .....174, 181, 183
side airbag ...............................180
All Wheel Drive (AWD),
driving off road .........................269
Ambient mood/lighting ...............66
AM/FM .........................................30
Antifreeze
(see Engine coolant) ................336
Anti-lock brake system
(see Brakes) ..............................242
Anti-theft system ..............129, 137
arming the system ..................138
disarming a triggered
system .....................................139
triggering .................................139
Audio system (see Radio) .........30Automatic transaxle
fluid, refill capacities ..............360
fluid, specification ..................360
Automatic transmission
driving an automatic
overdrive .........................251, 254
fluid, adding ............................355
fluid, checking ........................355
Selectshift (SST) ....................255
Auxiliary input jack (Line in) ....39
B
Battery .......................................334
acid, treating emergencies .....334
jumping a disabled battery ....304
maintenance-free ....................334
replacement, specifications ...359
servicing ..................................334
Belt-Minder
.............................167
Blind Spot Information
System .......................................263
Booster seats .............................199
Brakes ........................................241
anti-lock ...................................242
anti-lock brake system (ABS)
warning light ...........................242
fluid, checking and adding ....355
fluid, refill capacities ..............360
fluid, specifications .................360
lubricant specifications ..........360
parking ....................................243
shift interlock ..........................250
Bulbs ............................................67
C
Capacities for refilling fluids ....360
Car2U garage door opener .......102
Cargo cover .................................82
Index
372
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Cargo net ...................................108
CD ................................................30
Cell phone use ..............................8
Changing a tire .........................287
Child safety seats ......................190
attaching with tether
straps .......................................197
in front seat ............................190
in rear seat ..............................190
LATCH .....................................194
recommendations ...................188
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............320
instrument panel ....................322
interior .....................................323
plastic parts ............................321
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................321
Climate control
(see Air conditioning
or Heating) ......................48, 51, 53
Clock adjust
AM/FM .......................................31
Collision Warning System .........260
Compass, electronic ....................76
calibration .................................77
set zone adjustment .................76
Console
overhead ....................................75
Controls
power seat ...............................145
steering column ........................95
Coolant
checking and adding ..............336refill capacities ................340, 360
specifications ..........................360
Cross Traffic Alert ....................263
Cruise control
(see Speed control) ....................84
Cupholder(s) .............................156
Customer Assistance ................277
Ford Extended Service
Plan ..........................................369
Getting assistance outside the
U.S. and Canada .....................315
Getting roadside assistance ...277
Getting the service you
need .........................................311
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ................................63
Defrost
rear window and rearview
mirrors .......................................51
windshield ...........................51, 53
Dipstick
automatic transmission
fluid ..........................................355
engine oil .................................331
Doors
central unlocking ....................112
Driving under special
conditions ..........................271, 274
sand .........................................272
snow and ice ...........................275
through water .................273, 276
E
Electronic message center .........19
Index
373
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Emergencies, roadside
jump-starting ..........................304
running out of fuel .........303, 347
Emission control system ..........351
Engine ........................................363
cleaning ...................................320
coolant .....................................336
fail-safe cooling .......................341
idle speed control ...................334
lubrication specifications .......360
refill capacities ........................360
service points ..................328–329
Engine block heater .................240
Engine oil ..................................331
change oil soon warning,
message center .......................331
checking and adding ..............331
dipstick ....................................331
filter, specifications ........333, 359
recommendations ...................333
refill capacities ........................360
specifications ..........................360
Event data recording ....................7
Exhaust fumes ..........................239
F
Fail safe cooling ........................341
Fleet MyKey programming ......134
Fluid capacities .........................360
Four-Wheel Drive vehicles
driving off road .......................270
Fuel ............................................342
calculating fuel
economy ............................21, 348
cap ...........................................344
capacity ...................................360
choosing the right fuel ...........345comparisons with EPA fuel
economy estimates .................351
detergent in fuel .....................346
filler funnel .............................347
filling your vehicle with
fuel ...........................342, 344, 348
filter, specifications ........342, 359
improving fuel economy ........348
octane rating ...................346, 363
quality ......................................346
running out of fuel .........303, 347
safety information relating to
automotive fuels .....................342
Fuses ..........................................279
G
Garage door opener ....................97
Gas cap (see Fuel cap) ............344
Gas mileage
(see Fuel economy) .................348
Gauges .........................................17
H
Hazard flashers .........................278
Headlamps ...................................59
aiming ........................................64
autolamp system .......................59
bulb specifications ....................67
daytime running lights .............63
flash to pass ..............................63
high beam .................................60
replacing bulbs .........................68
turning on and off ....................59
Heating
heating and air conditioning
system ...........................48, 51, 53
Homelink wireless control
system ..........................................98
Index
374
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
