AUXILIARY POWER POINT (12VDC)
Power outlets are designed for accessory plugs only. Do not insert
any other object in the power outlet as this will damage the
outlet and blow the fuse. Do not hang any type of accessory or
accessory bracket from the plug. Improper use of the power
outlet can cause damage not covered by your warranty.
Auxiliary power points can be found in the following locations:
•On the instrument panel under a panel door (press the door to open)
•In the center console utility compartment
•On the rear of the center console accessible from the rear seat
Do not use the power point for operating the cigarette lighter element (if
equipped).
To prevent the fuse from being blown, do not use the power point(s)
over the vehicle capacity of 12 VDC/180W. If the power point or cigar
lighter socket is not working, a fuse may have blown. Refer toFuses and
relaysin theRoadside Emergencieschapter for information on
checking and replacing fuses.
To have full capacity usage of your power point, the engine is required to
be running to avoid unintentional discharge of the battery. To prevent
the battery from being discharged:
•do not use the power point longer than necessary when the engine is
not running,
•do not leave battery chargers, video game adapters, computers and
other devices plugged in overnight or when the vehicle is parked for
extended periods.
Always keep the power point caps closed when not being used.
POWER WINDOWS
WARNING:Do not leave children unattended in the vehicle and
do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and ensure that children and/or
pets are not in the proximity of the window openings.
Driver Controls
79
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Resuming the set speed
Press and release the RESUME
control. This will automatically
return the vehicle to the previously
set speed. The set speed will display
continuously in the message center
while ACC is active.
Note:RESUME should only be used
if the driver is aware of the set
speed and intends to return to it.
Low speed automatic cancellation
ACC is not functional at vehicle speeds below 18 mph (30 km/h). Once
the vehicle speed drops below 18 mph (30 km/h), an audible alarm will
sound, the head’s up display will flash and the automatic braking will be
released.
Hilly condition usage
It is recommended that the driver select a lower gear position when ACC
is active in situations such as prolonged downhill driving on steep grades
(i.e., driving in mountainous areas). In these situations, additional engine
braking is needed to reduce the load on the vehicle’s regular brake
system to prevent them from overheating. For more information,
referenceAutomatic transmission operationin theDrivingchapter.
Note:If ACC is applying brakes for an extended period of time, an
audible alarm will sound, the head’s up display will flash and ACC will
shut down. This is to allow the brakes to cool down. When the brakes
have cooled down, the ACC will again function normally.
Driver Controls
91
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

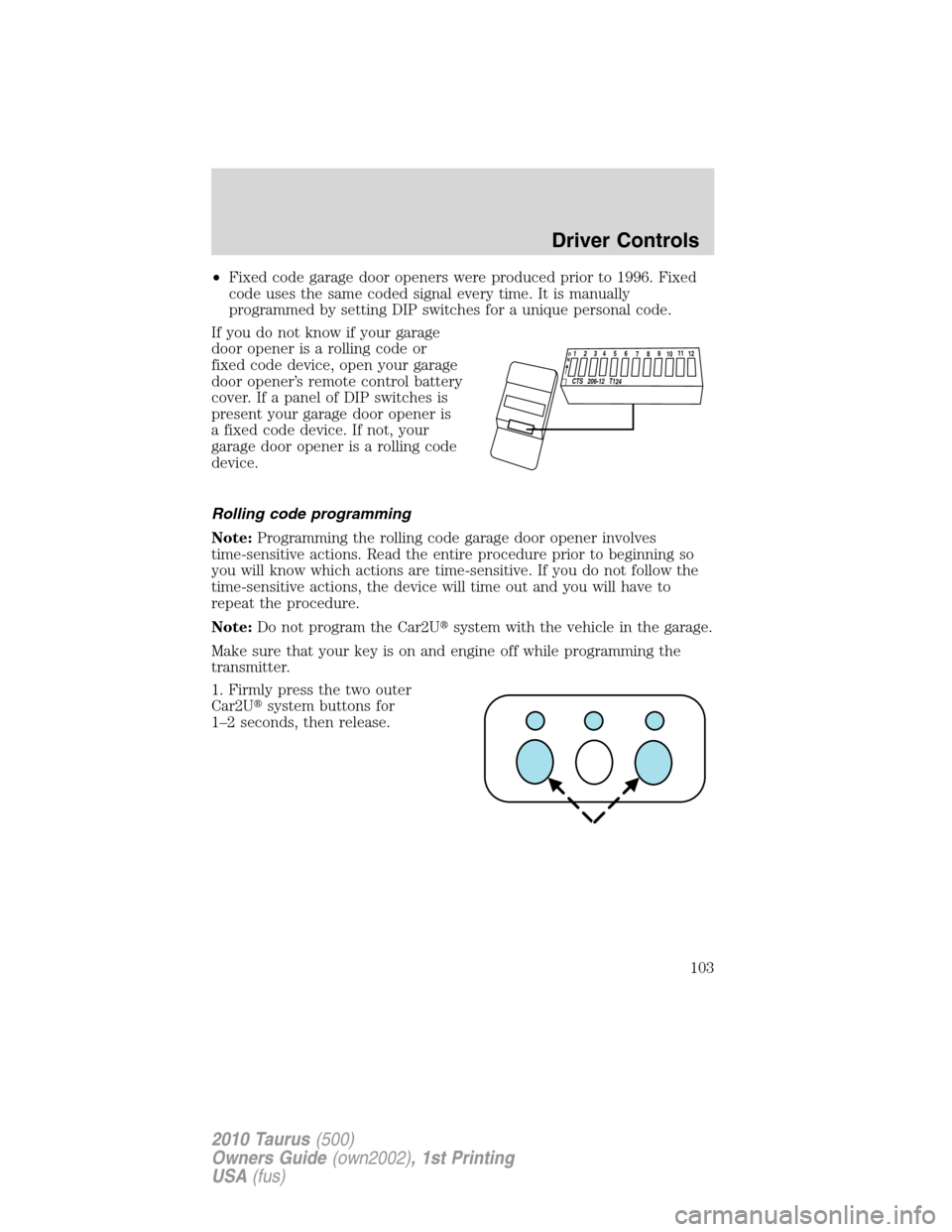

•Fixed code garage door openers were produced prior to 1996. Fixed
code uses the same coded signal every time. It is manually
programmed by setting DIP switches for a unique personal code.
If you do not know if your garage
door opener is a rolling code or
fixed code device, open your garage
door opener’s remote control battery
cover. If a panel of DIP switches is
present your garage door opener is
a fixed code device. If not, your
garage door opener is a rolling code
device.
Rolling code programming
Note:Programming the rolling code garage door opener involves
time-sensitive actions. Read the entire procedure prior to beginning so
you will know which actions are time-sensitive. If you do not follow the
time-sensitive actions, the device will time out and you will have to
repeat the procedure.
Note:Do not program the Car2U
system with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. Firmly press the two outer
Car2U
system buttons for
1–2 seconds, then release.
12
34
5
6789
1
01
1
1
2
C
TS
20
6-12 T
124
O
N
Driver Controls
103
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

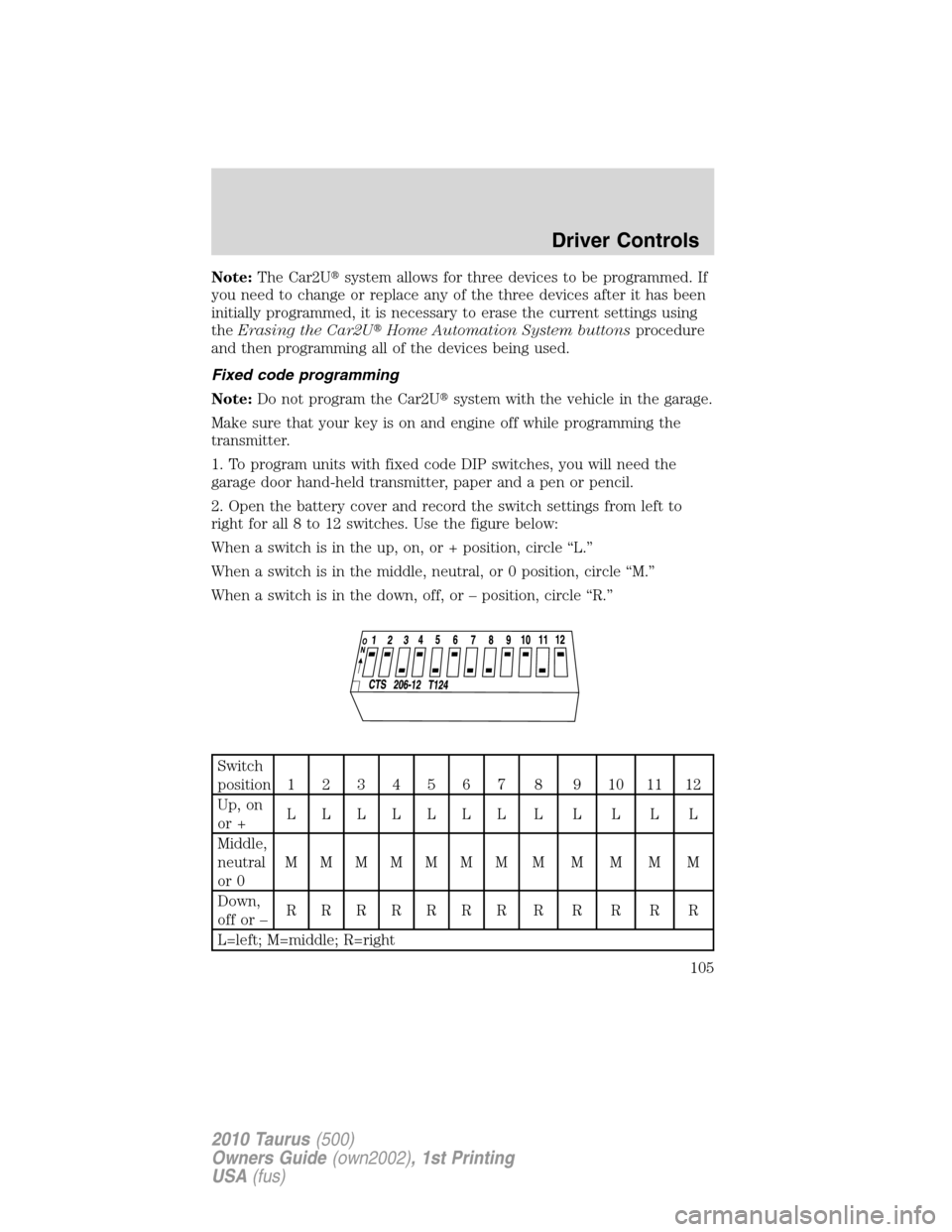

Note:The Car2U
system allows for three devices to be programmed. If
you need to change or replace any of the three devices after it has been
initially programmed, it is necessary to erase the current settings using
theErasing the Car2U
Home Automation System buttonsprocedure
and then programming all of the devices being used.
Fixed code programming
Note:Do not program the Car2U
system with the vehicle in the garage.
Make sure that your key is on and engine off while programming the
transmitter.
1. To program units with fixed code DIP switches, you will need the
garage door hand-held transmitter, paper and a pen or pencil.
2. Open the battery cover and record the switch settings from left to
right for all 8 to 12 switches. Use the figure below:
When a switch is in the up, on, or + position, circle “L.”
When a switch is in the middle, neutral, or 0 position, circle “M.”
When a switch is in the down, off, or – position, circle “R.”
Switch
position1234567 8 9101112
Up, on
or +LLLLLLLLLLLL
Middle,
neutral
or 0MMMMMMMMMMMM
Down,
offor–RRRRRRRRRRRR
L=left; M=middle; R=right
Driver Controls
105
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

two-stage unlocking, refer to theCentral Unlocking/Two stage
unlockingsection earlier in this chapter.
To unlock all doors,enter the factory set code or your personal code,
then press the 3•4 control within five seconds.
Note:If equipped with Intelligent Access, if the Intelligent Access Key is
within 3 feet (1 meter) of the driver door, your keyless entry keypad
code will still function the same way, but the driver’s door will also
unlock with each keypad button press.
To open the trunk,enter the factory set code or your personal code,
then press the 5•6 control within five seconds.
To lock all doors,press and hold the 7•8 and the 9•0 at the same
time (with the driver’s door closed) for two seconds will lock all doors.
Yo udo notneed to enter the keypad code first.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded Integrated Keyhead Transmitter (IKT) or
Intelligent Access Keys programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a “no-start” condition.
Your vehicle comes with two coded Integrated Keyhead Transmitters or
Intelligent Access Keys; additional coded transmitters may be purchased
from your authorized dealer. The authorized dealer can program your
spare transmitters to your vehicle or you can program then yourself.
Refer toProgramming spare Integrated Keyhead Transmitters or
Programming Spare Intelligent Access Keysfor instructions on how to
program the coded key.
For Integrated Keyhead Transmitter (IKT), the Standard SecuriLock

keys without remote entry transmitter functionality can also be
purchased from your authorized dealer if desired.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
Locks and Security
129
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Anti-theft indicator
The anti-theft indicator is located in the instrument panel cluster.
•When the ignition is off, the
indicator will flash once every two
seconds to indicate the
SecuriLock
system is functioning
as a theft deterrent.
•When the ignition is on, the indicator will glow for three seconds to
indicate normal system functionality (IKT equipped vehicles only).
If a problem occurs with the SecuriLock
system, the indicator will flash
rapidly or glow steadily when the ignition is in the on position. If this
occurs, turn the ignition off then back to on to make sure there was no
electronic interference with the programmed key. If the vehicle doesn’t
start, try to start it with the 2nd programmed key and if successful
contact your authorized dealership for key replacement. If the indicator
still flashes rapidly or glows steadily, the vehicle will not start, contact
your authorized dealer as soon as possible for service (IKT equipped
vehicles only).
Automatic arming
The vehicle is armed immediately after switching the ignition to the off
position.
The theft indicator will flash every
two seconds to act as a theft
deterrent when the vehicle is
armed.
Automatic disarming
The vehicle is disarmed immediately after the ignition is turned on.
If equipped with IKTs, the theft indicator will illuminate for three
seconds and then go out. If the theft indicator stays on for an extended
period of time or flashes rapidly, contact your authorized dealer as soon
as possible.
Locks and Security
130
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

Replacement Integrated Keyhead Transmitters (IKT) and coded
keys or Intelligent Access Keys
Note:Your vehicle comes equipped with two Integrated Keyhead
Transmitters (IKTs) or two Intelligent Access Keys.
TheIntegrated Keyhead Transmitter (IKT)functions as both a
programmed ignition key that operates all the locks and starts the
vehicle, as well as a remote keyless entry transmitter. A maximum of
eight coded keys can be programmed to your vehicle; only four of these
eight coded keys can be IKTs with remote entry functionality.
TheIntelligent Access Keyfunctions as both a programmed key that
operates the driver door lock, activates Intelligent Access with Push
Button Start systems as well as a remote keyless entry transmitter. A
maximum of four Intelligent Access Keys can be programmed to your
vehicle.
If your programmed transmitters or standard SecuriLock
coded keys
(IKTs only) are lost or stolen and you don’t have an extra coded key, you
will need to have your vehicle towed to an authorized dealer. The key
codes need to be erased from your vehicle and new coded keys will need
to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare Integrated Keyhead Transmitter (IKT) keys
If you have a Intelligent Access Keys, refer toProgramming spare
intelligent access keysin this section.
You can program your own Integrated Keyhead Transmitters or standard
SecuriLock
coded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use Integrated Keyhead Transmitters (IKTs) or standard
SecuriLock
keys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
Locks and Security
131
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)

•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Please read and understand the entire procedure before you begin.
1. Insert the first previously programmedcoded keyinto the ignition.
2. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
3. Turn the ignition off and remove the firstcoded keyfrom the
ignition.
4. After three seconds but within ten seconds of turning the ignition off,
insert the second previouslycoded keyinto the ignition.
5. Turn the ignition from off to on. Keep the ignition on for at least three
seconds, but no more than 10 seconds.
6. Turn the ignition off and remove the second previously programmed
coded keyfrom the ignition.
7. After three seconds but within 20 seconds of turning the ignition off
and removing the previously programmedcoded key,insert the new
unprogrammed key (new key/valet key) into the ignition.
8. Turn the ignition from off to on. Keep the ignition on for at least six
seconds.
9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and will operate the remote entry system (if the new key is an
Integrated Keyhead Transmitter). The theft indicator light will illuminate
for three seconds and then go out to indicate successful programming.
If the key was not successfully programmed, it will not start your
vehicle’s engine and/or will not operate the remote entry features. The
theft indicator light may flash on and off. Wait 20 seconds and you may
repeat Steps 1 through 8. If failure repeats, bring your vehicle to your
authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait 20 seconds and
then repeat this procedure from Step 1.
Note:To program MyKey™ features, refer toMyKey™in this chapter.
Programming spare Intelligent Access Keys (if equipped)
If you have Integrated Keyhead Transmitters (IKT) or standard
SecuriLock
coded keys, refer toProgramming spare integrated
keyhead transmitter (IKT) keysin this section.
Locks and Security
132
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
