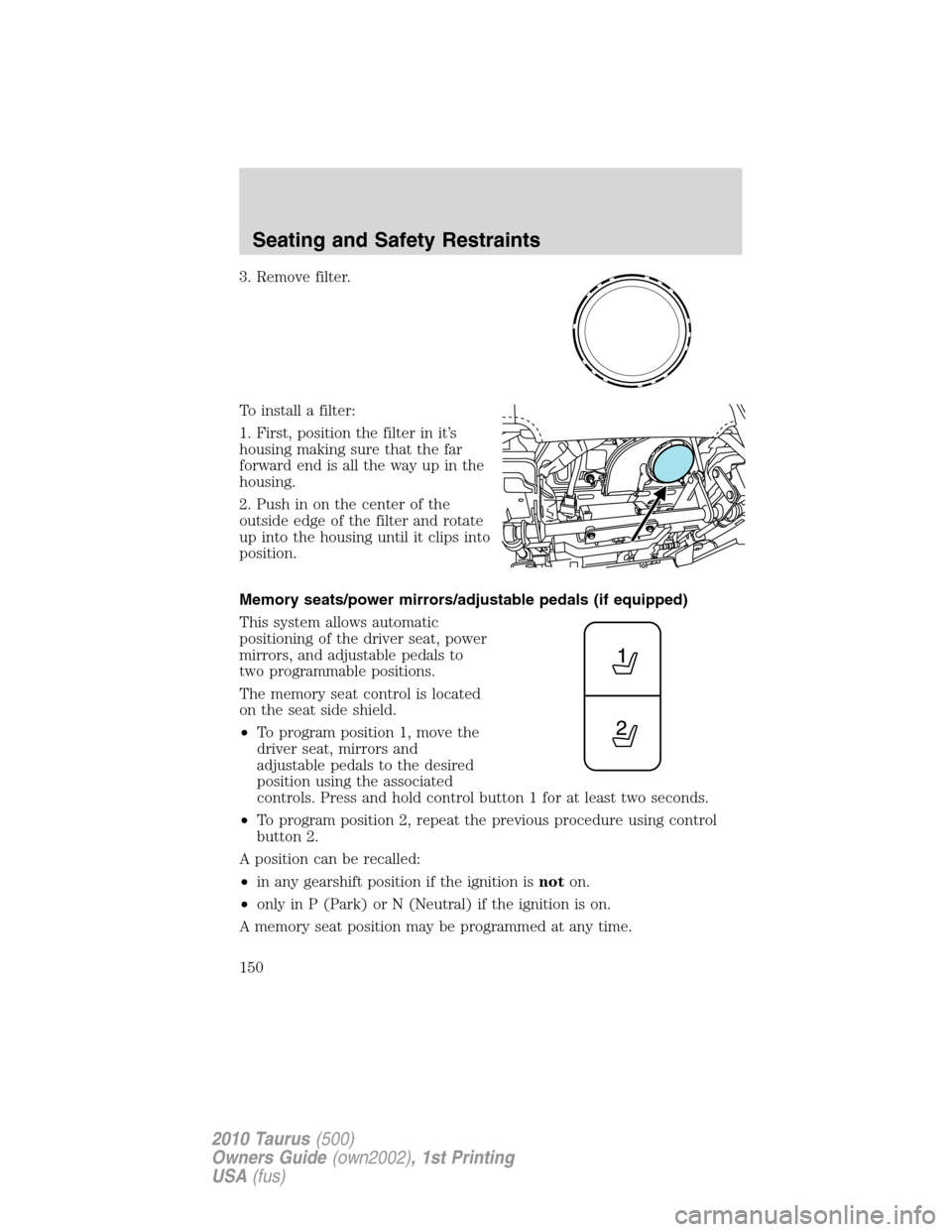

3. Remove filter.
To install a filter:
1. First, position the filter in it’s
housing making sure that the far
forward end is all the way up in the
housing.
2. Push in on the center of the
outside edge of the filter and rotate
up into the housing until it clips into
position.
Memory seats/power mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat, power
mirrors, and adjustable pedals to
two programmable positions.
The memory seat control is located
on the seat side shield.
•To program position 1, move the
driver seat, mirrors and
adjustable pedals to the desired
position using the associated
controls. Press and hold control button 1 for at least two seconds.
•To program position 2, repeat the previous procedure using control
button 2.
A position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
A memory seat position may be programmed at any time.
Seating and Safety Restraints
150
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
Cargo net ...................................108
CD ................................................30
Cell phone use ..............................8
Changing a tire .........................287
Child safety seats ......................190
attaching with tether
straps .......................................197
in front seat ............................190
in rear seat ..............................190
LATCH .....................................194
recommendations ...................188
Child safety seats - booster
seats ...........................................199
Cleaning your vehicle
engine compartment ..............320
instrument panel ....................322
interior .....................................323
plastic parts ............................321
washing ....................................318
waxing .....................................319
wheels ......................................319
wiper blades ............................321
Climate control
(see Air conditioning
or Heating) ......................48, 51, 53
Clock adjust
AM/FM .......................................31
Collision Warning System .........260
Compass, electronic ....................76
calibration .................................77
set zone adjustment .................76
Console
overhead ....................................75
Controls
power seat ...............................145
steering column ........................95
Coolant
checking and adding ..............336refill capacities ................340, 360
specifications ..........................360
Cross Traffic Alert ....................263
Cruise control
(see Speed control) ....................84
Cupholder(s) .............................156
Customer Assistance ................277
Ford Extended Service
Plan ..........................................369
Getting assistance outside the
U.S. and Canada .....................315
Getting roadside assistance ...277
Getting the service you
need .........................................311
Ordering additional owner’s
literature .................................316
Utilizing the
Mediation/Arbitration
Program ...................................315
D
Daytime running lamps
(see Lamps) ................................63
Defrost
rear window and rearview
mirrors .......................................51
windshield ...........................51, 53
Dipstick
automatic transmission
fluid ..........................................355
engine oil .................................331
Doors
central unlocking ....................112
Driving under special
conditions ..........................271, 274
sand .........................................272
snow and ice ...........................275
through water .................273, 276
E
Electronic message center .........19
Index
373
2010 Taurus(500)
Owners Guide(own2002), 1st Printing
USA(fus)
